Toyota Camry (NAP/SED/WG)

1992-09 → 1996-07 · chassis SXV10,MCV10 · catalogue 283350 · General

Discontinued model Data version 1997-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 3 illustrations

Illustrations

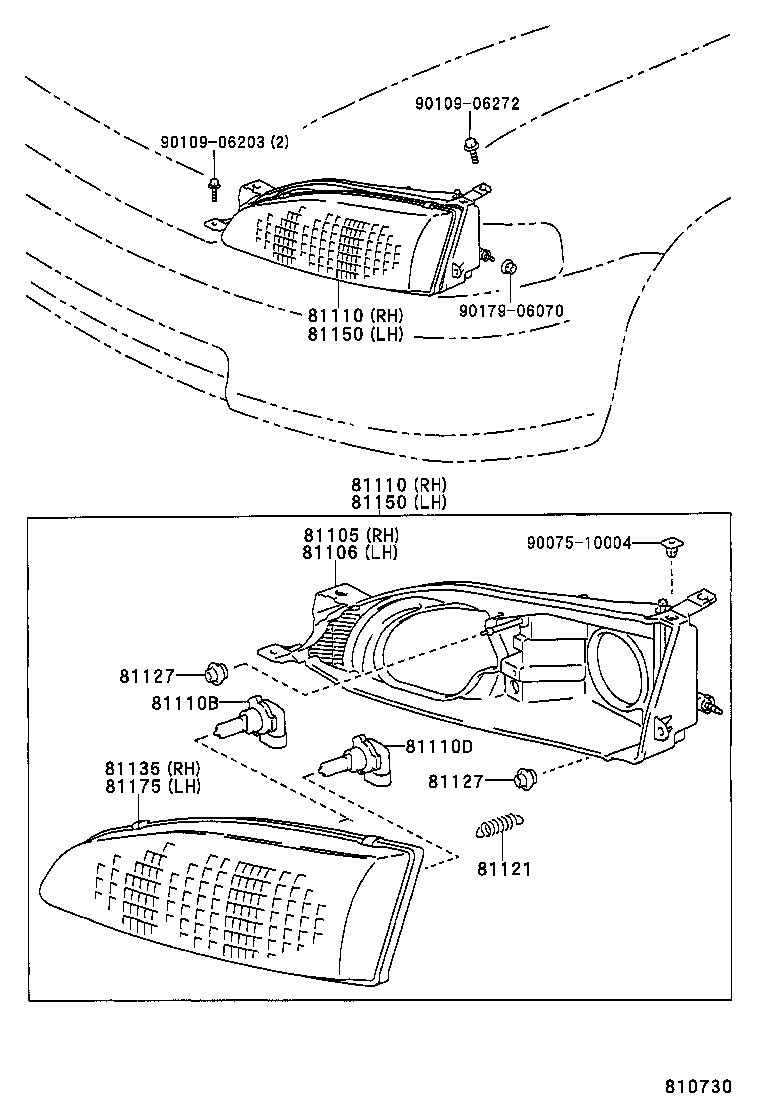

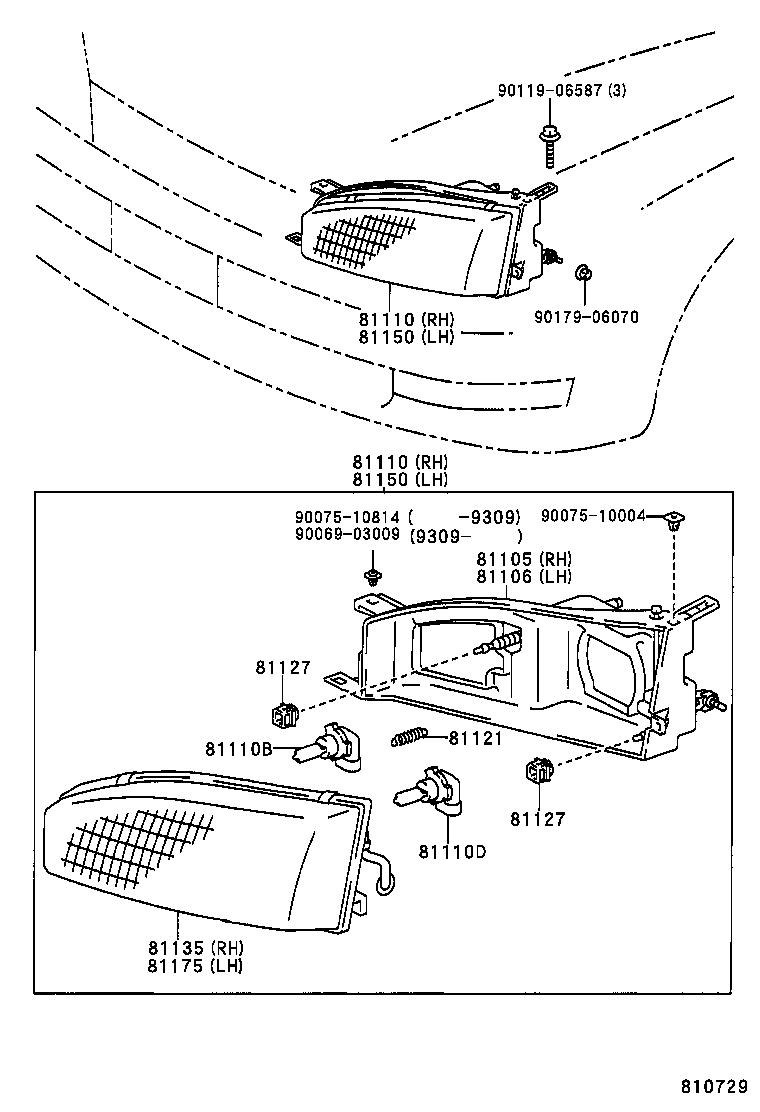

Figure 810732 810732 1992-09 → 1996-07 Figure 810729 810729 1993-09 → 1994-08 Figure 810730 810730 1994-08 → 1996-07

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81121 Spring, Headlamp Tension
81127 Bearing, Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81145A Adapter Assy
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
