Toyota Camry (NAP/SED/WG)

1992-09 → 1996-07 · chassis SXV10,MCV10 · catalogue 283350 · General

Discontinued model Data version 1997-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

15 part groups · 5 illustrations

Illustrations

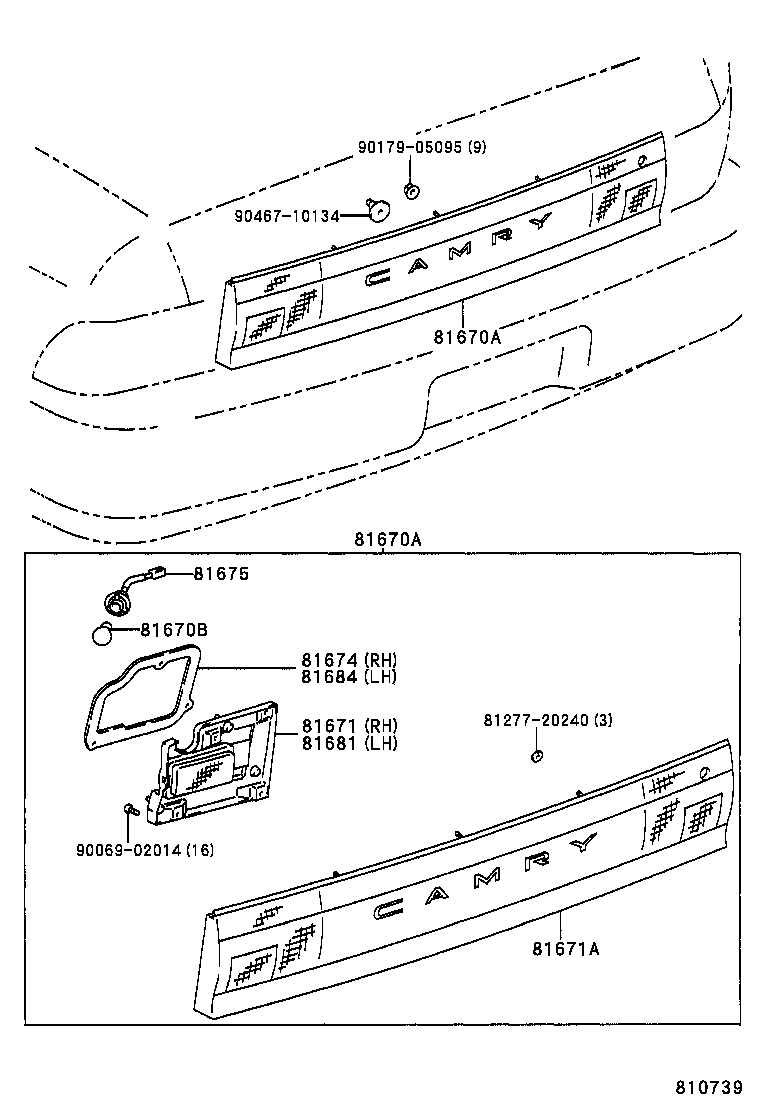

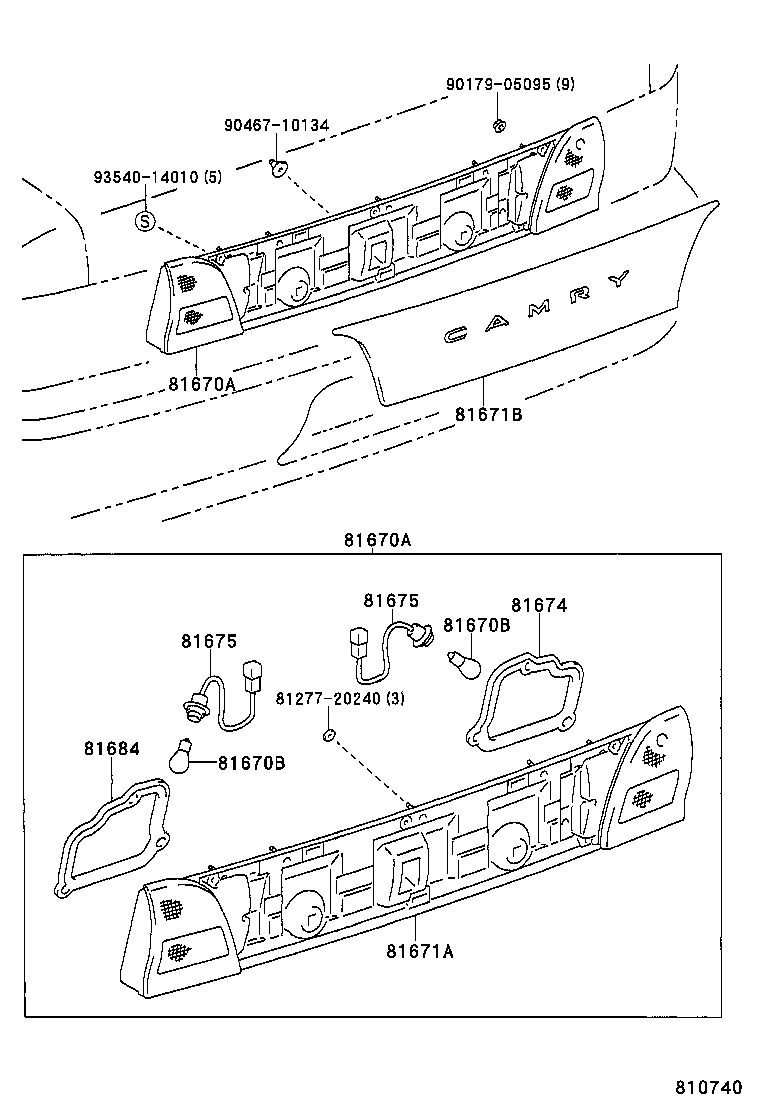

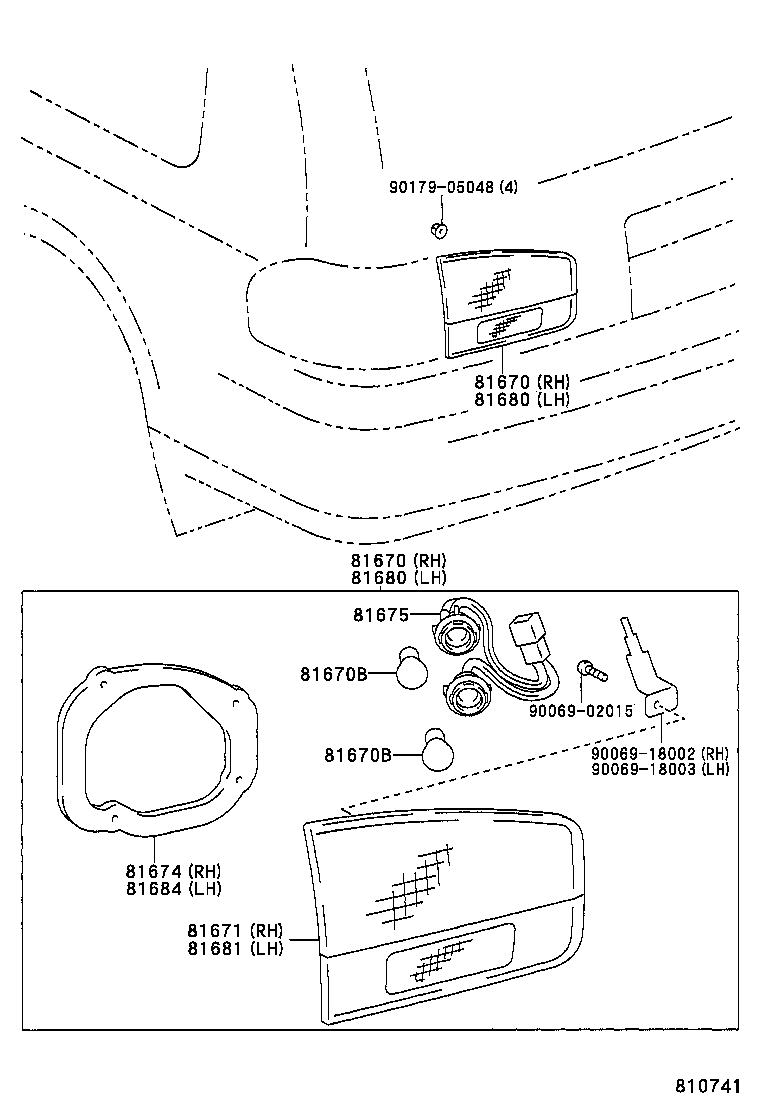

Figure 810738 810738 1993-09 → 1994-08 Figure 810739 810739 1993-09 → 1994-08 Figure 810740 810740 1994-08 → 1996-07 Figure 810741 810741 1992-09 → 1994-08 Figure 810741 810741 1994-08 → 1996-07

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670A Lamp Assy, Back-up
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81671A Lens & Body, Back-up Lamp
81671B Garnish, Back-door, Outside
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81676B Bracket, Back-up Lamp
81677B Bracket, Back-up Lamp
81678A Cover, Back UP Lamp, RH
81679A Cover, Back UP Lamp, LH
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
