Factory parts data · Europe

Toyota Camry (NAP/SED/WG)

1992-09 → 1996-07 · chassis SXV10,MCV10 · catalogue 283350 · General

Discontinued model Data version 1997-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

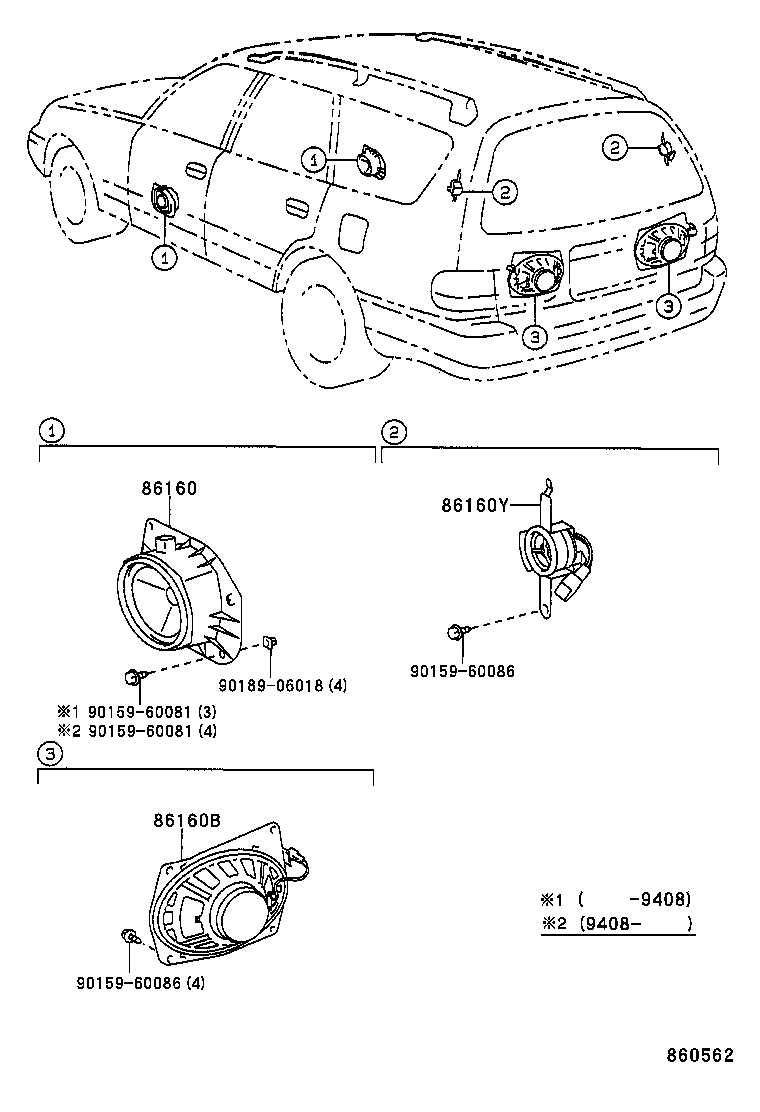

860561 1993-09 → 1996-07

860562 1992-09 → 1996-07

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2
86160Y	Speaker Assy, Rear NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
