Toyota Camry (NAP/SED/WG)

1992-09 → 1996-07 · chassis SXV10,MCV10 · catalogue 283350 · General

Discontinued model Data version 1997-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

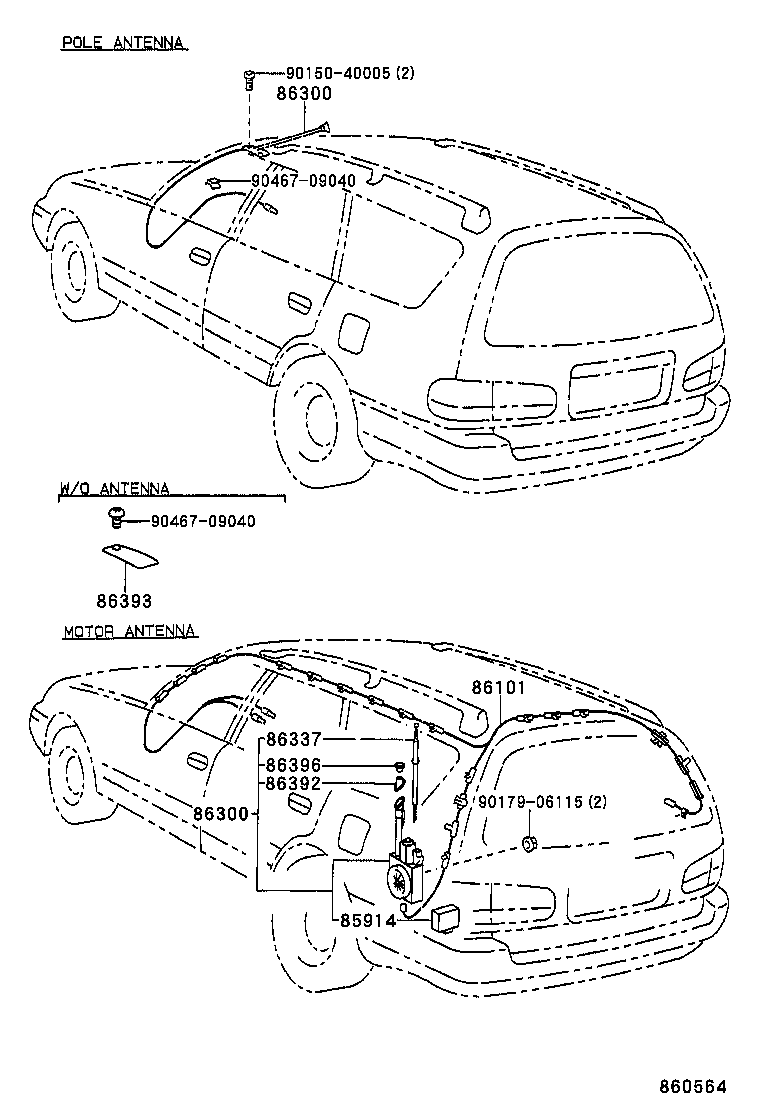

Figure 860563 860563 1993-09 → 1996-07 Figure 860564 860564 1992-09 → 1996-07

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86393 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
