Toyota Camry (NAP/SED/WG)

1992-09 → 1996-07 · chassis SXV10,MCV10 · catalogue 283350 · General

Discontinued model Data version 1997-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 3 illustrations

Illustrations

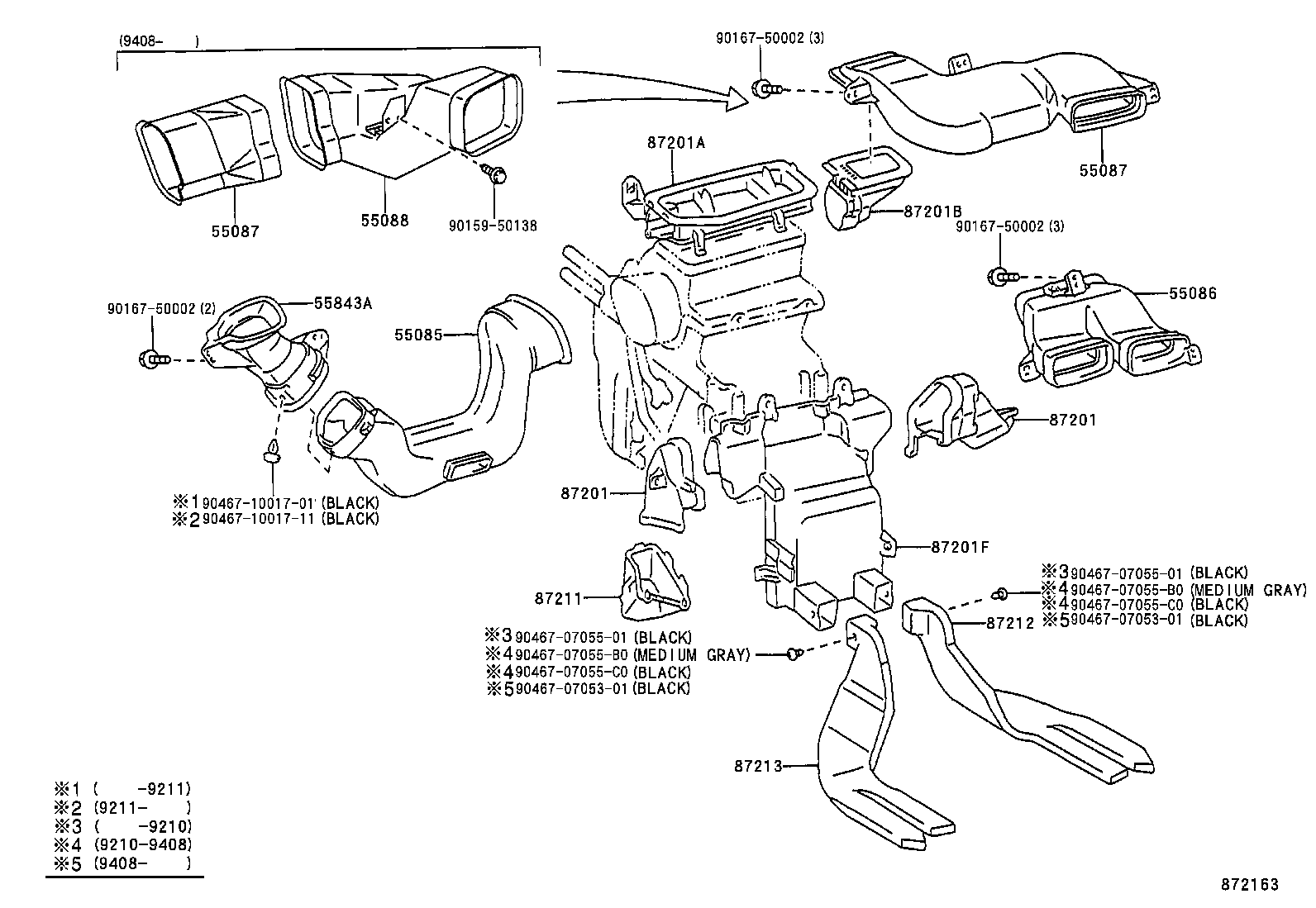

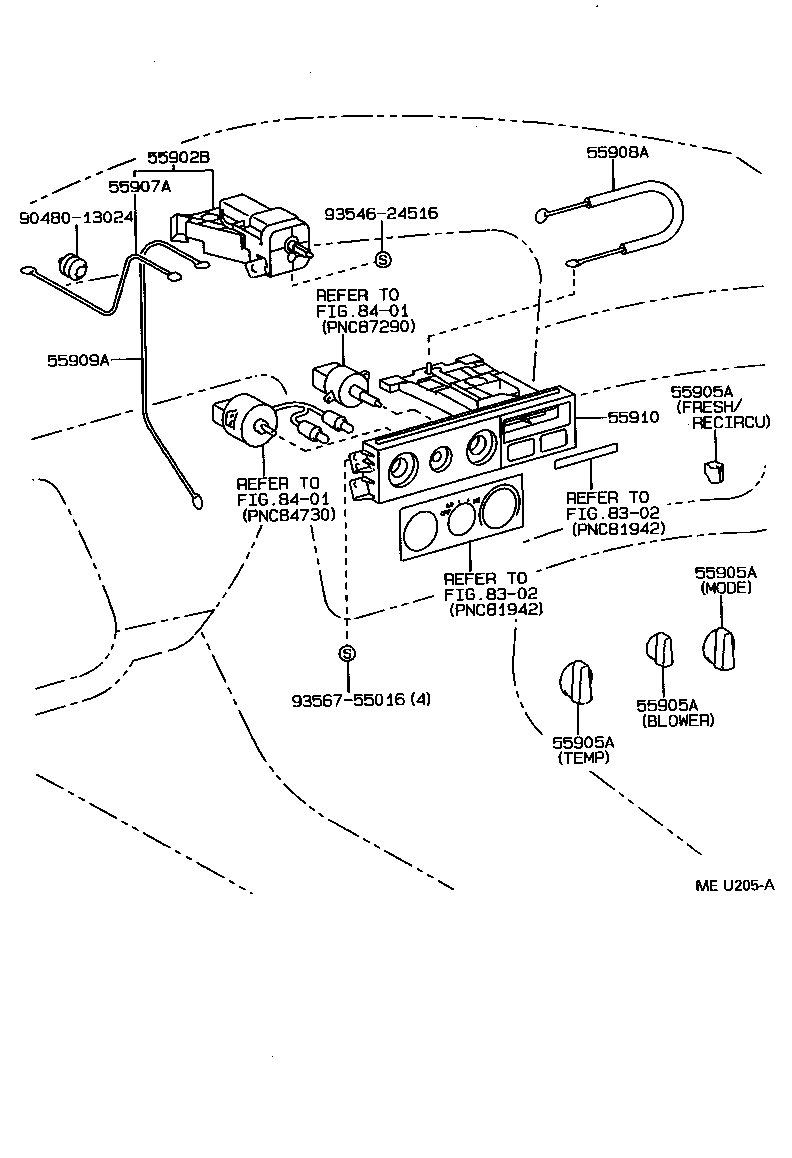

Figure 872162 872162 1993-09 → 1996-07 Figure MEU205A MEU205A 1992-09 → 1996-07 Figure 872163 872163 1992-09 → 1996-07

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55843A Duct, Heater TO Register, NO.1
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55900C Cap, Air Conditioner Control Bulb
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
