Toyota Camry

2015-04 → 2017-06 · chassis ASV50 · catalogue 283390 · General

Supported model Data version 2017-12

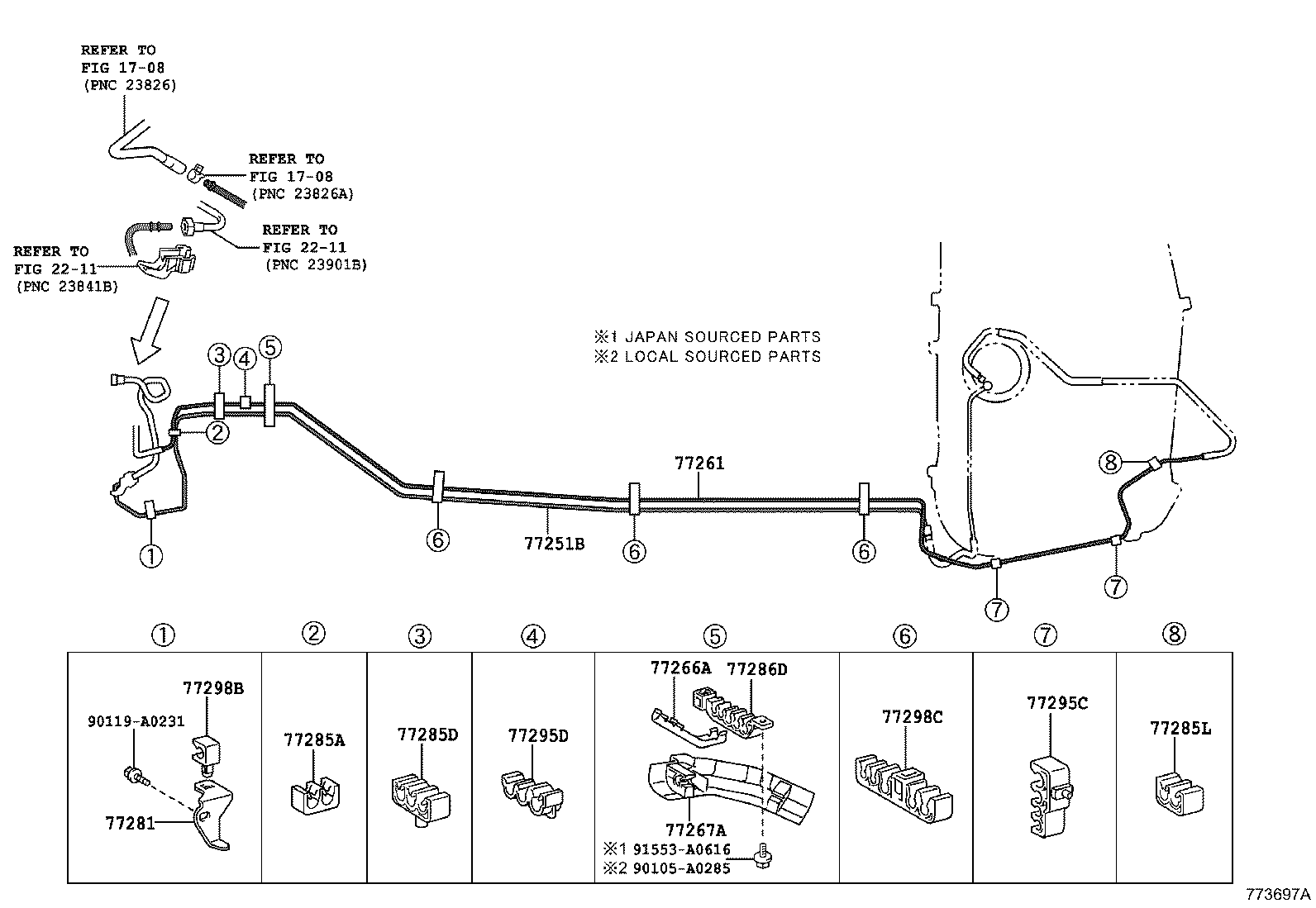

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

13 parts on this figure

Part number	Description	Fitment	Price
77251B — Tube, Fuel Main
77251-06140	Tube, Fuel Main 2015-04 → —	ASV50	—
77261 — Tube Sub-assy, Fuel Emission
77261-06230	Tube Sub-assy, Fuel Emission 2015-04 → —	ASV50	—
77266A — Protector, Fuel Tube, NO.1
77266-07010	Protector, Fuel Tube, NO.1 2015-04 → —	ASV50	—
77267A — Protector, Fuel Tube, NO.2
77267-33030	Protector, Fuel Tube, NO.2 2015-04 → —	ASV50	—
77281 — Bracket, Fuel Main Tube, NO.1
77281-06020	Bracket, Fuel Main Tube, NO.1 2015-04 → —	ASV50	—
77285A — Support, Fuel Return And Main Tube
77285-42110	Support, Fuel Return And Main Tube 2015-04 → —	ASV50	—
77285D — Clamp, Fuel Tube, NO.1
77285-06040	Clamp, Fuel Tube, NO.1 2015-04 → —	ASV50	—
77285L — Clamp, Fuel Tube, NO.1
77285-06090	Clamp, Fuel Tube, NO.1 2015-04 → —	ASV50	—
77286D — Clamp, Fuel Tube, NO.2
77286-06030	Clamp, Fuel Tube, NO.2 2015-04 → —	ASV50	—
77295C — Grommet, Fuel Tube
77295-06030	Grommet, Fuel Tube 2015-04 → —	ASV50	—
77295D — Grommet, Fuel Tube
77295-0E010	Grommet, Fuel Tube 2015-04 → —	ASV50	—
77298B — Clamp, Fuel Tube, NO.4
77298-30170	Clamp, Fuel Tube, NO.4 2015-04 → —	ASV50	—
77298C — Clamp, Fuel Tube, NO.4
77298-06070	Clamp, Fuel Tube, NO.4 2015-04 → —	ASV50	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
