Toyota Camry

2015-04 → 2017-06 · chassis ASV50 · catalogue 283390 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

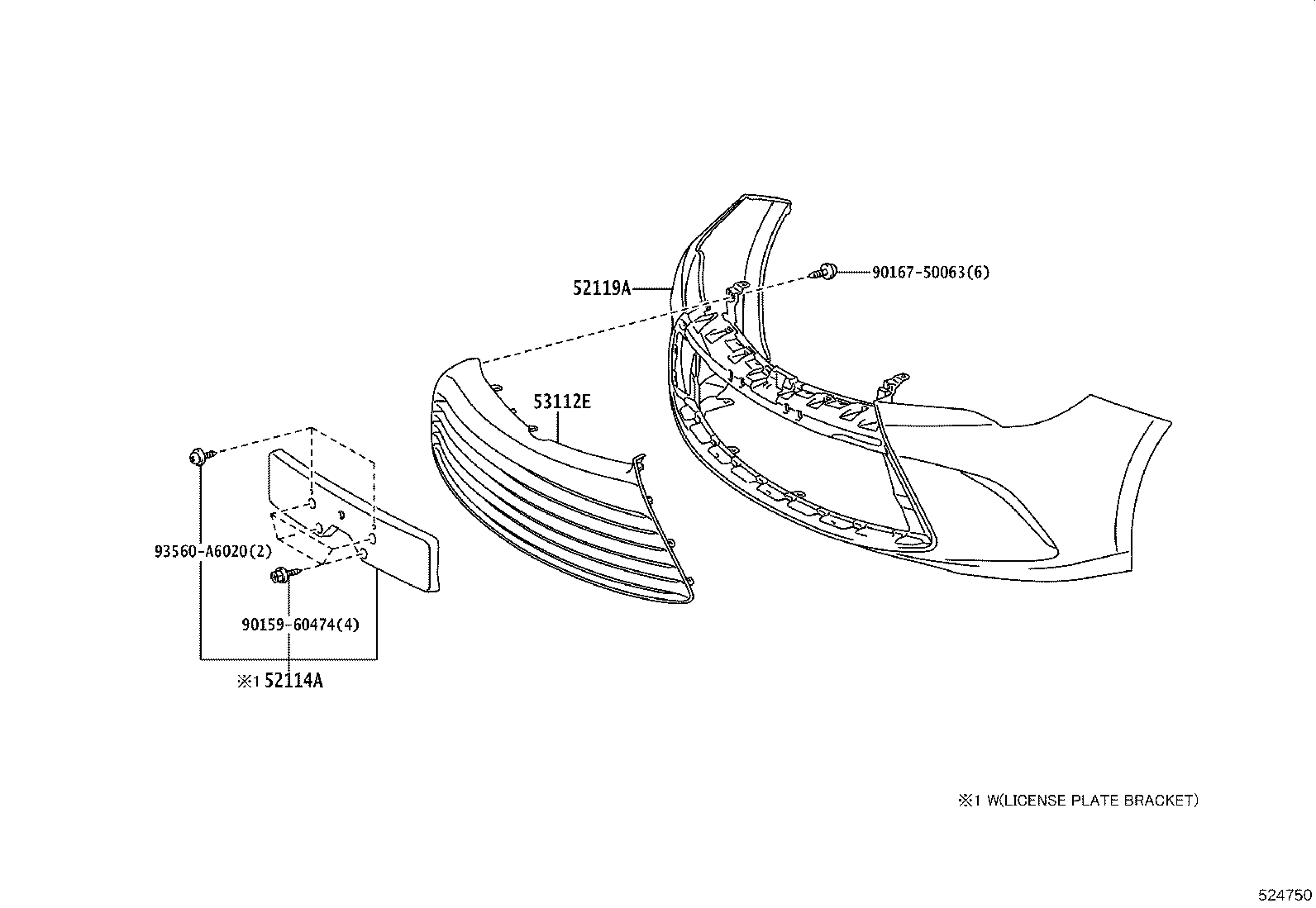

Figure 523000E 523000E 2015-04 → — Figure 524750 524750 2015-04 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
57208D Spacer Sub-assy, Front Bumper Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
