Toyota Camry

2015-04 → 2017-06 · chassis ASV50 · catalogue 283390 · General

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 2 illustrations

Illustrations

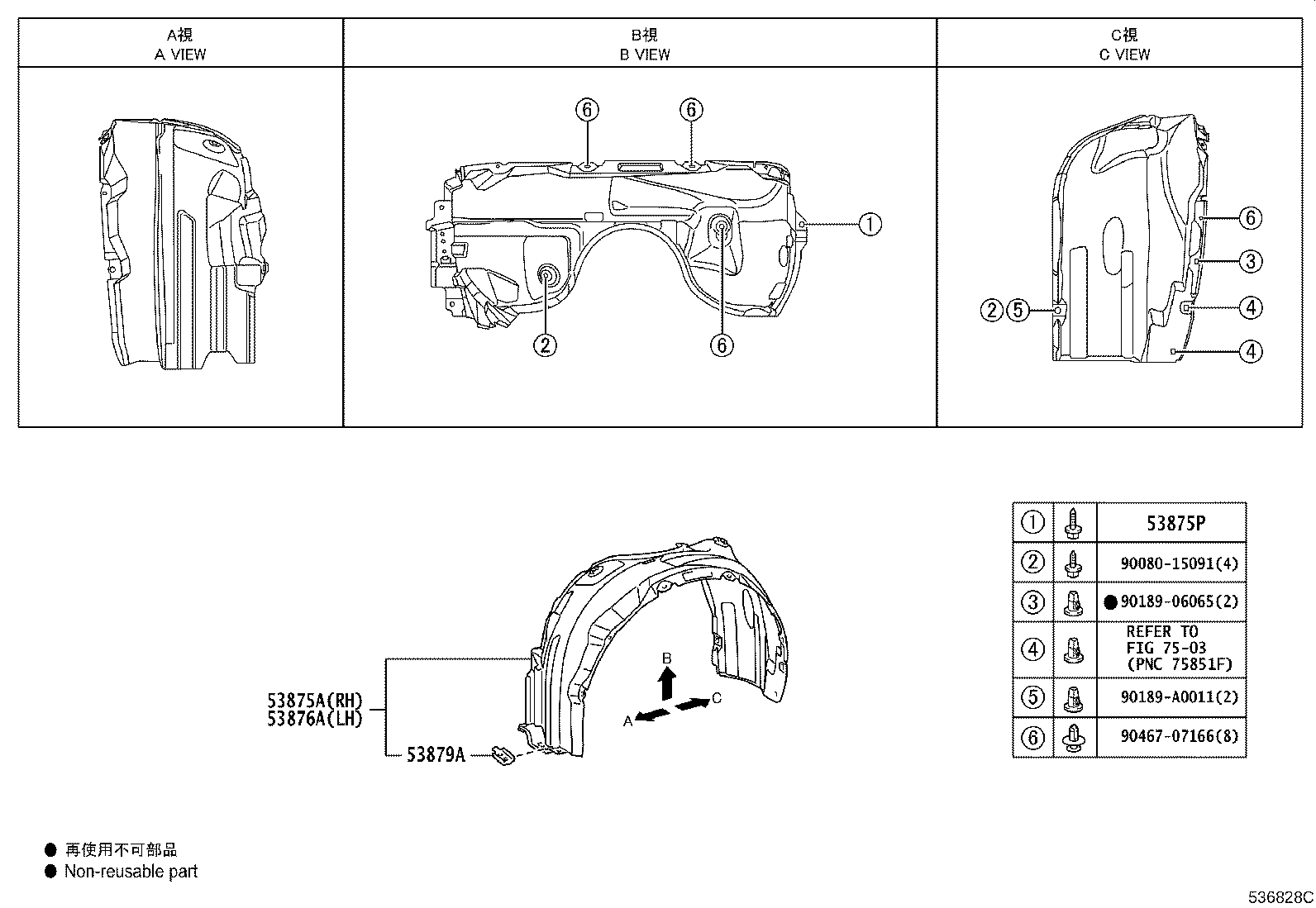

Figure 534327A 534327A 2015-04 → — Figure 536828C 536828C 2015-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301A Plug, Hole(FOR HOOD)
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
