Toyota Camry

2015-04 → 2017-06 · chassis ASV50 · catalogue 283390 · General

Supported model Data version 2017-12

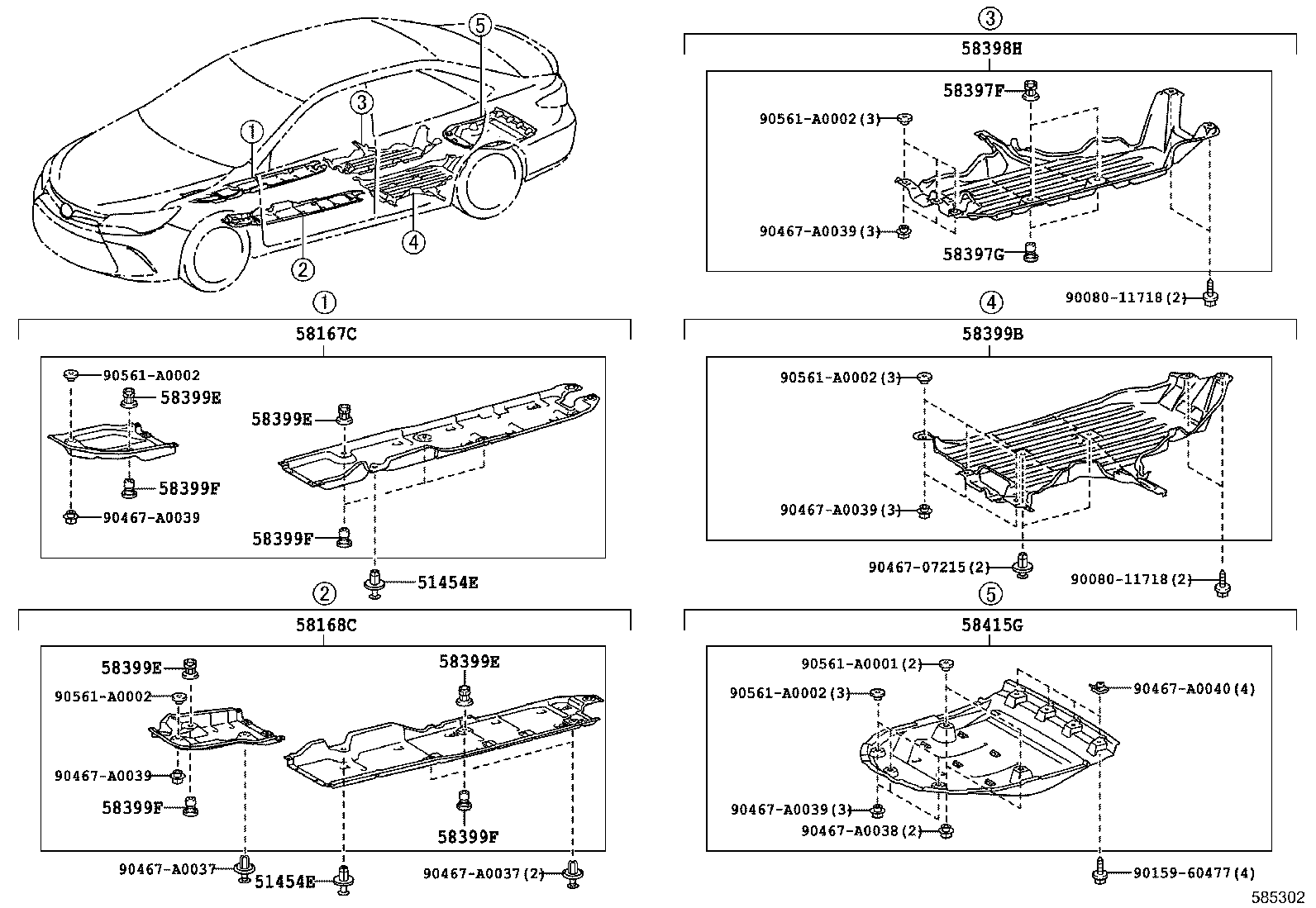

Floor Pan & Lower Back Panel

37 part groups · 2 illustrations

PNC	Description
51454E	Silencer, Front Floor Cover
57054B	Reinforcet Sub-assy, Crossmember Floor, NO.4
57805B	Reinforcement Sub-assy, Belt Anchor, RH
57806	Reinforcement Sub-assy, Belt Anchor, LH
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58167C	Cover, Front Floor, Center RH
58168C	Cover, Front Floor, Center LH
58171	Reinforcement, Parking Brake Base
58189	Reinforcement, Exhaust Pipe Clamp Bracket
58202A	Pan Sub-assy, Center Floor, Front
58204H	Pan Sub-assy, Center Floor, Rear
58211H	Pan, Center Floor
58307	Panel Sub-assy, Body Lower Back
58309J	Retainer Sub-assy, Luggage Door Lock Striker
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58323E	Reinforcement, Rear Bumper Arm Support, RH
58324D	Reinforcement, Rear Bumper Arm Support, LH
58325E	Cover, Rear Floor Service Hole
58325K	Brace, Rear Floor Panel
58336F	Reinforcement, Rear Floor Pan, RH
58337D	Reinforcement, Rear Floor Pan, LH
58351E	Bracket, Spare Wheel Clamp
58385D	Bracket, Rear Bumper Cover
58397F	Clip, NO.1(FOR REAR UNDER COVER)
58397G	Clip, NO.2(FOR REAR UNDER COVER)
58398H	Cover, Floor Under, NO.1
58399B	Cover, Floor Under, NO.2
58399E	Clip, NO.1(FOR FLOOR UNDER COVER)
58399F	Clip, NO.2(FOR FLOOR UNDER COVER)
58415G	Board, Rear Floor, NO.1
58621F	Silencer, Center Console, NO.1
61061F	Gusset Sub-assy, Quarter Wheel House, NO.1
61062F	Gusset Sub-assy, Quarter Wheel House, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
