Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

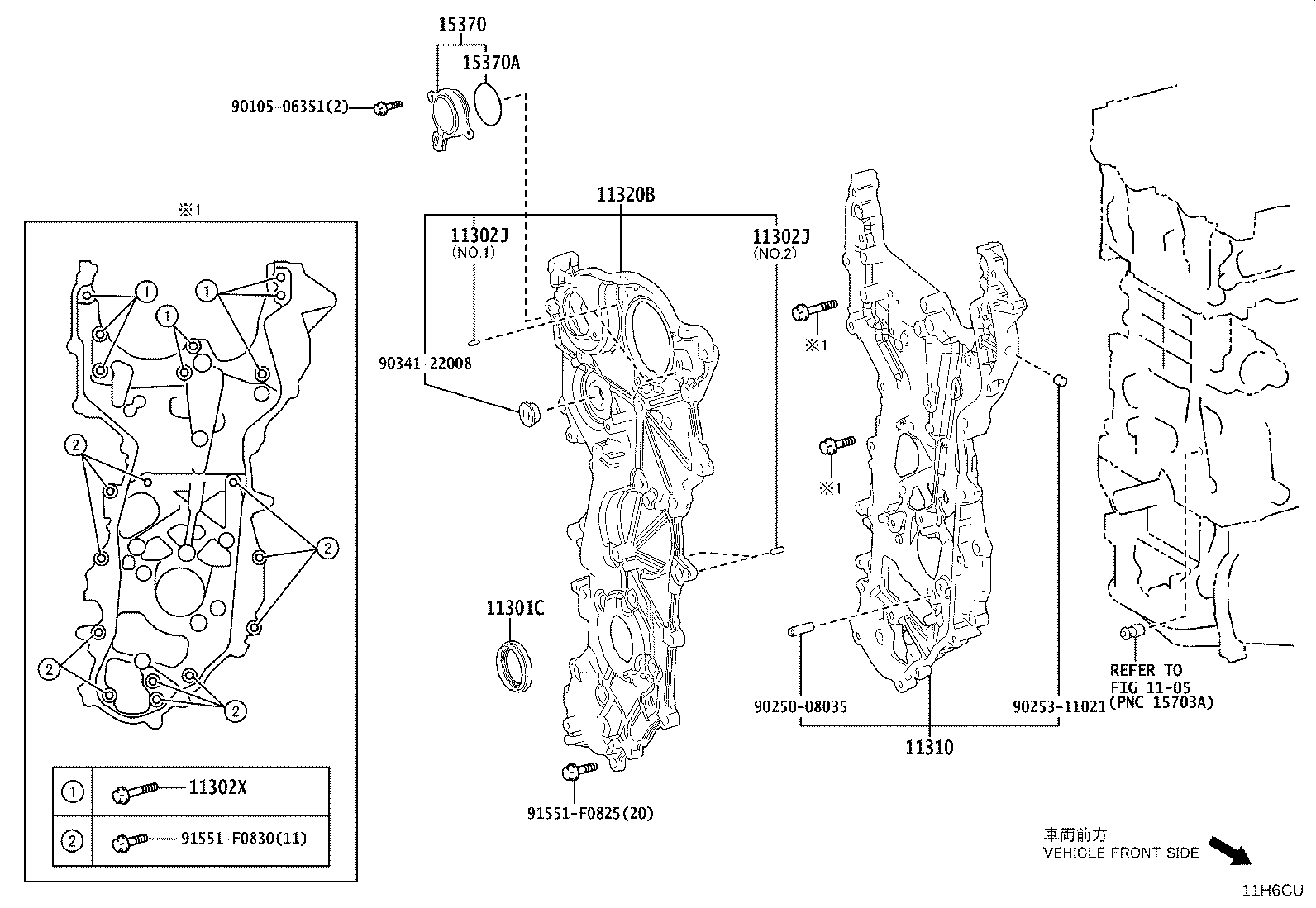

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044	Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 2024-06 → —	M20 MXVA80	—
90311-40044	Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) 2024-06 → —	A25 AXVA80,AXVH80	—
11302J — Pin, Straight(FOR TIMING CHAIN COVER)
90250-04097 note	Pin, Straight(FOR TIMING CHAIN COVER) 2024-06 → —	M20 MXVA80	—
90250-04097 note	Pin, Straight(FOR TIMING CHAIN COVER) 2024-06 → —	A25 AXVA80,AXVH80	—
90250-06003 note	Pin, Straight(FOR TIMING CHAIN COVER) 2024-06 → —	M20 MXVA80	—
90250-06003 note	Pin, Straight(FOR TIMING CHAIN COVER) 2024-06 → —	A25 AXVA80,AXVH80	—
11302X — Bolt, Flange
91551-F0845	Bolt, Flange 2024-06 → —	A25 AXVA80,AXVH80	—
11310 — Cover Assy, Timing Chain
11310-24010	Cover Assy, Timing Chain 2024-06 → —	M20 MXVA80	—
11310-25030	Cover Assy, Timing Chain 2024-06 → —	A25 AXVA80,AXVH80	—
11320B — Cover Assy, Timing Chain, NO.2
11320-24010	Cover Assy, Timing Chain, NO.2 2024-06 → —	M20 MXVA80	—
11320-25011	Cover Assy, Timing Chain, NO.2 2024-06 → —	A25 AXVA80,AXVH80	—
15370 — Solenoid Assy, Cam Timing Oil Control
15370-25020	Solenoid Assy, Cam Timing Oil Control 2024-06 → —	M20 MXVA80	—
15370-25020	Solenoid Assy, Cam Timing Oil Control 2024-06 → —	A25 AXVA80,AXVH80	—
15370A — Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006	Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID) 2024-06 → —	M20 MXVA80	—
90301-44006	Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID) 2024-06 → —	A25 AXVA80,AXVH80	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
