Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

57 part groups · 8 illustrations

Illustrations

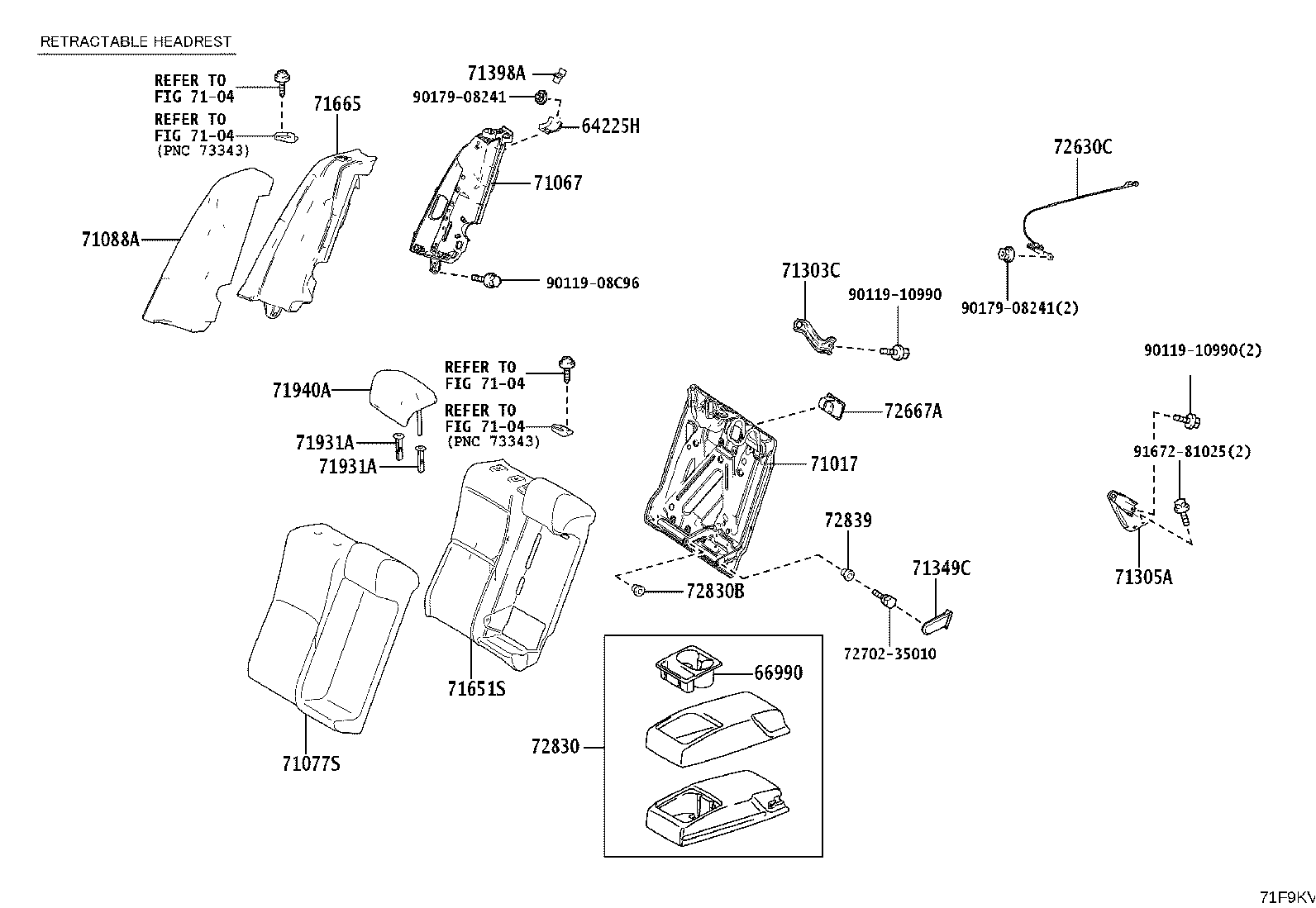

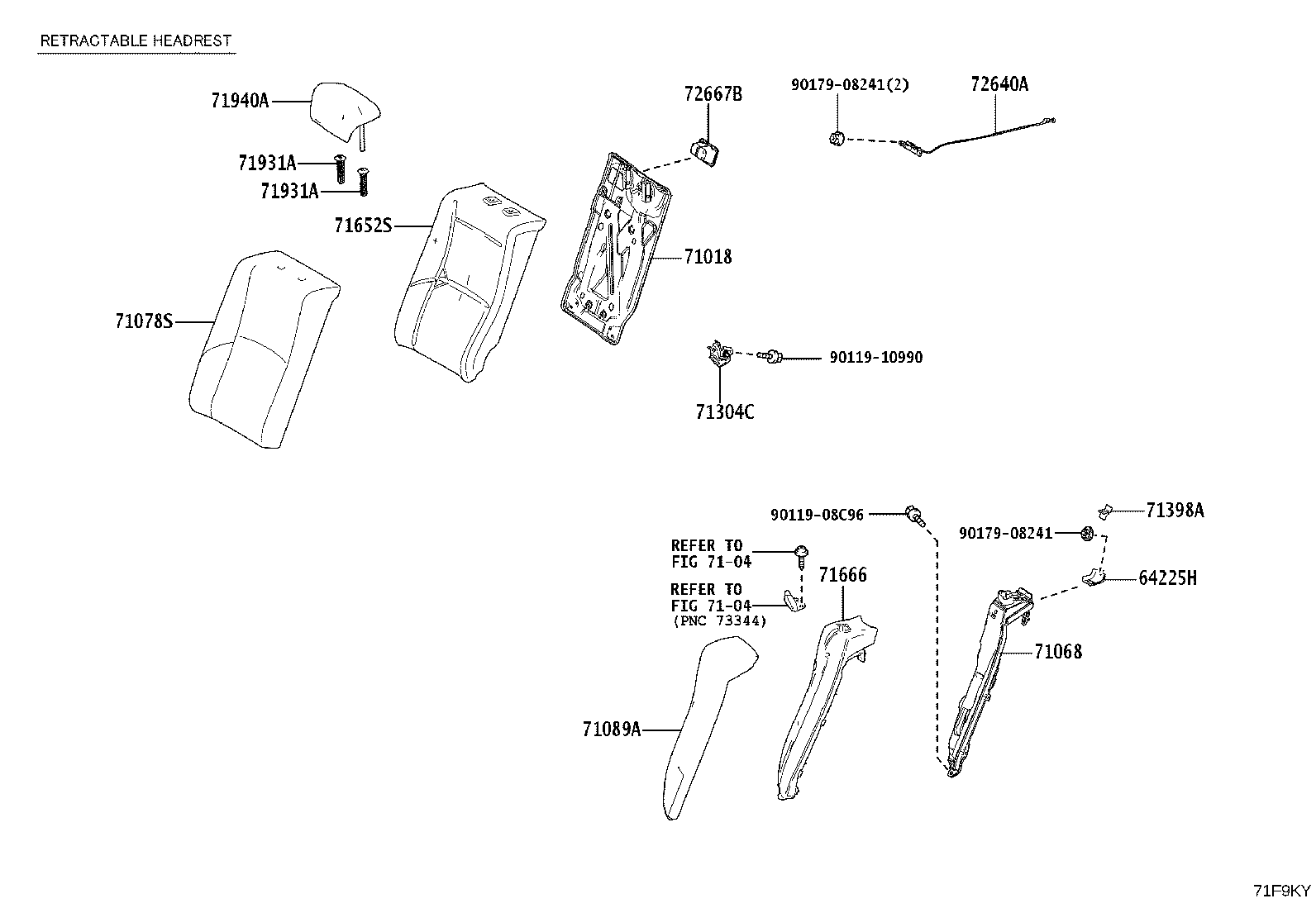

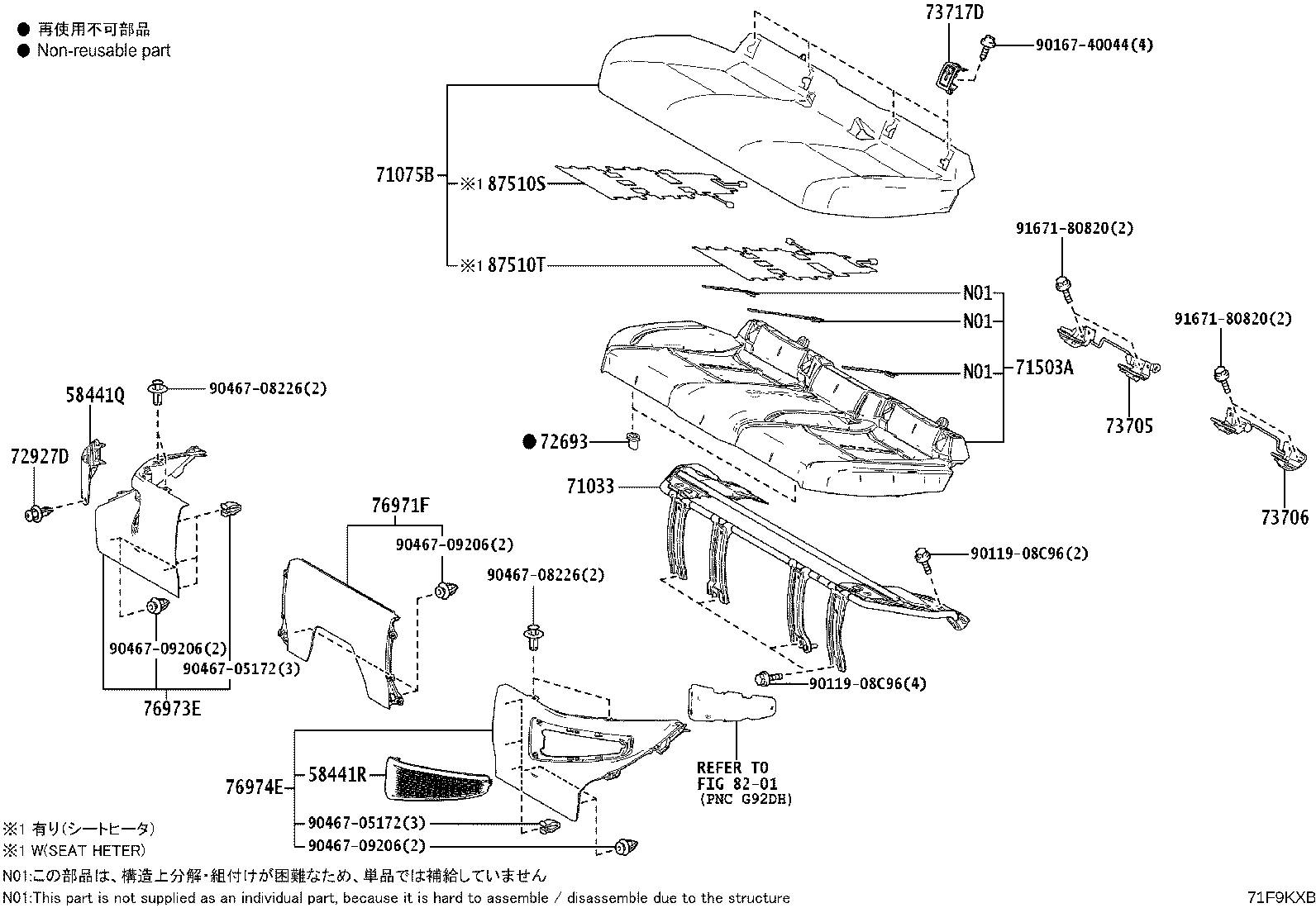

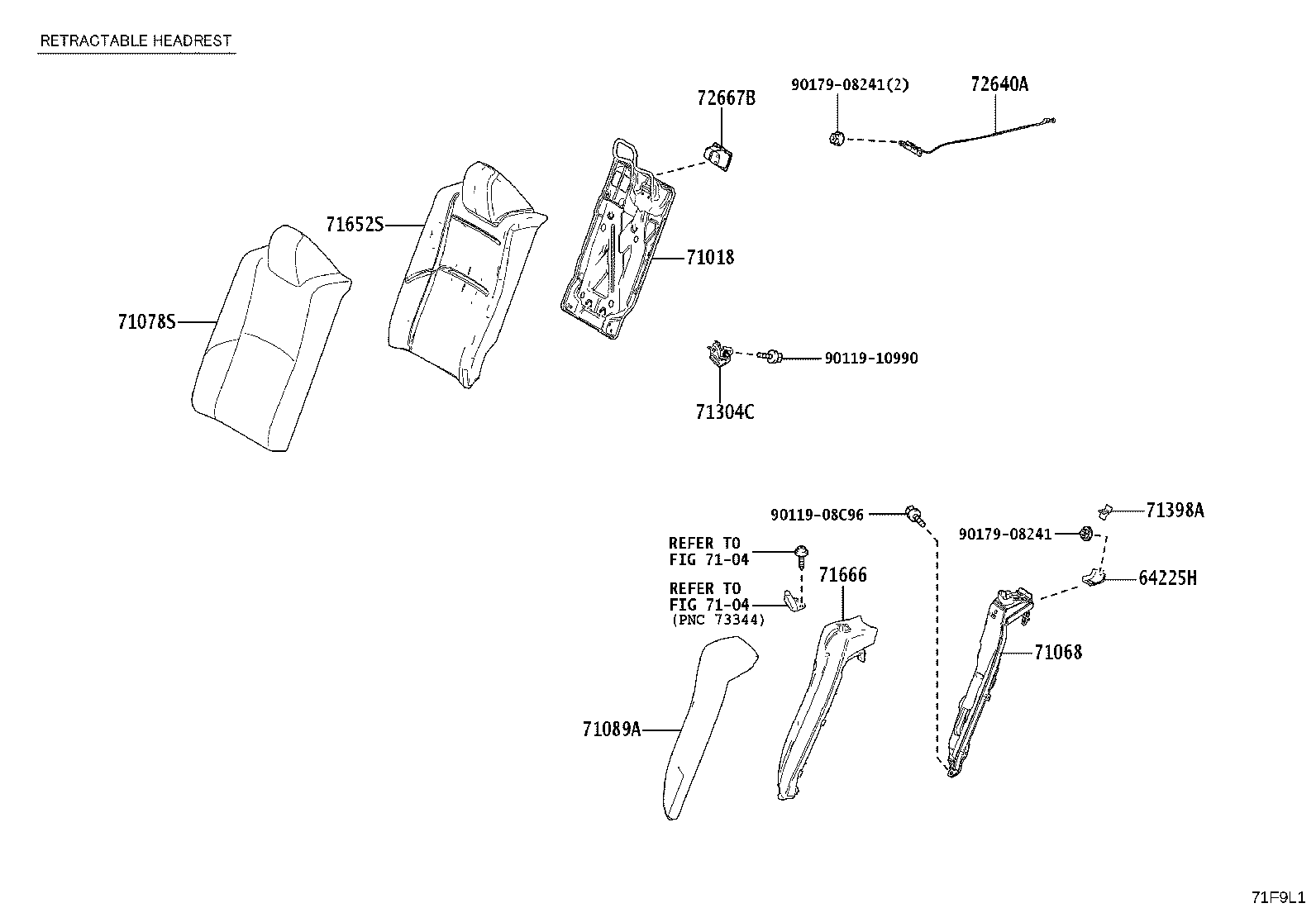

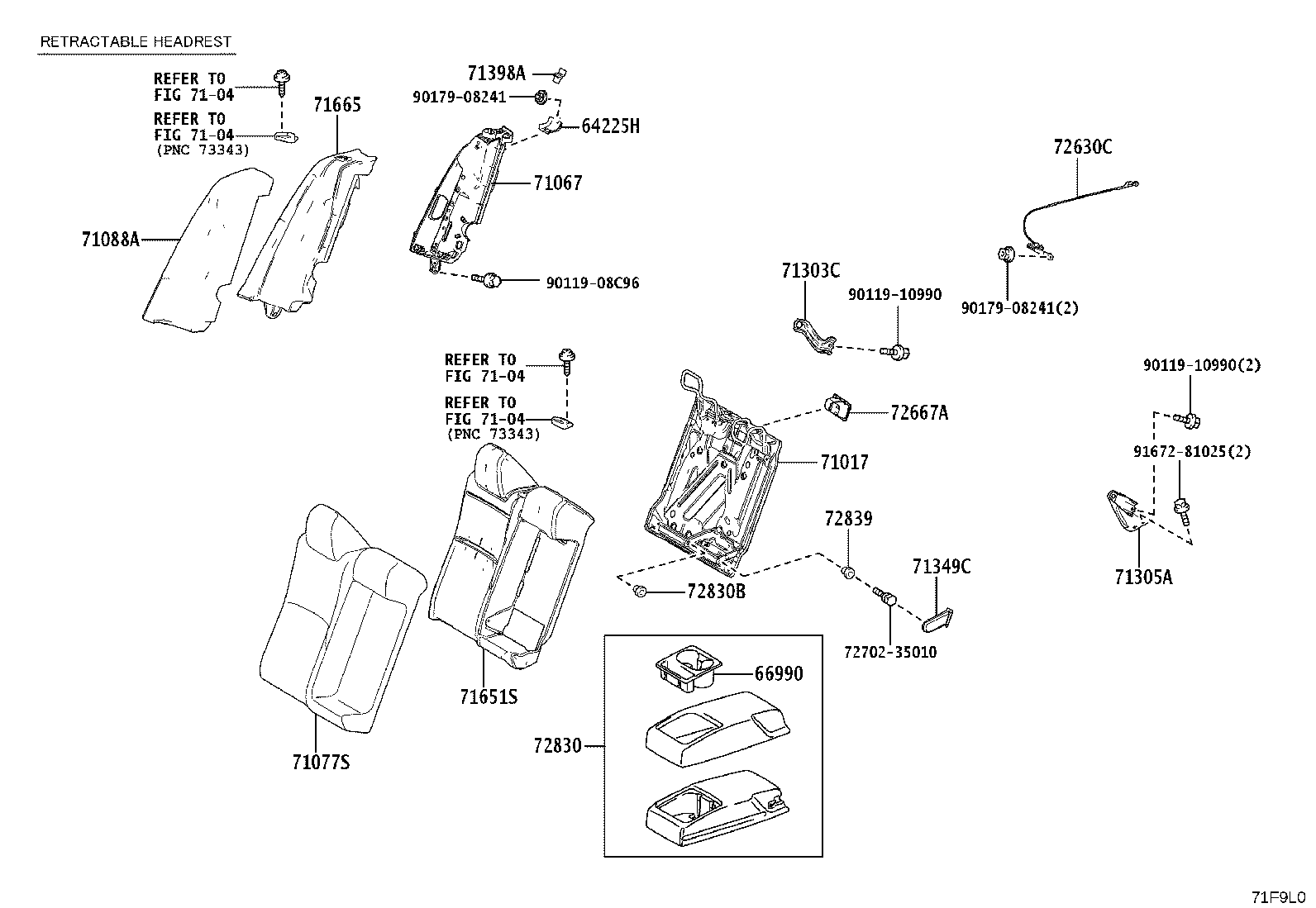

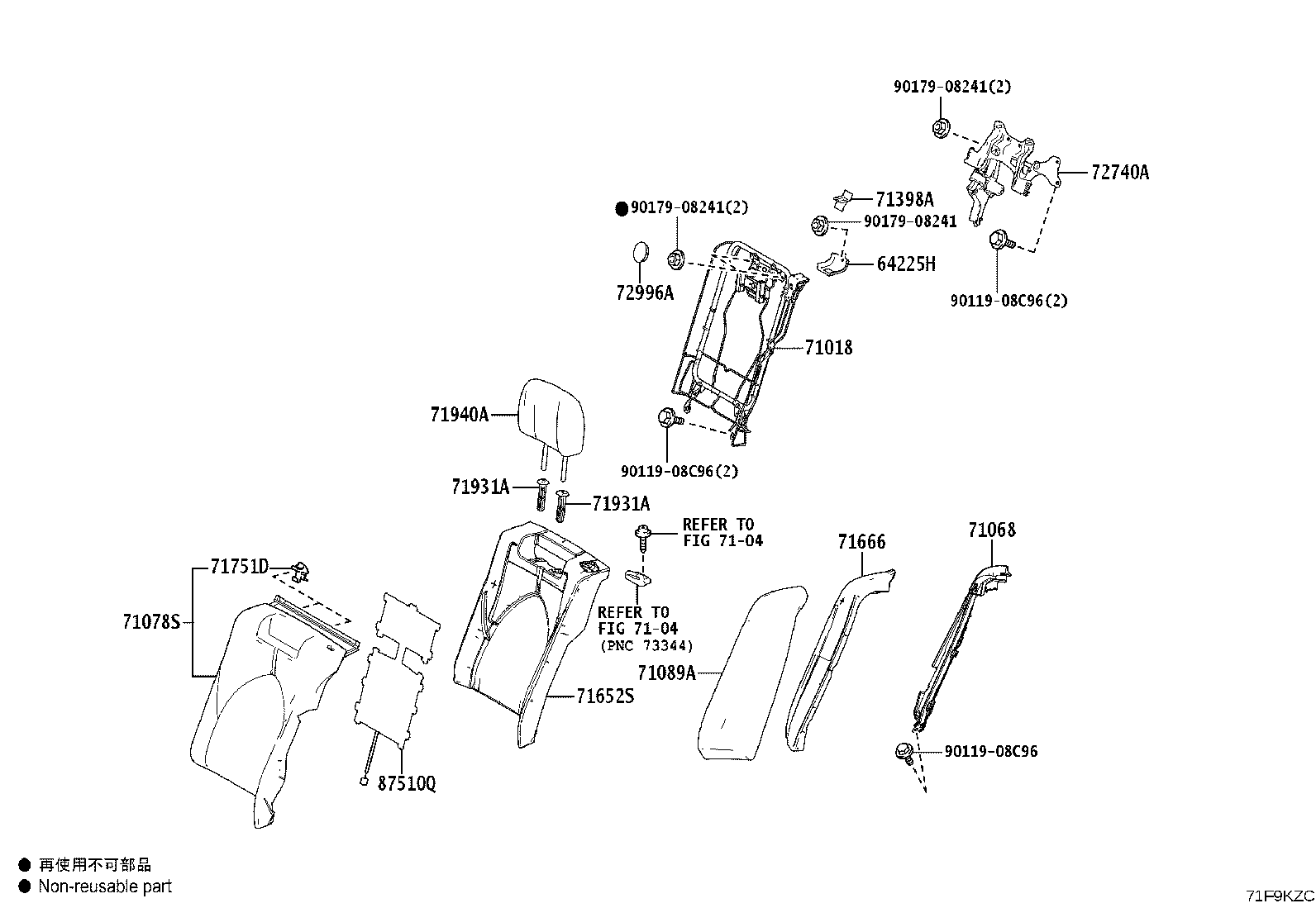

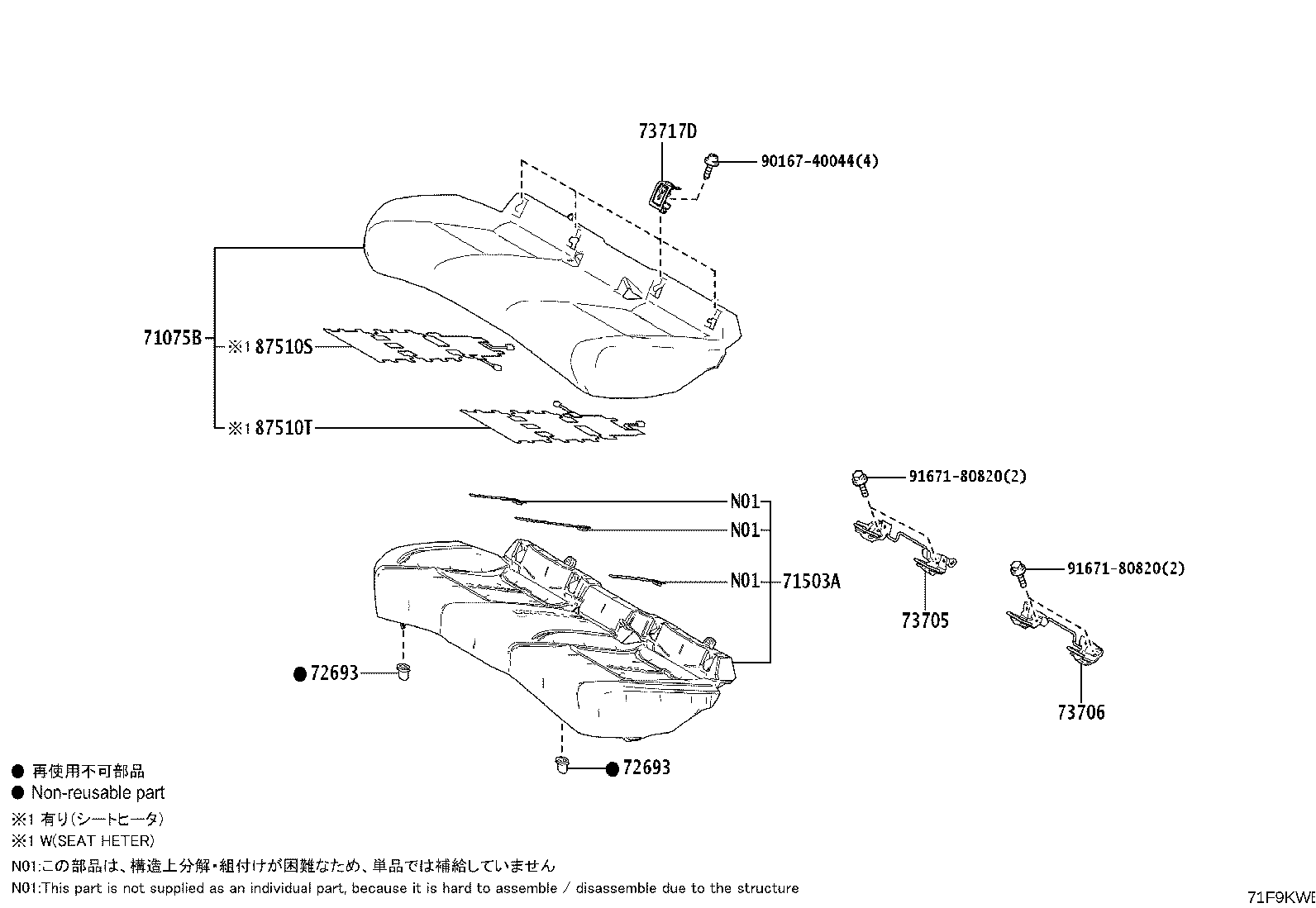

Figure 71F9KUC 71F9KUC 2024-06 → — Figure 71F9KV 71F9KV 2024-06 → — Figure 71F9L0 71F9L0 2024-06 → — Figure 71F9KZC 71F9KZC 2024-06 → — Figure 71F9KY 71F9KY 2024-06 → — Figure 71F9L1 71F9L1 2024-06 → — Figure 71F9KWB 71F9KWB 2024-06 → — Figure 71F9KXB 71F9KXB 2024-06 → —

Part groups

PNCDescription
58441Q Cover, Battery Service Hole, RH
58441R Cover, Battery Service Hole, LH
64225H Hanger, Rear Seat Cushion Support
66990 Holder Assy, Cup
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71067 Frame Sub-assy, Rear Side Seatback, RH
71068 Frame Sub-assy, Rear Side Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71088A Cover Sub-assy, Rear Side Seatback, RH
71089A Cover Sub-assy, Rear Side Seatback, LH
71095S Cover Sub-assy, Center Seatback
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71305S Frame Sub-assy, Center Seatback
71349C Cover, Rear Seatback Hinge
71398A Holder, Rear Seatback
71503A Pad Sub-assy, Rear Seat Cushion
71507A Pad Sub-assy, Rear Seatback
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665 Pad, Rear Seatback Side, RH
71666 Pad, Rear Seatback Side, LH
71751D Hanger, Rear Seat Cover
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667A Bezel, Rear Seatback Lock, Upper RH
72667B Bezel, Rear Seatback Lock, Upper LH
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72831B Plate, Rear Seat Center Armrest, NO.1
72839 Shim, Rear Seat Armrest Hinge
72860 Box Assy, Rear Seat Center Armrest
72883A Bracket, Rear Seat Center Armrest, NO.1
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
72996A Cover, Rear Seatback
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73717D Cover, Child Restraint Seat Tether Anchor
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510S Heater Assy, Seat
87510T Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
