Heating & Air Conditioning - Compressor

4 part groups · 4 illustrations

Illustrations

Figure 87M4LV

87M4LV 2024-04 → —

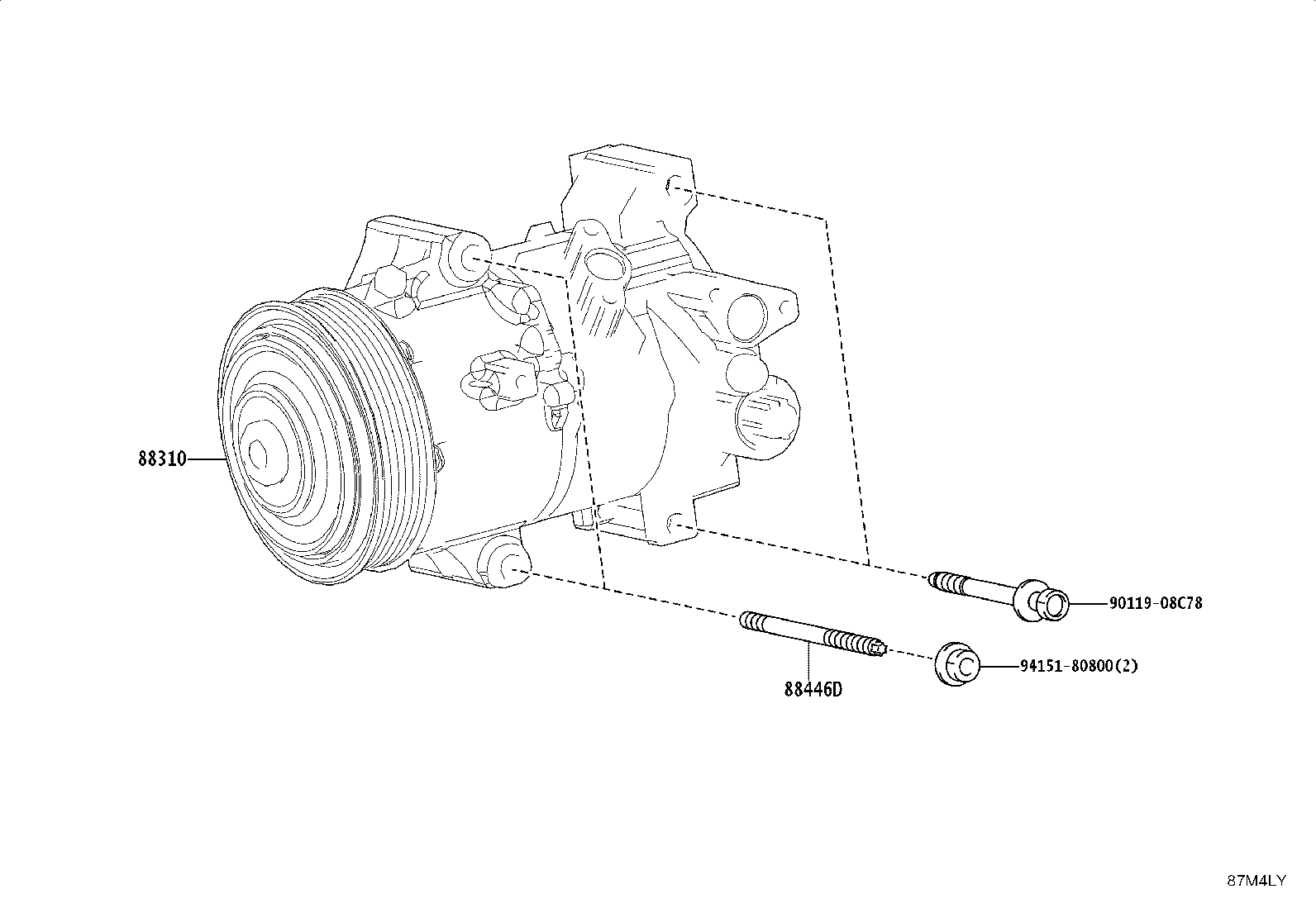

Figure 87M4LY

87M4LY 2024-06 → —

Figure 87M4LX

87M4LX 2024-06 → —

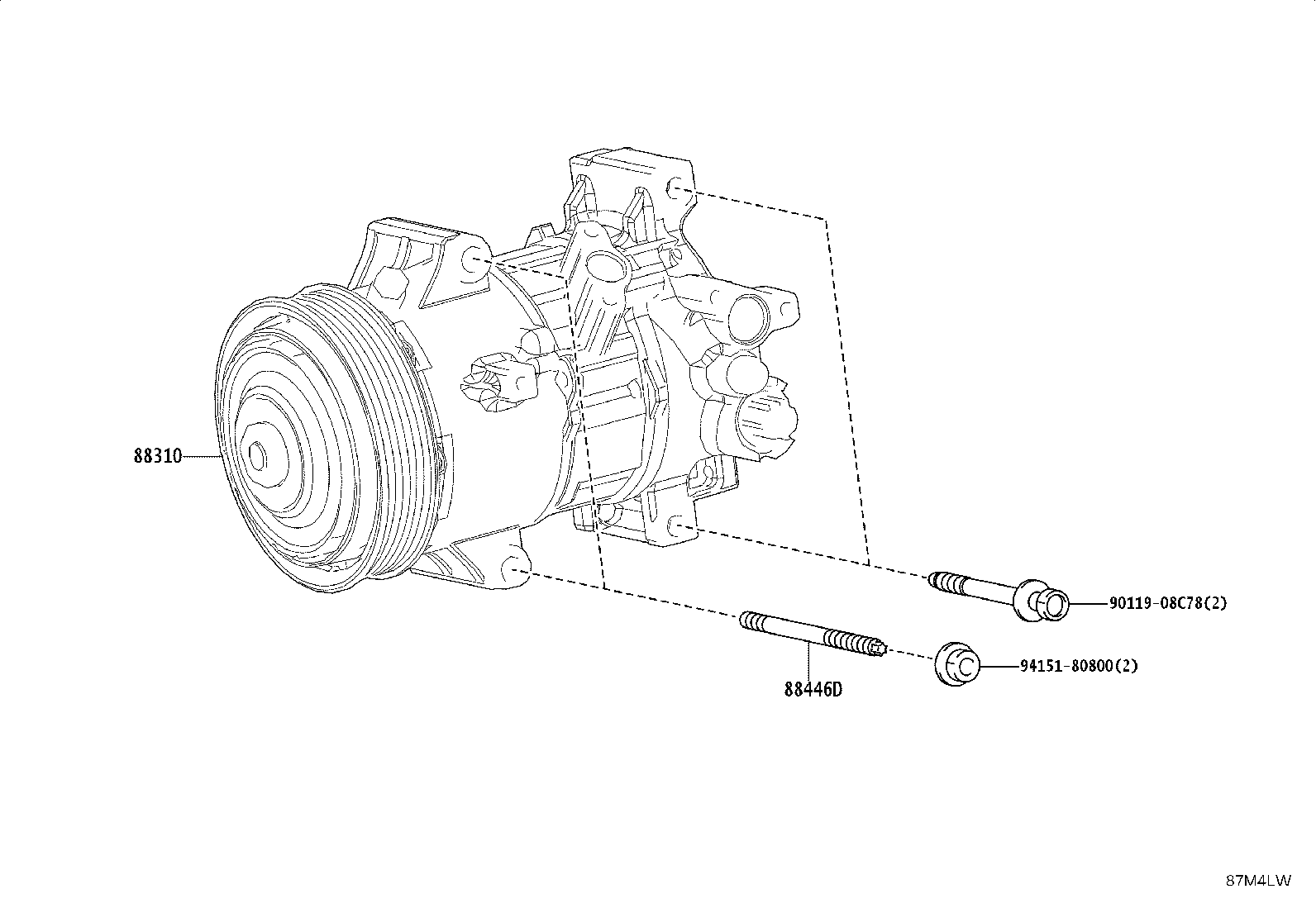

Figure 87M4LW

87M4LW 2024-06 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88370	Compressor Assy, W/Motor
88446D	Bolt, Cooler
88H99F	Bolt, Stud

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
