Toyota Lexus ES300

1992-03 → 1996-08 · chassis VCV10 · catalogue 284350 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 2 illustrations

Illustrations

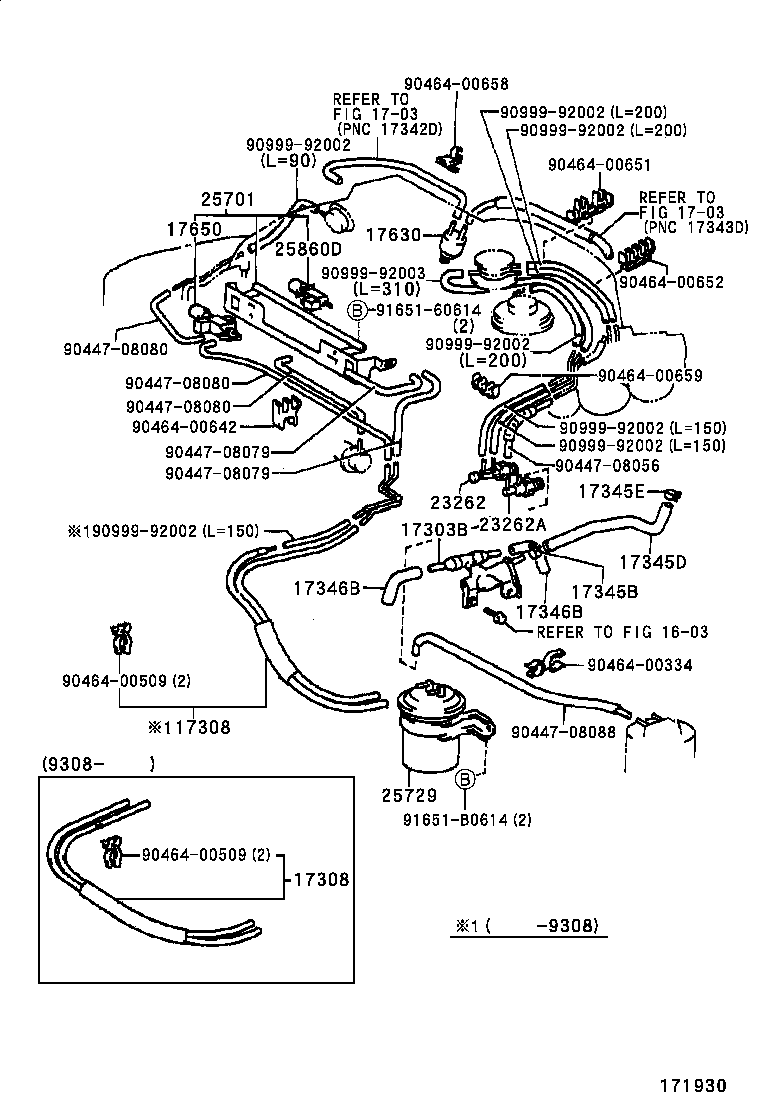

Figure MA9504B MA9504B 1992-03 → — Figure 171930 171930 1992-03 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
