Toyota Lexus ES300

1992-03 → 1996-08 · chassis VCV10 · catalogue 284350 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

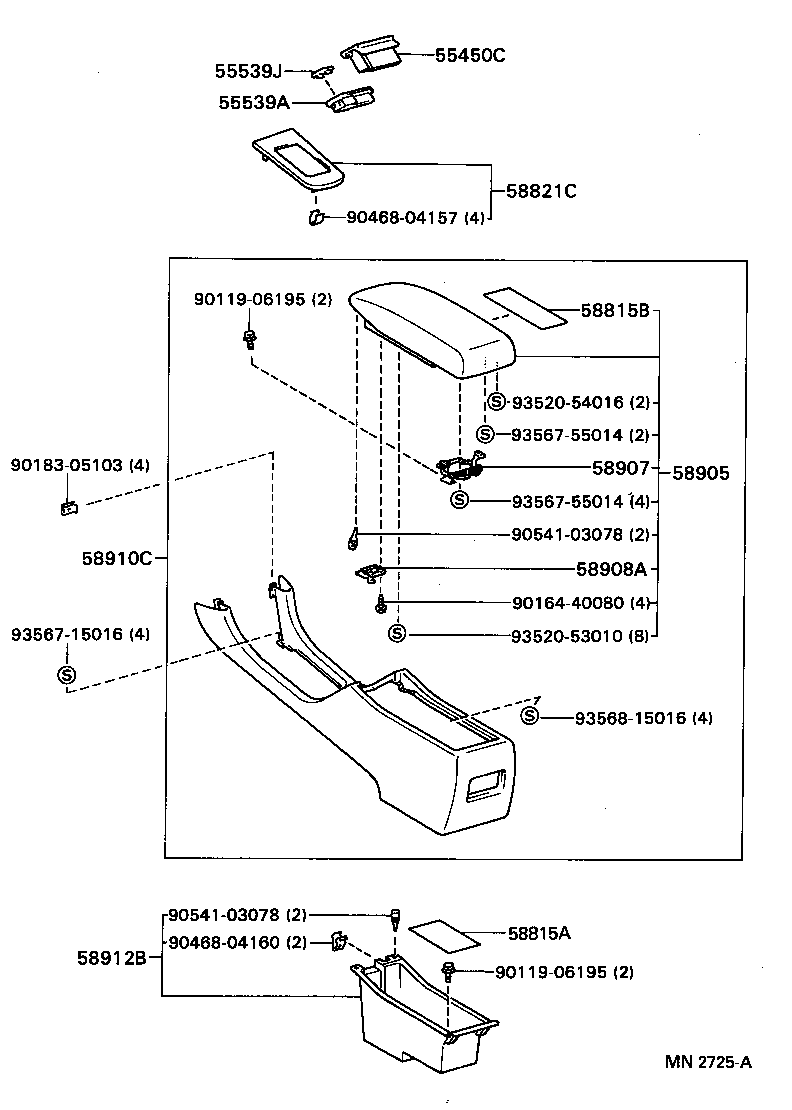

Figure MN1476B MN1476B 1992-03 → 1994-08 Figure MN2725A MN2725A 1994-08 → —

Part groups

PNCDescription
55450C Box Assy, Coin
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58815A Carpet, Console Box
58815B Carpet, Console Box
58821C Panel, Console, Upper
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58912B Box, Rear Console, Lower
58913A Panel, Box, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
