Toyota Lexus ES300
1992-03 → 1996-08 · chassis VCV10 · catalogue 284350 · General
Discontinued model
Data version 1997-02
Front Door Panel & Glass
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67411 | Frame, Front Door Window, Front Upper RH |
| 67412A | Frame, Front Door Window, Front Upper LH |
| 67443A | Plate, Front Door Window Opening, Outer RH |
| 67444A | Plate, Front Door Window Opening, Outer LH |
| 67445 | Plate, Front Door Window Opening, Inner RH |
| 67446 | Plate, Front Door Window Opening, Inner LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67533F | Pad, Front Door Lower Frame Garnish, RH |
| 67534F | Pad, Front Door Lower Frame Garnish, LH |

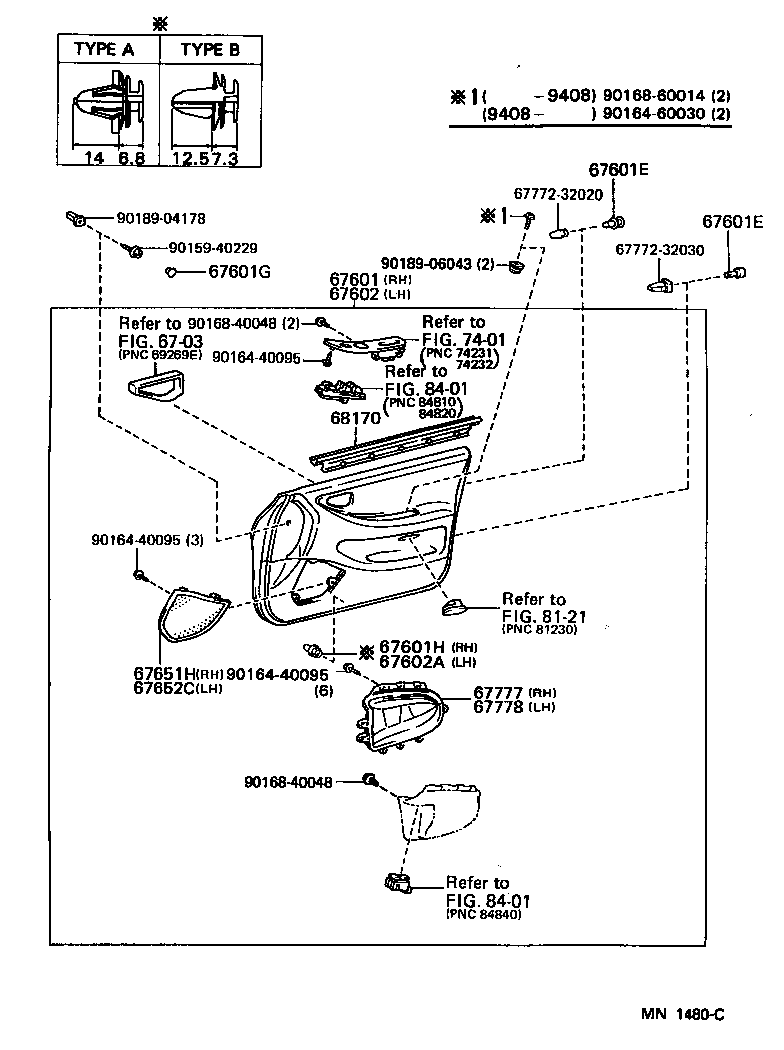

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601E | Cap(FOR FRONT DOOR TRIM BOARD) |
| 67601G | Plug, Hole(FOR FRONT DOOR TRIM BOARD) |
| 67601H | Retainer, Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68149E | Stabilizer, Door Glass Male |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68170A | Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) |
| 68610 | Check Assy, Front Door |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
| 74293B | Plate, Front Door Armrest, NO.1 |
| 74293C | Plate, Rear Door Armrest, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
