Toyota Lexus ES300

1992-03 → 1996-08 · chassis VCV10 · catalogue 284350 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

16 part groups · 2 illustrations

Illustrations

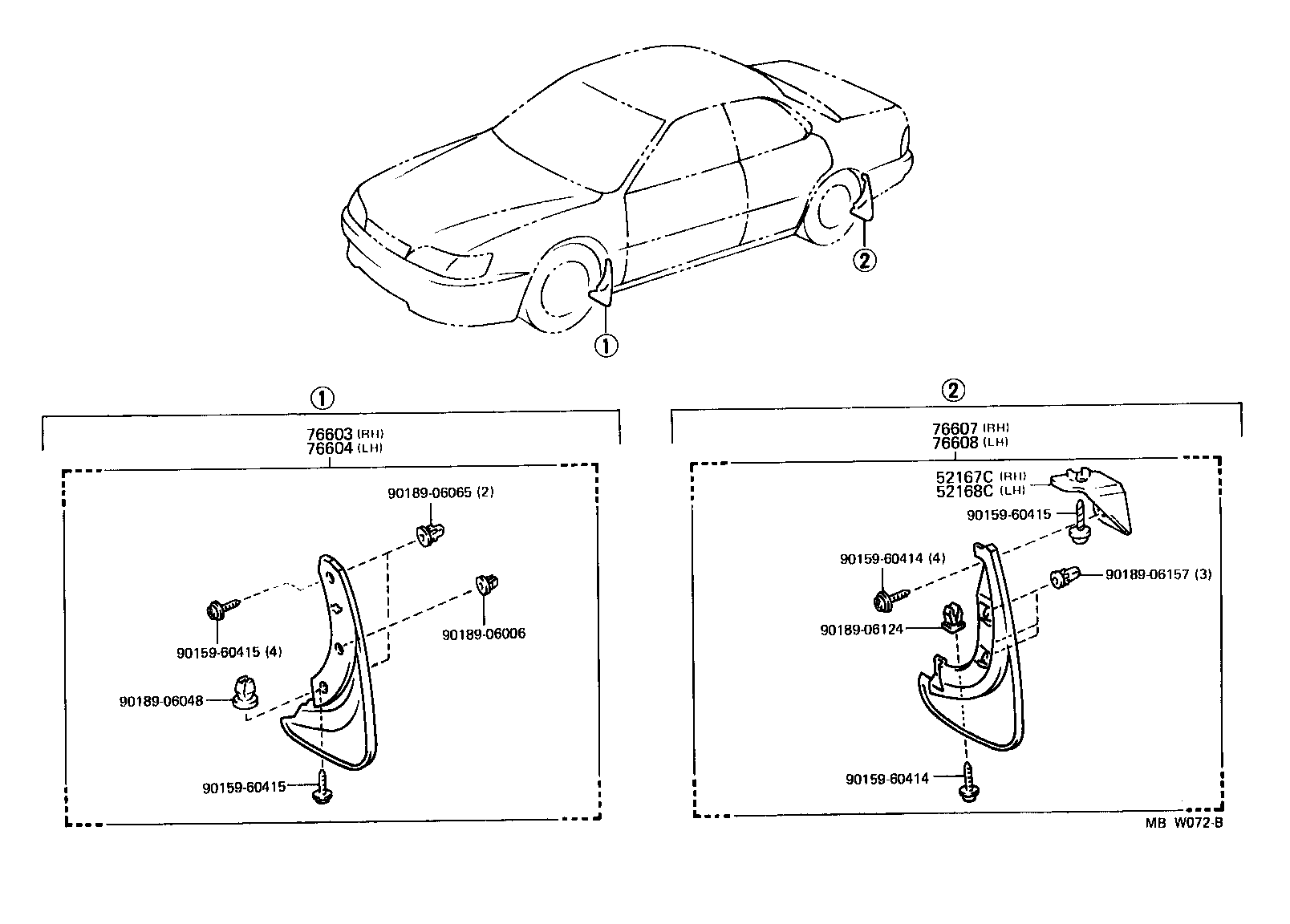

Figure MBV443G MBV443G 1992-03 → — Figure MBW072B MBW072B 1992-03 → —

Part groups

PNCDescription
52167C Bracket, Rear Bumper Extension Mounting, RH
52168C Bracket, Rear Bumper Extension Mounting, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853B Cover, Front Spoiler, Center
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76859 Retainer, Front Spoiler, Upper NO.3
76877A Protector, Front Spoiler
76971D Cover, Rear Under
76973D Cover, Rear Under Side, RH
76974D Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
