Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

23 part groups · 3 illustrations

Illustrations

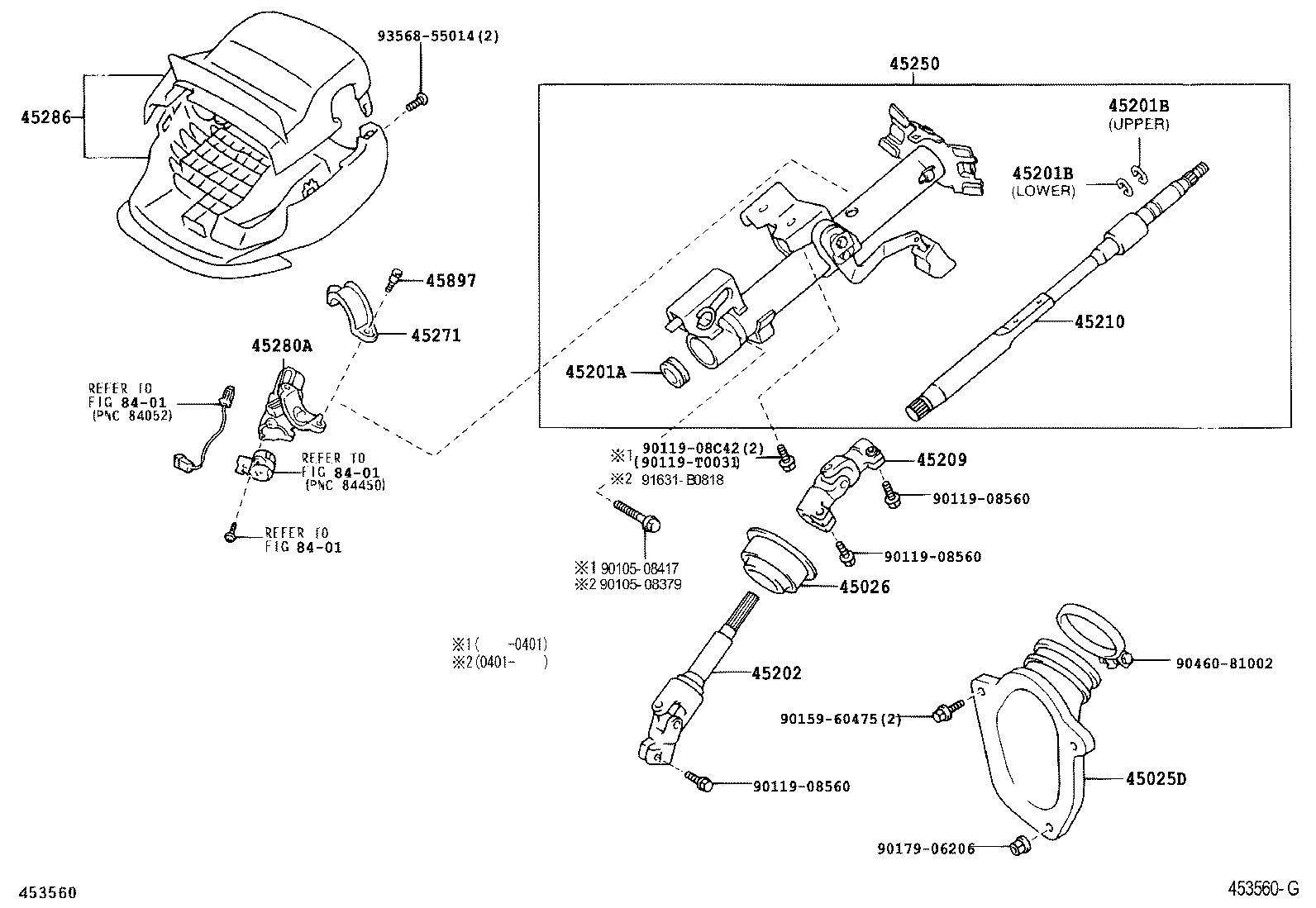

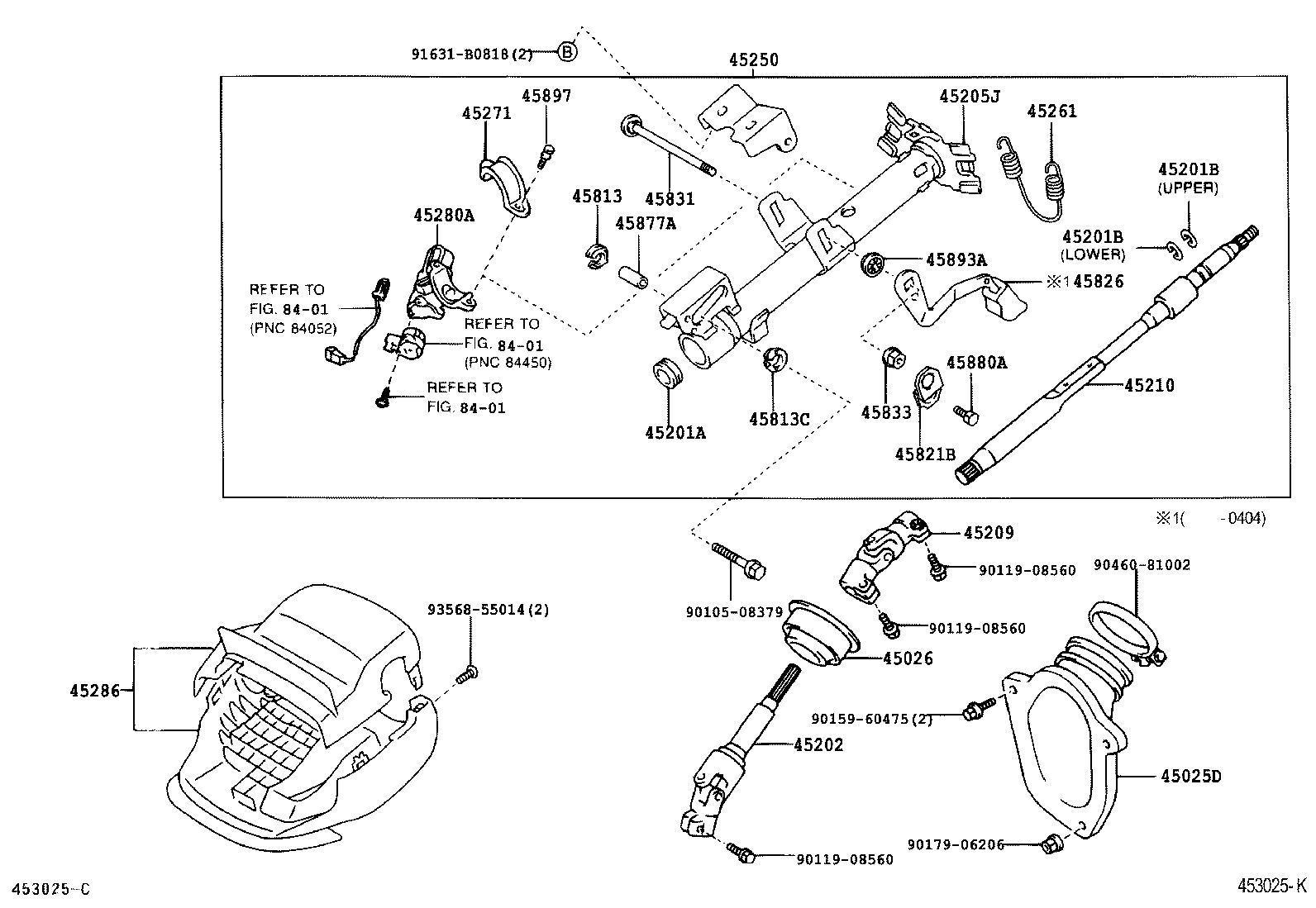

Figure 453580F 453580F 2002-03 → — Figure 453560G 453560G 2002-03 → — Figure 453025K 453025K 2002-03 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45205J Tube Sub-assy, Steering Column, Upper
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45250 Column Assy, Steering
45261 Spring, Tilt Steering Jump UP
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45813 Collar, Tilt Steering Support, NO.1
45813C Collar, Tilt Steering Support, NO.1
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45877A Spacer, Steering Column Bracket
45880A Bolt(FOR STEERING TILT LEVER)
45893A Stopper, Tilt Steering Pawl
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
