Toyota Camry
2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General
Discontinued model
Data version 2007-04

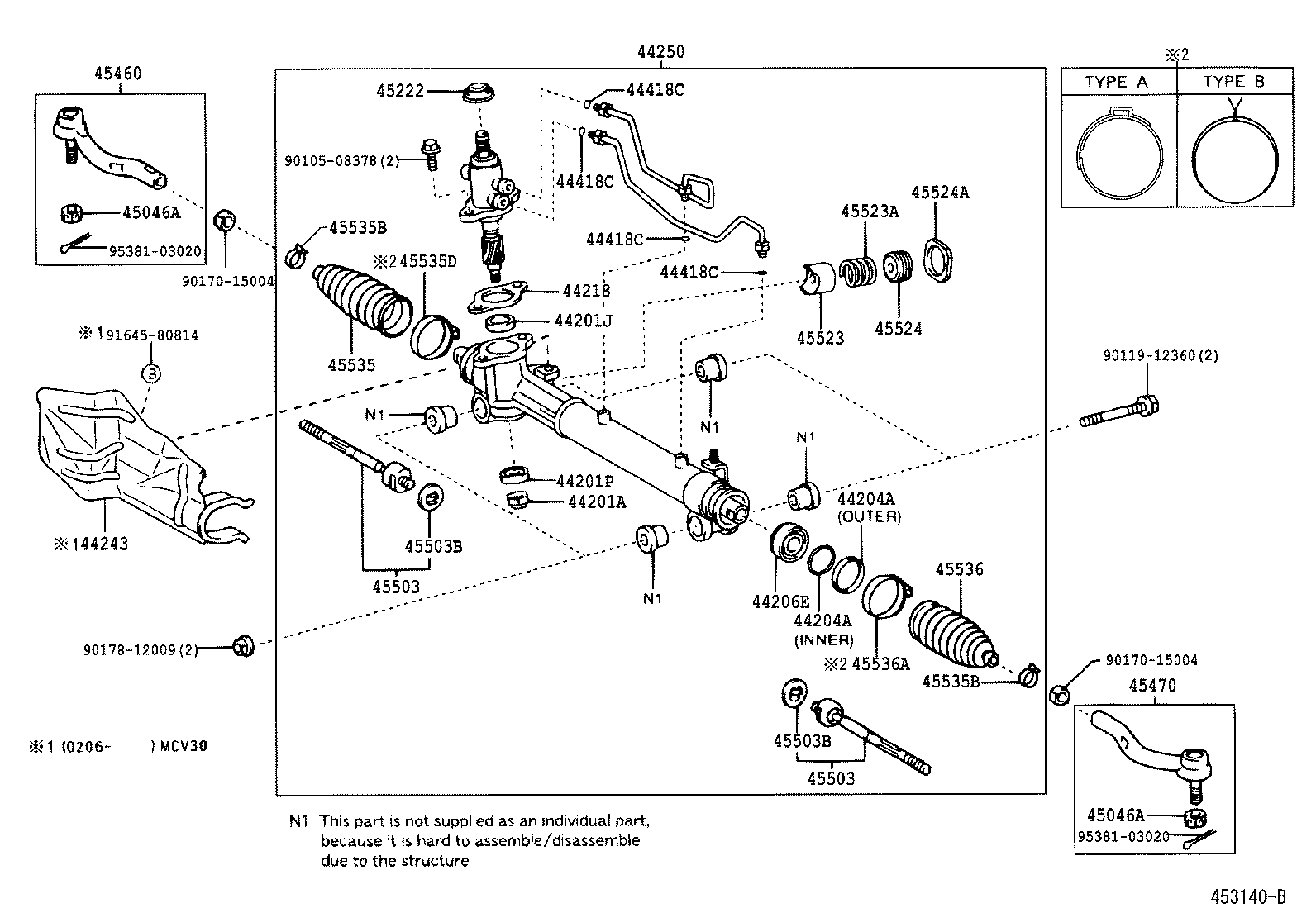

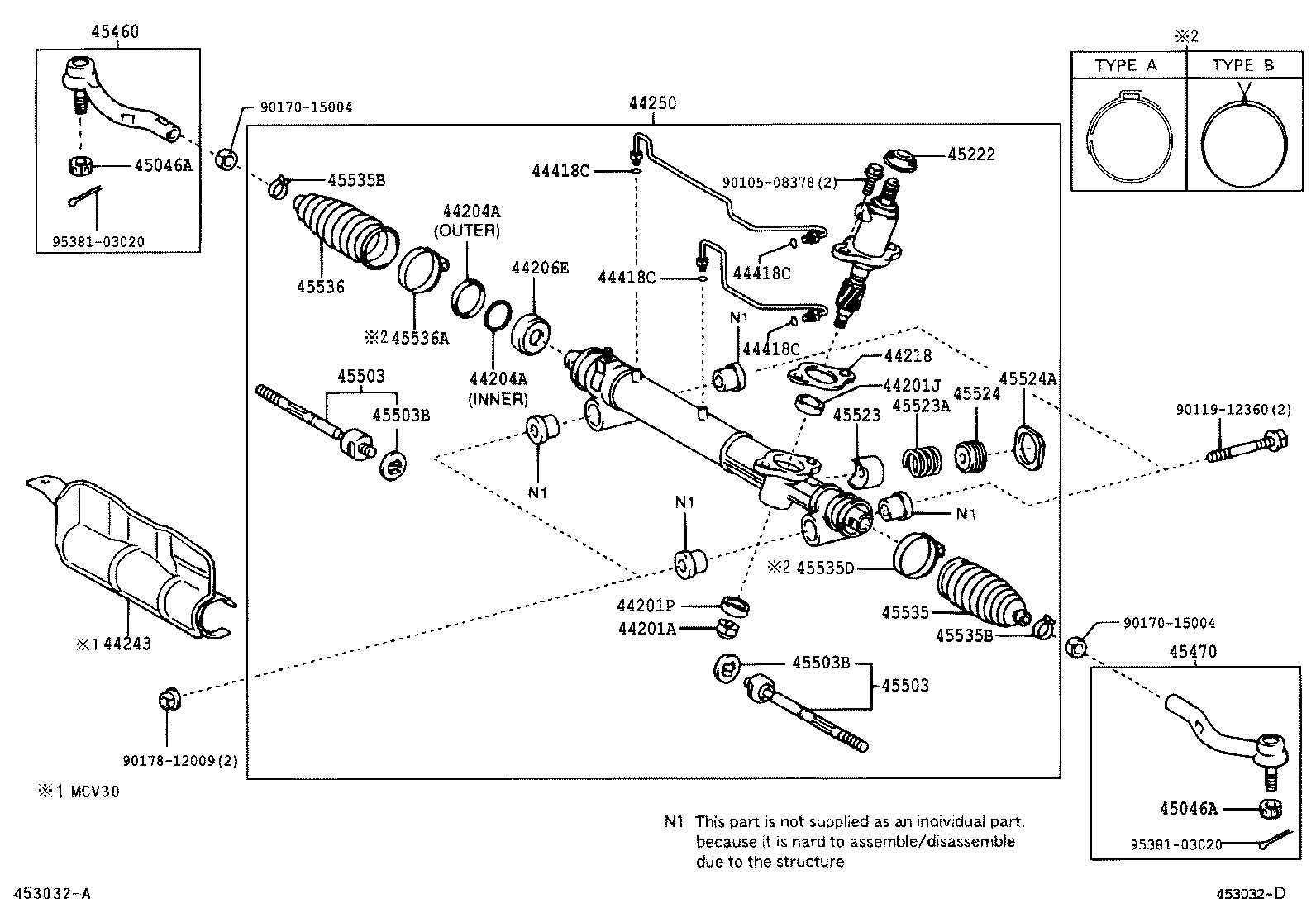

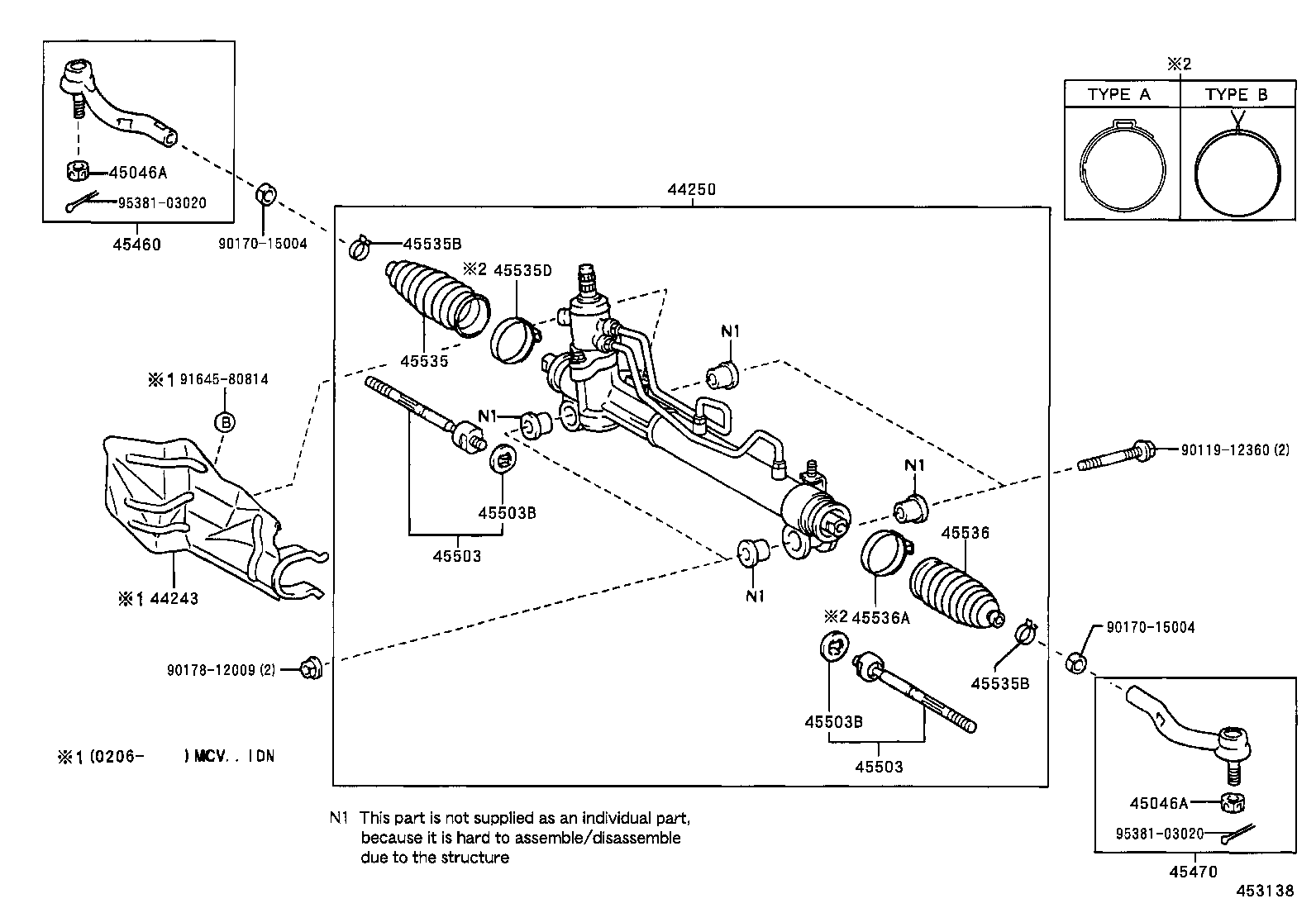

Front Steering Gear & Link
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445A | Gasket Kit, Power Steering Gear(FOR RACK & PINION) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 44201A | Nut, Lock(FOR POWER STEERING CONTROL VALVE) |
| 44201J | Bearing(FOR POWER STEERING CONTROL VALVE CENTER) |
| 44201P | Bearing(FOR POWER STEERING CONTROL VALVE LOWER) |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44206E | Seal, Oil, NO.1(FOR POWER STEERING CYLINDER TUBE) |
| 44218 | Gasket, Valve Housing |
| 44243 | Insulator, Power Steering Rack Housing Heat |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44418C | Ring, O(FOR STEERING TURN PRESSURE TUBE) |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45222 | Cover, Steering Gear Dust |
| 45460 | Rod Assy, Tie, RH |
| 45470 | Rod Assy, Tie, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45523 | Guide, Rack(FOR STEERING GEAR) |
| 45523A | Spring(FOR STEERING GEAR RACK GUIDE) |
| 45524 | Cap, Steering Rack Guide Spring |
| 45524A | Nut(FOR STEERING RACK GUIDE SPRING CAP) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
| 45536 | Boot, Steering Rack, NO.2 |
| 45536A | Clamp(FOR STEERING RACK BOOT NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
