Toyota Camry
2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General
Discontinued model
Data version 2007-04

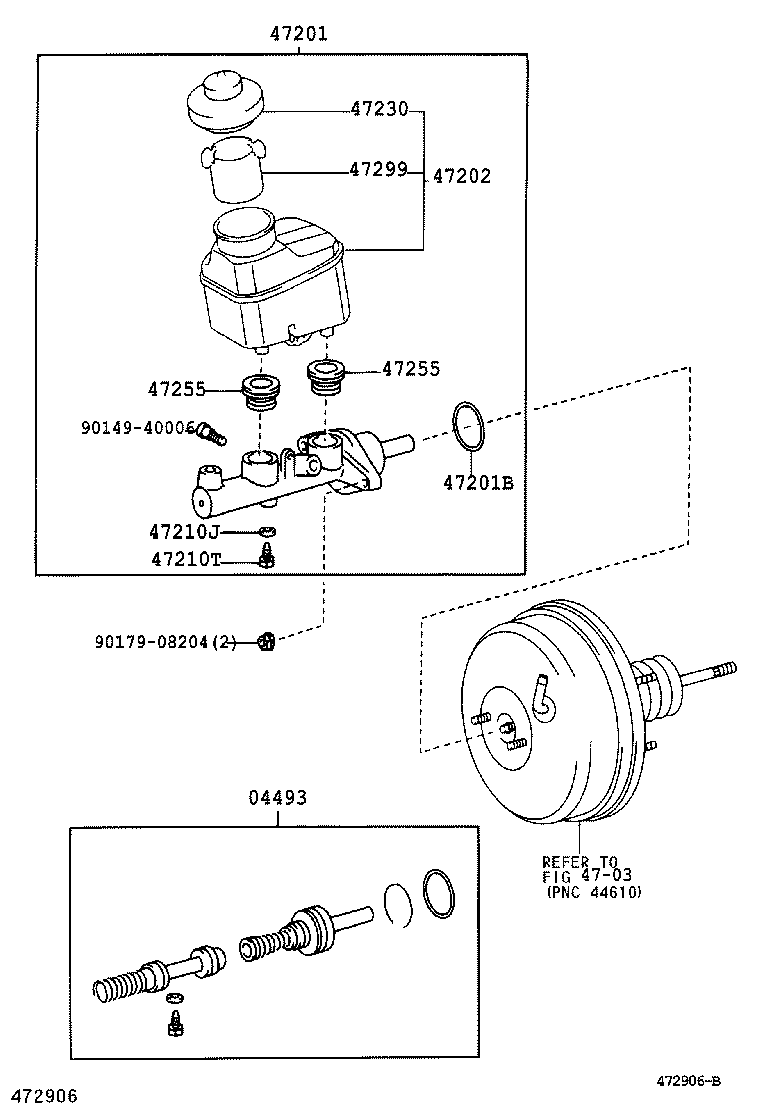

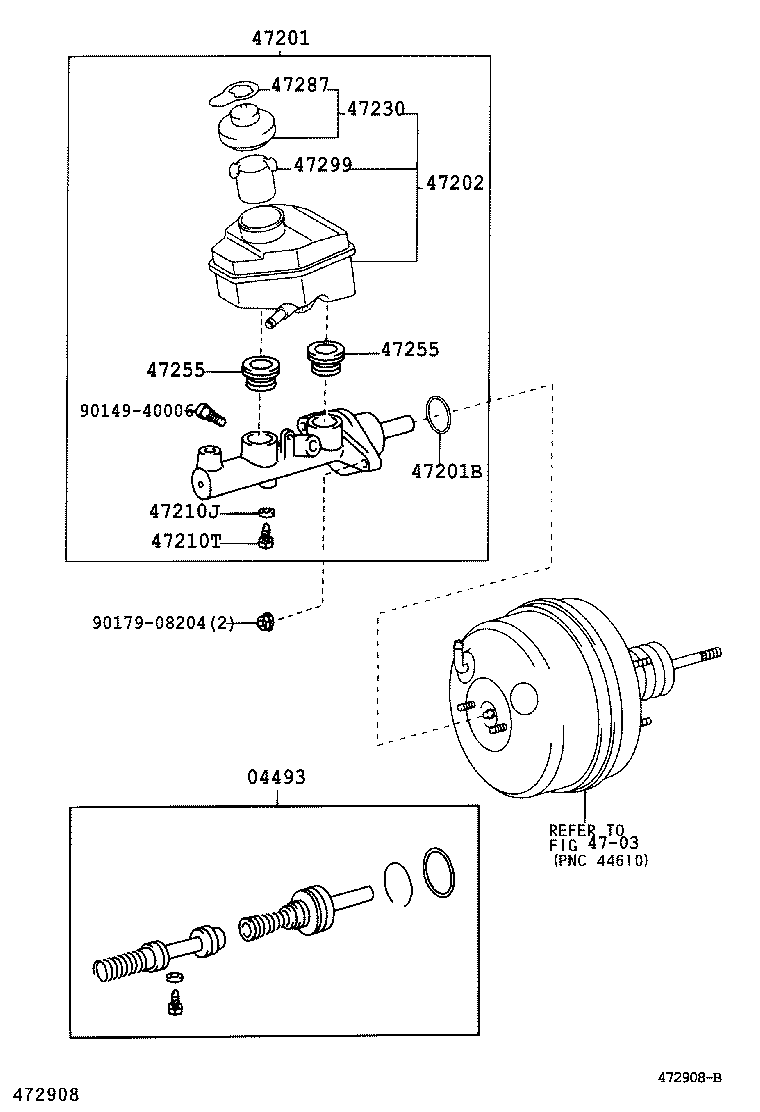

Brake Master Cylinder
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
