Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 12 illustrations

Illustrations

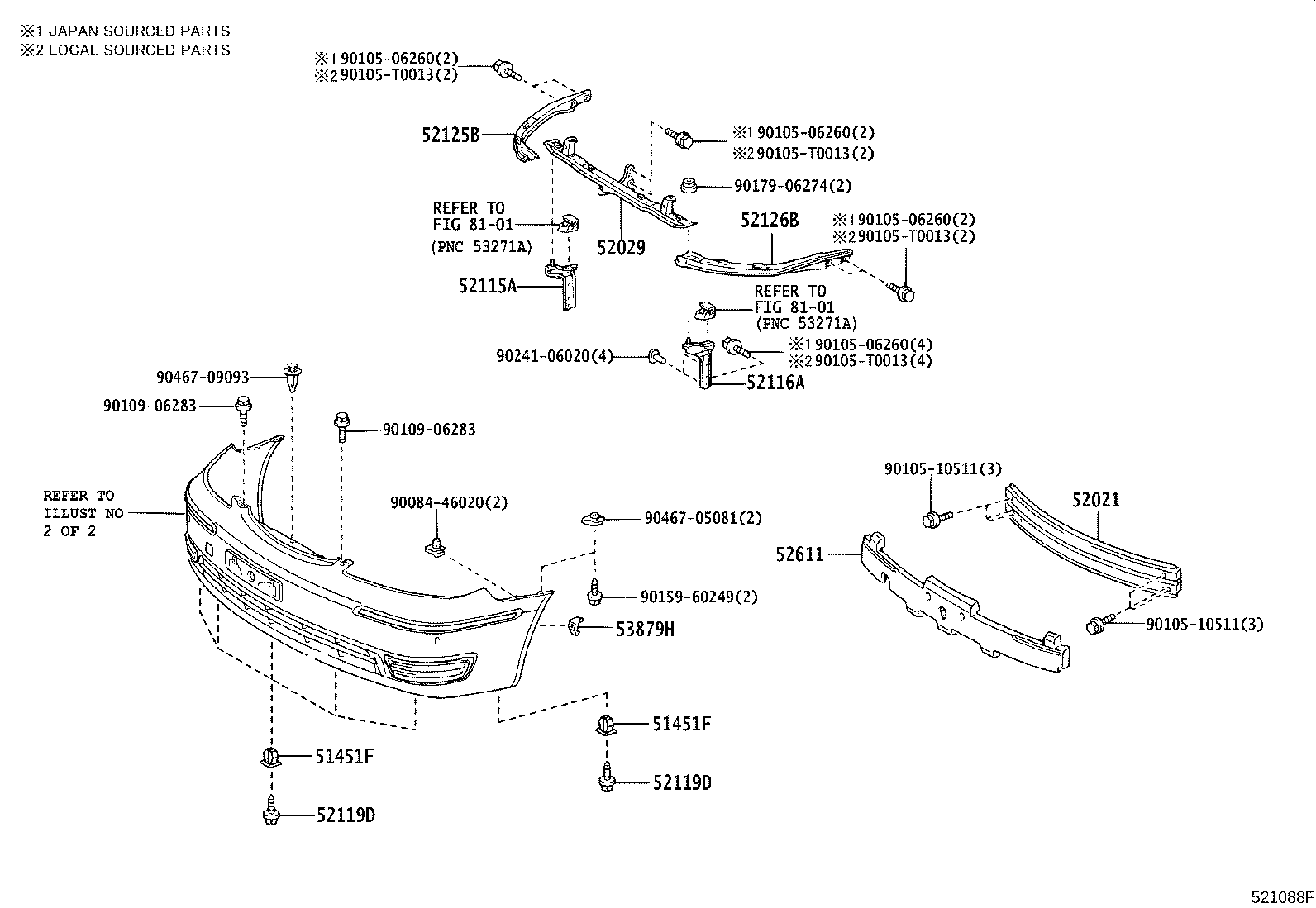

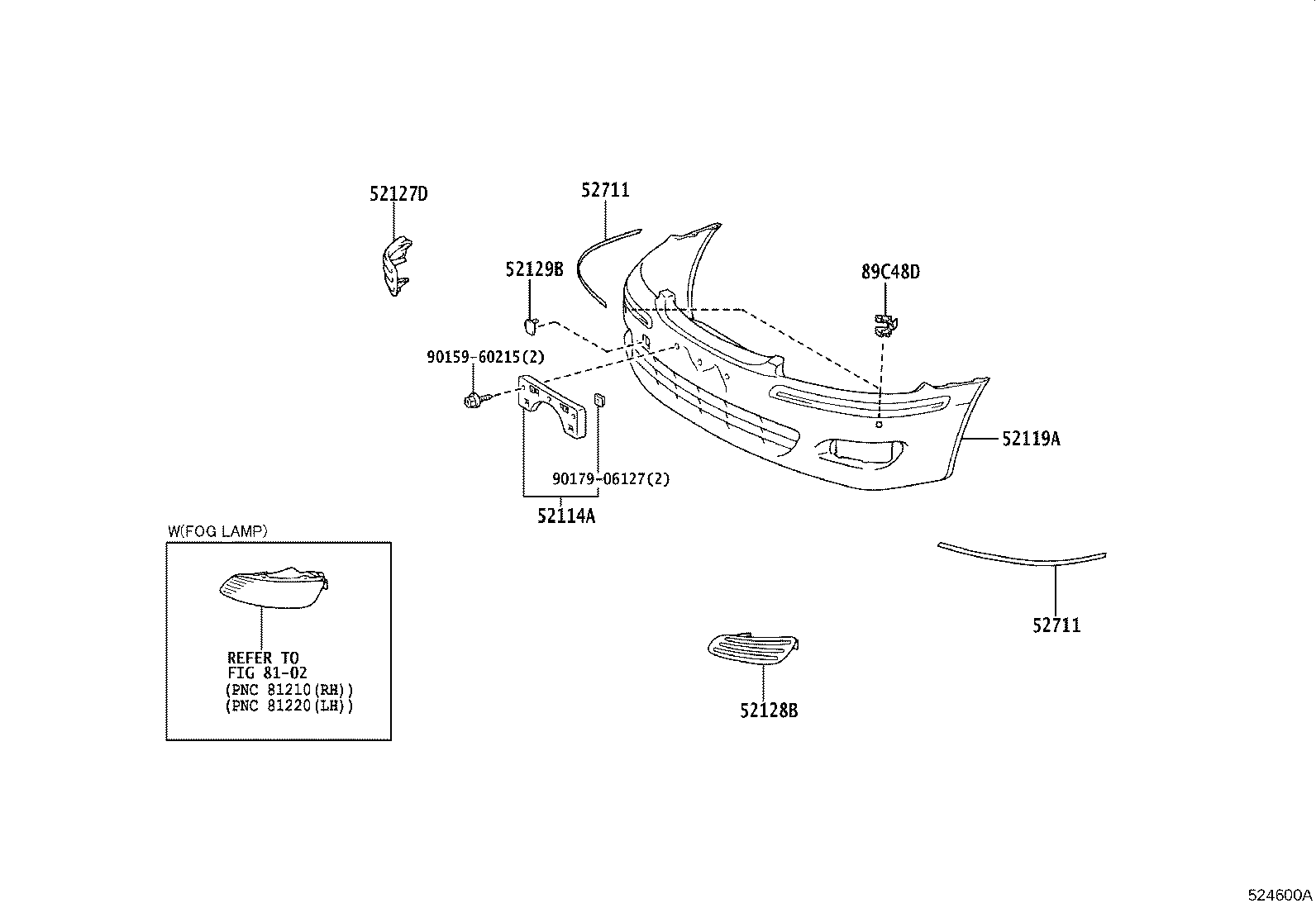

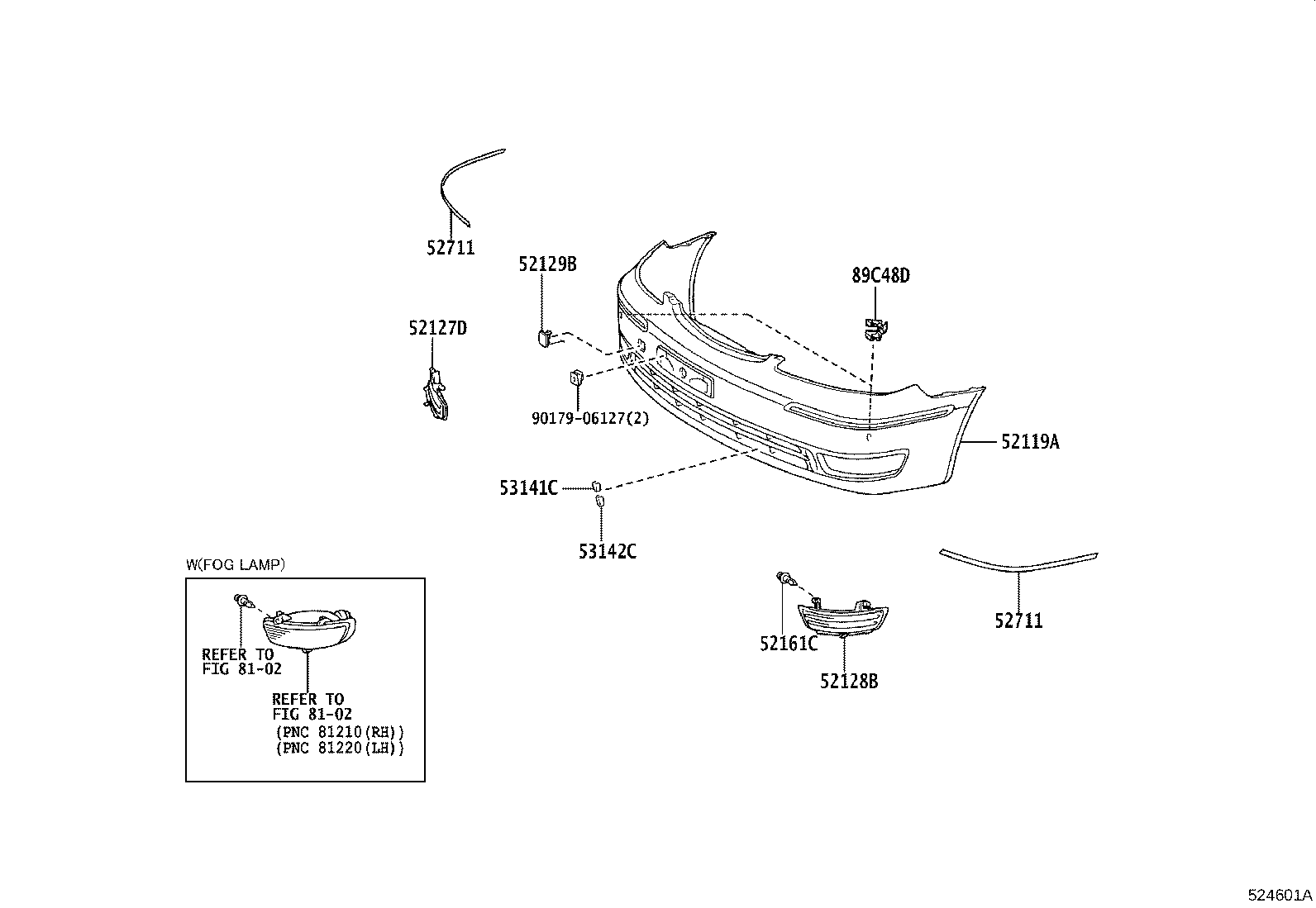

Figure 520830J 520830J 2002-03 → 2004-04 Figure 520830J 520830J 2002-03 → 2004-05 Figure 520830J 520830J 2004-05 → 2004-07 Figure 524600A 524600A 2002-03 → 2004-04 Figure 524600A 524600A 2002-03 → 2004-05 Figure 524600A 524600A 2004-05 → 2004-07 Figure 521088F 521088F 2004-04 → — Figure 521088F 521088F 2004-05 → — Figure 521088F 521088F 2004-07 → — Figure 524601A 524601A 2004-04 → — Figure 524601A 524601A 2004-05 → — Figure 524601A 524601A 2004-07 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
