Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

6 part groups · 2 illustrations

Illustrations

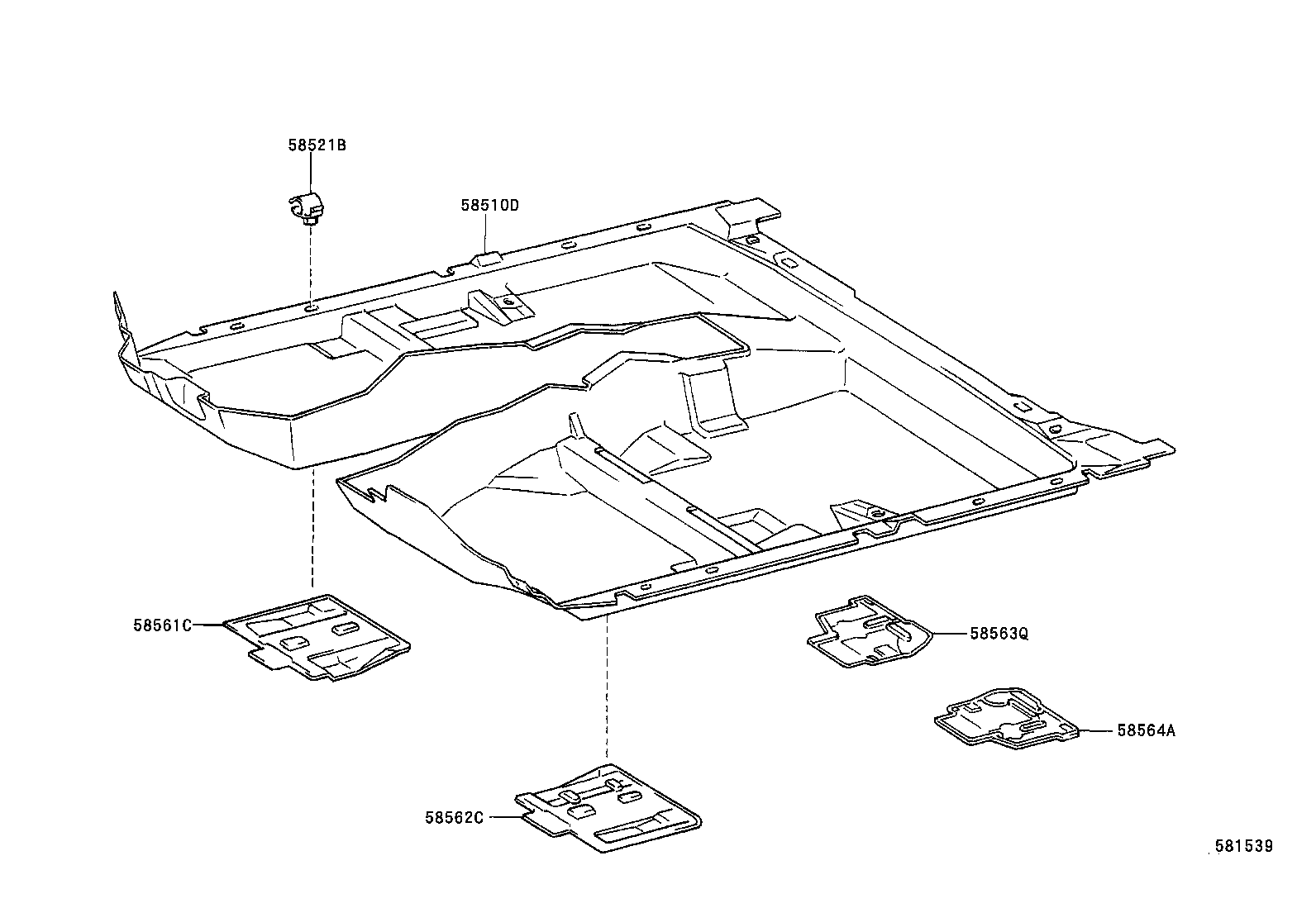

Figure 581538 581538 2002-03 → — Figure 581539 581539 2002-03 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
