Toyota Camry
2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General
Discontinued model
Data version 2007-04

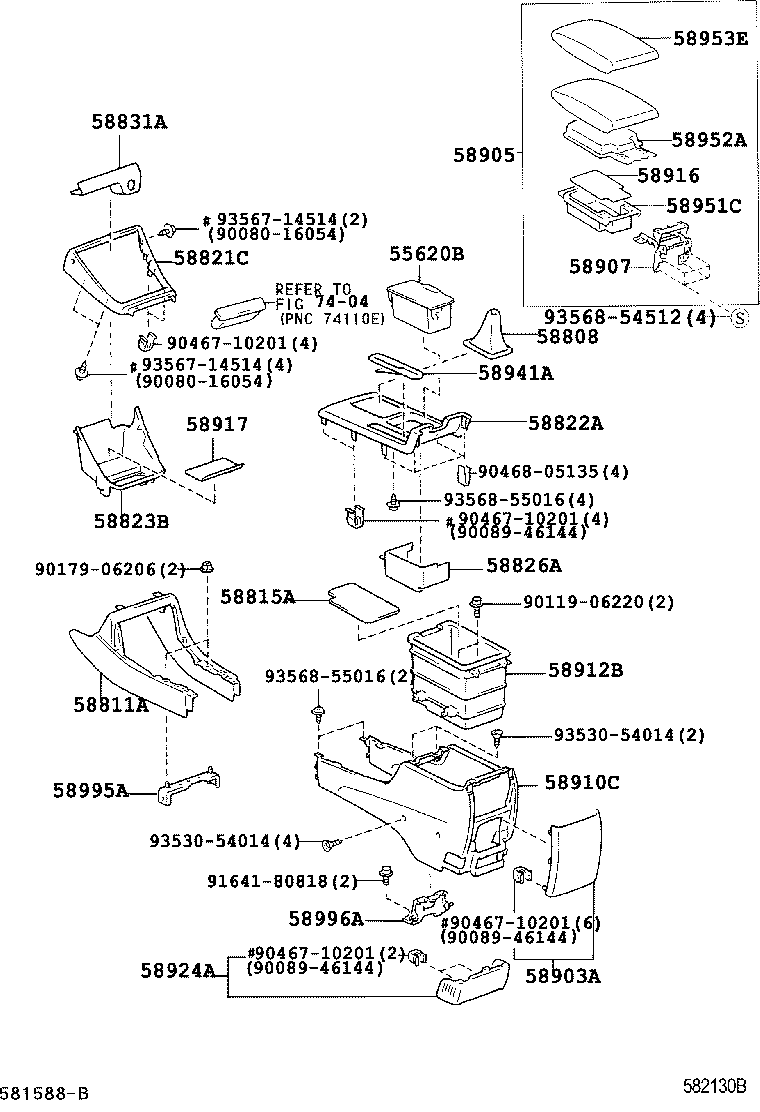

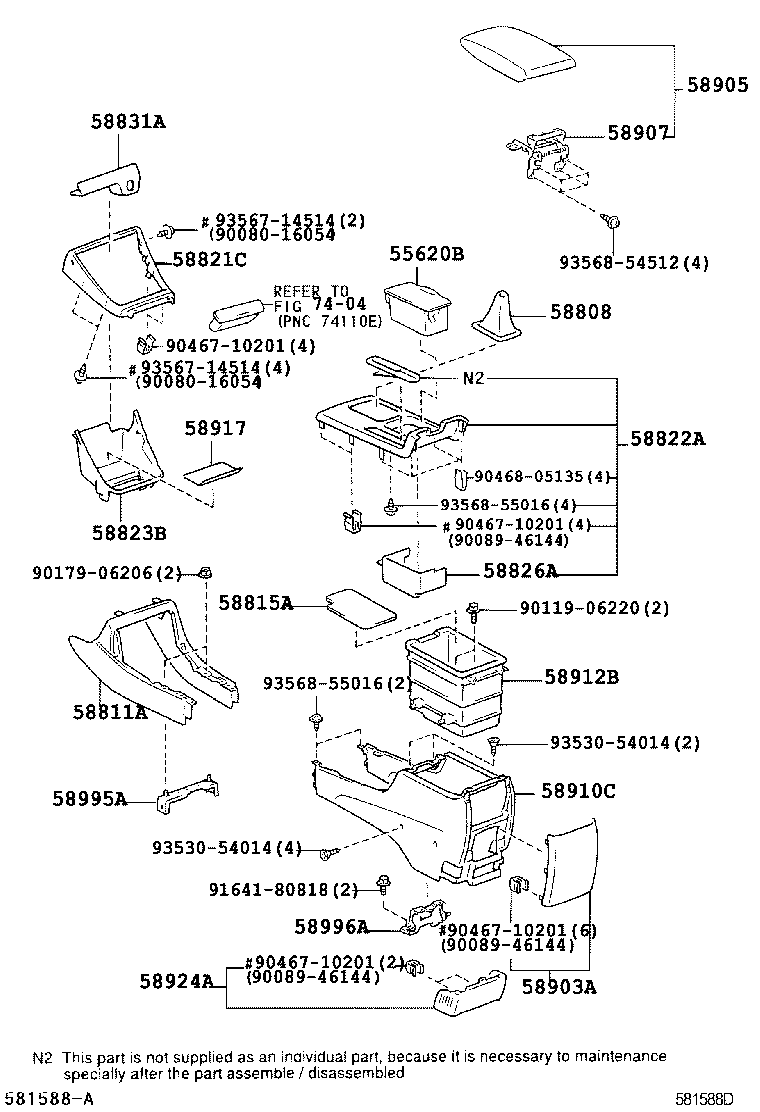

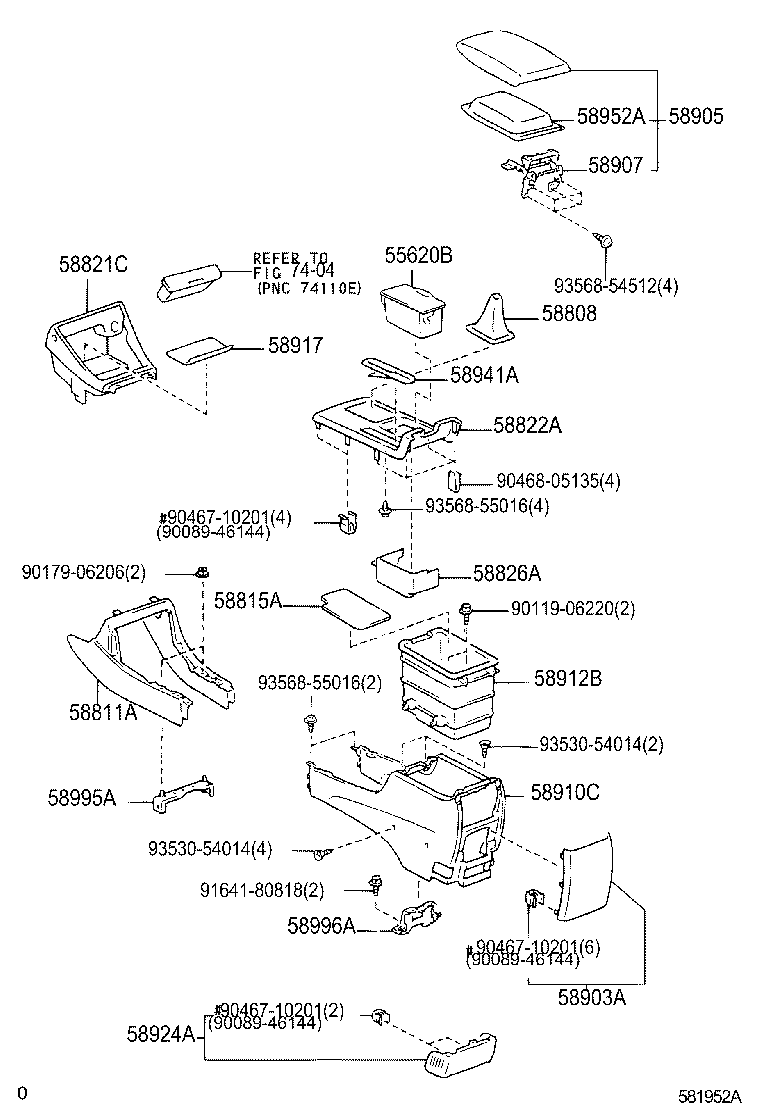

Console Box & Bracket
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55620B | Holder, Instrument Panel Cup |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811A | Box, Console, Front |
| 58815A | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58822A | Panel, Console, Upper Rear |
| 58823B | Box, Console Compartment |
| 58825A | Pocket, Console Box |
| 58826A | Pocket, Console Box, Lower |
| 58831A | Garnish, Console Upper Panel, Front |
| 58860A | Register Assy, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58912B | Box, Rear Console, Lower |
| 58916 | Mat, Box Bottom |
| 58917 | Mat, Box Bottom, NO.2 |
| 58924A | Panel, Console Rear End, NO.2 |
| 58941A | Cover, Parking Brake Hole |
| 58951C | Door, Box |
| 58952A | Door, Console Compartment, Inner |
| 58953E | Cover, Console Compartment Door Pad |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
