Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 2 illustrations

Illustrations

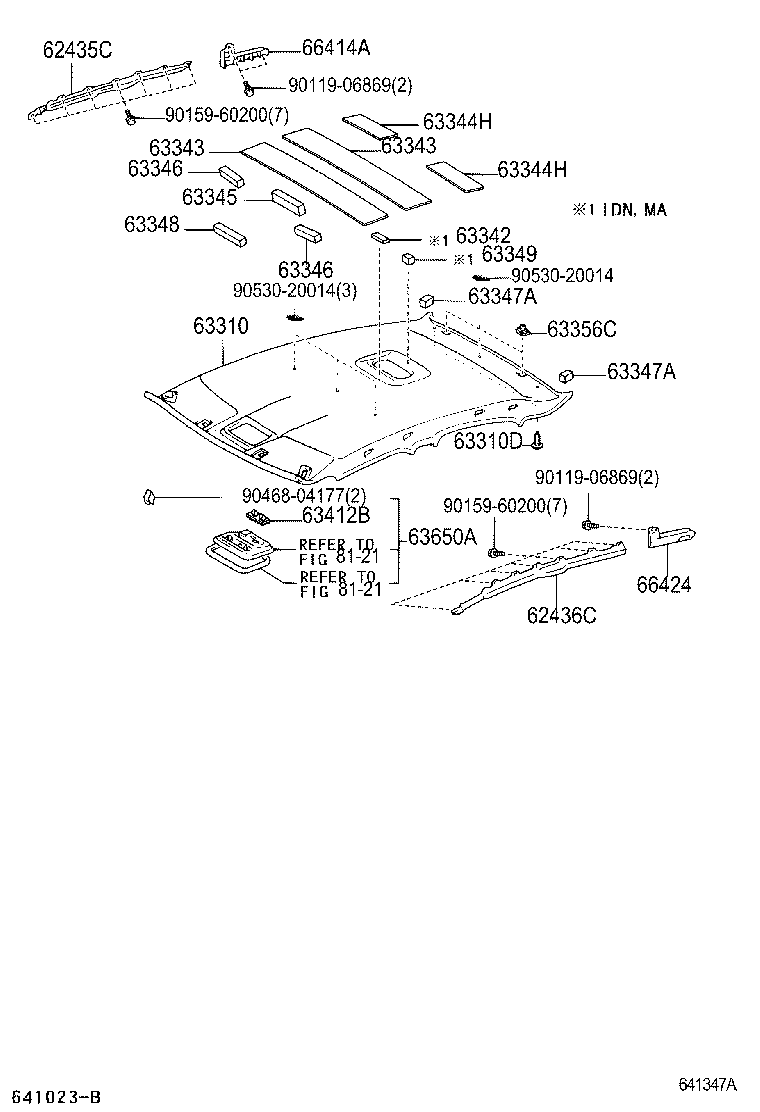

Figure 641023C 641023C 2002-03 → — Figure 641347A 641347A 2002-05 → —

Part groups

PNCDescription
62435C Pad, Roof Side Rail Garnish, RH
62436C Pad, Roof Side Rail Garnish, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344H Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63348 Pad, Roof Silencer, NO.8
63349 Pad, Roof Silencer, NO.9
63356C Holder, Sunshade Trim
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
66414A Spacer, Side Rail, Rear RH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
