Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

23 part groups · 2 illustrations

Illustrations

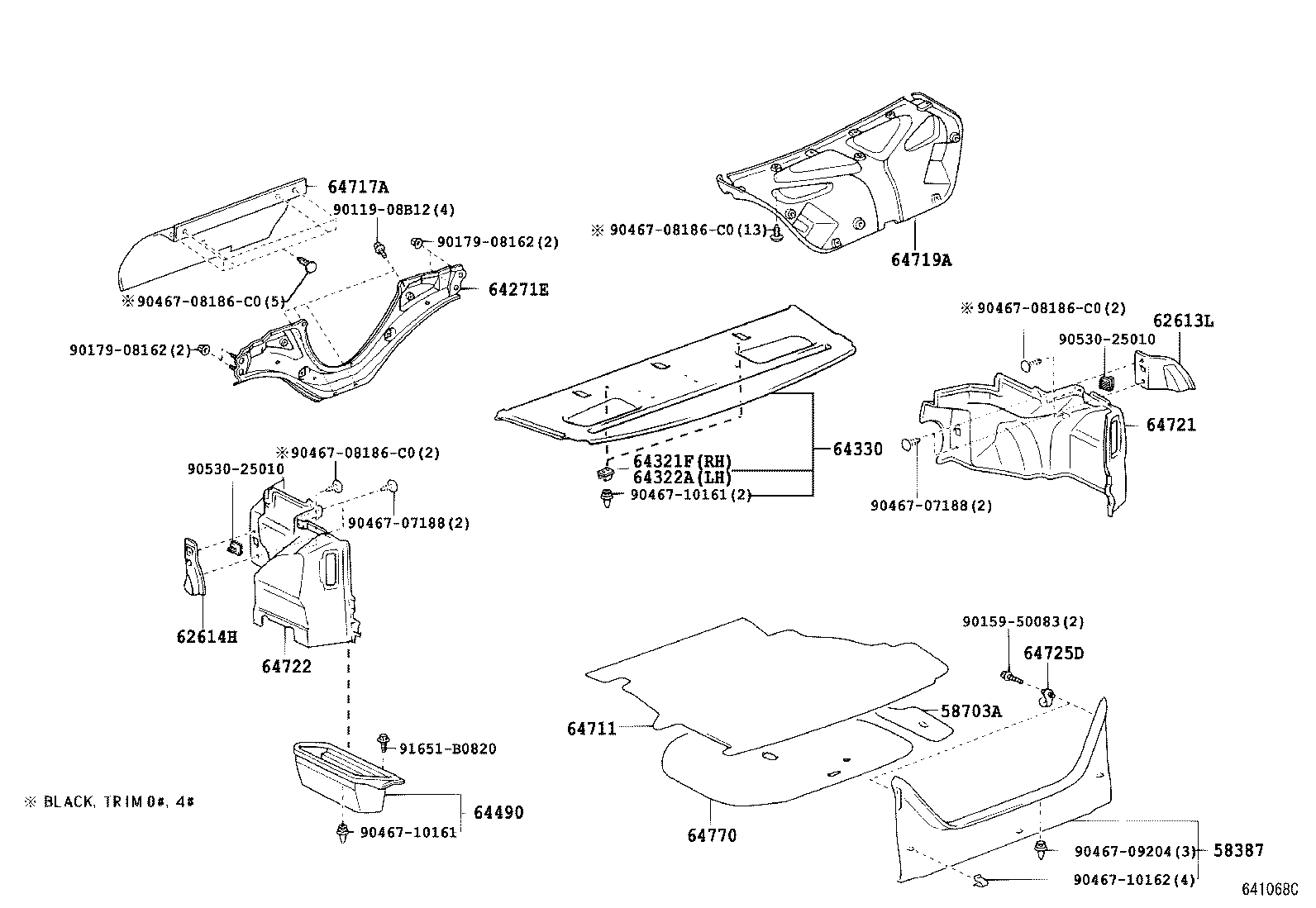

Figure 641025I 641025I 2002-03 → — Figure 641068C 641068C 2002-05 → —

Part groups

PNCDescription
58299F Net, Baggage Holder
58387 Plate, Rear Floor Finish
58703A Cover Sub-assy, Luggage Compartment Side, RH
62613L Insulator, Quarter Wheel House, NO.2 RH
62614H Insulator, Quarter Wheel House, NO.2 LH
64271E Panel, Room Partition
64321F Bracket, Package Tray Trim, RH
64322A Bracket, Package Tray Trim, LH
64330 Panel Assy, Package Tray Trim
64340B Panel Assy, Package Tray Trim, NO.2
64350A Shade Assy, Rear Window
64490 Tray Assy, Luggage Compartment Side
64711 Mat, Luggage Compartment Floor
64717A Cover, Luggage Compartment Trim, Front
64719A Cover, Luggage Compartment Door
64721 Cover, Luggage Compartment Trim, Inner RH
64722 Cover, Luggage Compartment Trim, Inner LH
64723A Cover, Luggage Compartment Trim, Inner Lower
64725D Hook, Luggage Compartment Trim, NO.1
64770 Cover Assy, Spare Wheel
71295 Plate, Rear Seatback, Upper RH
71296A Plate, Rear Seatback, Upper LH
86846A Plate, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
