Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 7 illustrations

Illustrations

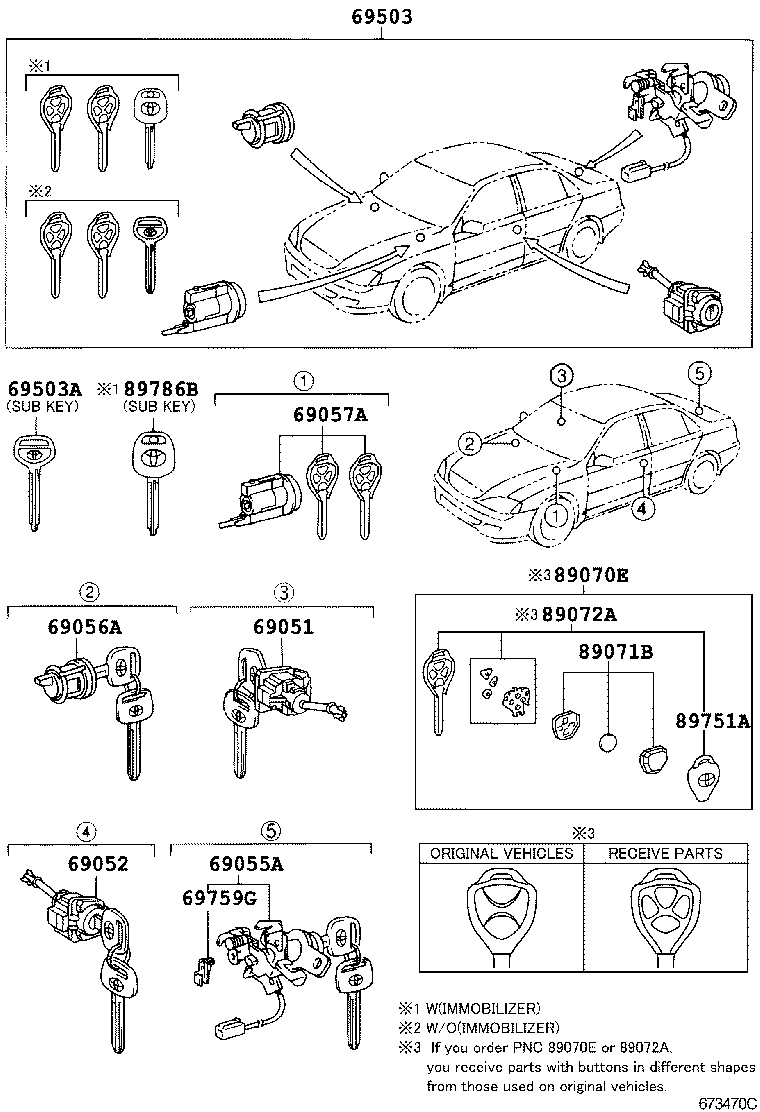

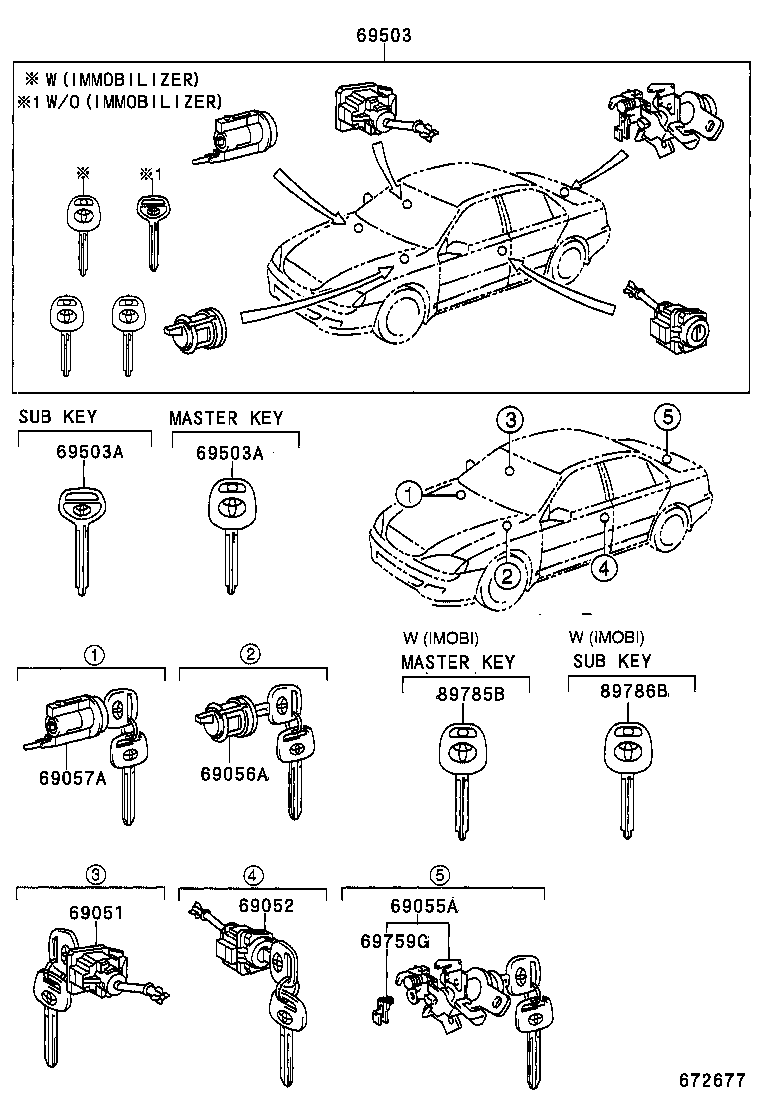

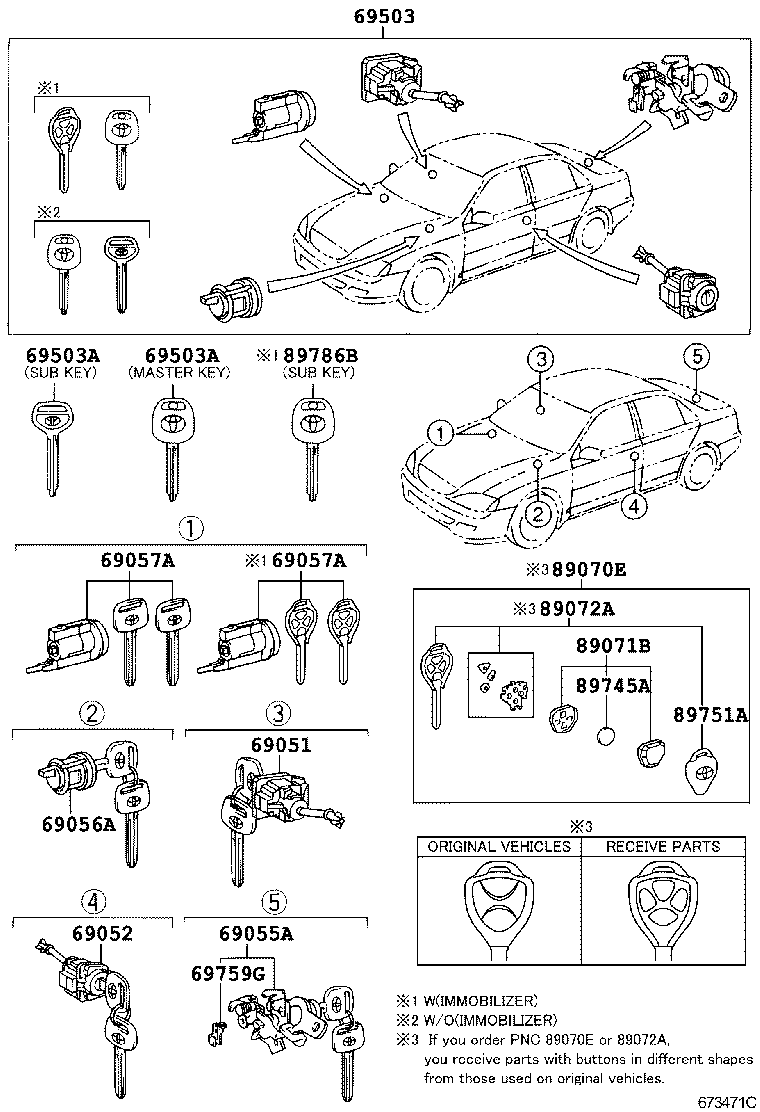

Figure 672676 672676 2002-03 → 2004-05 Figure 672677 672677 2002-03 → 2004-05 Figure 672677 672677 2002-03 → 2004-07 Figure 673470C 673470C 2004-04 → — Figure 673470C 673470C 2004-07 → — Figure 673471C 673471C 2004-05 → — Figure 673471C 673471C 2004-07 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
