Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

60 part groups · 42 illustrations

Illustrations

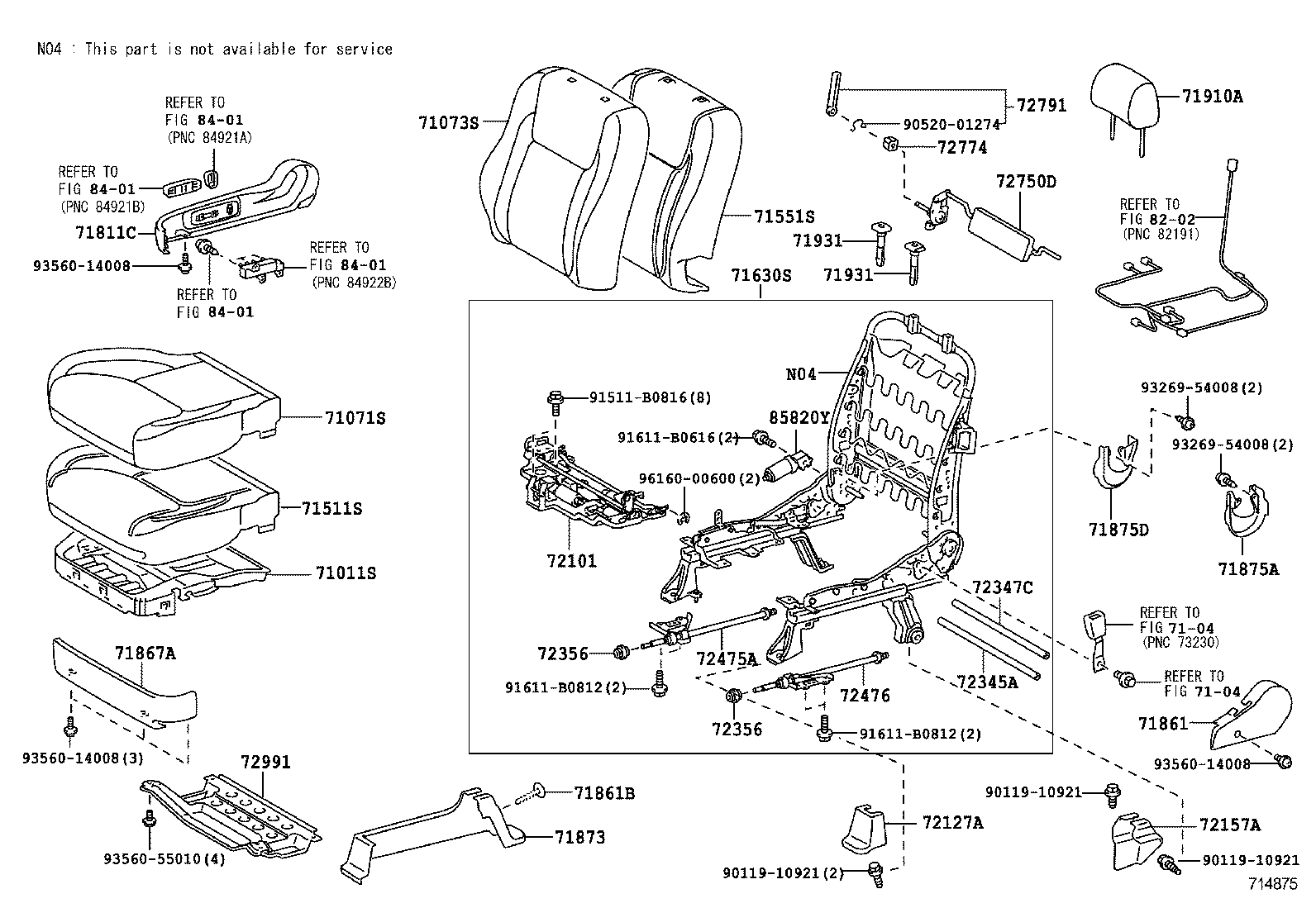

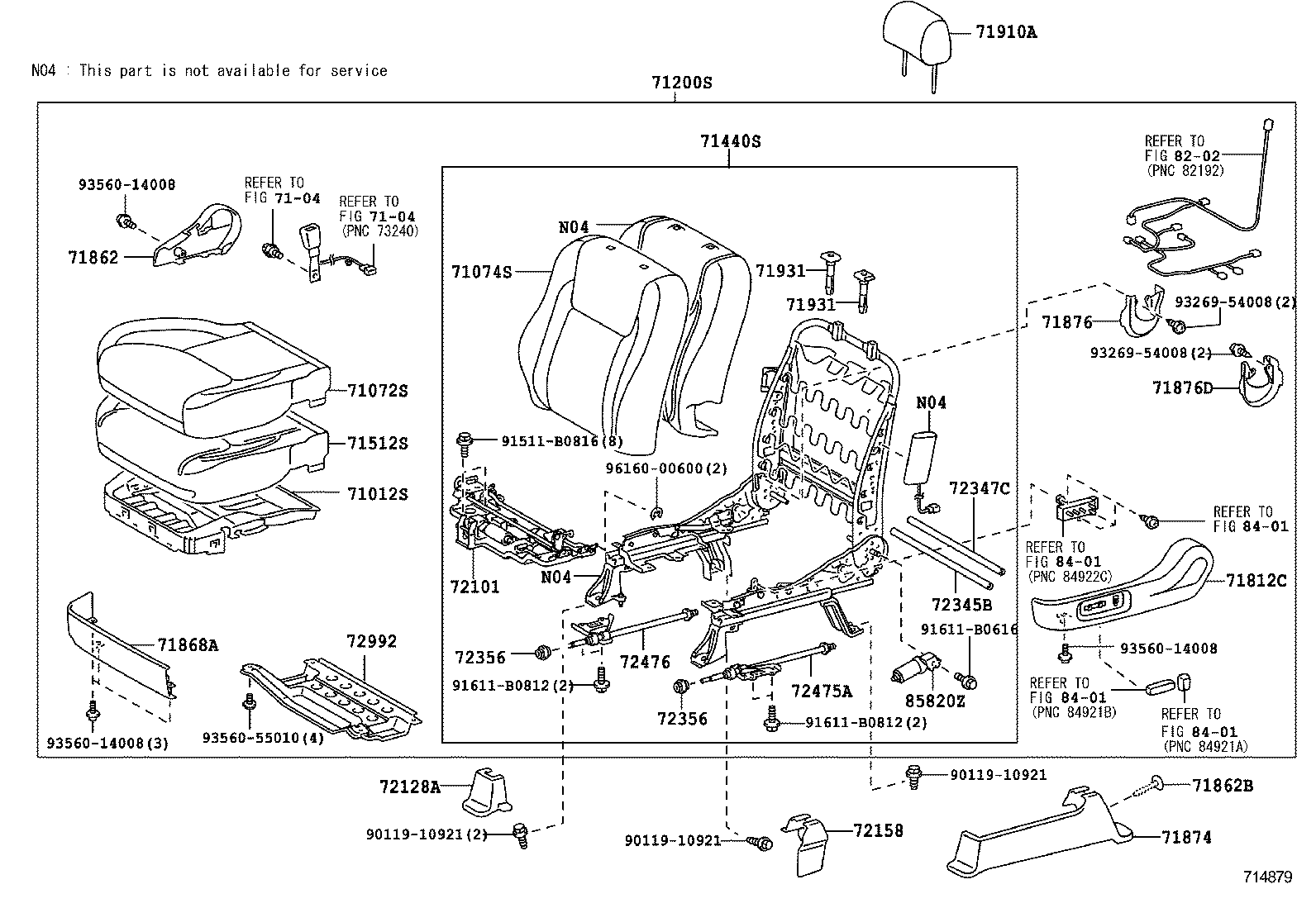

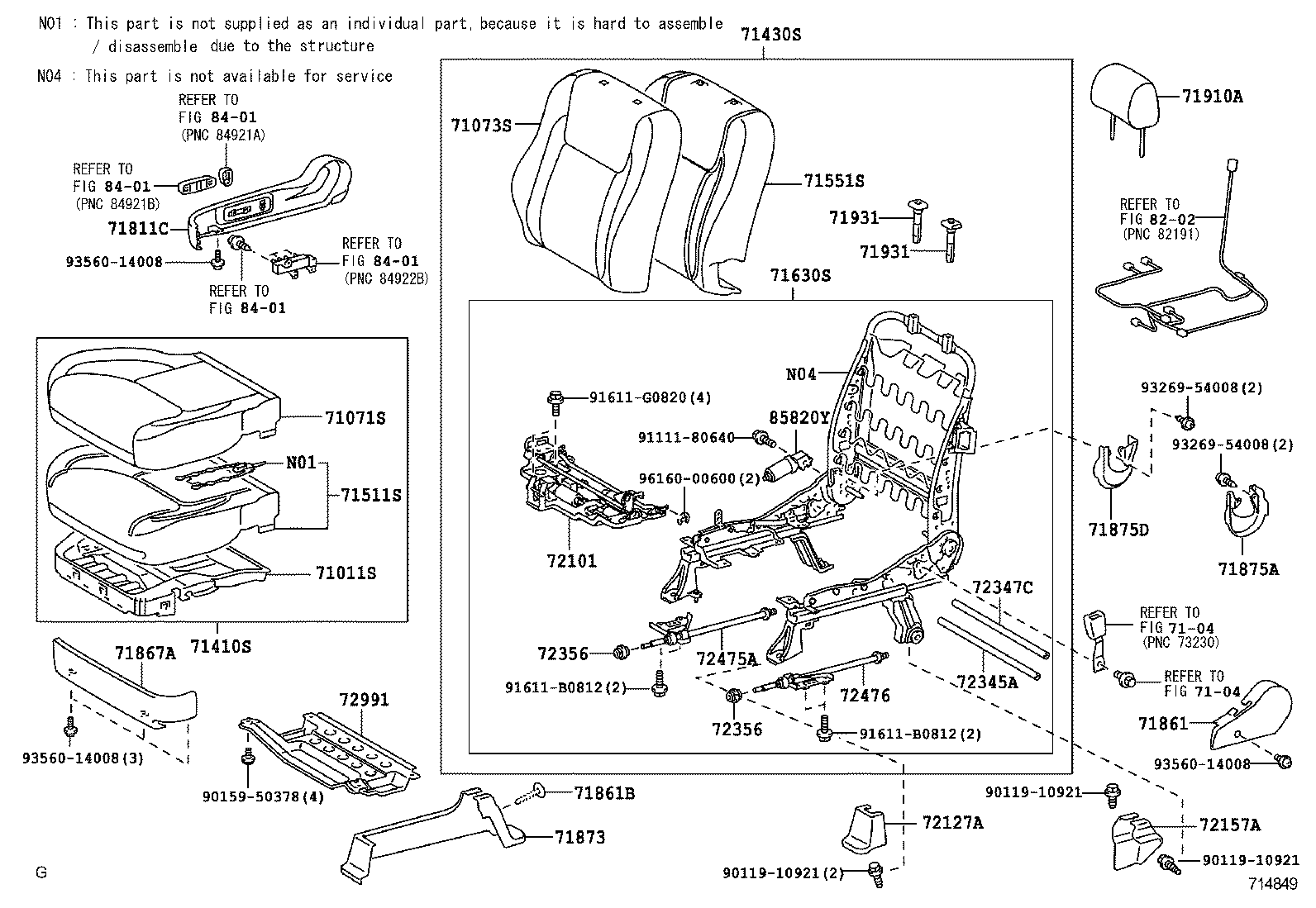

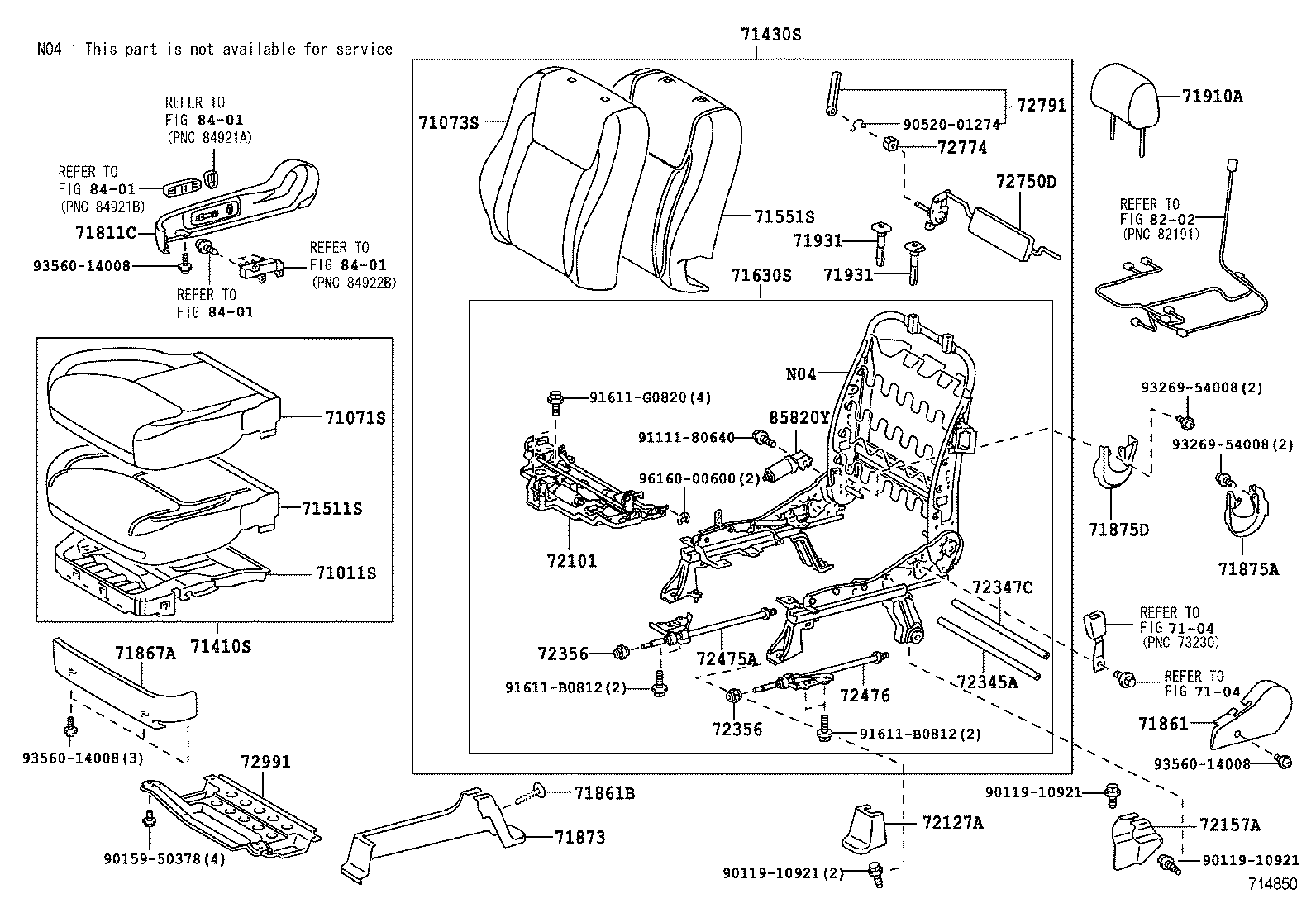

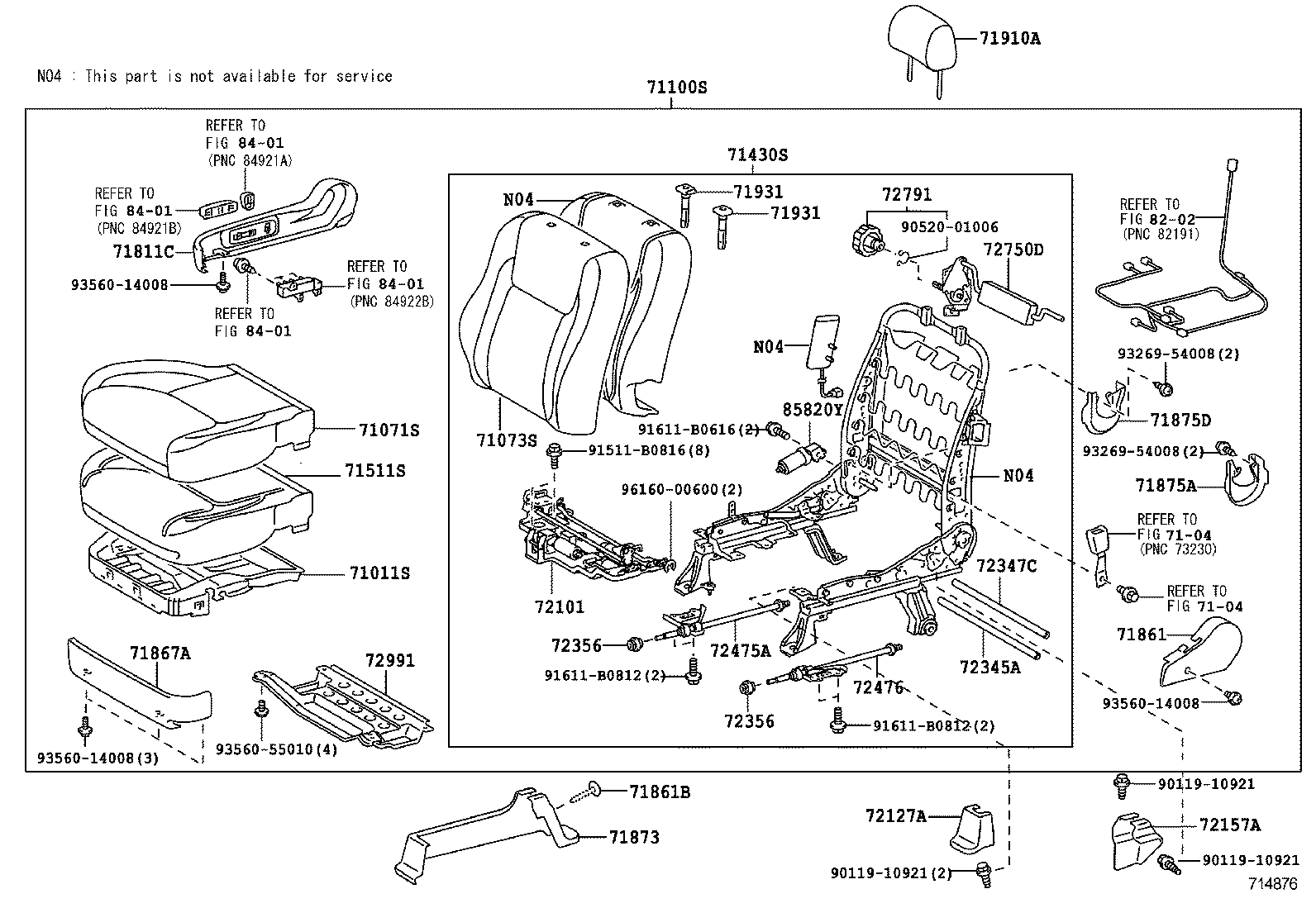

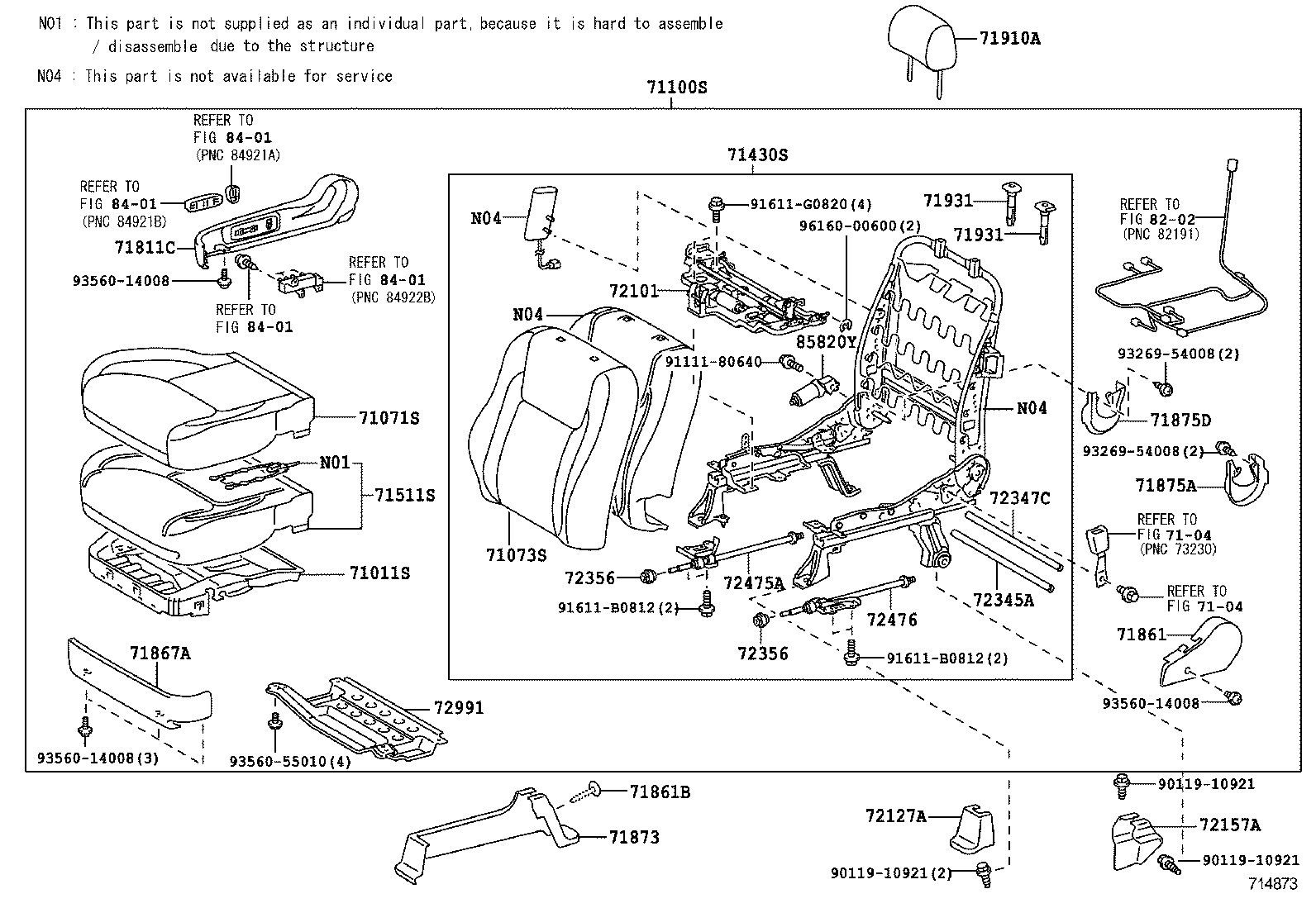

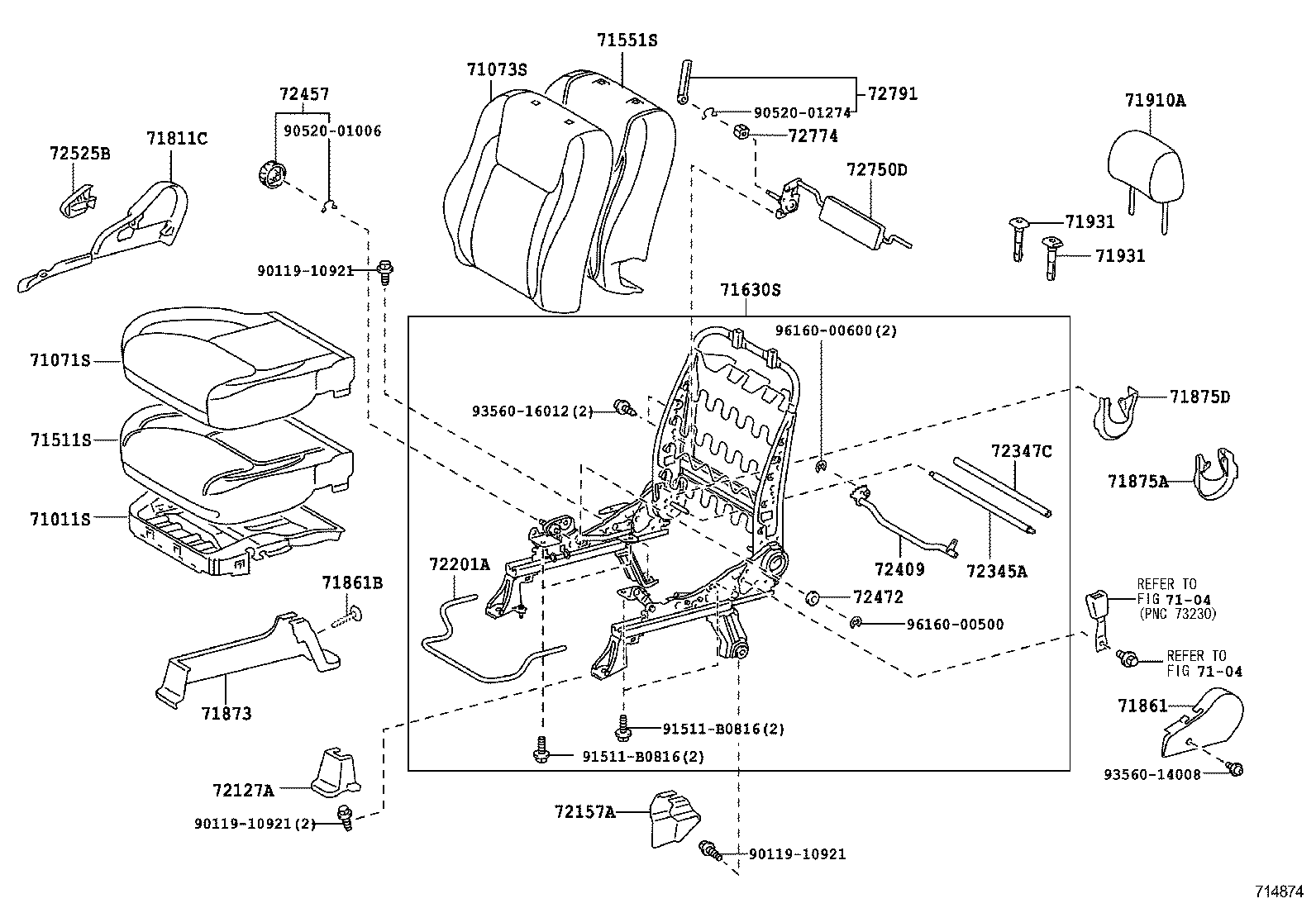

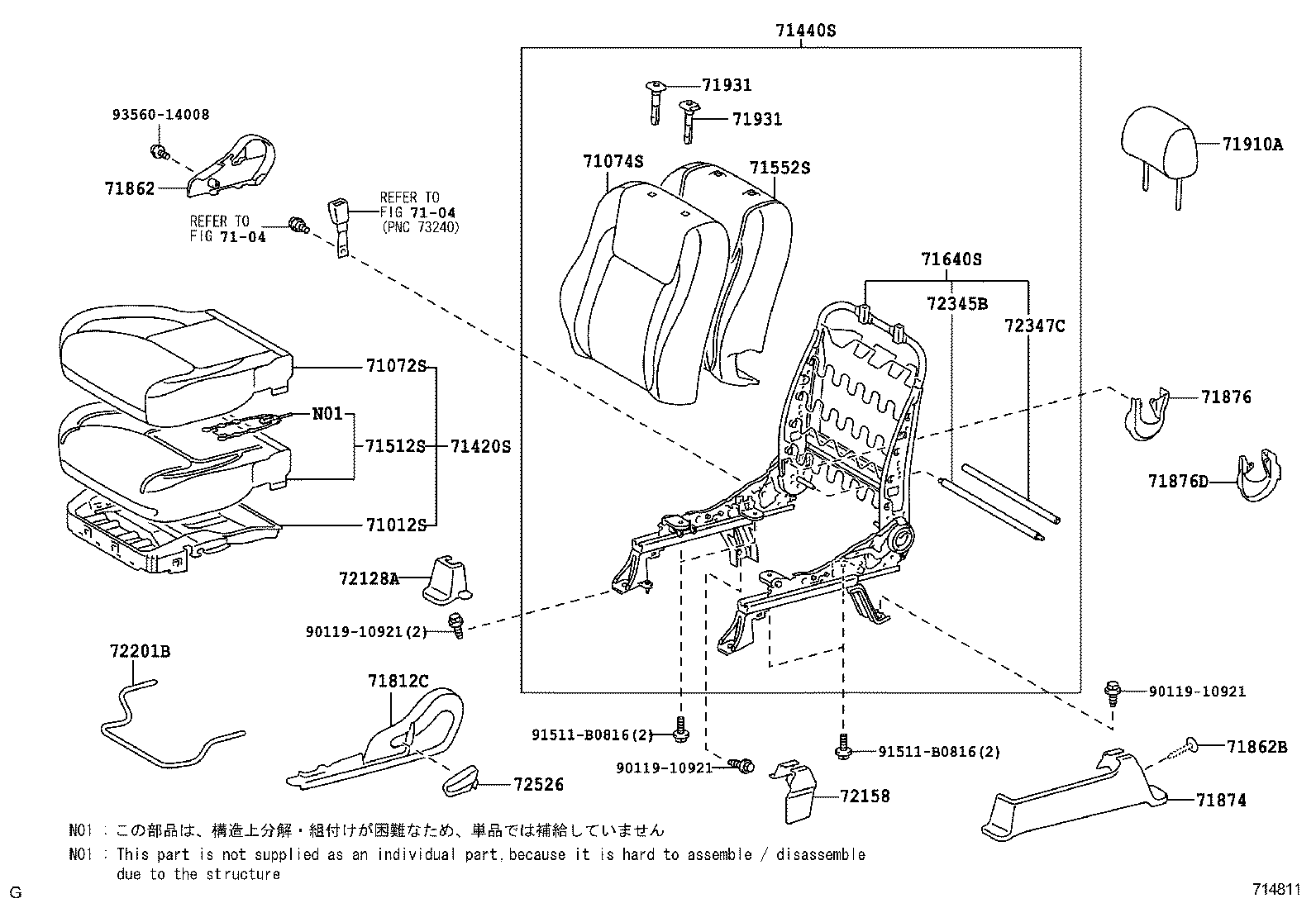

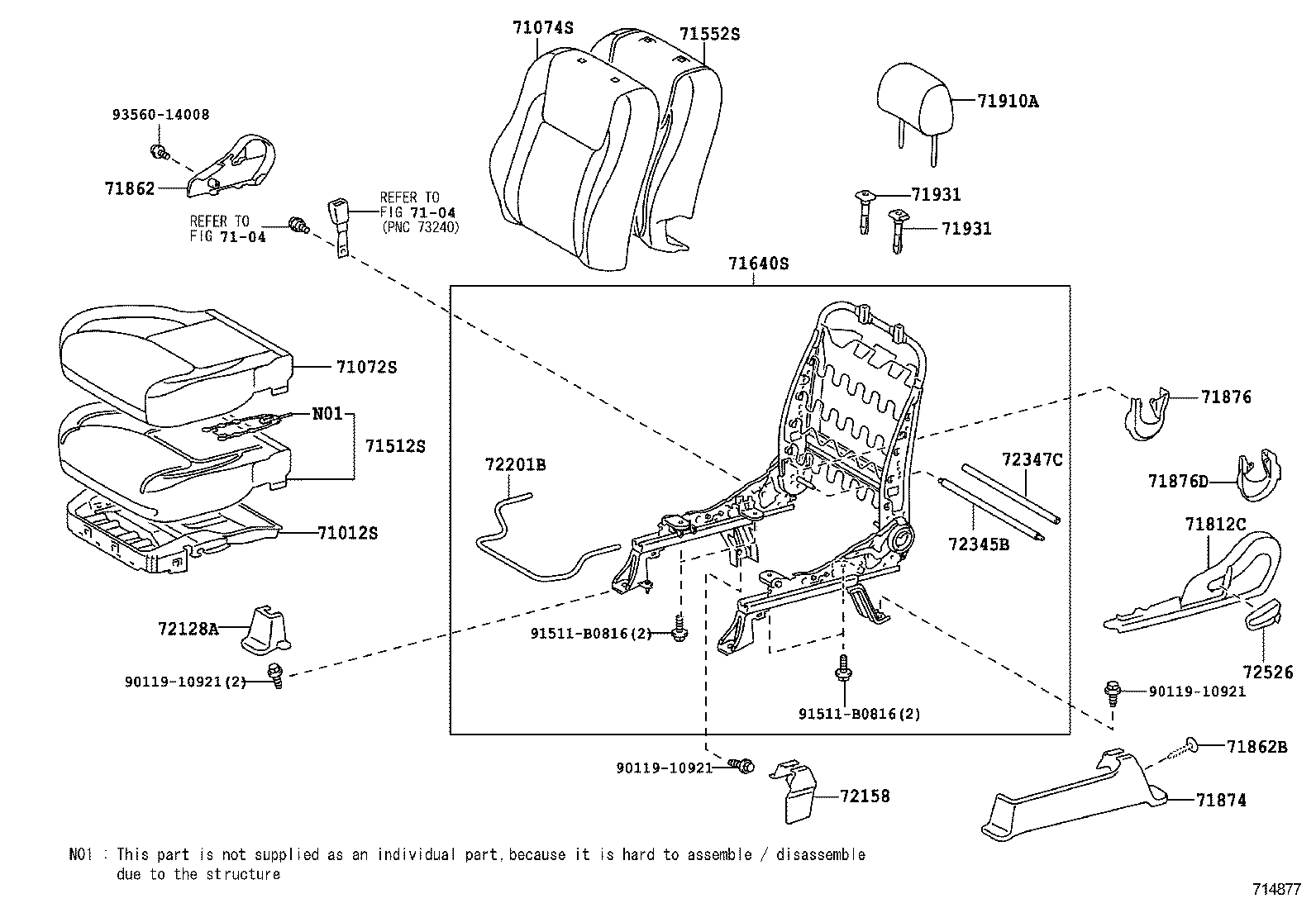

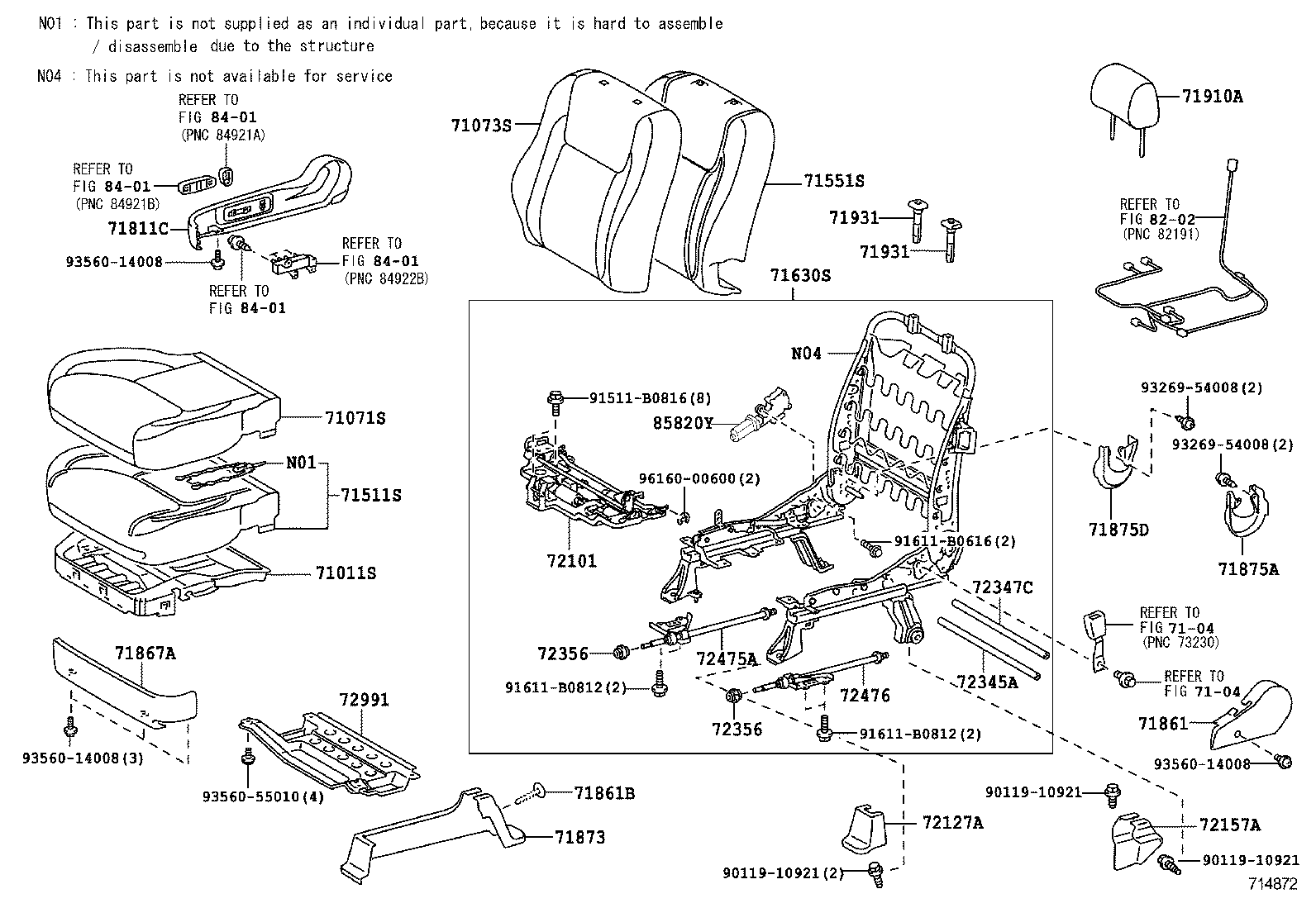

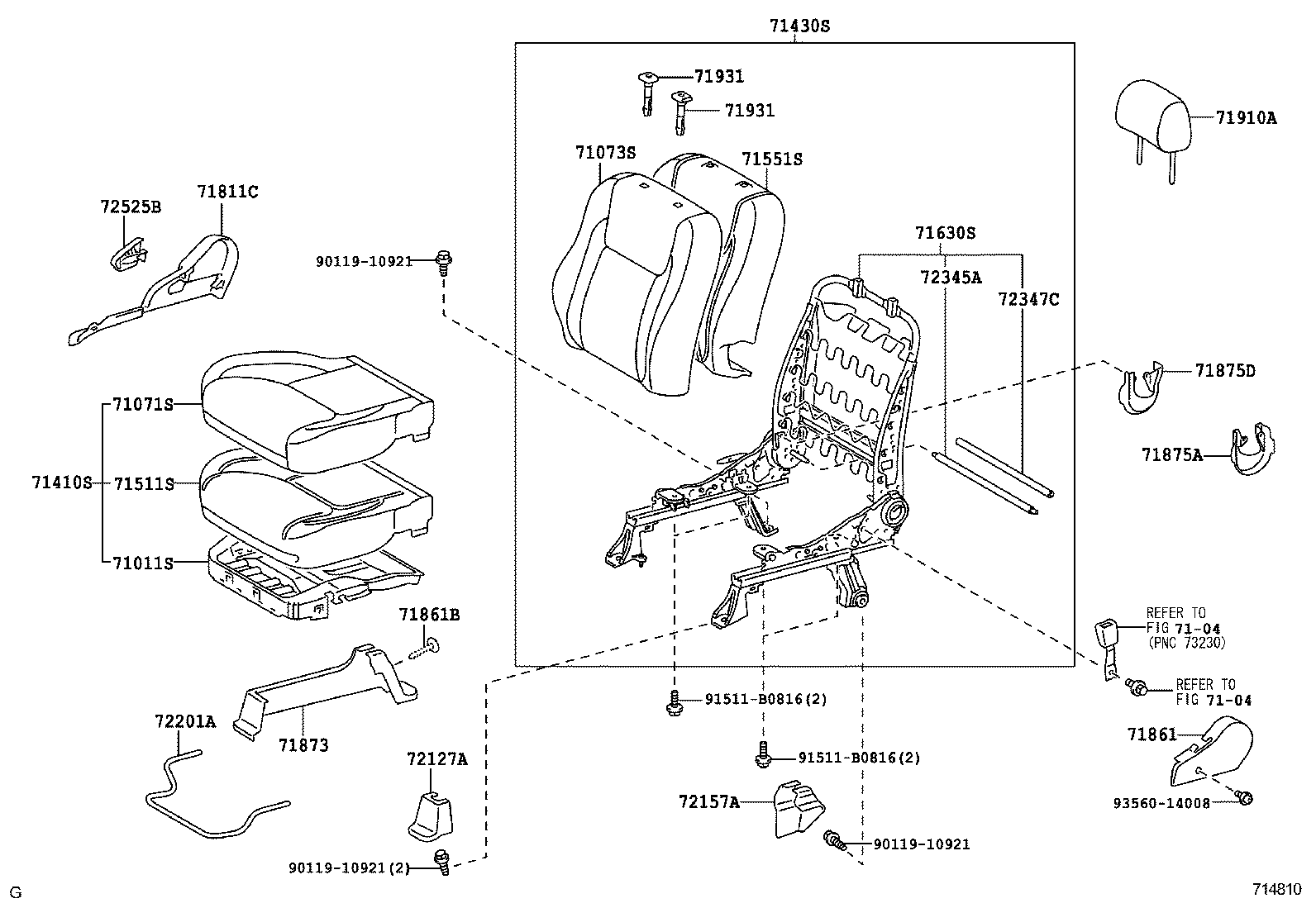

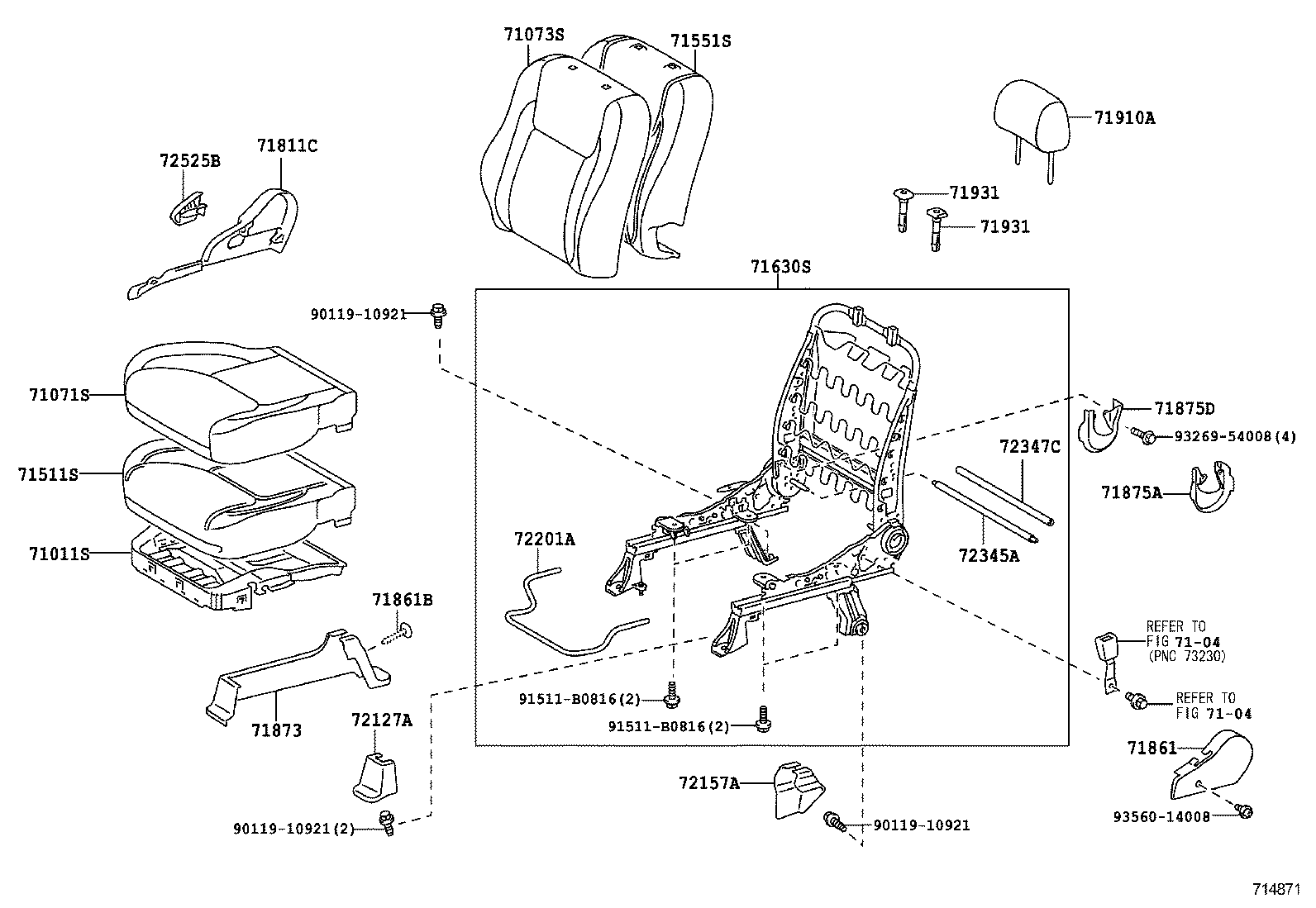

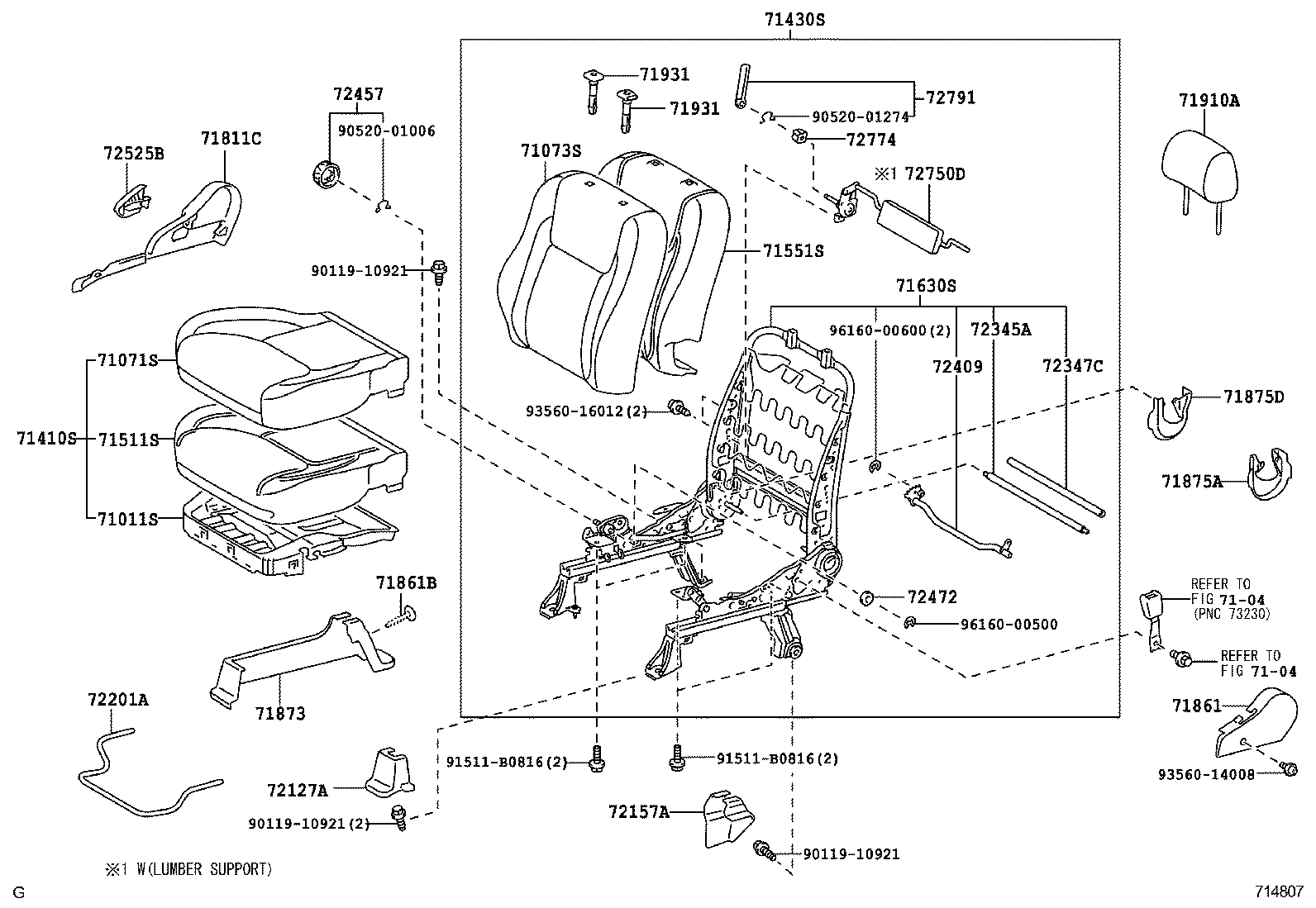

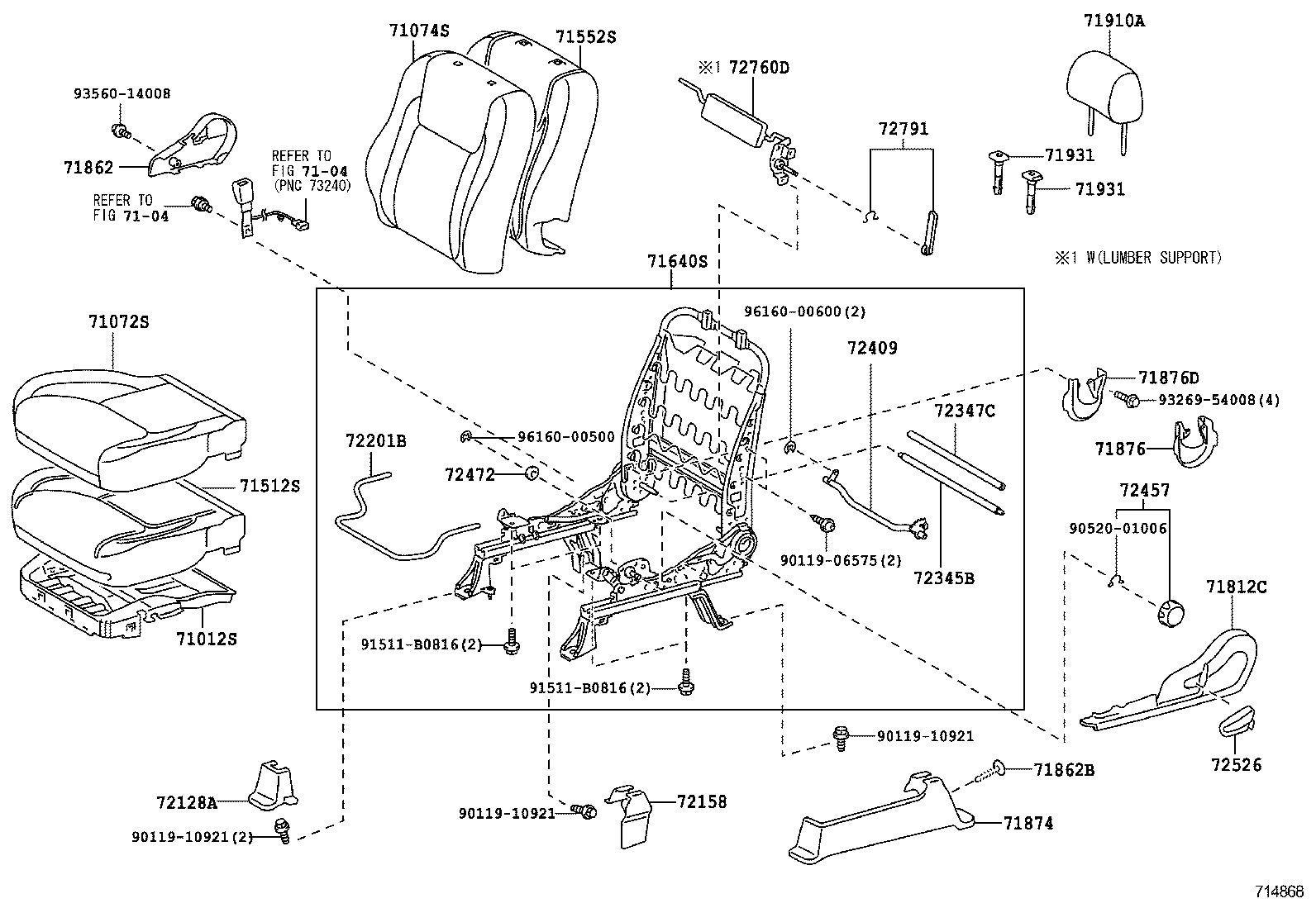

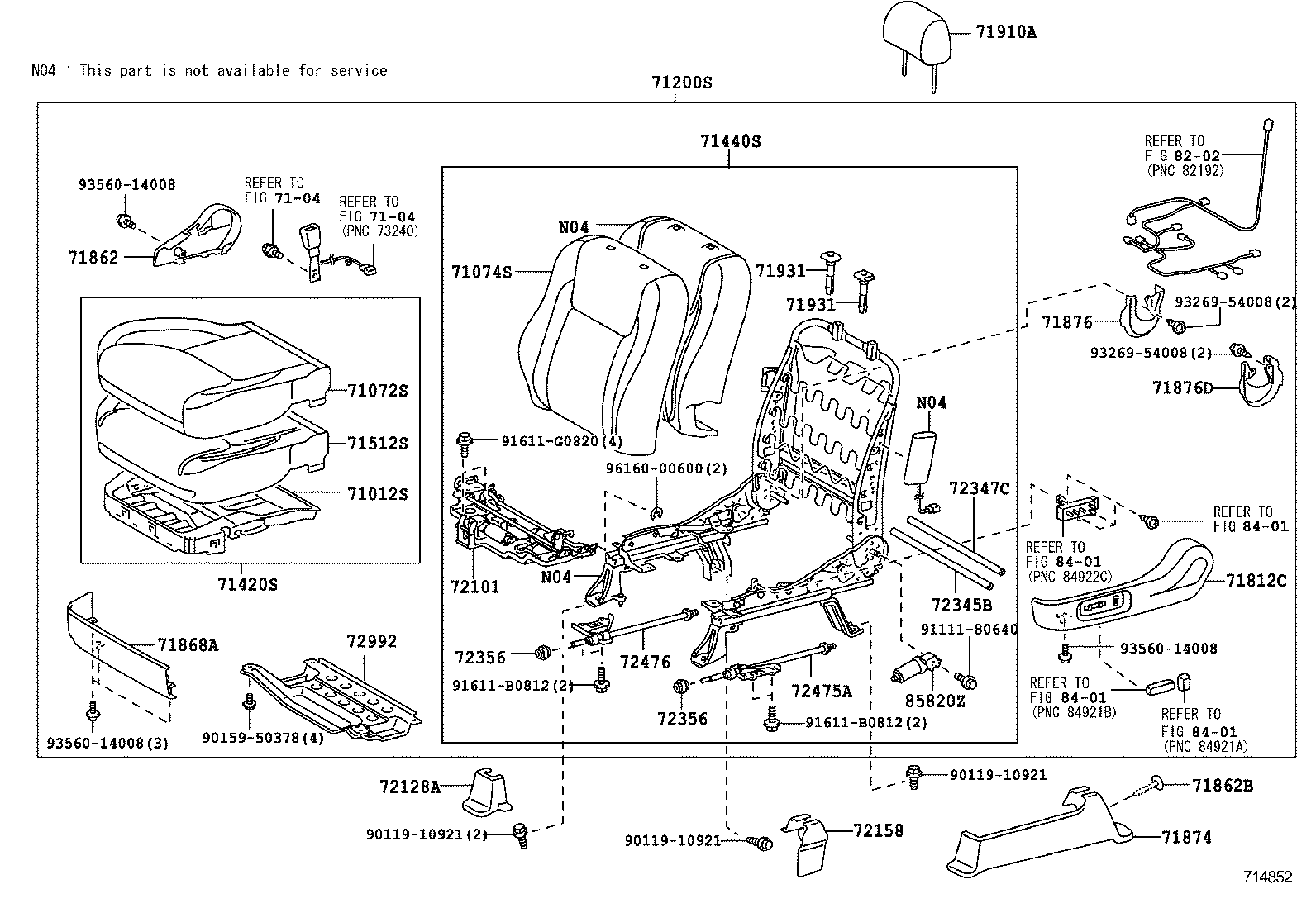

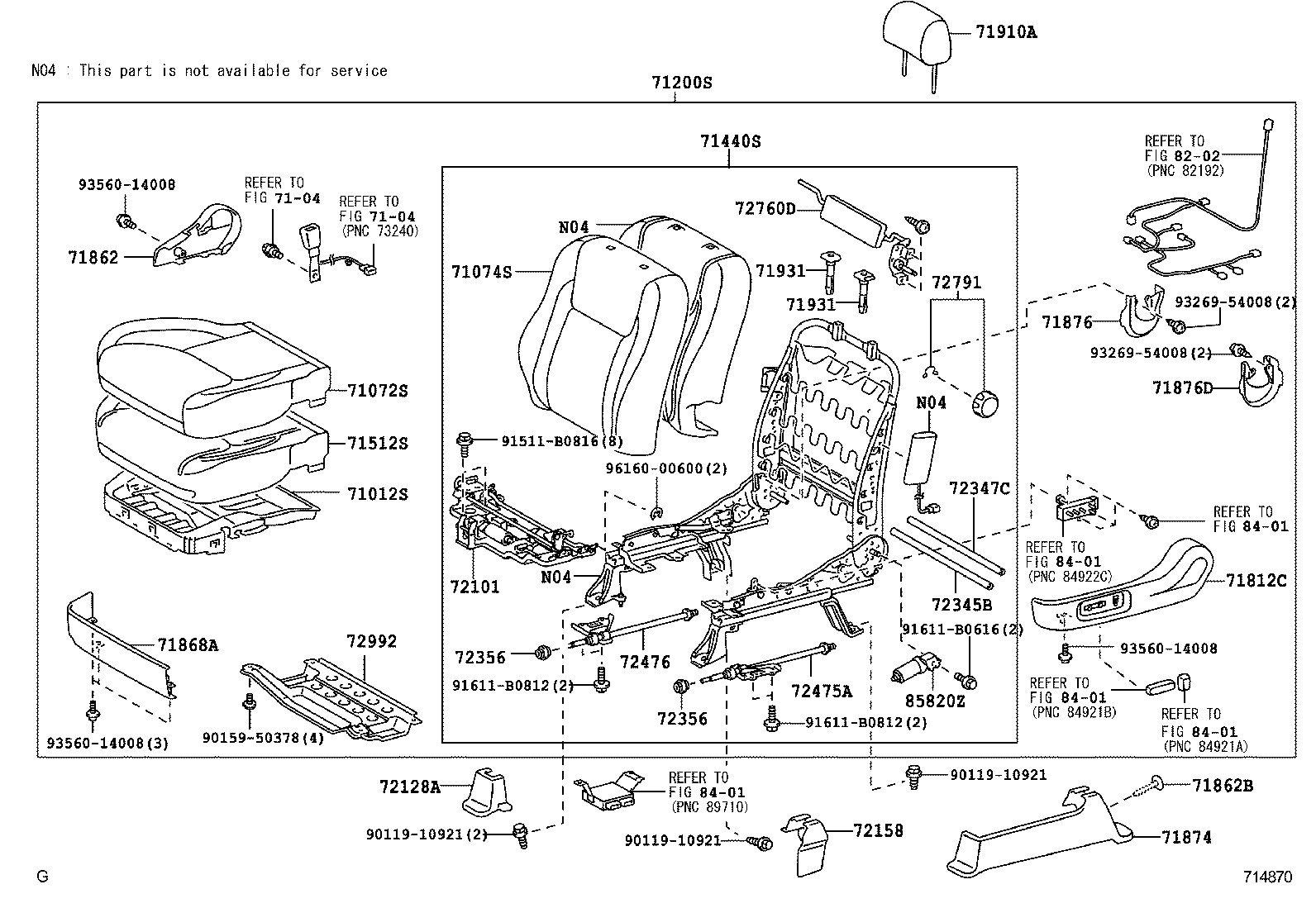

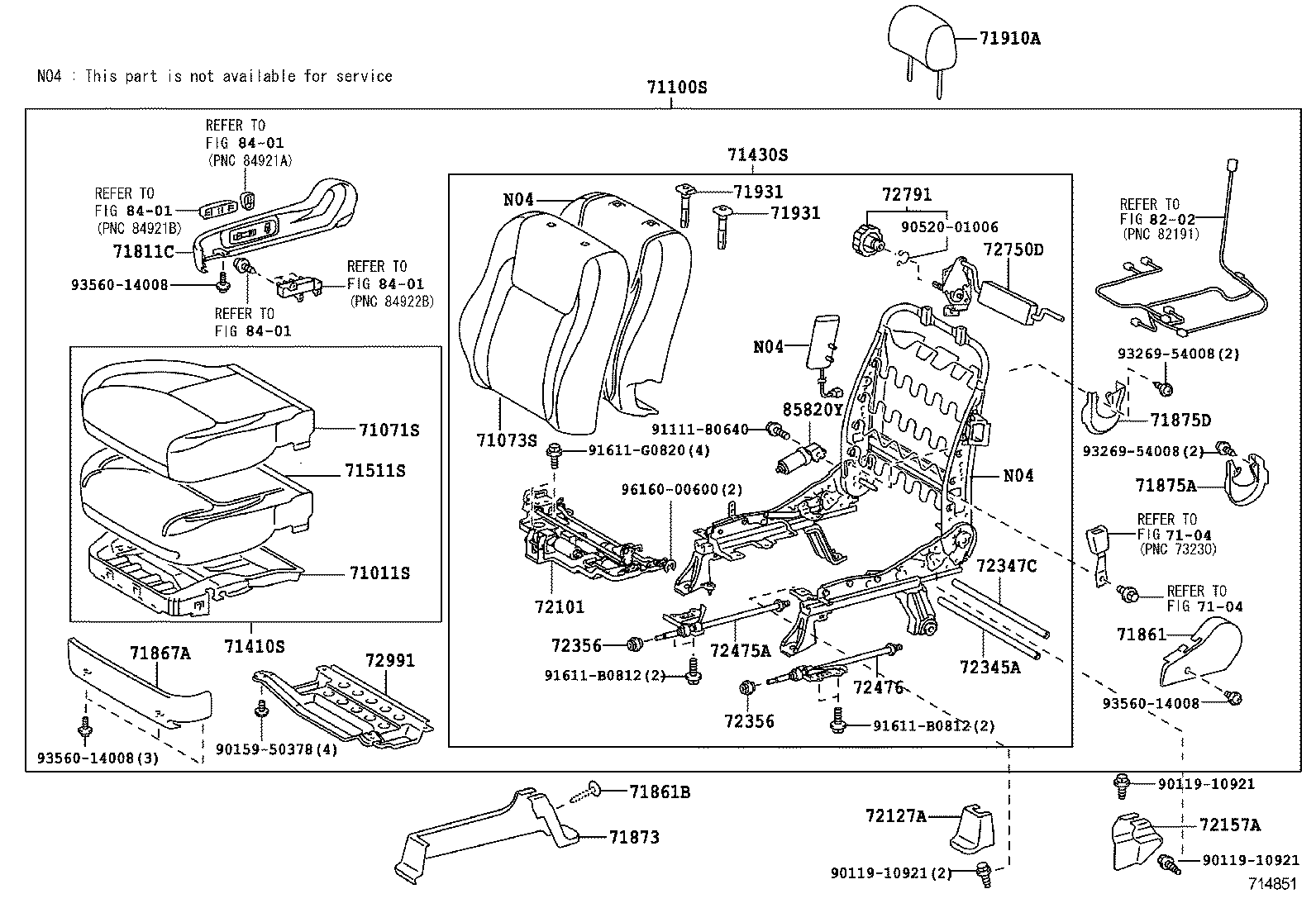

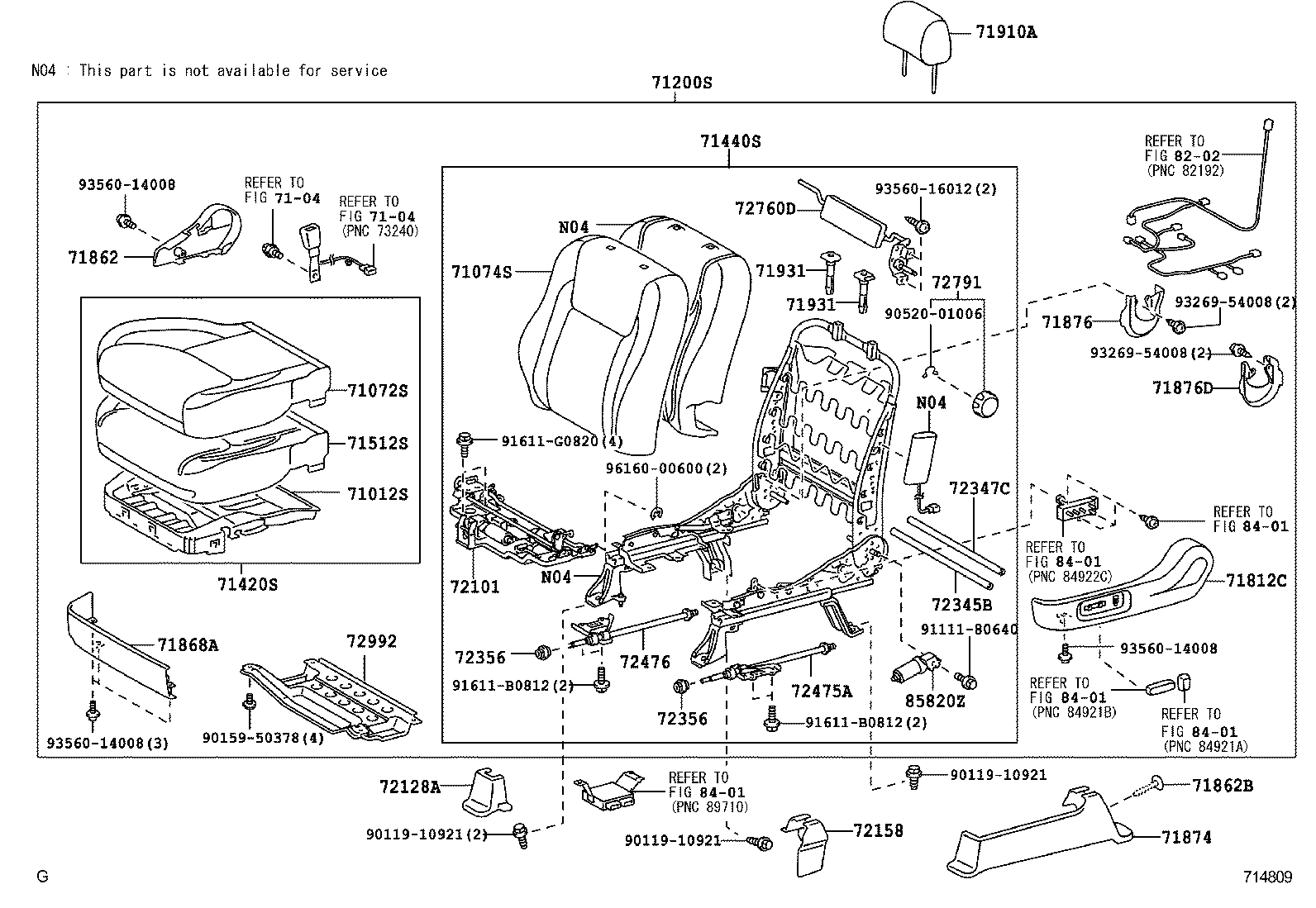

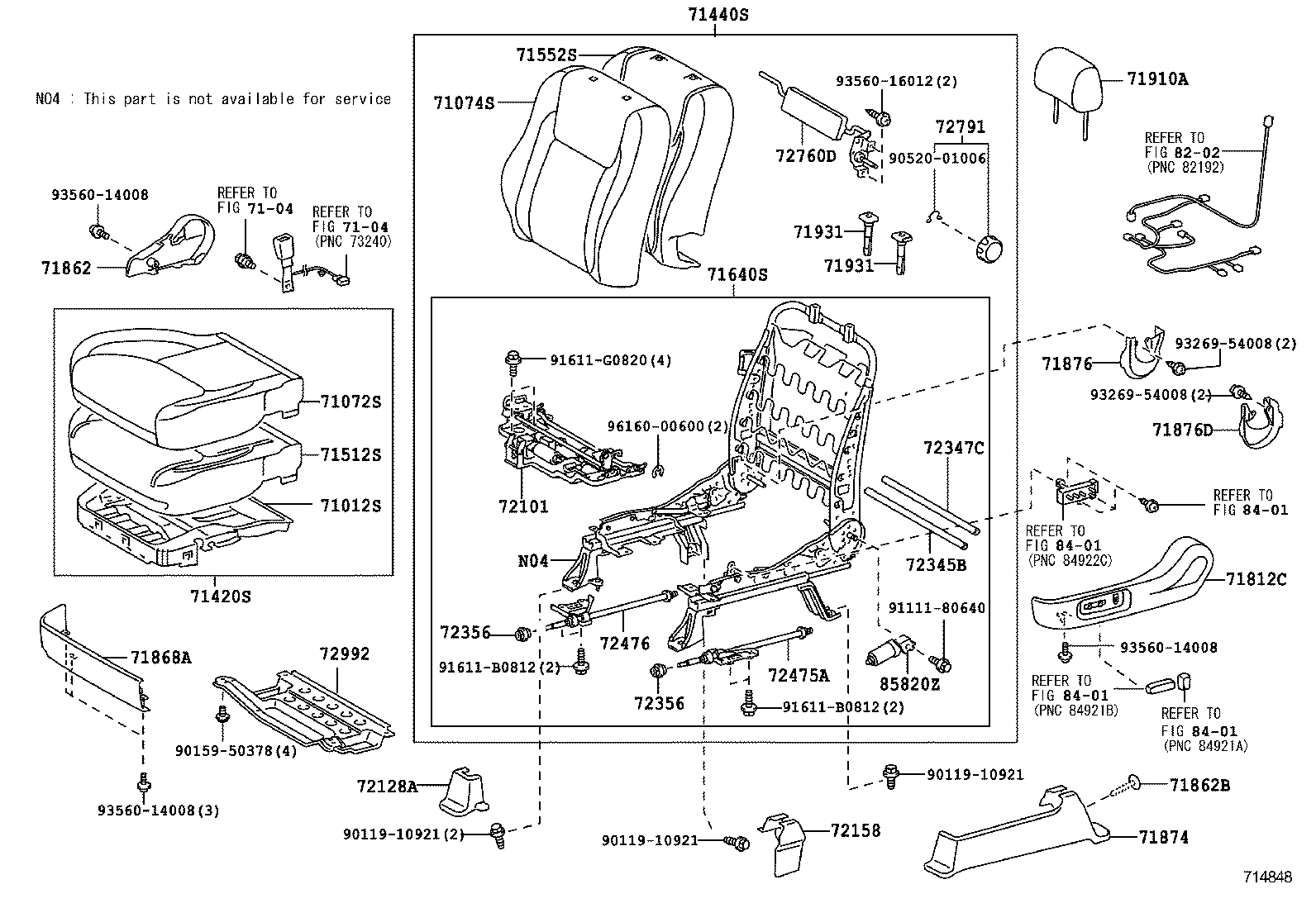

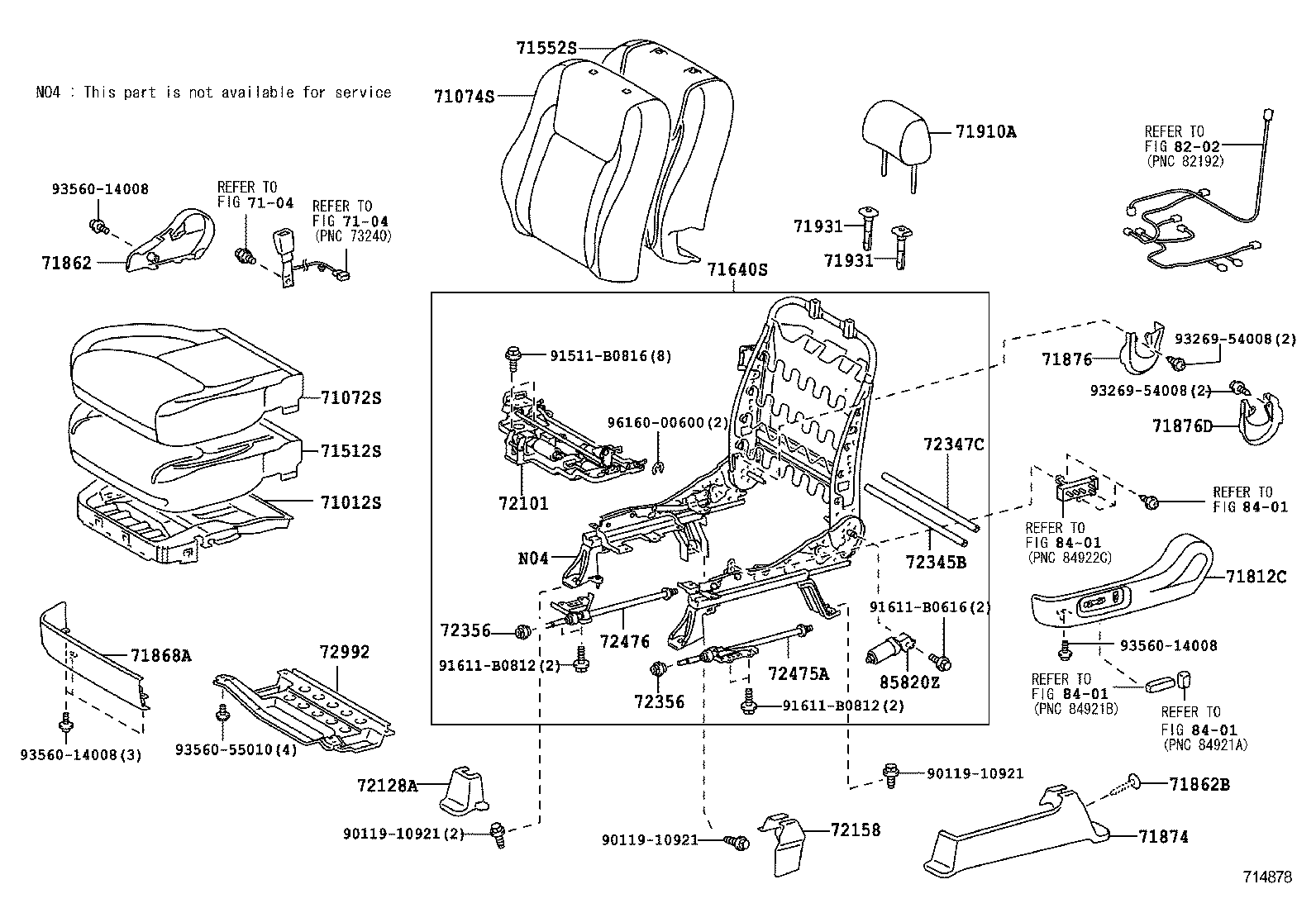

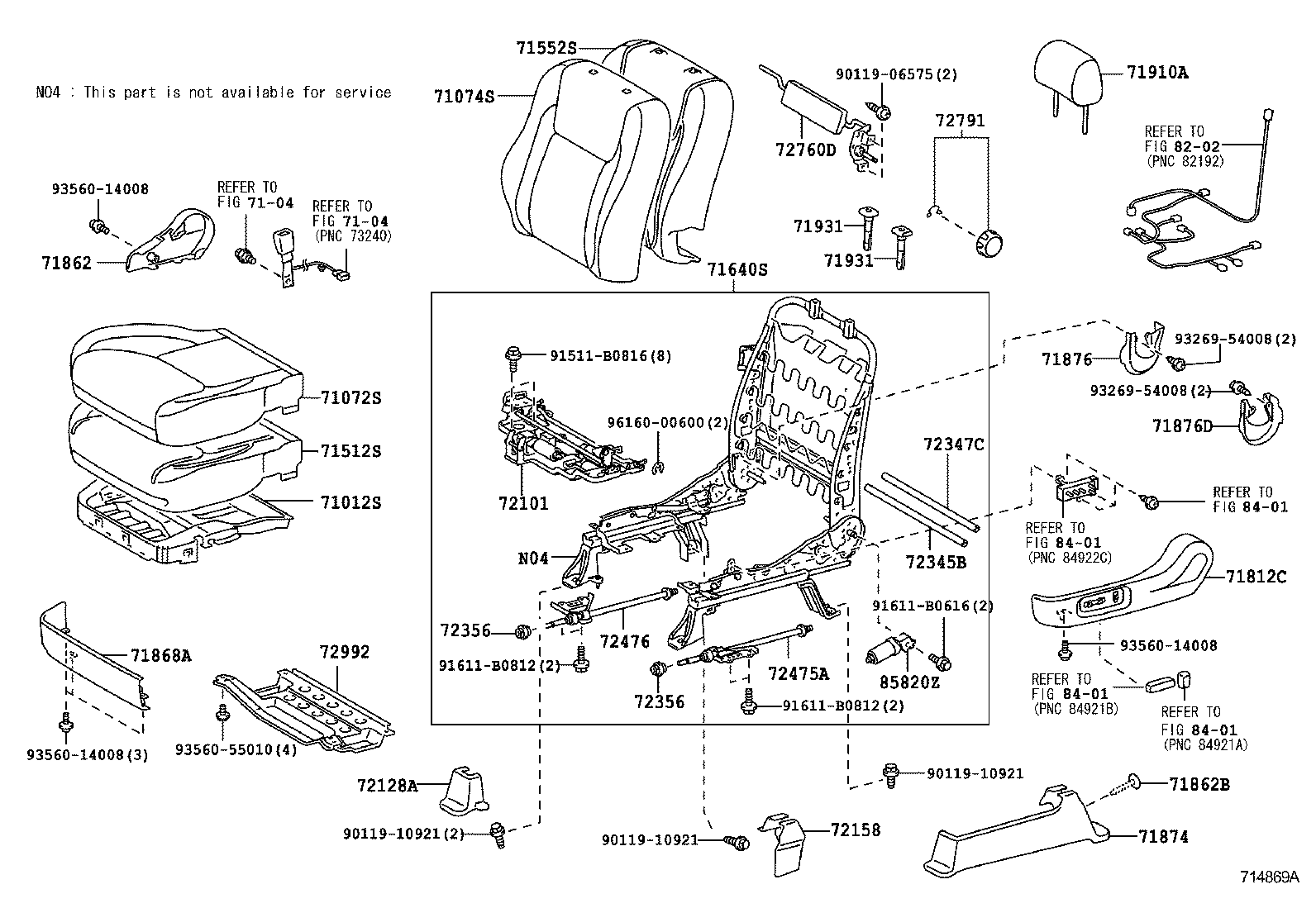

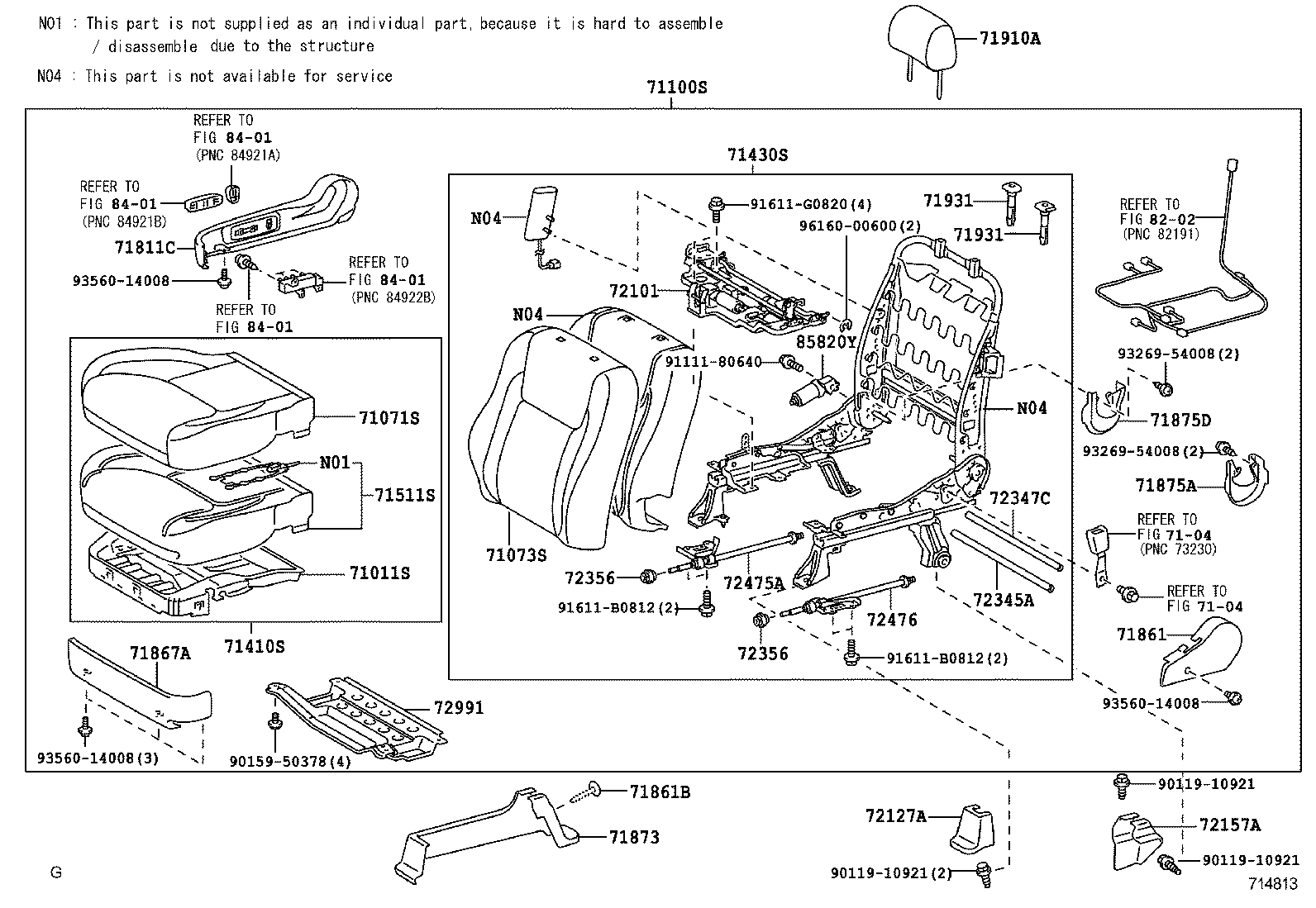

Figure 714806 714806 2002-03 → 2004-04 Figure 714806 714806 2002-06 → 2004-07 Figure 714807 714807 2002-03 → 2004-05 Figure 714807 714807 2002-06 → 2004-07 Figure 714851 714851 2002-03 → 2004-05 Figure 714809 714809 2002-03 → 2004-04 Figure 714848 714848 2002-03 → 2004-04 Figure 714848 714848 2002-03 → 2004-05 Figure 714848 714848 2002-05 → 2004-05 Figure 714848 714848 2002-06 → 2004-07 Figure 714850 714850 2002-03 → 2004-04 Figure 714850 714850 2002-03 → 2004-05 Figure 714850 714850 2002-06 → 2004-07 Figure 714810 714810 2002-03 → 2004-04 Figure 714810 714810 2002-06 → 2004-07 Figure 714811 714811 2002-03 → 2004-05 Figure 714811 714811 2002-05 → 2004-05 Figure 714811 714811 2002-06 → 2004-07 Figure 714852 714852 2002-03 → 2004-05 Figure 714813 714813 2002-03 → 2004-04 Figure 714849 714849 2002-03 → 2004-04 Figure 714868 714868 2004-04 → — Figure 714868 714868 2004-07 → — Figure 714869A 714869A 2004-04 → — Figure 714869A 714869A 2004-07 → — Figure 714870 714870 2004-04 → — Figure 714870 714870 2004-07 → — Figure 714874 714874 2004-05 → — Figure 714875 714875 2004-05 → — Figure 714875 714875 2004-07 → — Figure 714876 714876 2004-05 → — Figure 714871 714871 2004-04 → — Figure 714871 714871 2004-07 → — Figure 714872 714872 2004-04 → — Figure 714872 714872 2004-07 → — Figure 714873 714873 2004-04 → — Figure 714873 714873 2004-07 → — Figure 714877 714877 2004-05 → — Figure 714877 714877 2004-07 → — Figure 714878 714878 2004-05 → — Figure 714878 714878 2004-07 → — Figure 714879 714879 2004-05 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71862B Clip(FOR FRONT SEAT SHIELD, LH)
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875D Cover, Reclining Adjuster Outside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72101 Bracket Sub-assy, Outer Seat Track, Lower Front
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72345A Pipe, Reclining Connecting
72345B Pipe, Reclining Connecting
72347C Cover, Reclining Connecting Hook
72356 Nut, Side Support, RH
72409 Shaft Sub-assy, Vertical Adjusting
72457 Knob, Vertical Seat Adjuster
72472 Spacer, Vertical Adjuster, NO.1
72475A Screw, Horizontal Jack, Outer
72476 Screw, Horizontal Jack, Inner
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72774 Protector, Lumbar Support Spring
72791 Lever, Lumbar Support
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
