Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

25 part groups · 10 illustrations

Illustrations

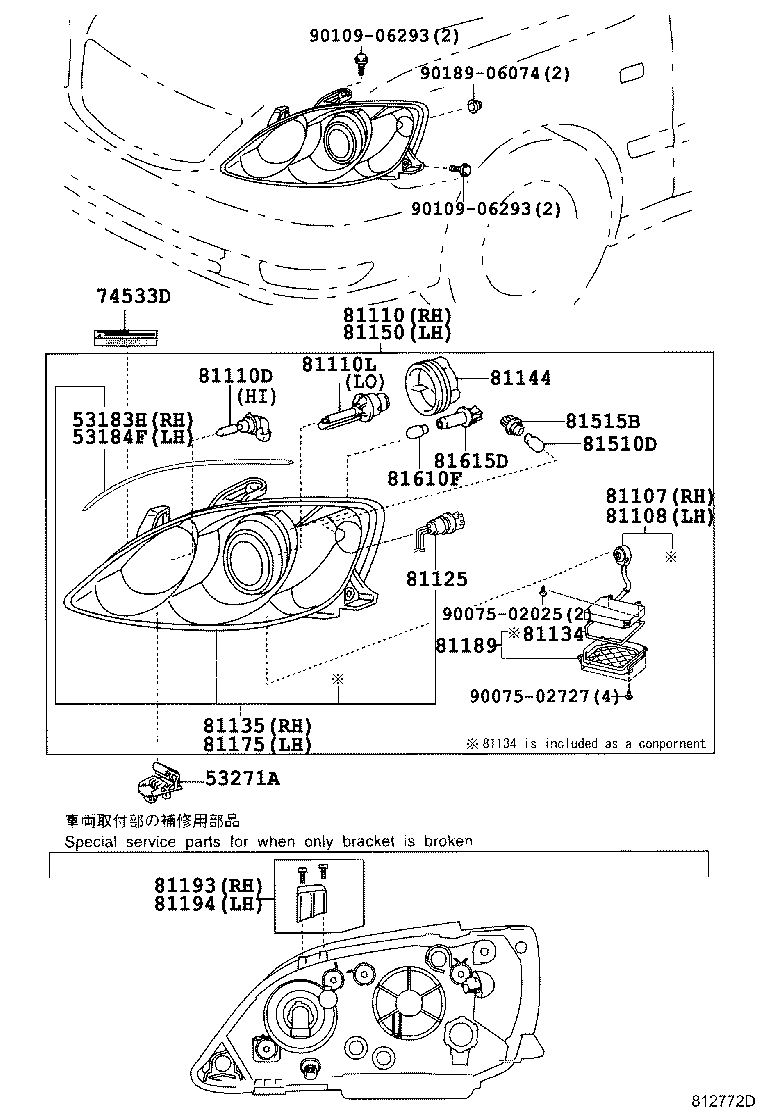

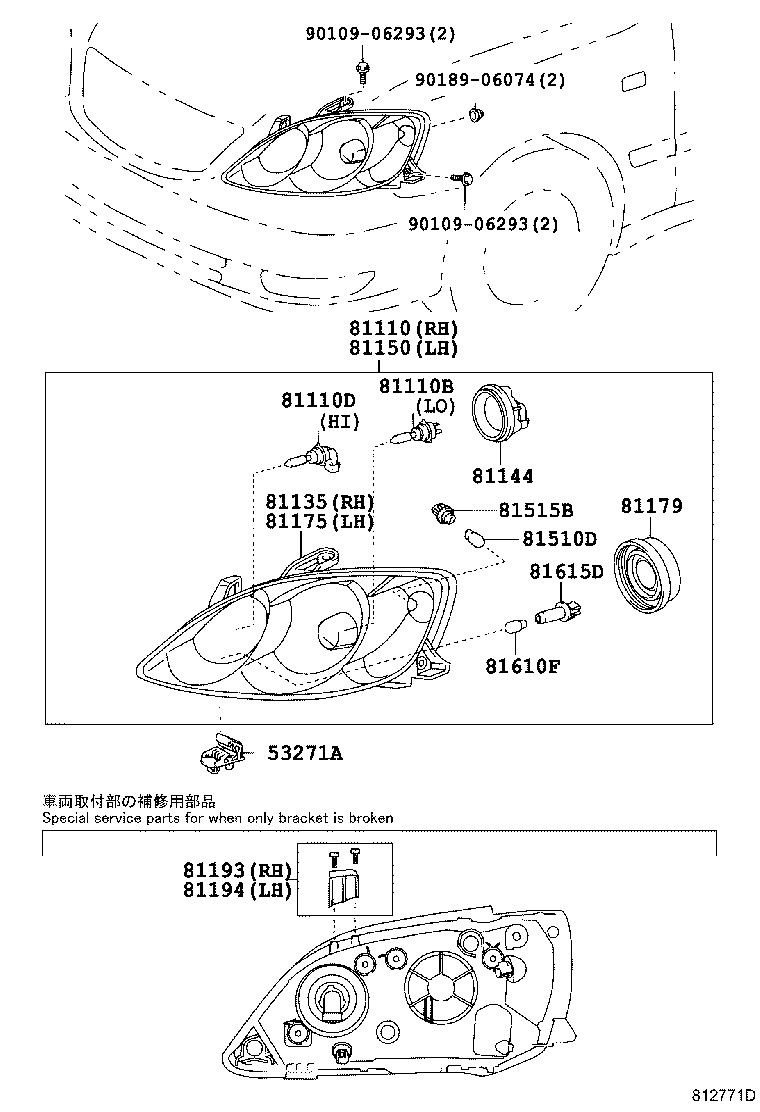

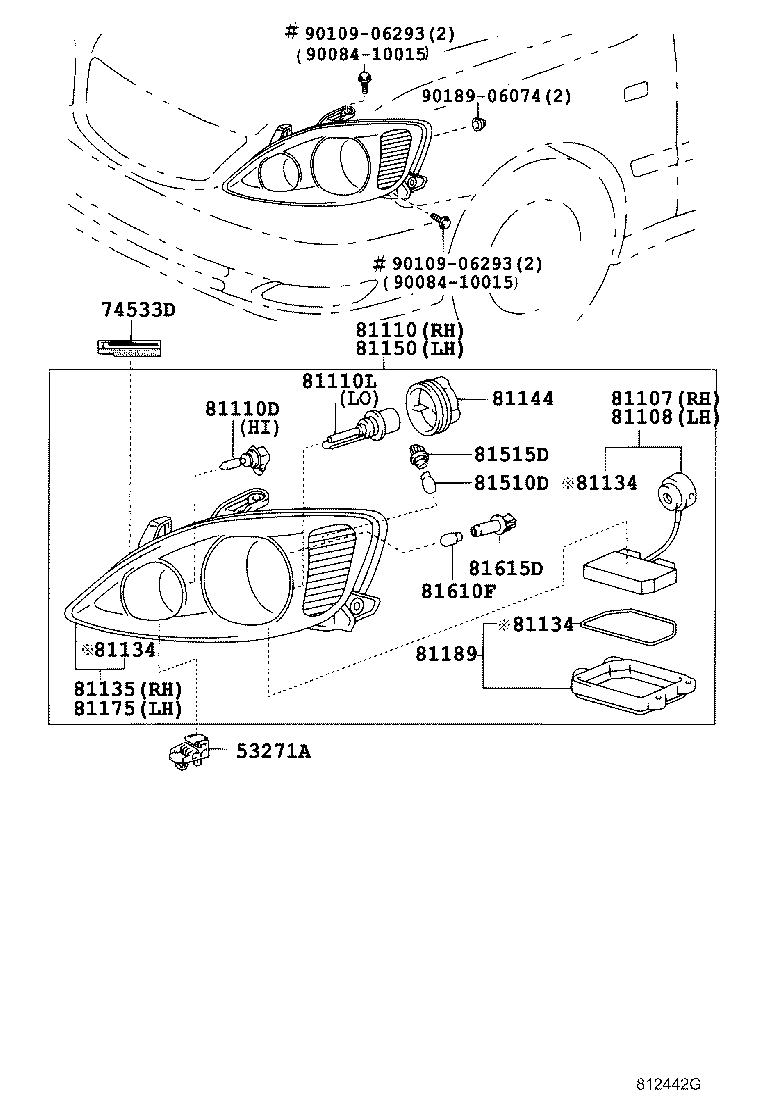

Figure 812085F 812085F 2002-03 → 2004-04 Figure 812085F 812085F 2002-03 → 2004-05 Figure 812085F 812085F 2002-03 → 2004-07 Figure 812442G 812442G 2002-03 → 2004-04 Figure 812442G 812442G 2002-03 → 2004-05 Figure 812771D 812771D 2004-05 → — Figure 812771D 812771D 2004-07 → — Figure 812772D 812772D 2004-04 → — Figure 812772D 812772D 2004-05 → — Figure 812772D 812772D 2004-07 → —

Part groups

PNCDescription
53183H Seal, Headlamp Cover, RH
53184F Seal, Headlamp Cover, LH
53271A Bracket, Headlamp Mounting
74533D Label, Headlamp Voltage Caution
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81515D Socket, Fog Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
