Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

9 part groups · 12 illustrations

Illustrations

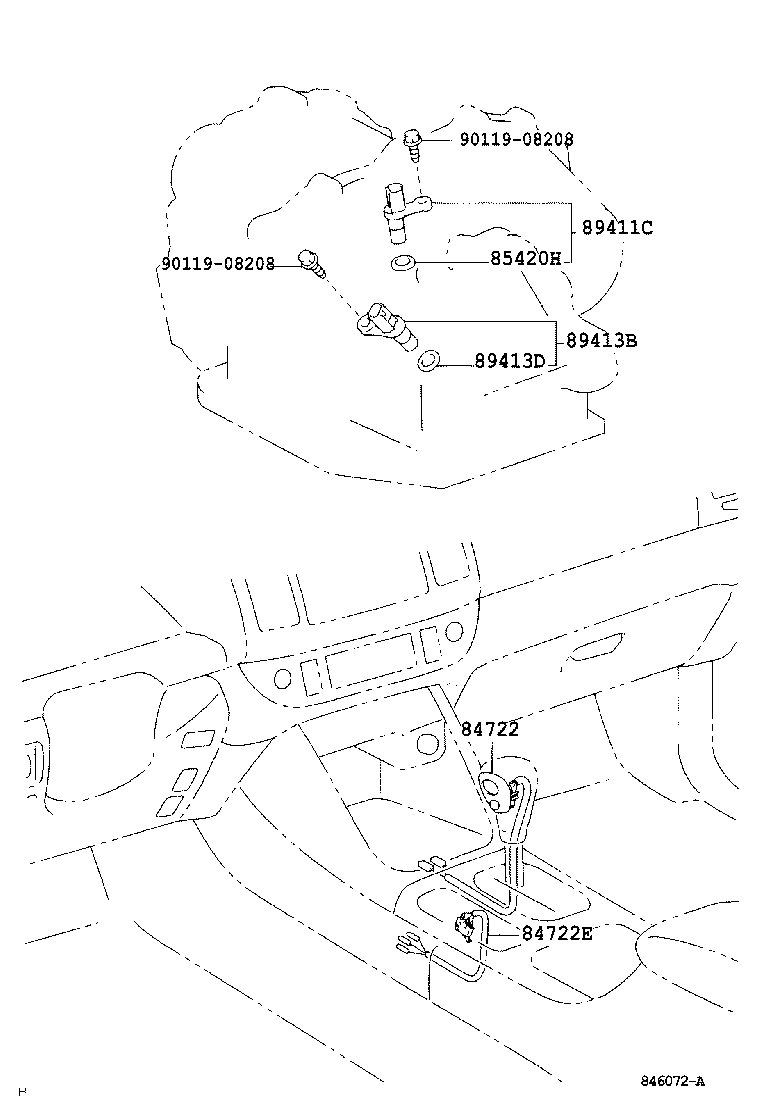

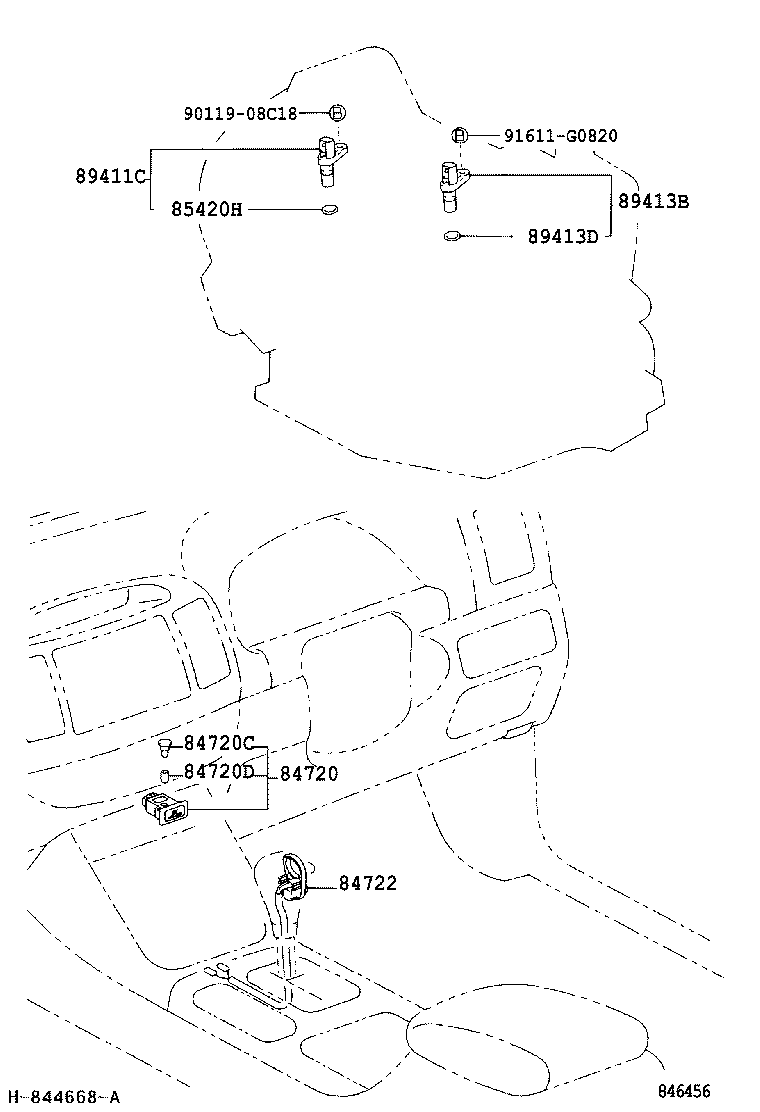

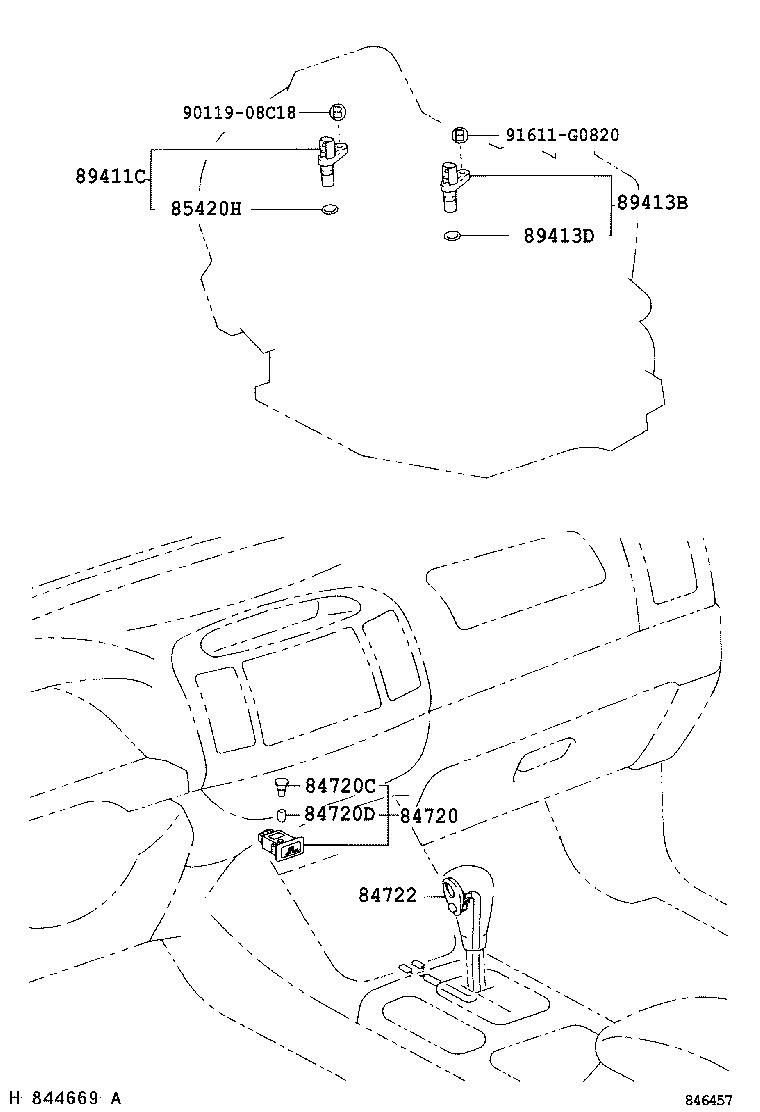

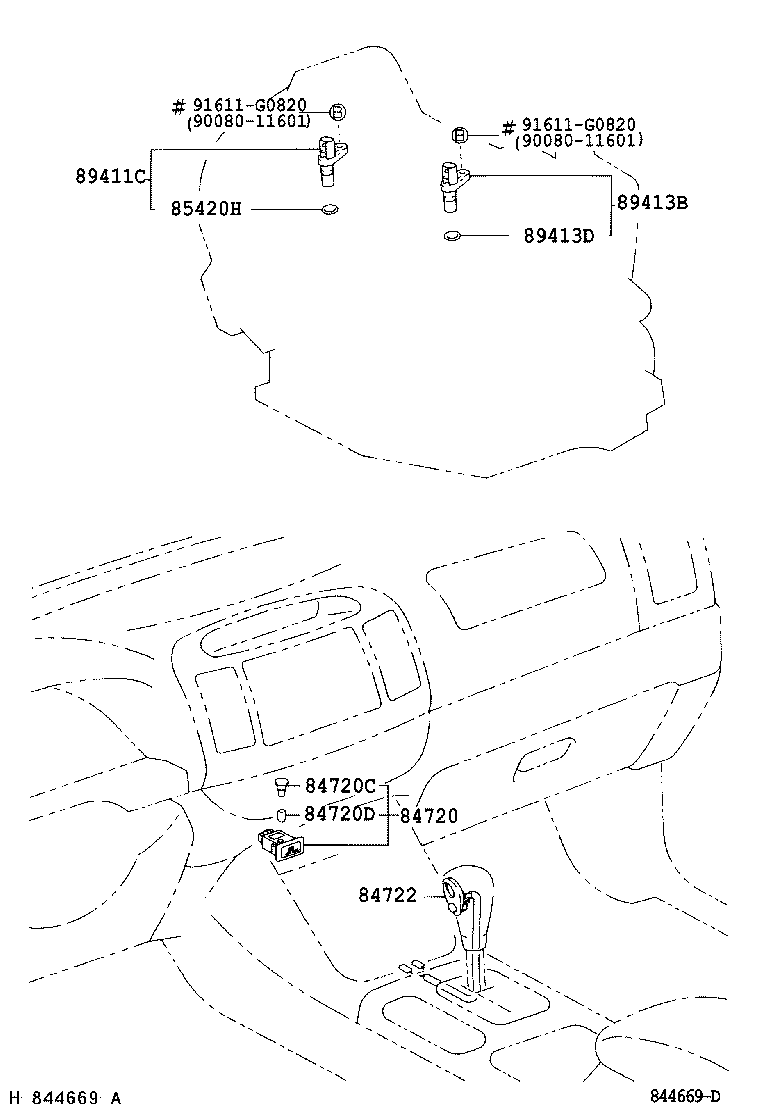

Figure 844668E 844668E 2002-03 → 2004-05 Figure 844668E 844668E 2002-05 → 2004-05 Figure 844668E 844668E 2002-06 → 2004-07 Figure 846456 846456 2004-05 → — Figure 846456 846456 2004-07 → — Figure 844669D 844669D 2002-03 → 2004-04 Figure 844669D 844669D 2002-06 → 2004-07 Figure 844669D 844669D 2002-07 → 2004-07 Figure 846457 846457 2004-04 → — Figure 846457 846457 2004-07 → — Figure 846072A 846072A 2004-04 → — Figure 846072A 846072A 2004-07 → —

Part groups

PNCDescription
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84720D Cap, Pattern Select Switch
84722 Switch, Transmission Control
84722E Switch, Transmission Control
85420H Ring, O(FOR SPEED SENSOR)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
