Toyota Camry
2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General
Discontinued model
Data version 2007-04

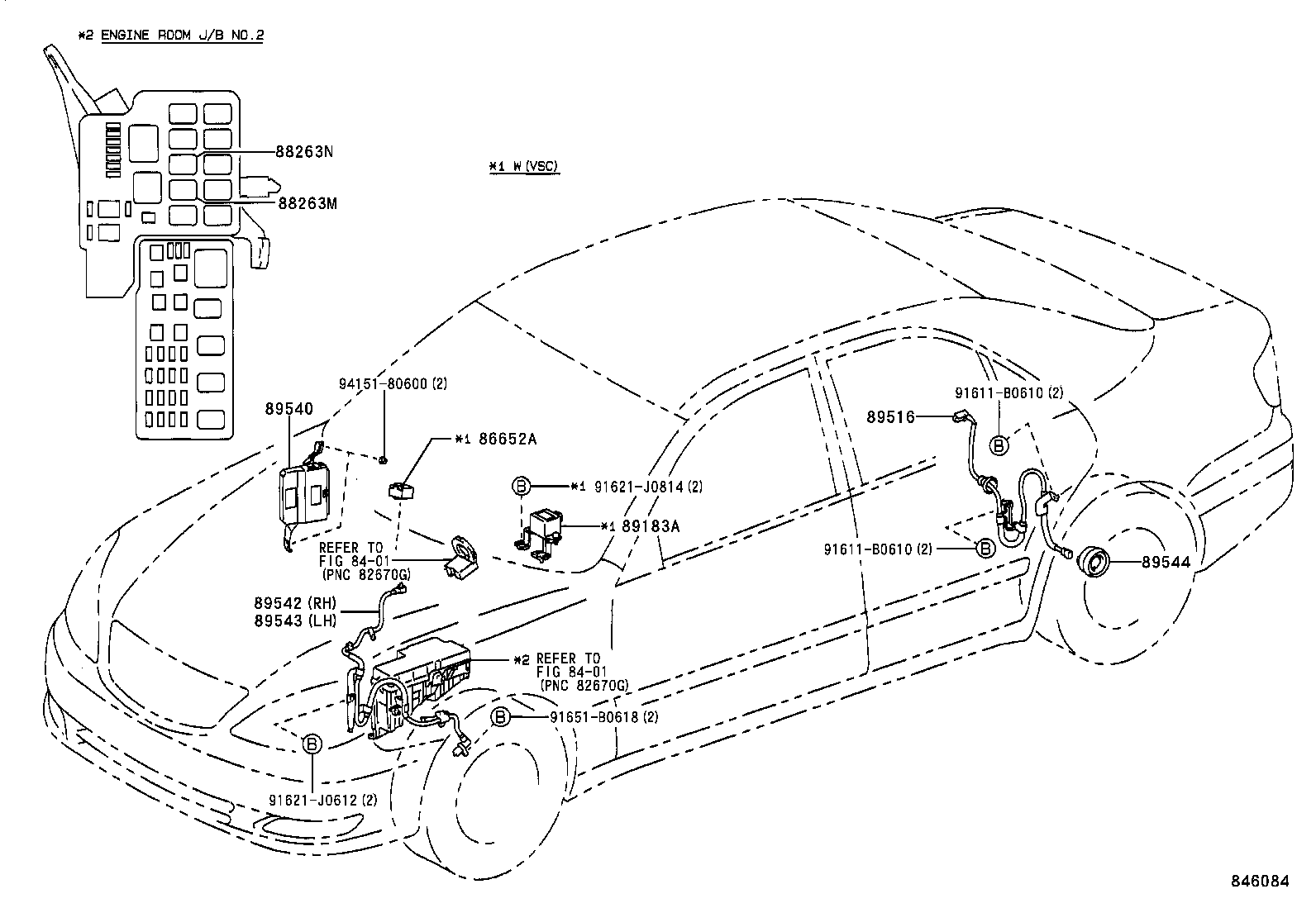

Abs & Vsc
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263M | Relay, Abs Solenoid |
| 88263N | Relay, Abs Motor |
| 89183A | Sensor, Yawrate |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
