Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

5 part groups · 2 illustrations

Illustrations

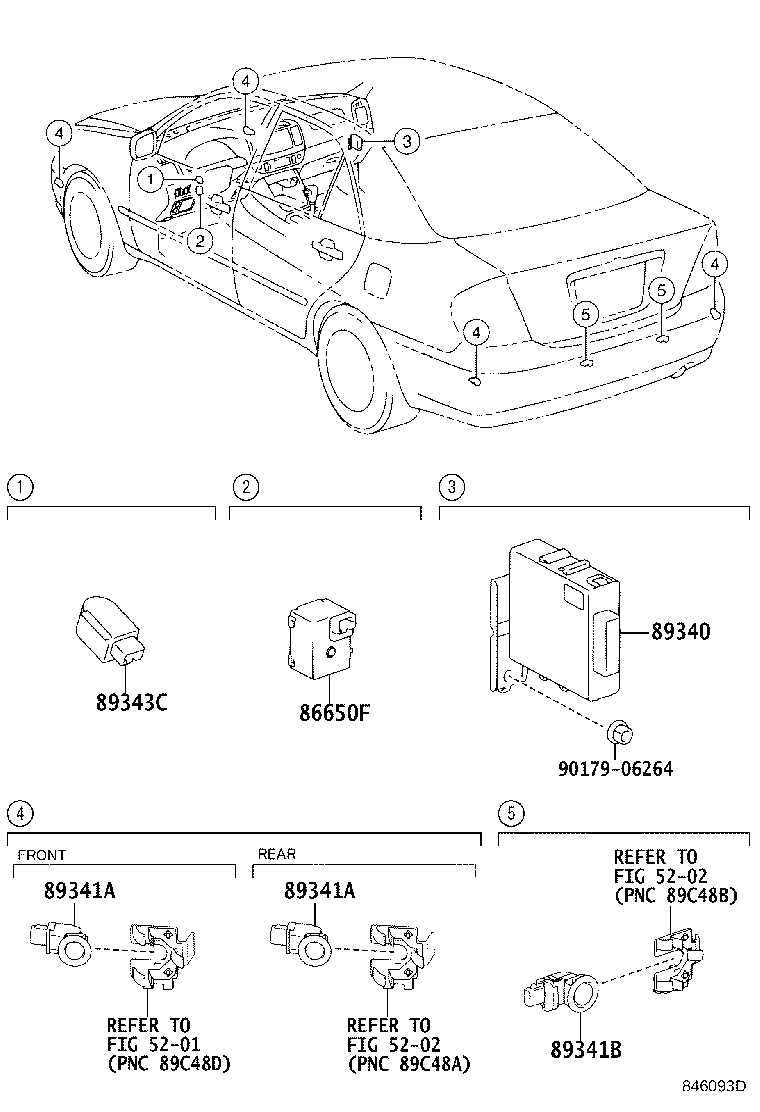

Figure 844656F 844656F 2002-03 → — Figure 846093D 846093D 2002-03 → —

Part groups

PNCDescription
86650F Buzzer Assy
89340 Computer Assy, Rear Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
