Toyota Camry

2002-03 → 2006-11 · chassis ACV30,31,MCV30 · catalogue 284370 · General

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

25 part groups · 14 illustrations

Illustrations

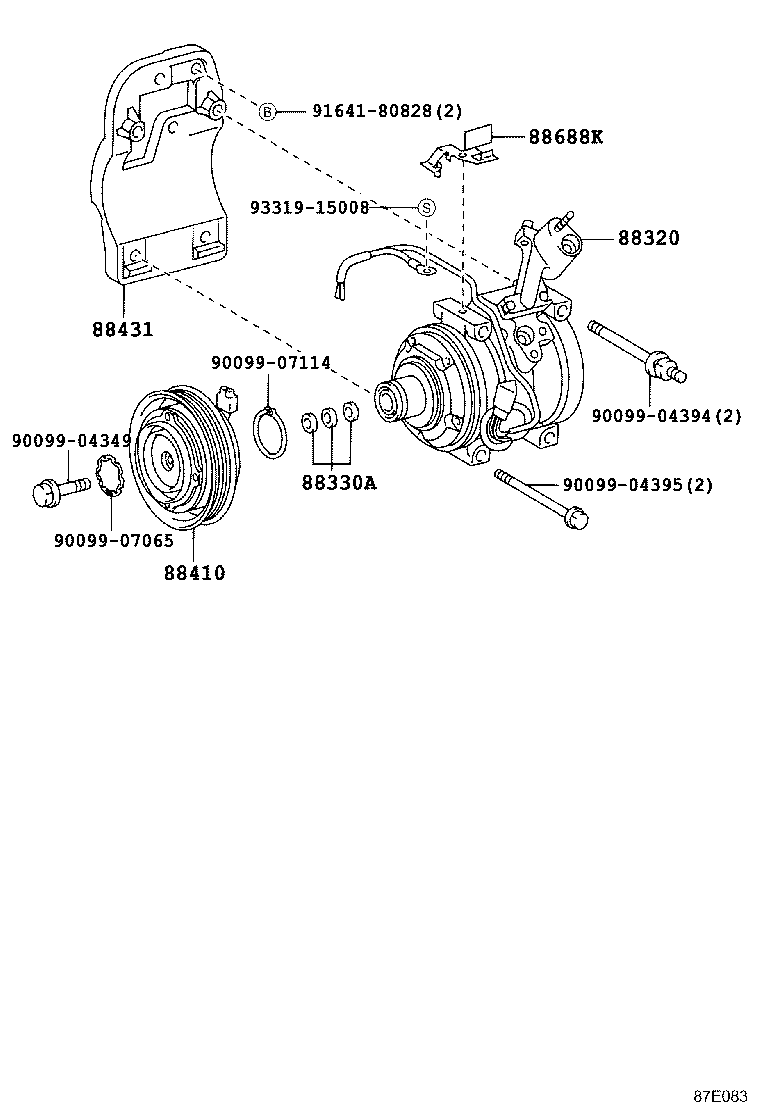

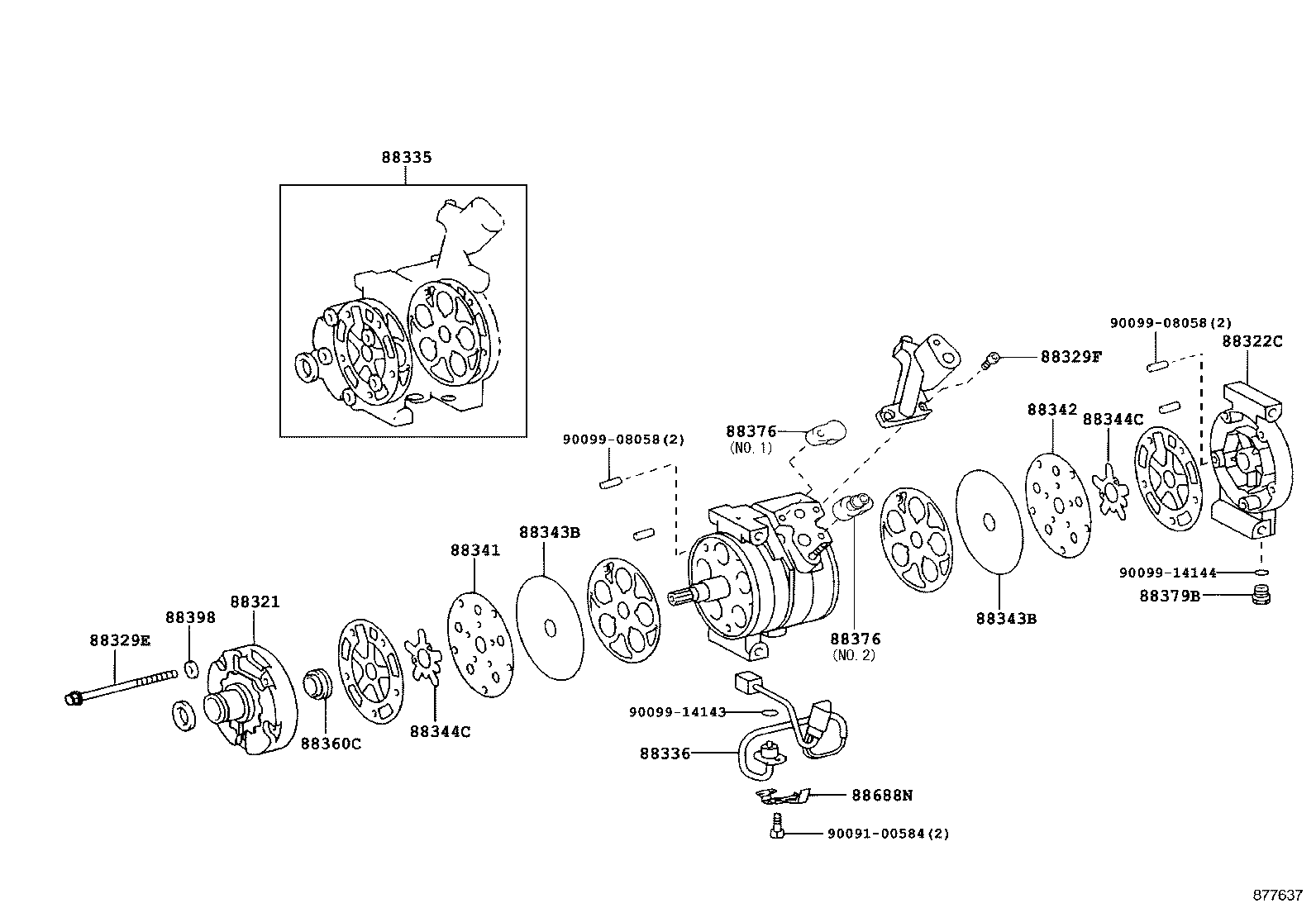

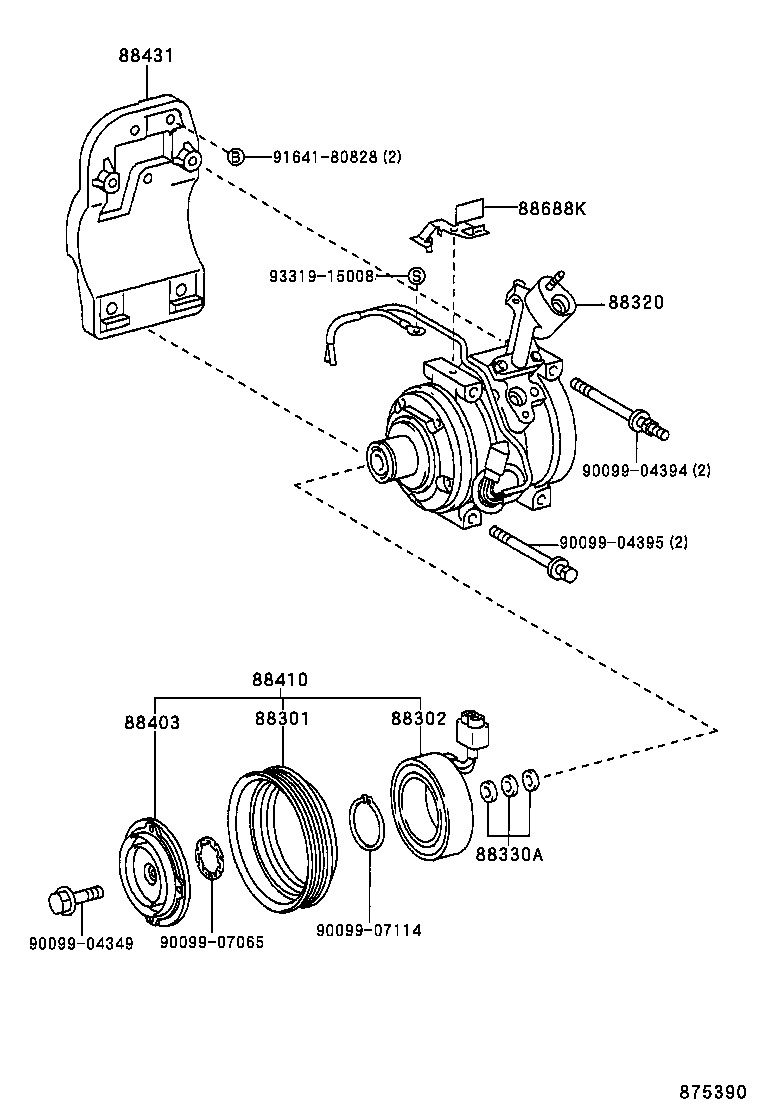

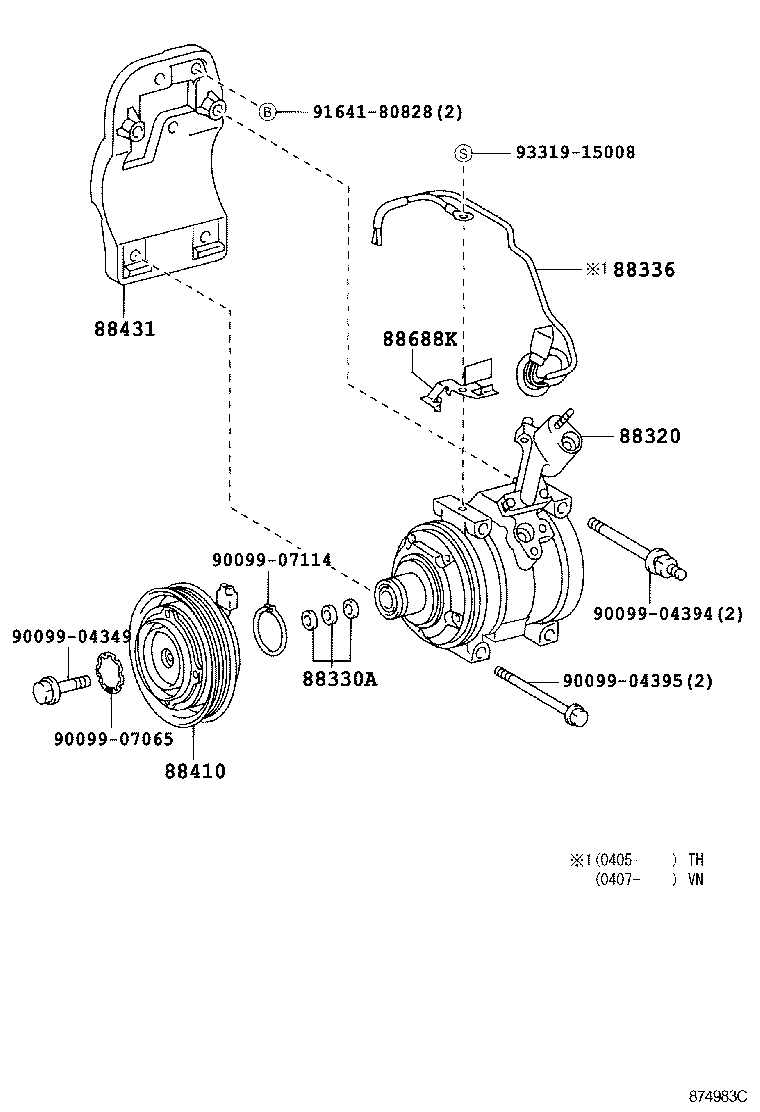

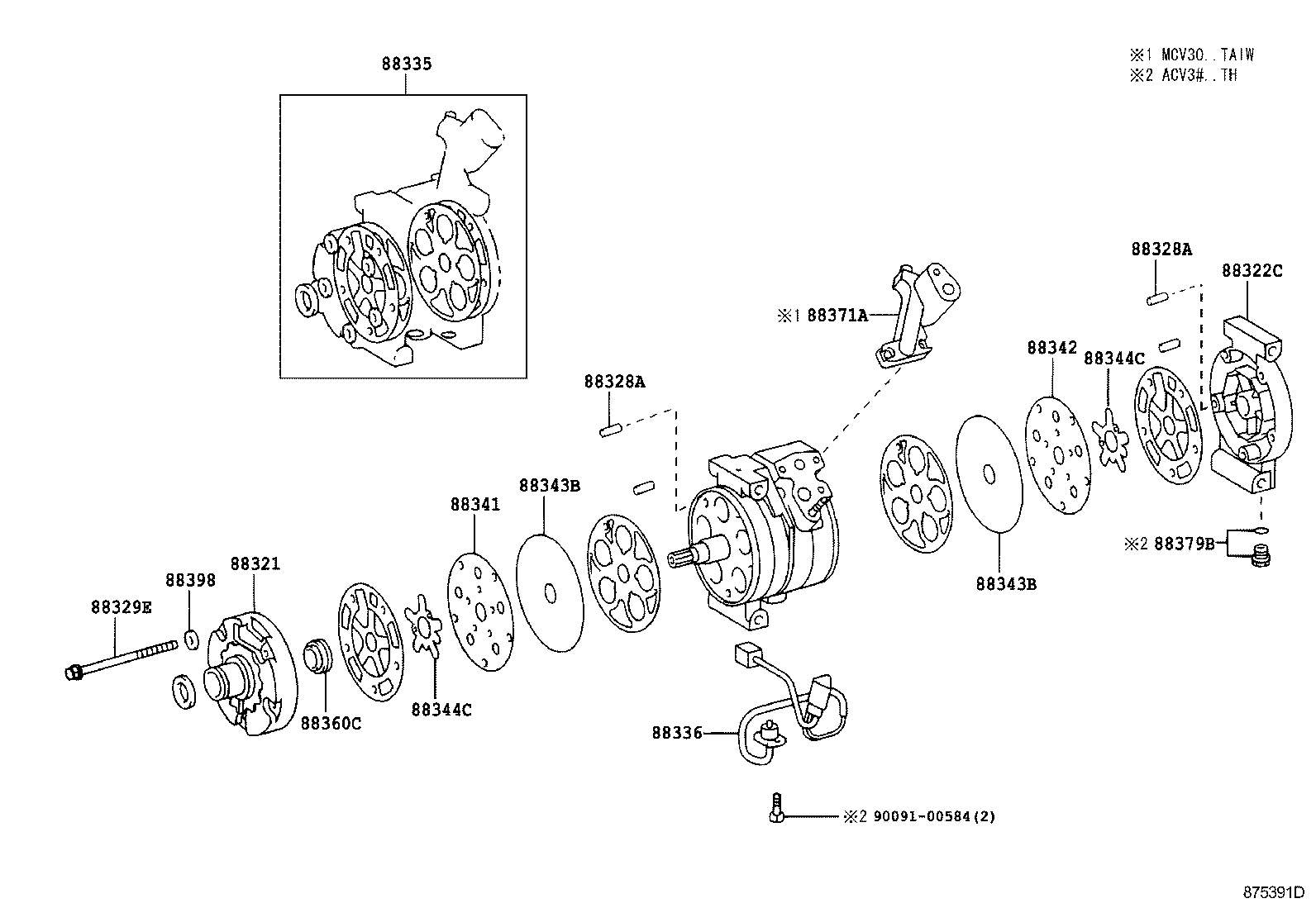

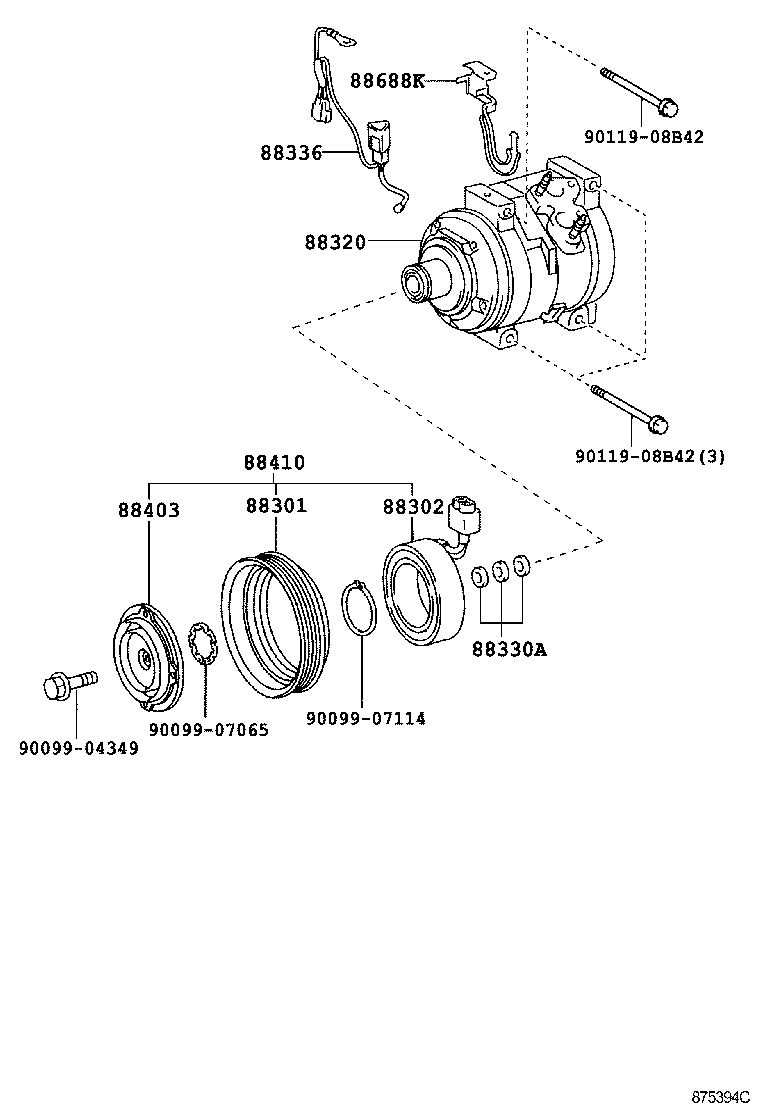

Figure 875389 875389 2002-03 → — Figure 875390 875390 2002-03 → — Figure 875394C 875394C 2002-03 → 2004-05 Figure 875391D 875391D 2002-03 → 2004-05 Figure 875391D 875391D 2002-03 → — Figure 87E083 87E083 2002-05 → 2004-05 Figure 874982E 874982E 2002-05 → — Figure 874982E 874982E 2002-06 → — Figure 874982E 874982E 2002-07 → — Figure 874982E 874982E 2004-05 → — Figure 874983C 874983C 2002-07 → — Figure 874983C 874983C 2004-05 → — Figure 874983C 874983C 2004-07 → — Figure 877637 877637 2002-07 → 2004-07

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88322C Head, Cylinder, Rear
88328A Pin, Compressor
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88341 Plate, Front Valve
88342 Plate, Compressor Valve, RR
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360C Seal Assy, Shaft
88371A Valve, Suction
88376 Cap, Blind
88379B Valve, Pressure Relief
88398 Packing, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
