Toyota Camry/Hybrid
2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General
Supported model
Data version 2021-02

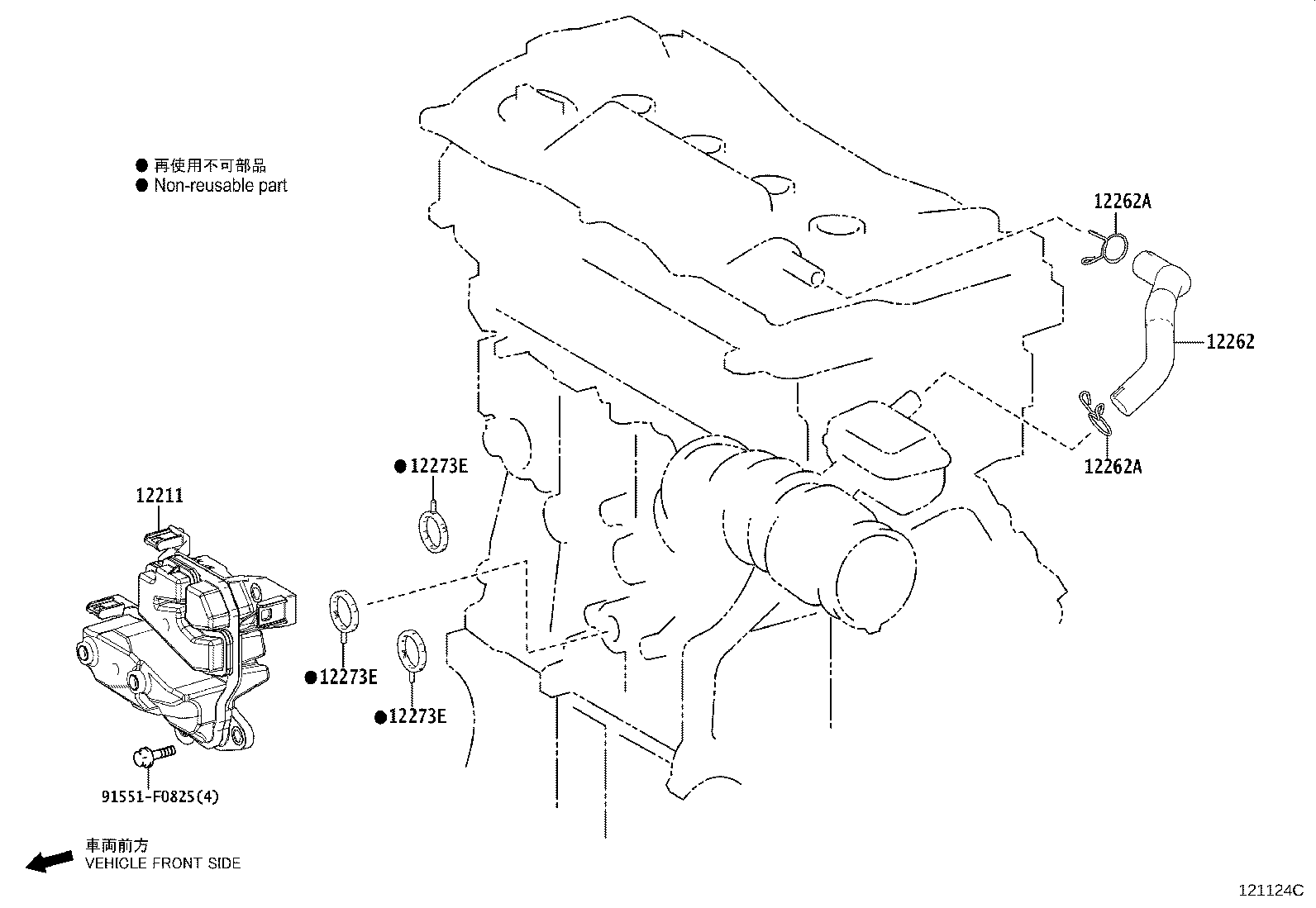

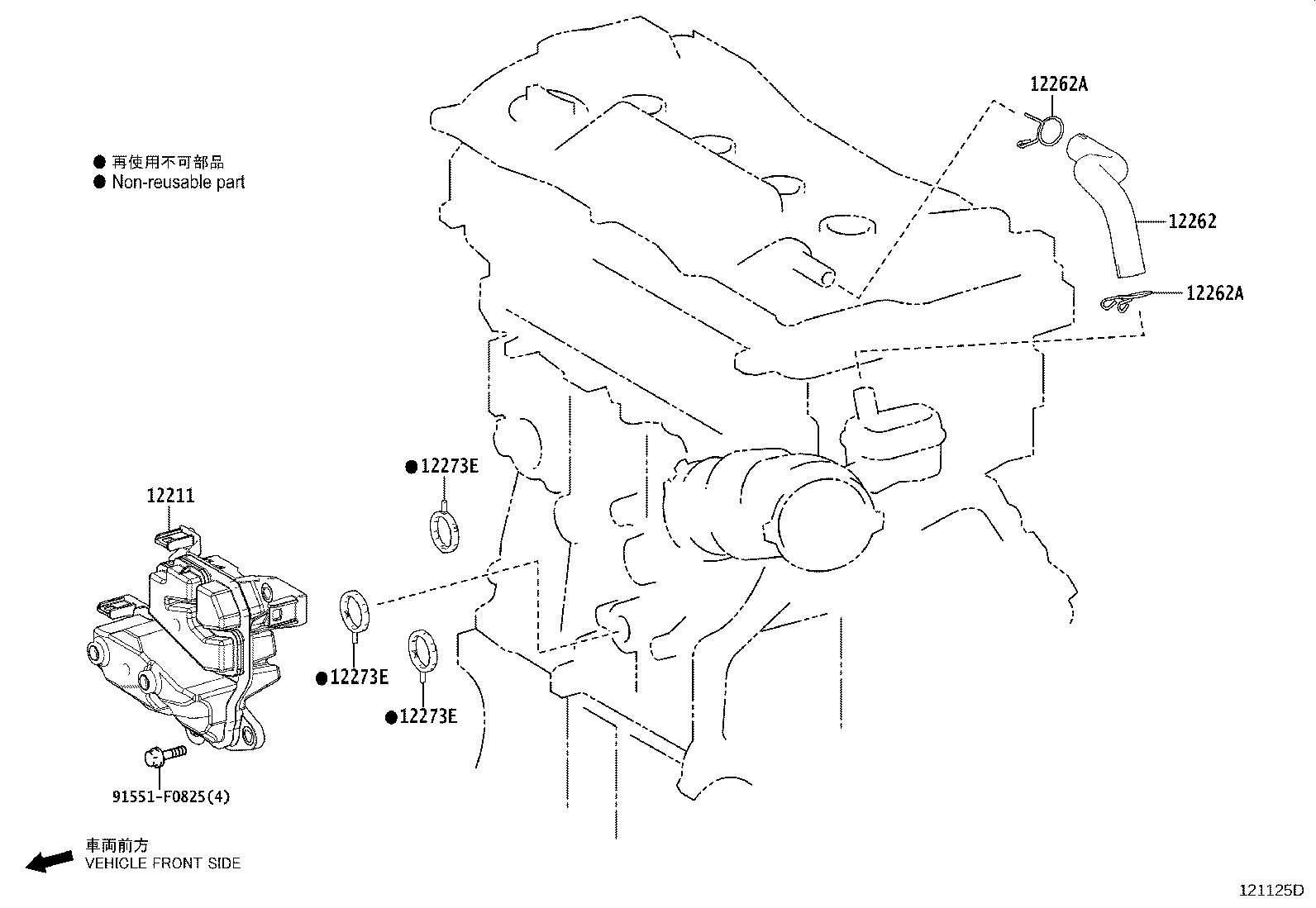

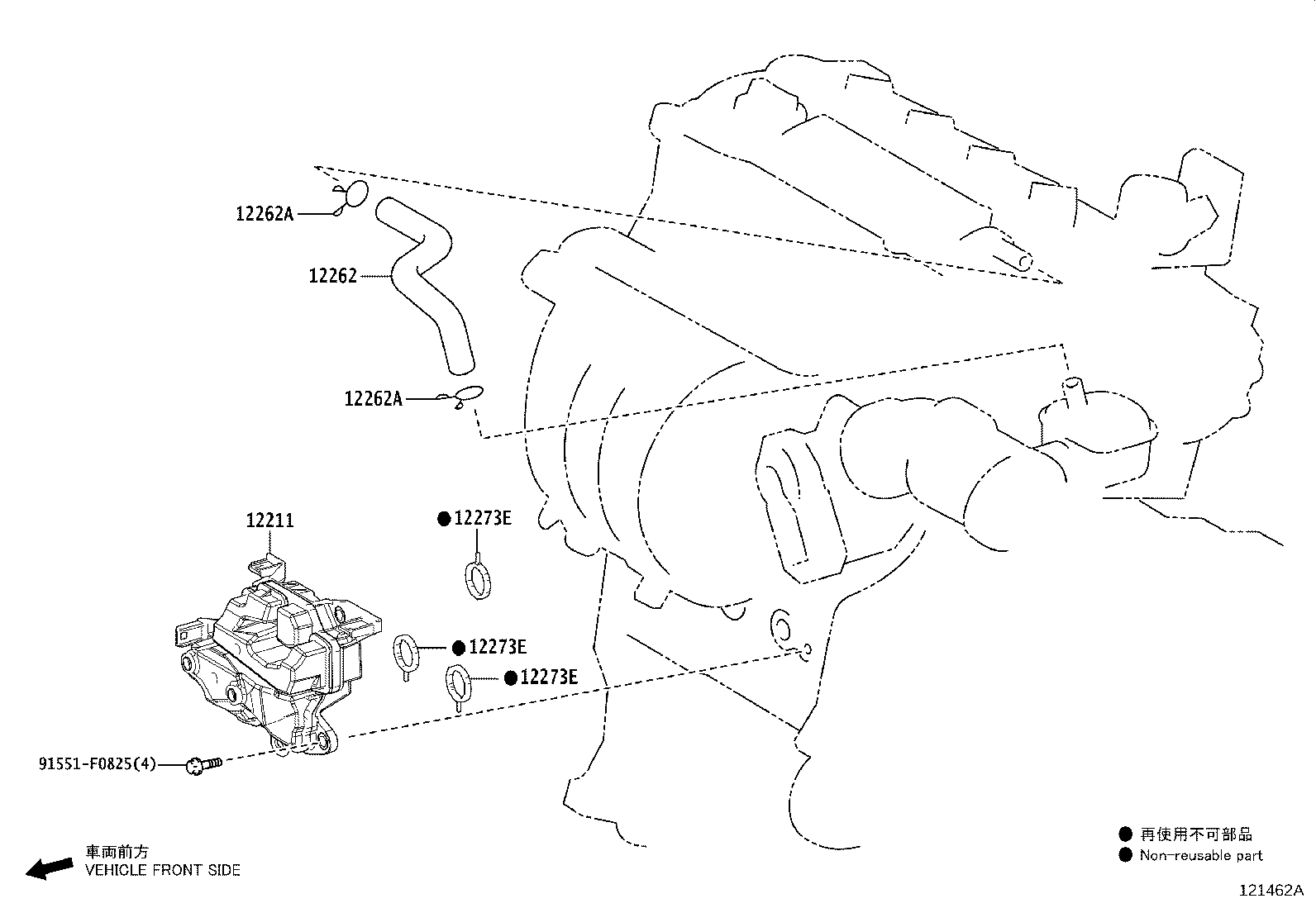

Ventilation Hose
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12205A | Ring, O(FOR VENTILATION CASE) |
| 12211 | Case, Ventilation, NO.1 |
| 12215 | Separator, Case |
| 12260 | Hose Assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
