Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

23 part groups · 7 illustrations

Illustrations

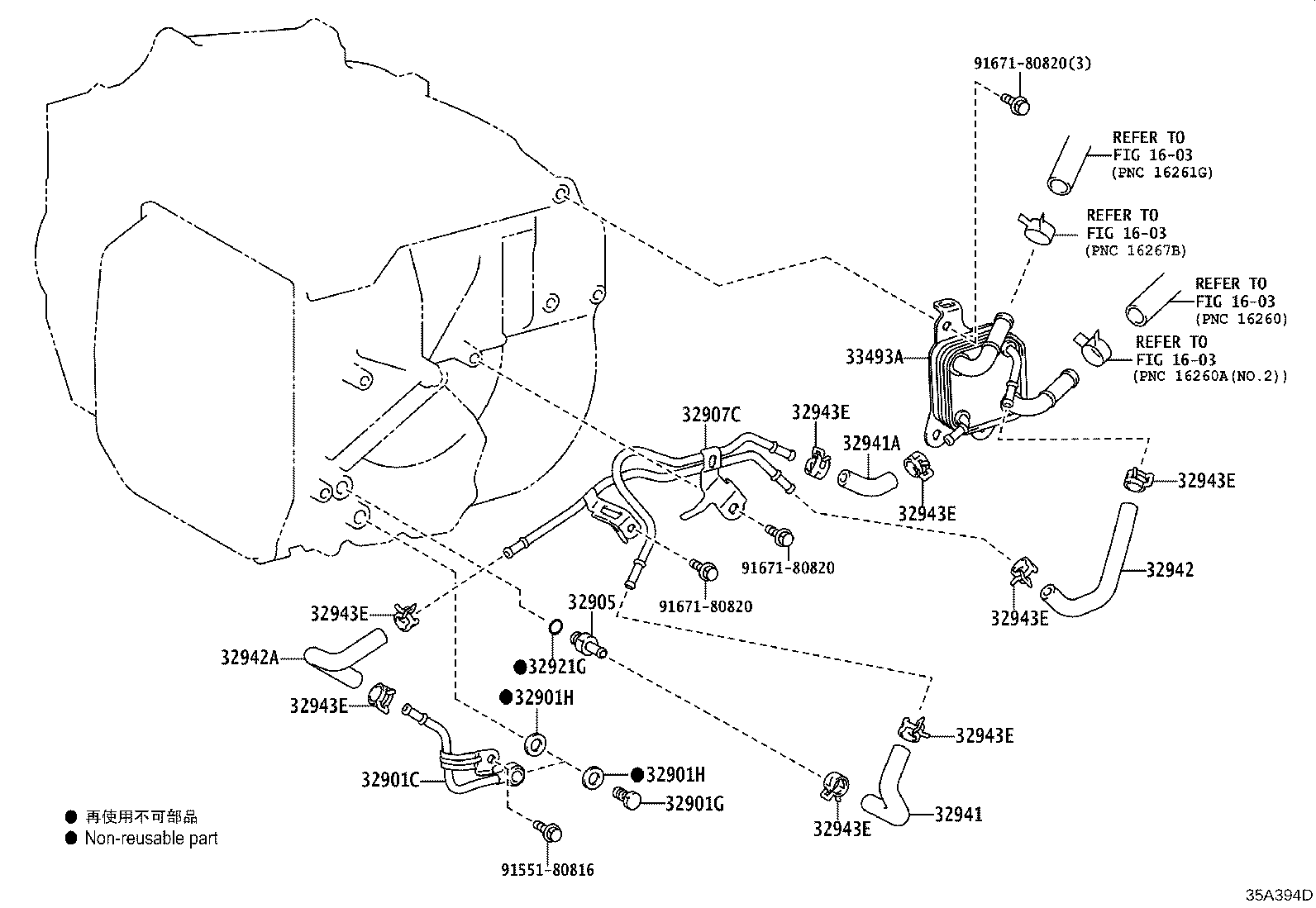

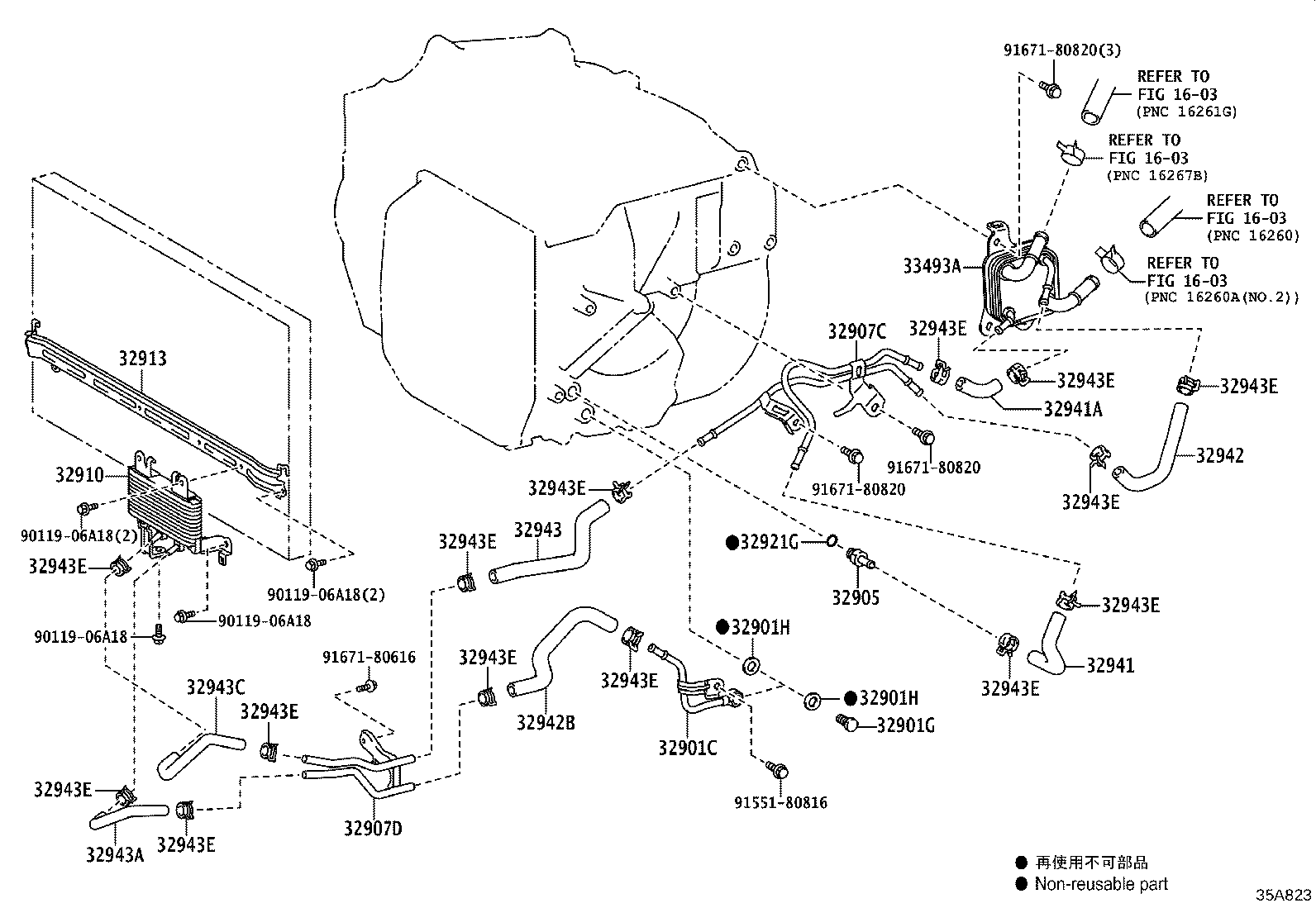

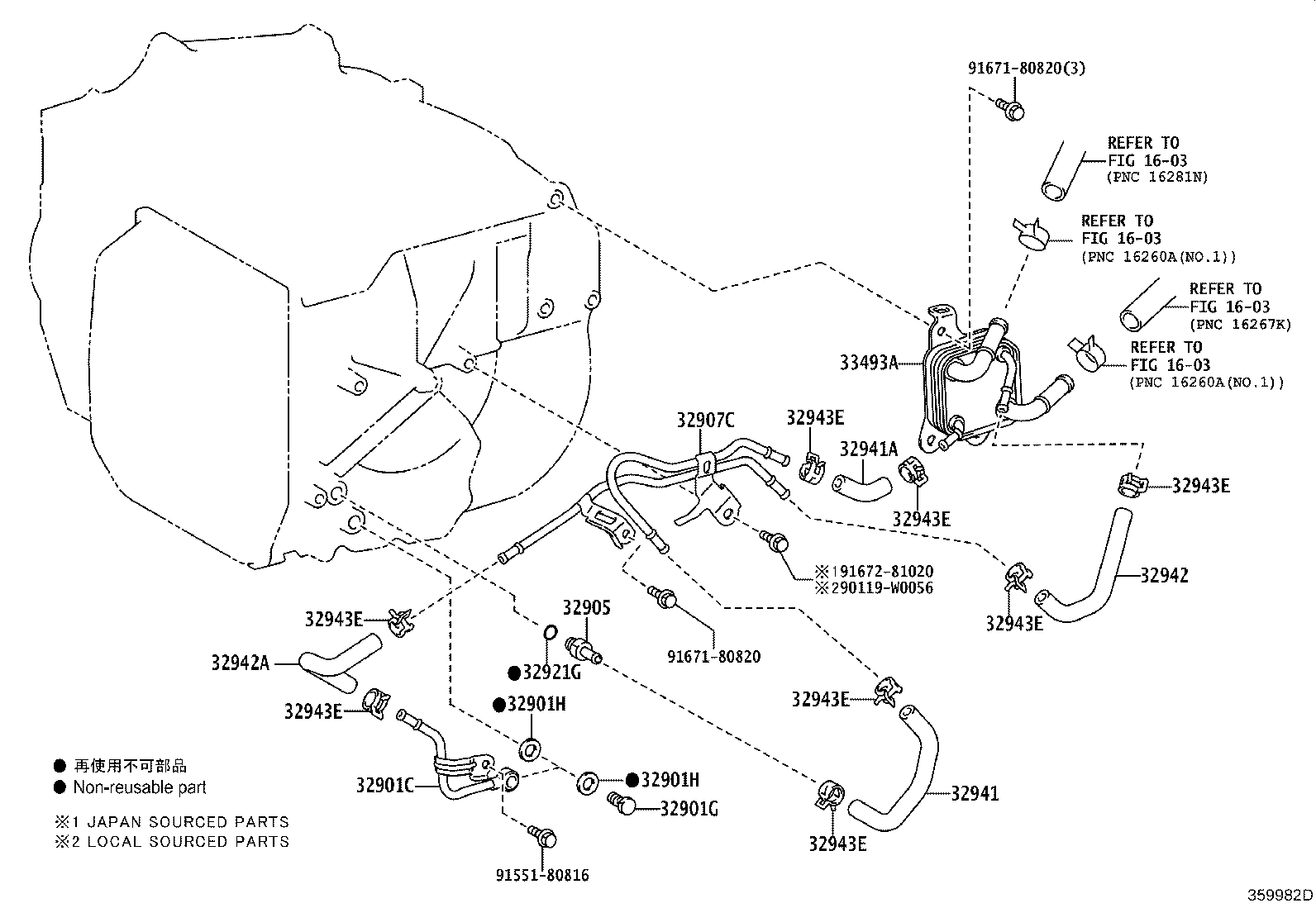

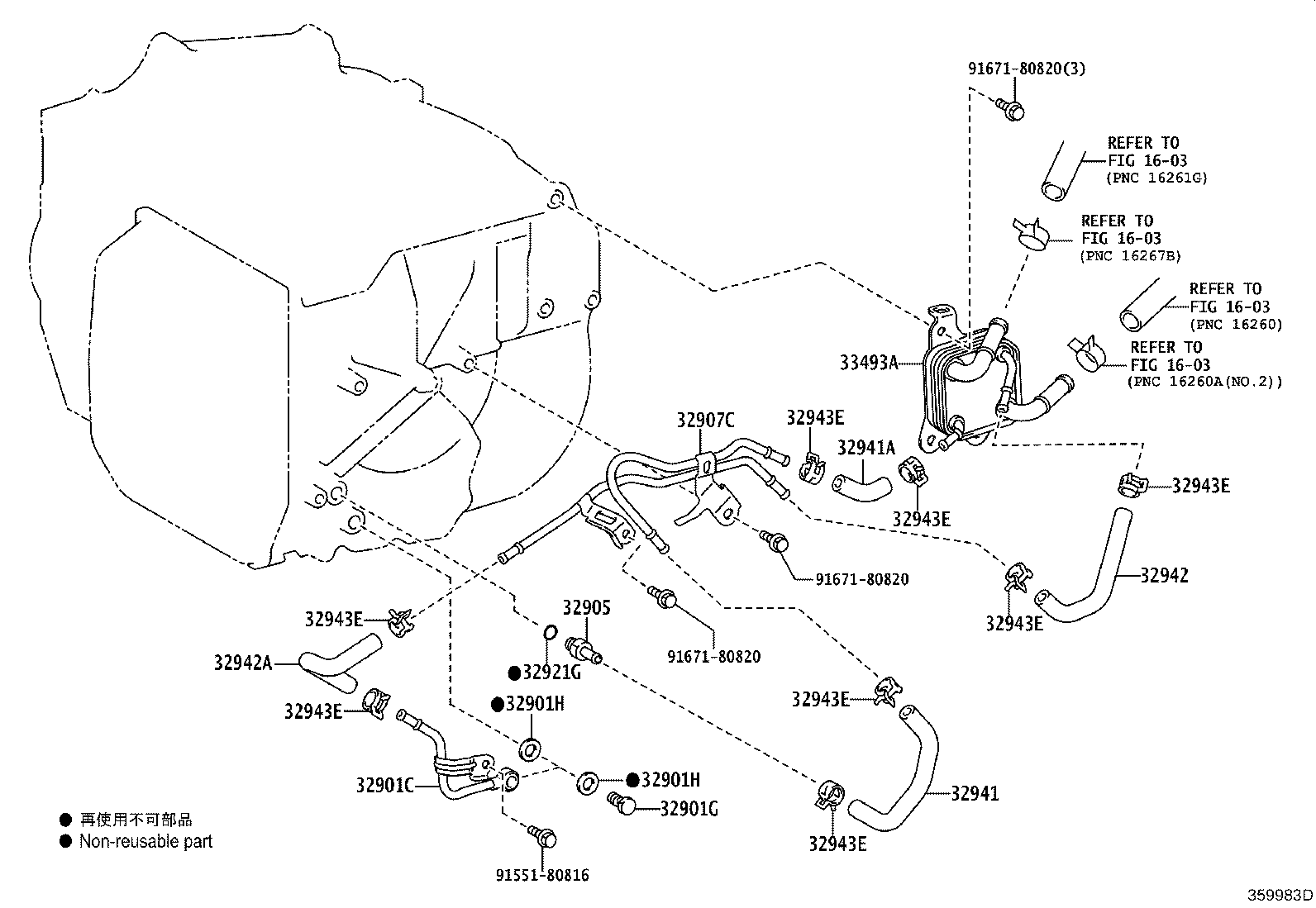

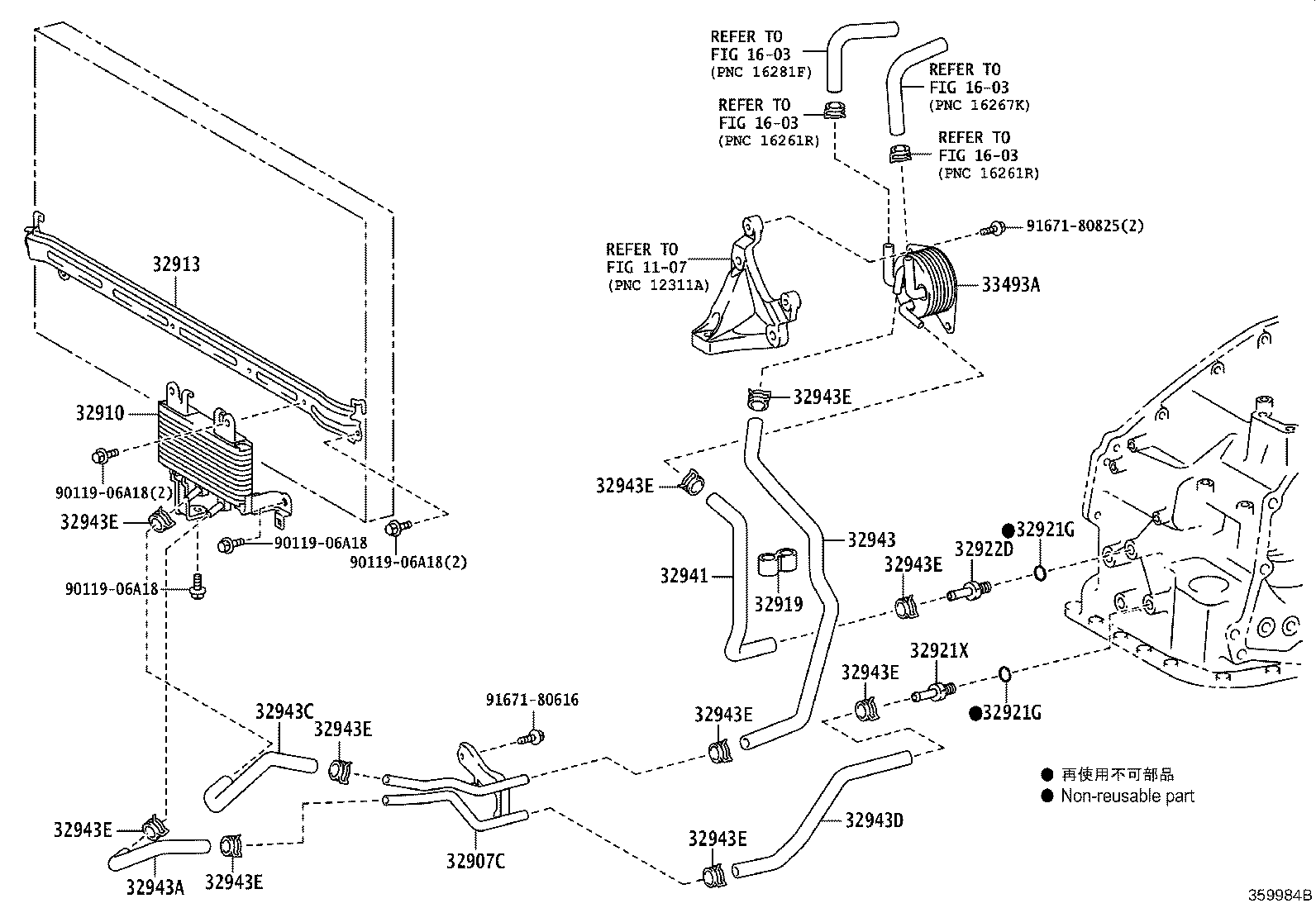

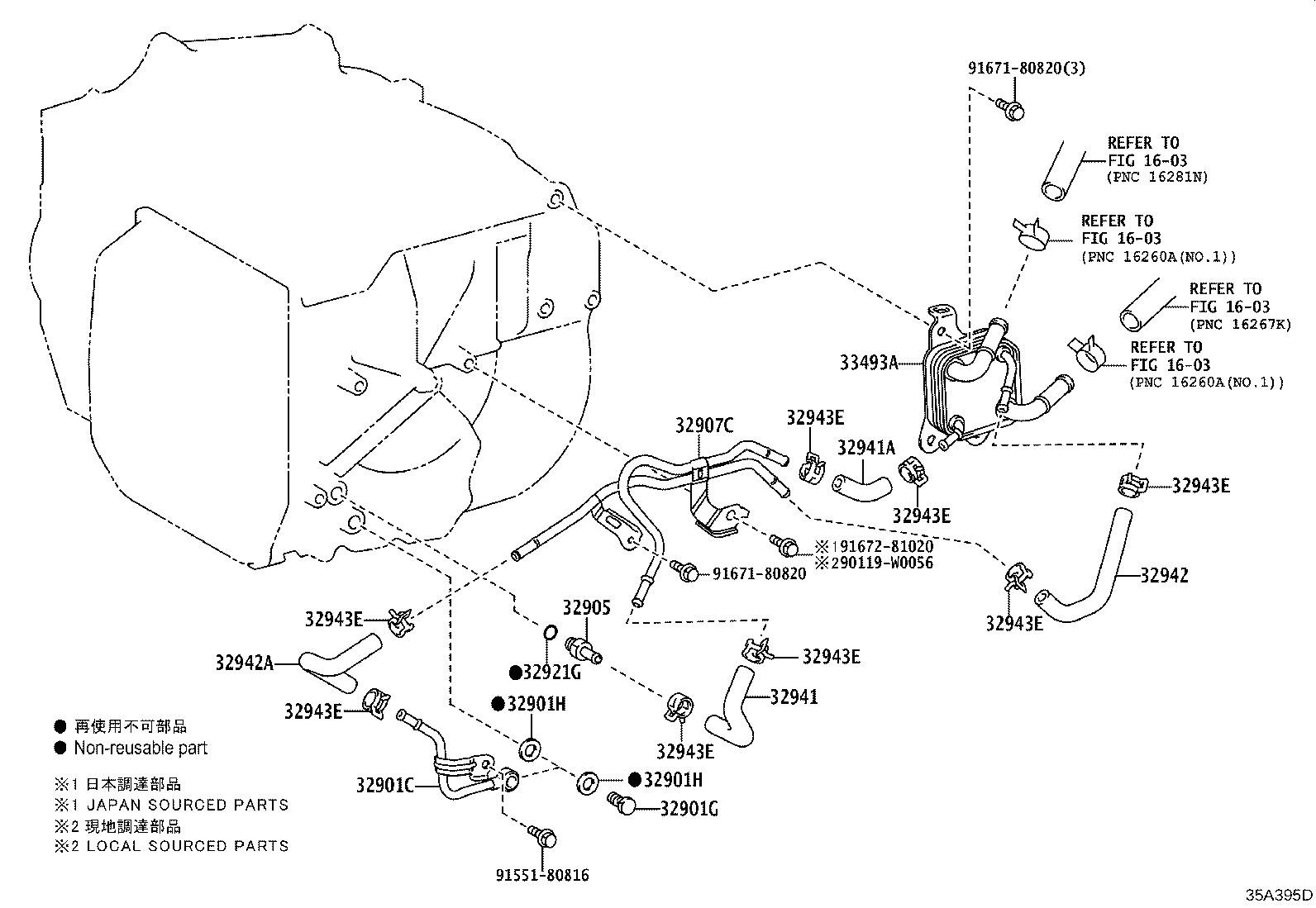

Figure 359981A 359981A 2017-09 → 2021-02 Figure 359984B 359984B 2017-09 → 2021-02 Figure 359983D 359983D 2017-12 → 2019-12 Figure 35A394D 35A394D 2019-12 → — Figure 35A823 35A823 2021-02 → — Figure 359982D 359982D 2017-12 → 2019-11 Figure 35A395D 35A395D 2019-12 → —

Part groups

PNCDescription
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907D Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32919 Holder, Oil Cooler Tube
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942B Hose, Oil Cooler Outlet, NO.3
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943C Hose, Transmission Oil Cooler, NO.3
32943D Hose, Transmission Oil Cooler, NO.4
32943E Clip, NO.3(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
