Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 6 illustrations

Illustrations

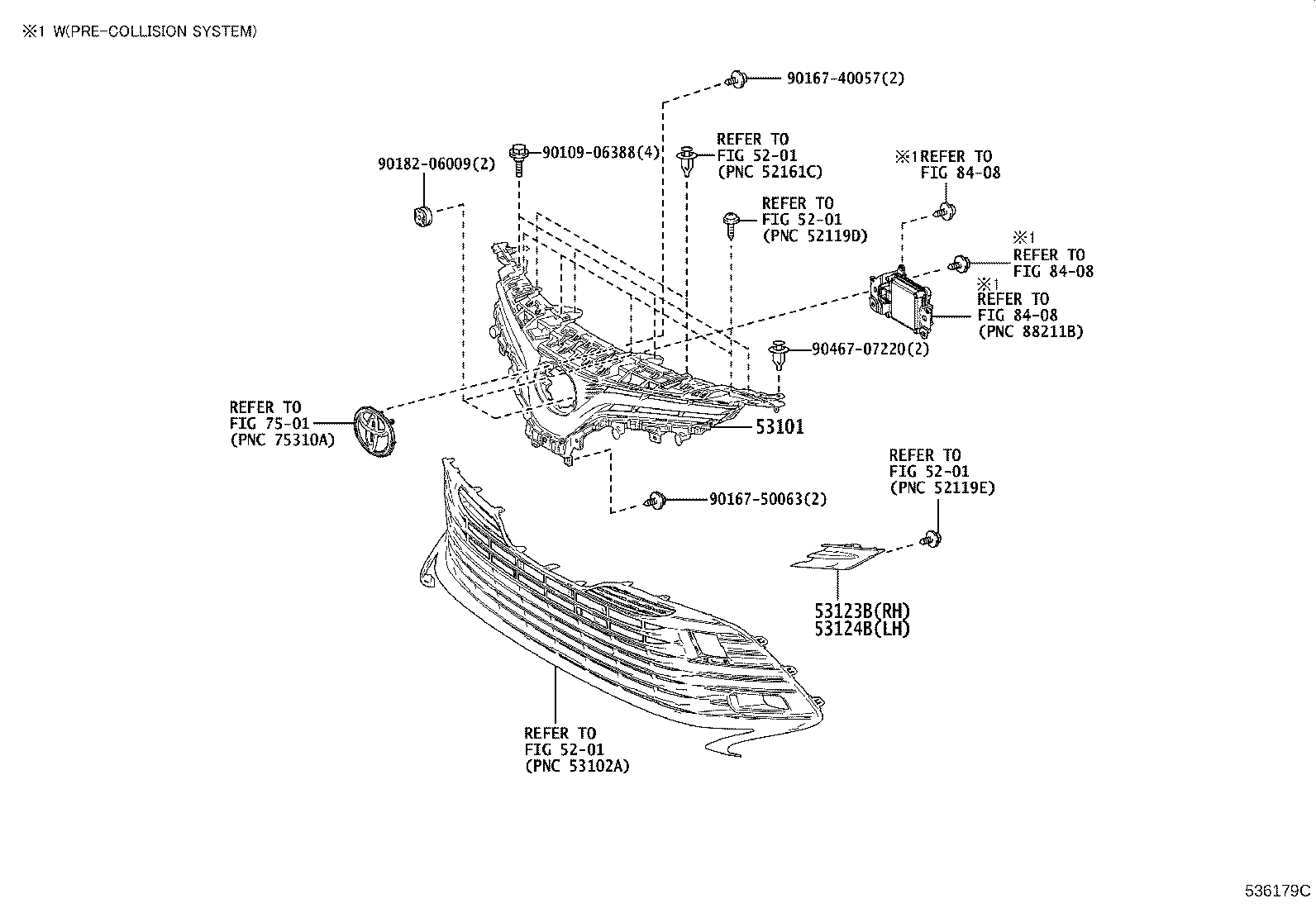

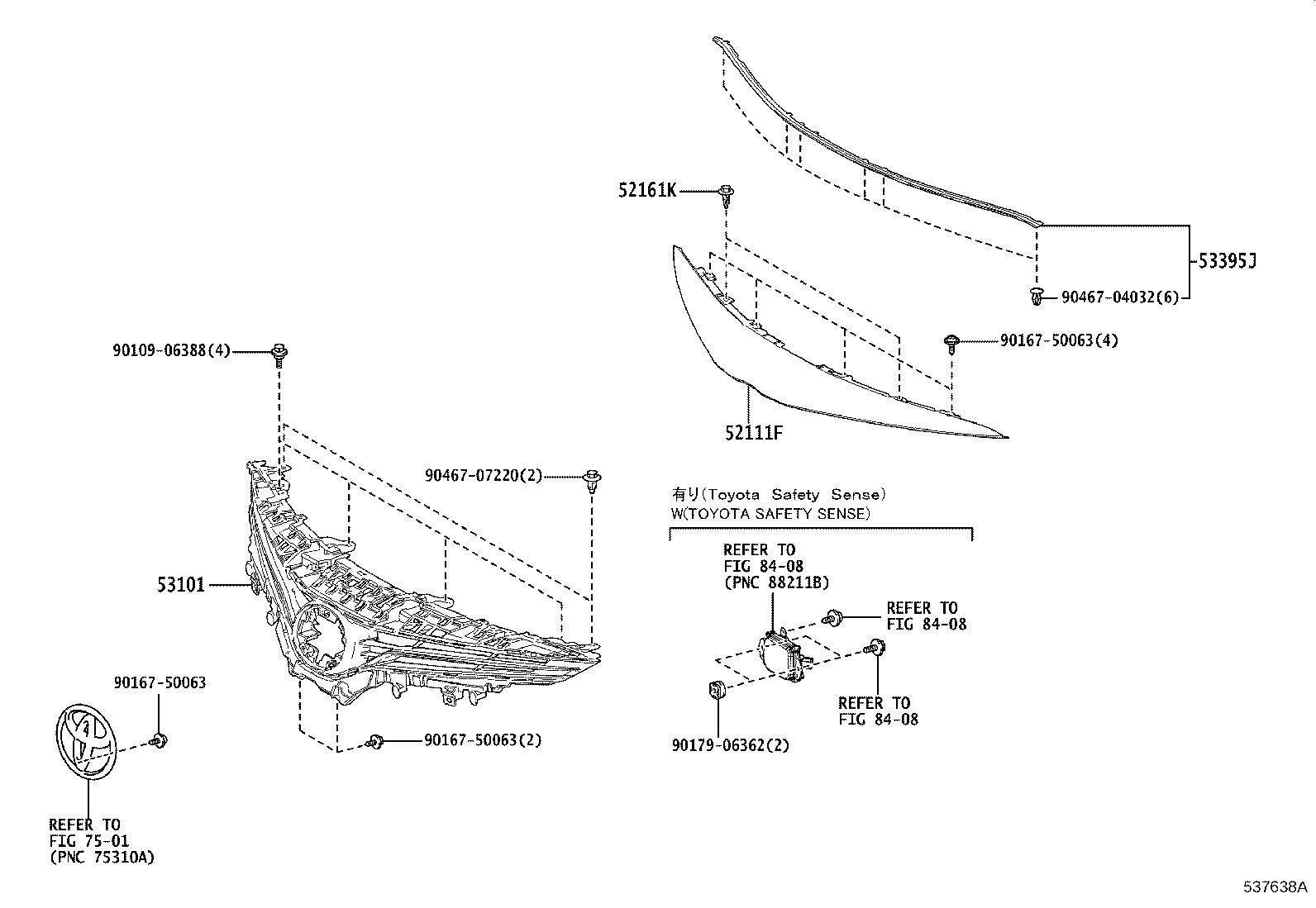

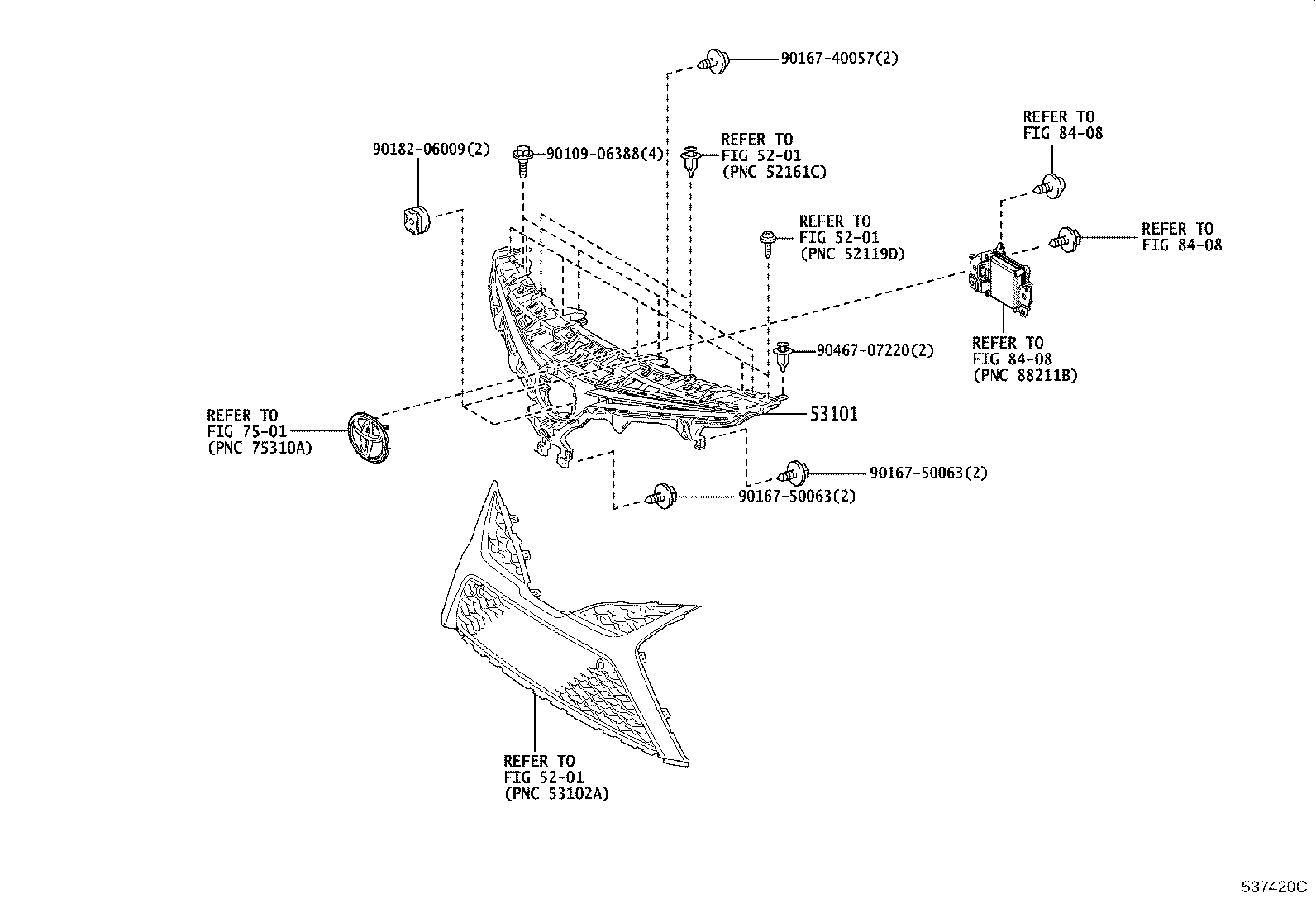

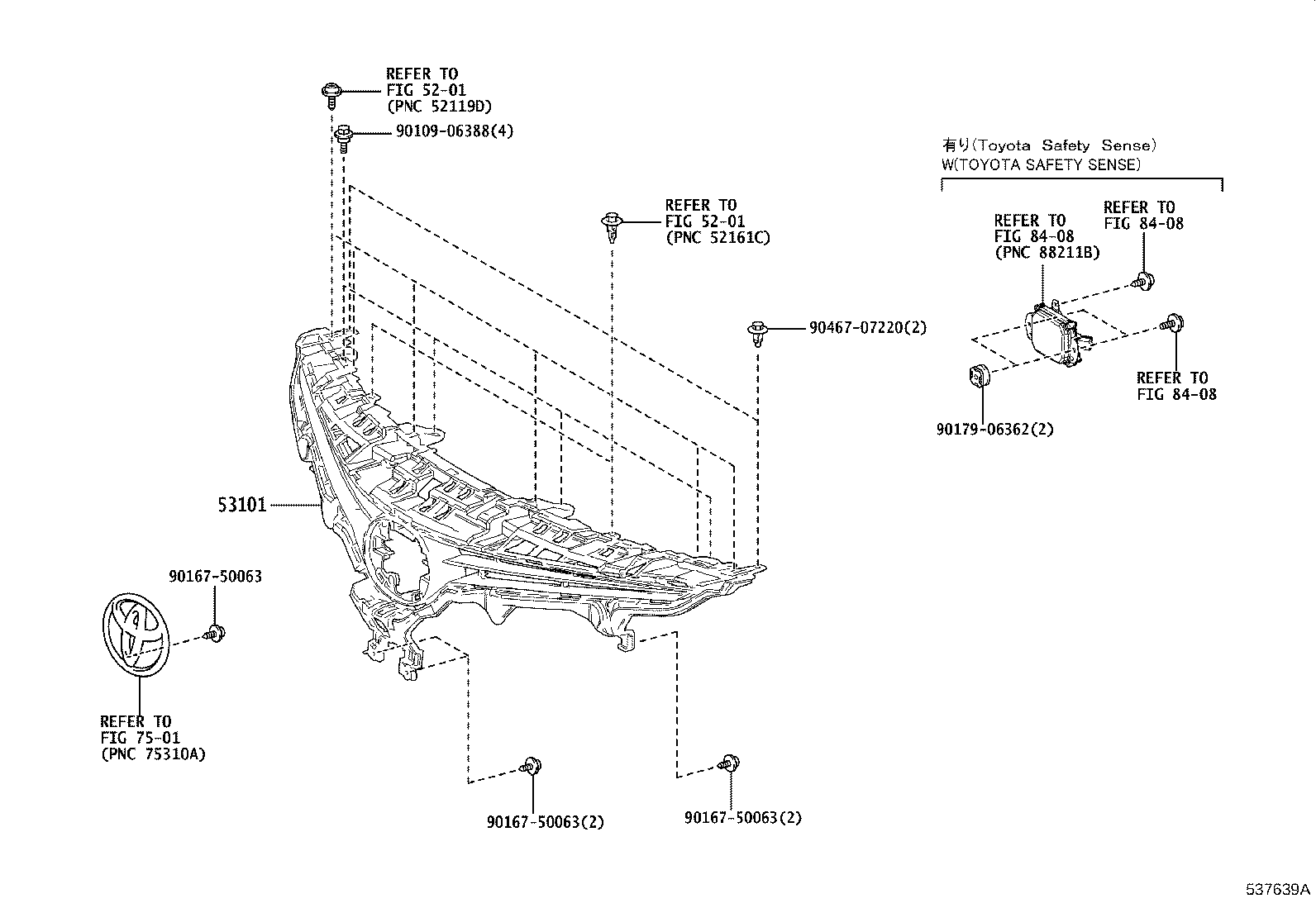

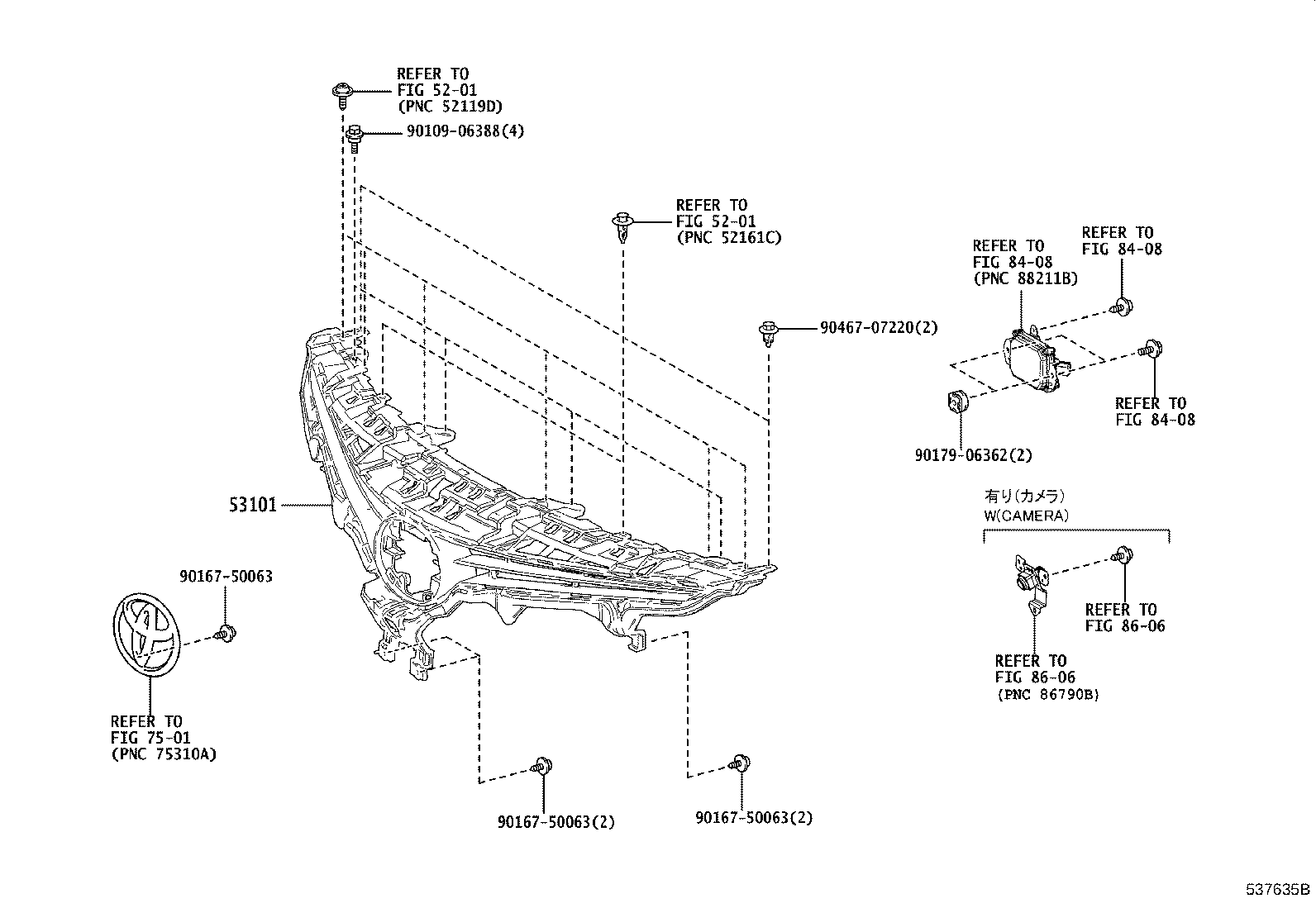

Figure 535366F 535366F 2017-09 → 2021-01 Figure 536179C 536179C 2017-12 → 2021-01 Figure 537420C 537420C 2017-12 → 2021-01 Figure 537638A 537638A 2021-02 → — Figure 537639A 537639A 2021-02 → — Figure 537635B 537635B 2021-02 → —

Part groups

PNCDescription
52111F Bar, Front Bumper, Center
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53395J Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
