Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 8 illustrations

Illustrations

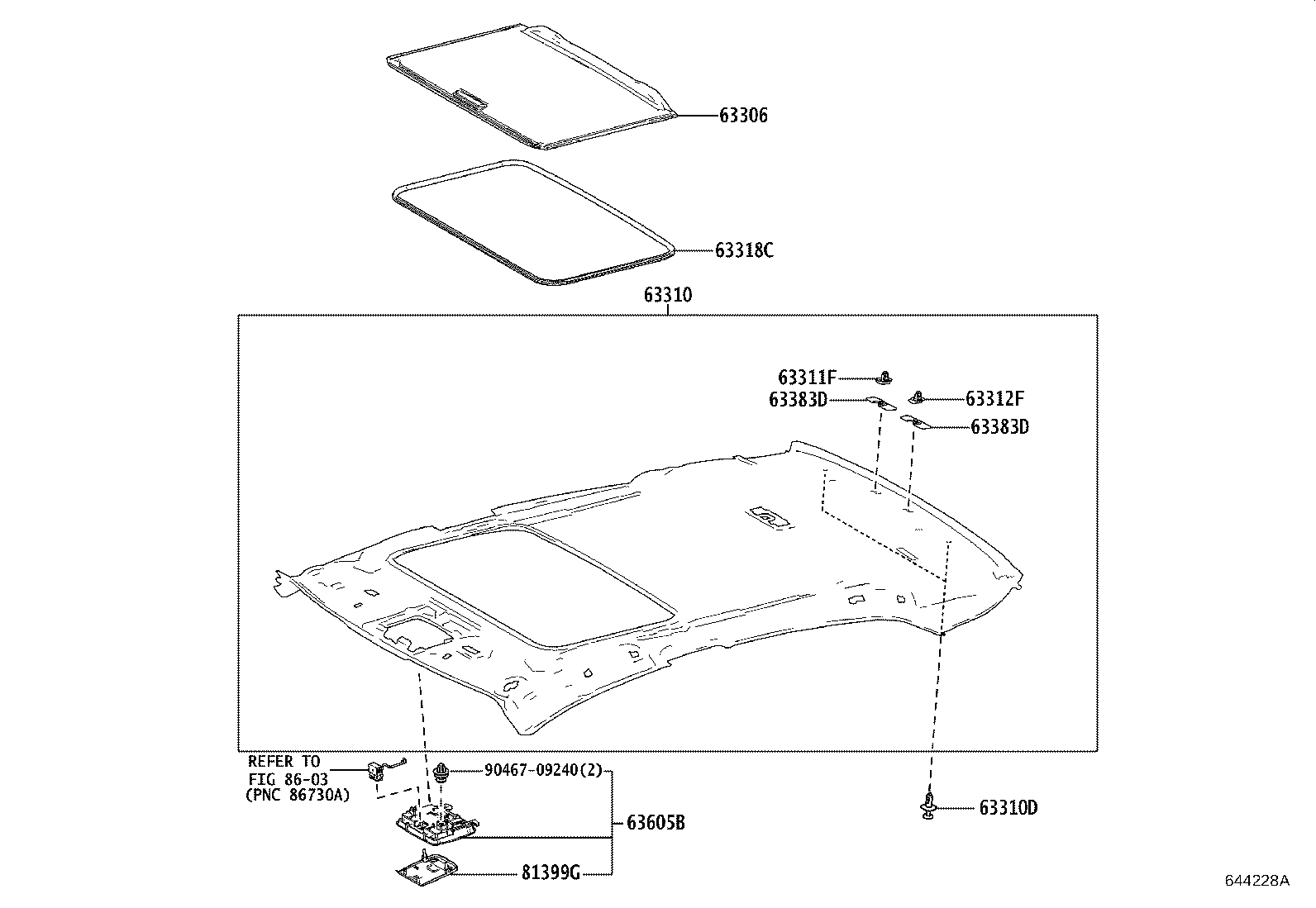

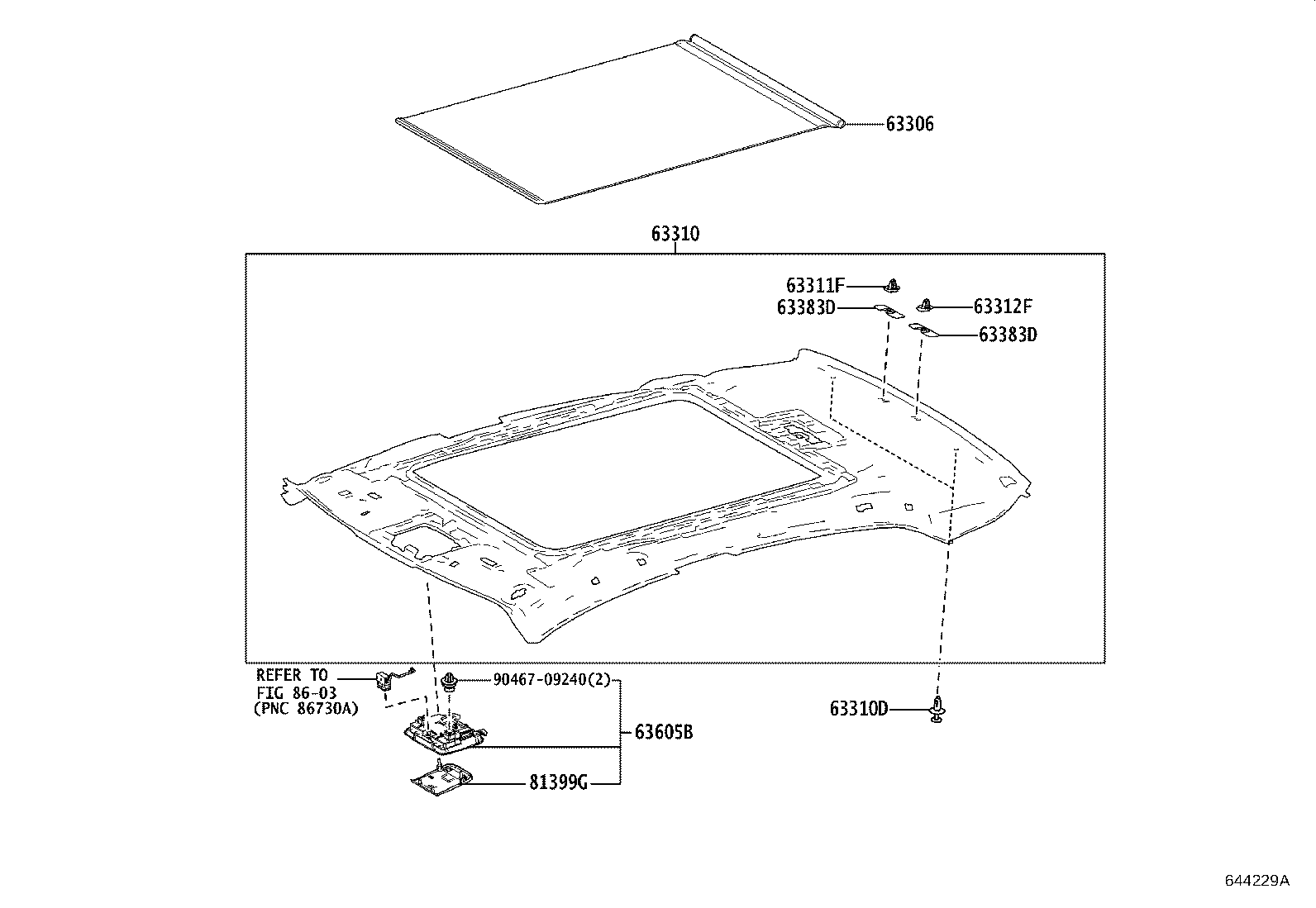

Figure 644241A 644241A 2017-09 → 2021-01 Figure 644241A 644241A 2017-12 → 2020-07 Figure 644241A 644241A 2021-02 → — Figure 644228A 644228A 2017-12 → 2020-07 Figure 644228A 644228A 2017-12 → 2021-01 Figure 644228A 644228A 2021-02 → — Figure 644229A 644229A 2017-09 → 2021-01 Figure 644229A 644229A 2021-02 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63342A Silencer, Roof, NO.2
63344A Silencer, Roof, NO.4
63383D Retainer, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
63665C Mat, Roof Console Box
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
81399G Cover, Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
