Toyota Camry/Hybrid
2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General
Supported model
Data version 2021-02

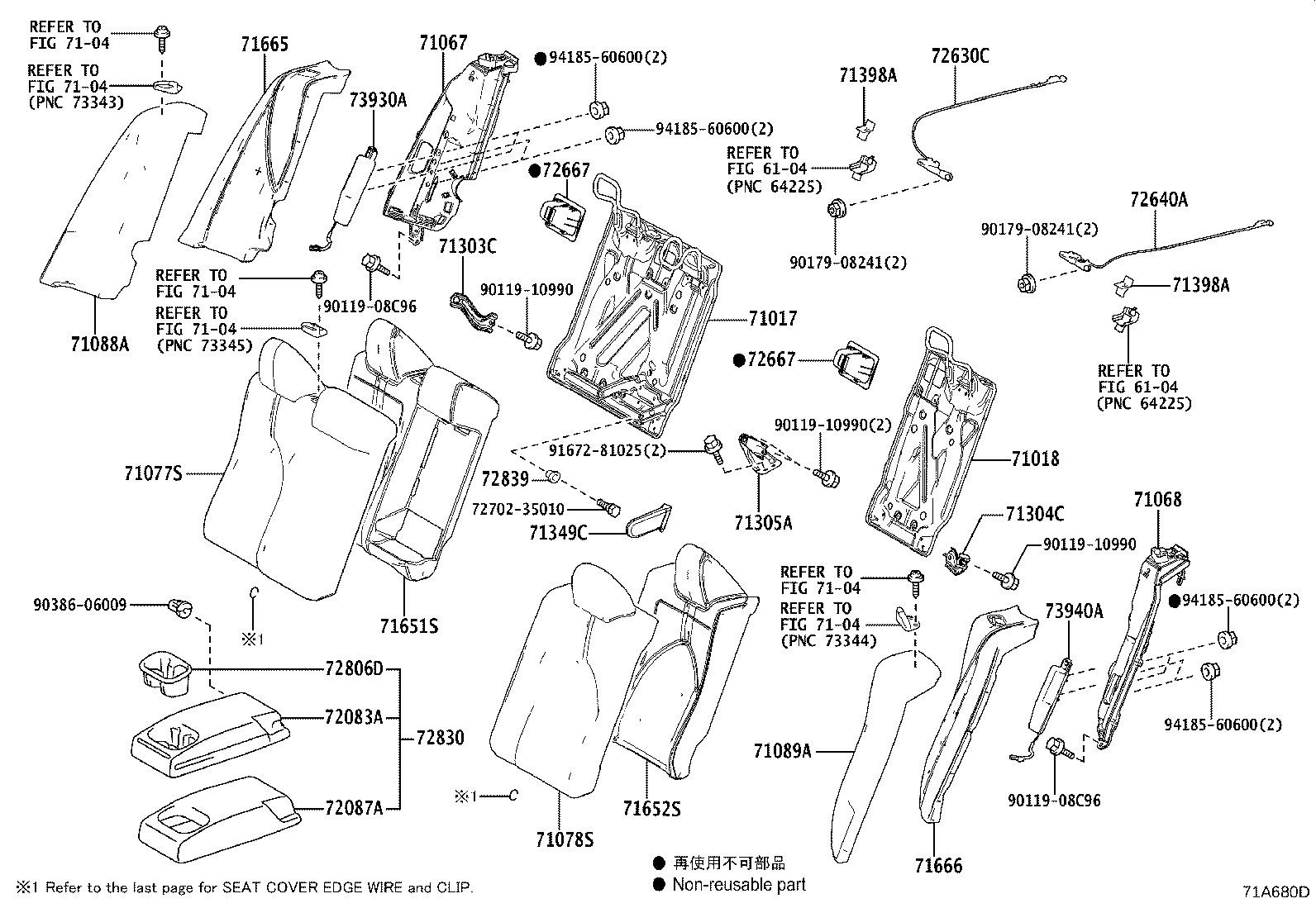

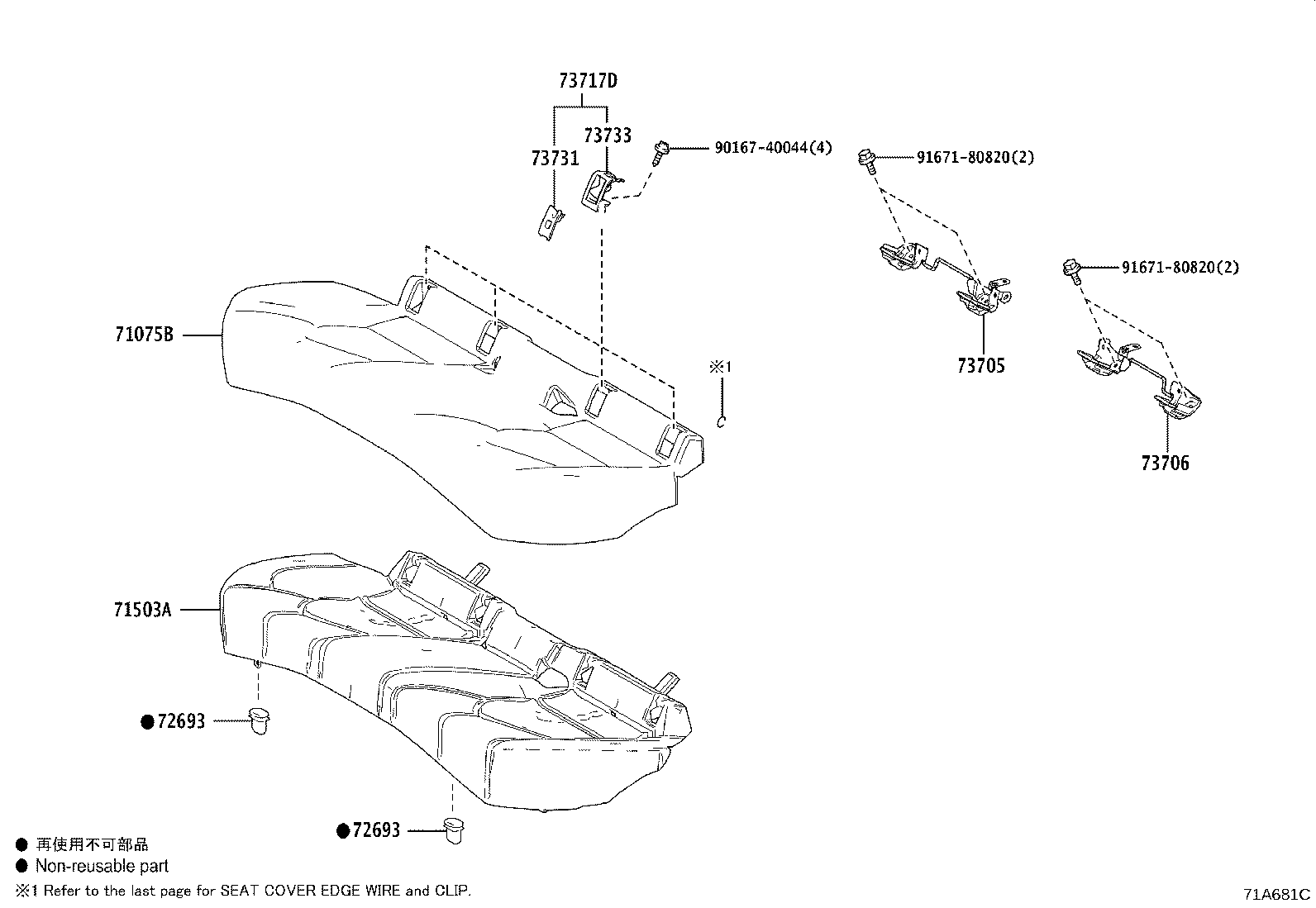

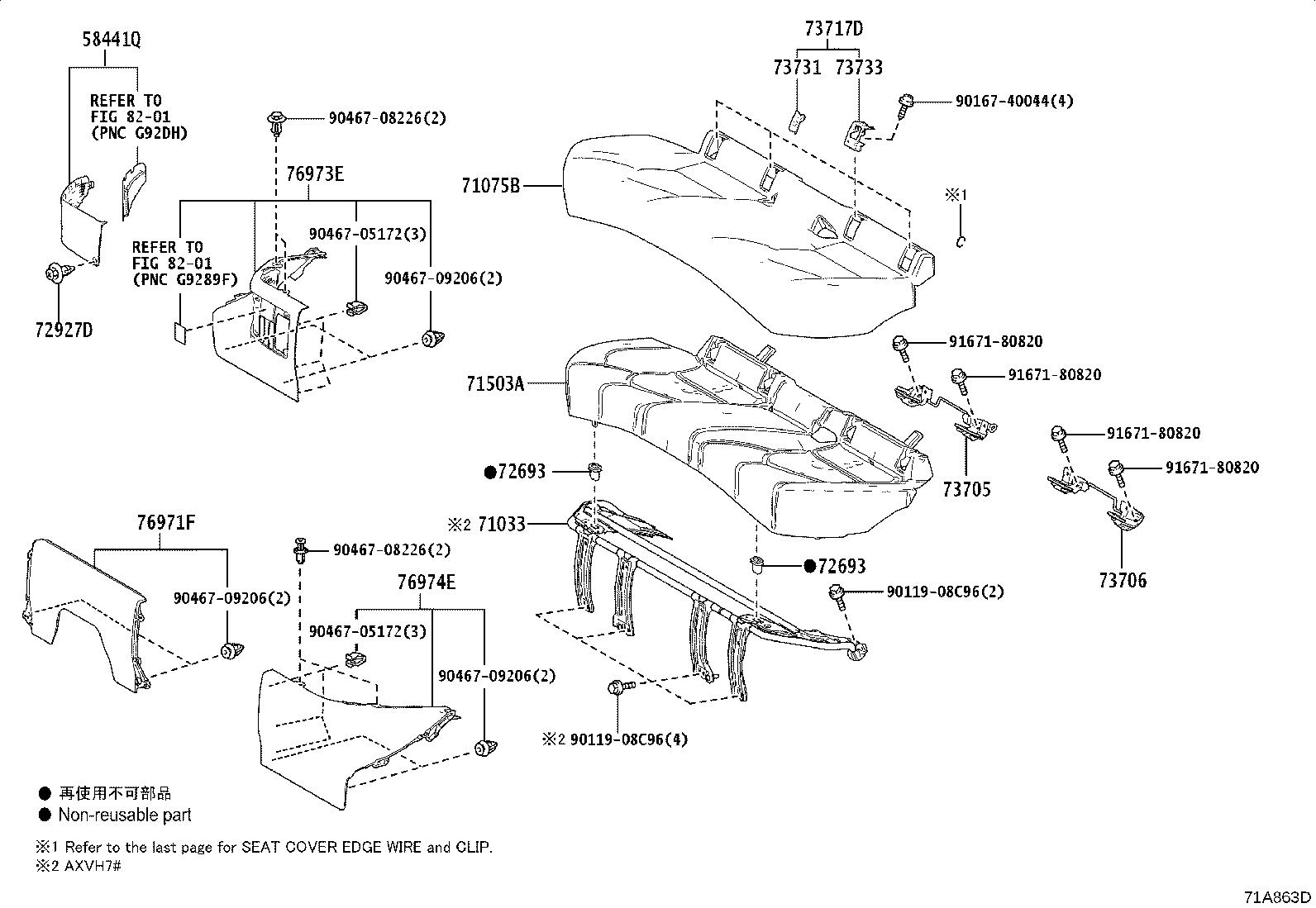

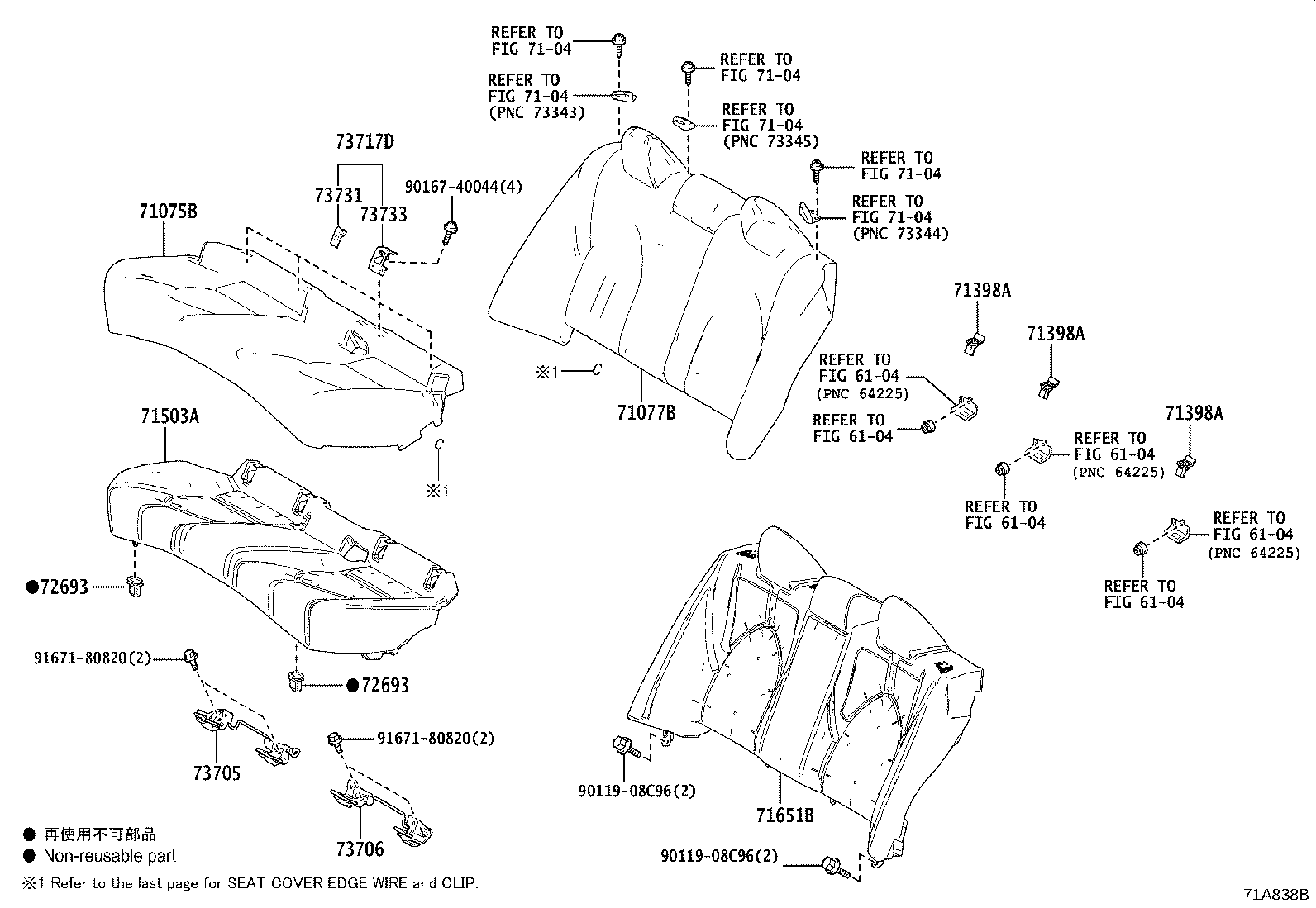

Rear Seat & Seat Track
43 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58441Q | Cover, Battery Service Hole, RH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71067 | Frame Sub-assy, Rear Side Seatback, RH |
| 71068 | Frame Sub-assy, Rear Side Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71088A | Cover Sub-assy, Rear Side Seatback, RH |
| 71089A | Cover Sub-assy, Rear Side Seatback, LH |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71349C | Cover, Rear Seatback Hinge |
| 71398A | Holder, Rear Seatback |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71665 | Pad, Rear Seatback Side, RH |
| 71666 | Pad, Rear Seatback Side, LH |
| 72083A | Pad Sub-assy, Rear Seat Center Armrest |
| 72087A | Cover Sub-assy, Rear Seat Center Armrest |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72927D | Clip (FOR REAR SEAT CUSHION UNDER COVER) |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73717D | Cover, Child Restraint Seat Tether Anchor |
| 73731 | Cover, Child Restraint Seat |
| 73733 | Cover, Child Restraint Seat Base |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
| 76971F | Cover, Rear Under |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
