Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

17 part groups · 3 illustrations

Illustrations

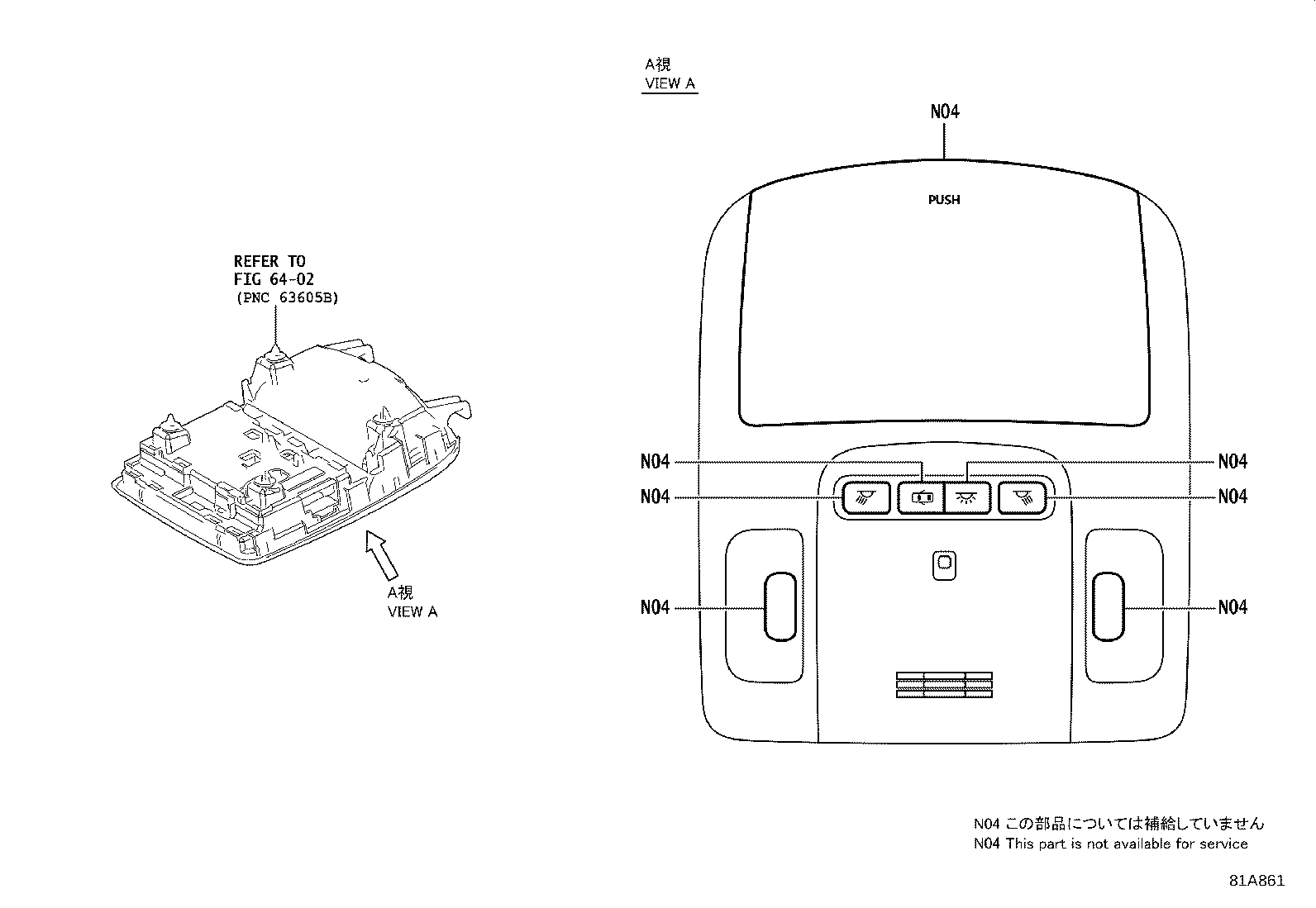

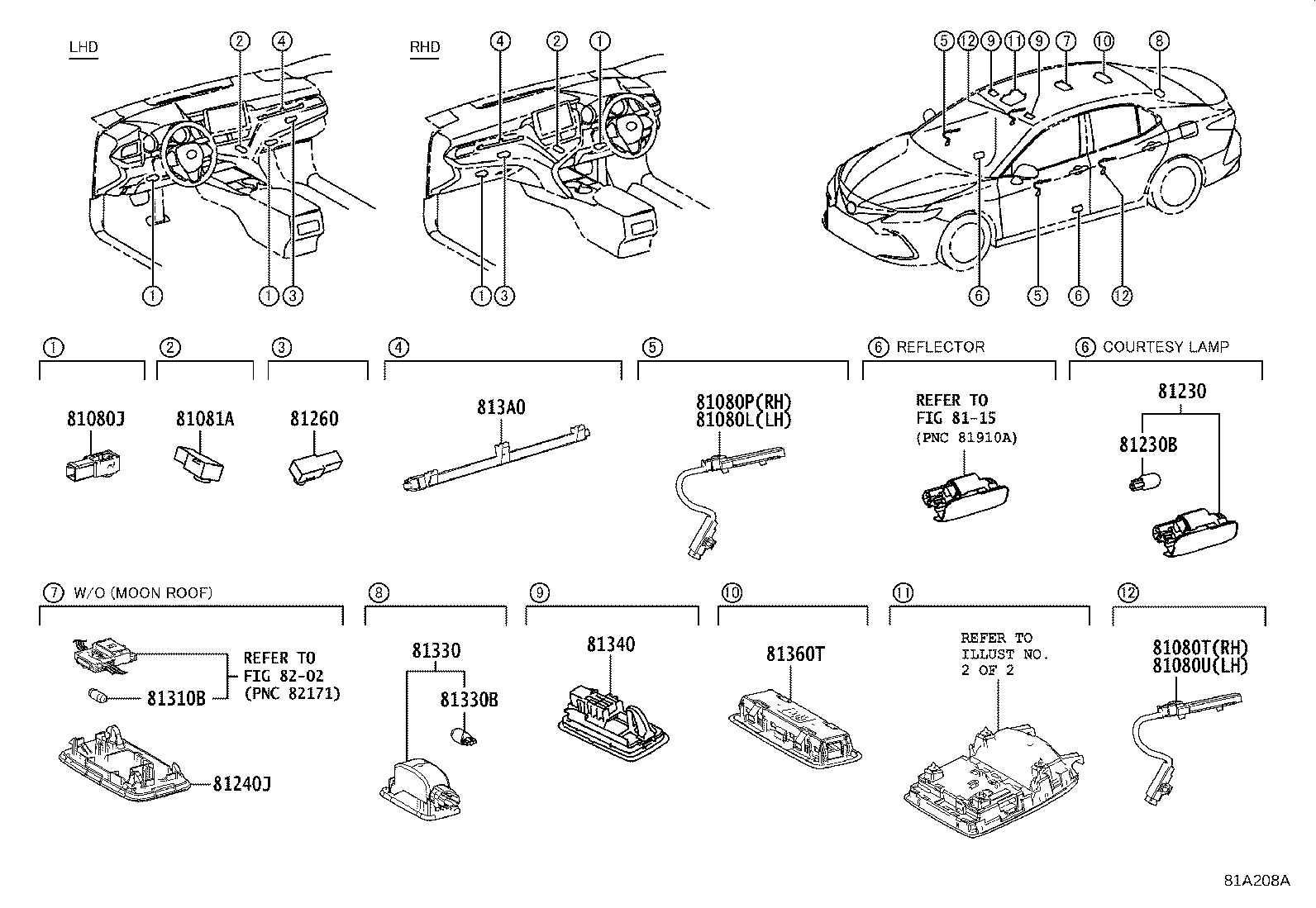

Figure 818323E 818323E 2017-09 → 2021-02 Figure 81A208A 81A208A 2021-02 → — Figure 81A861 81A861 2017-09 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81081A Lamp Sub-assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240J Lamp Assy, Room
81260 Lamp Assy, Glove Box
81310B Bulb, Rear Room Lamp
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
813A0 Lamp Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
