Toyota Camry/Hybrid
2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General
Supported model
Data version 2021-02
Hev Inverter
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

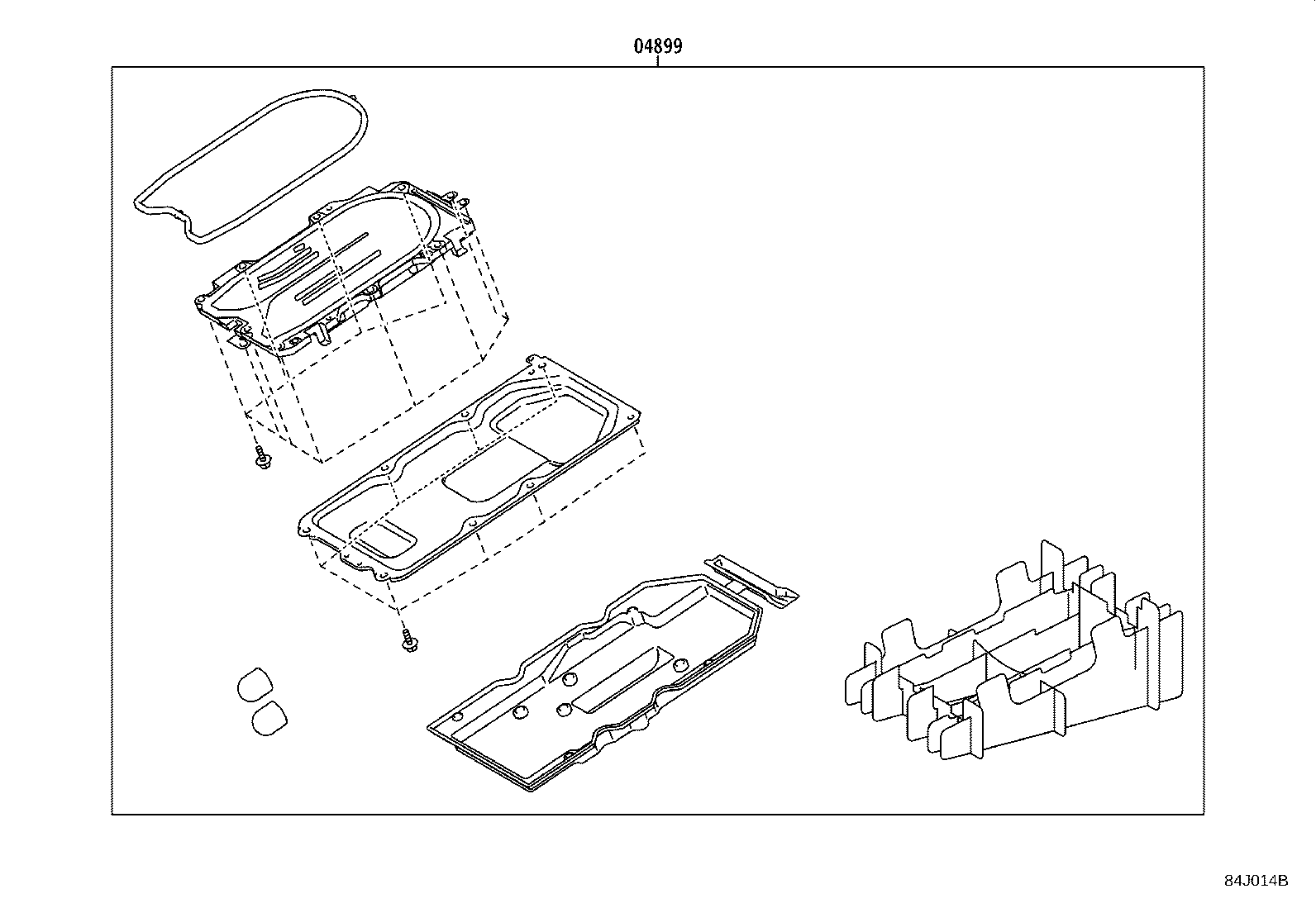

| 04899 | Converter Kit, HV |

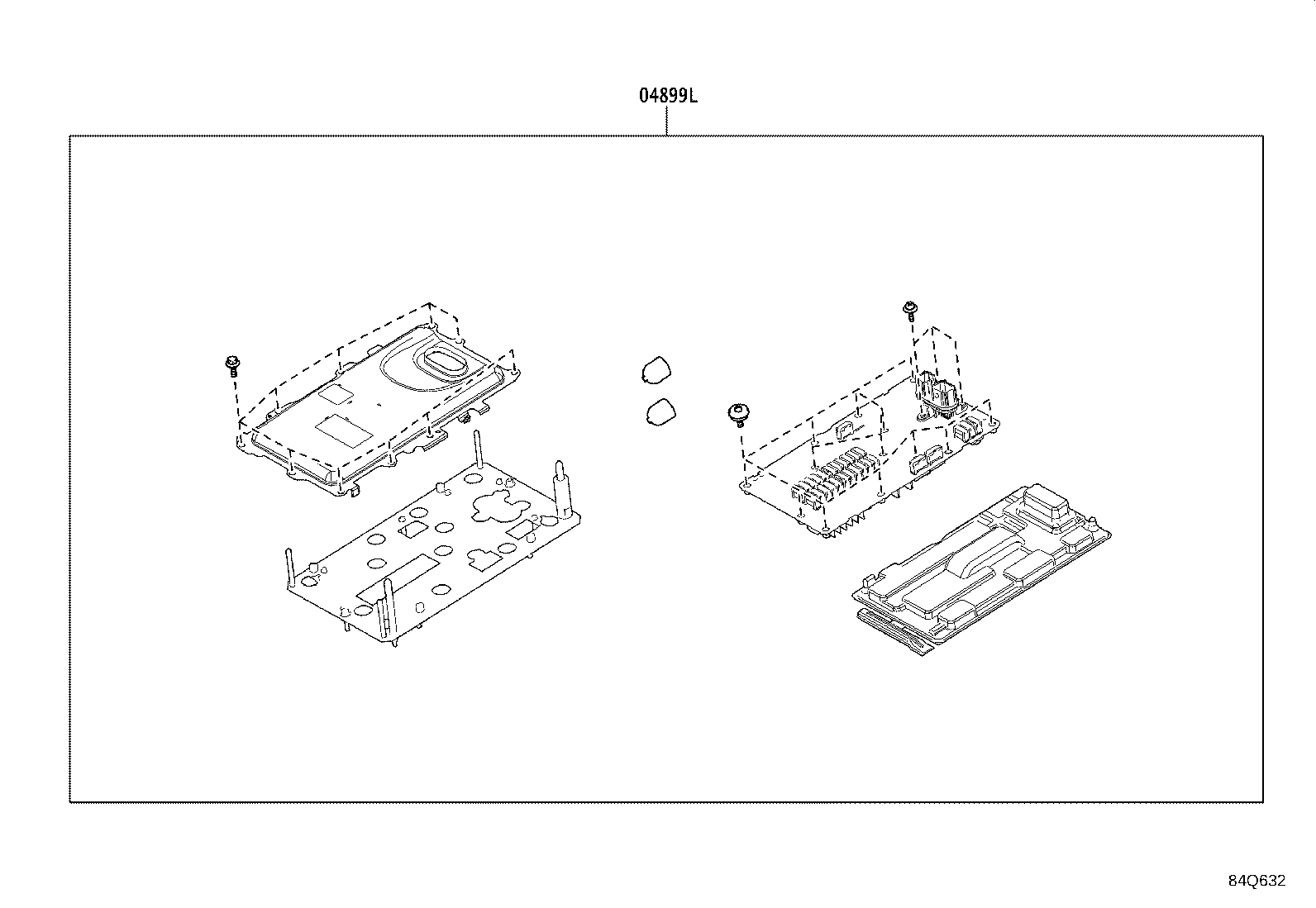

| 04899L | Computer Kit, Motor Generator Control |
| G9200 | Inverter Assy, W/Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G921E | Protector, Inverter |
| G9221 | Cover, Inverter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
