Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

6 part groups · 2 illustrations

Illustrations

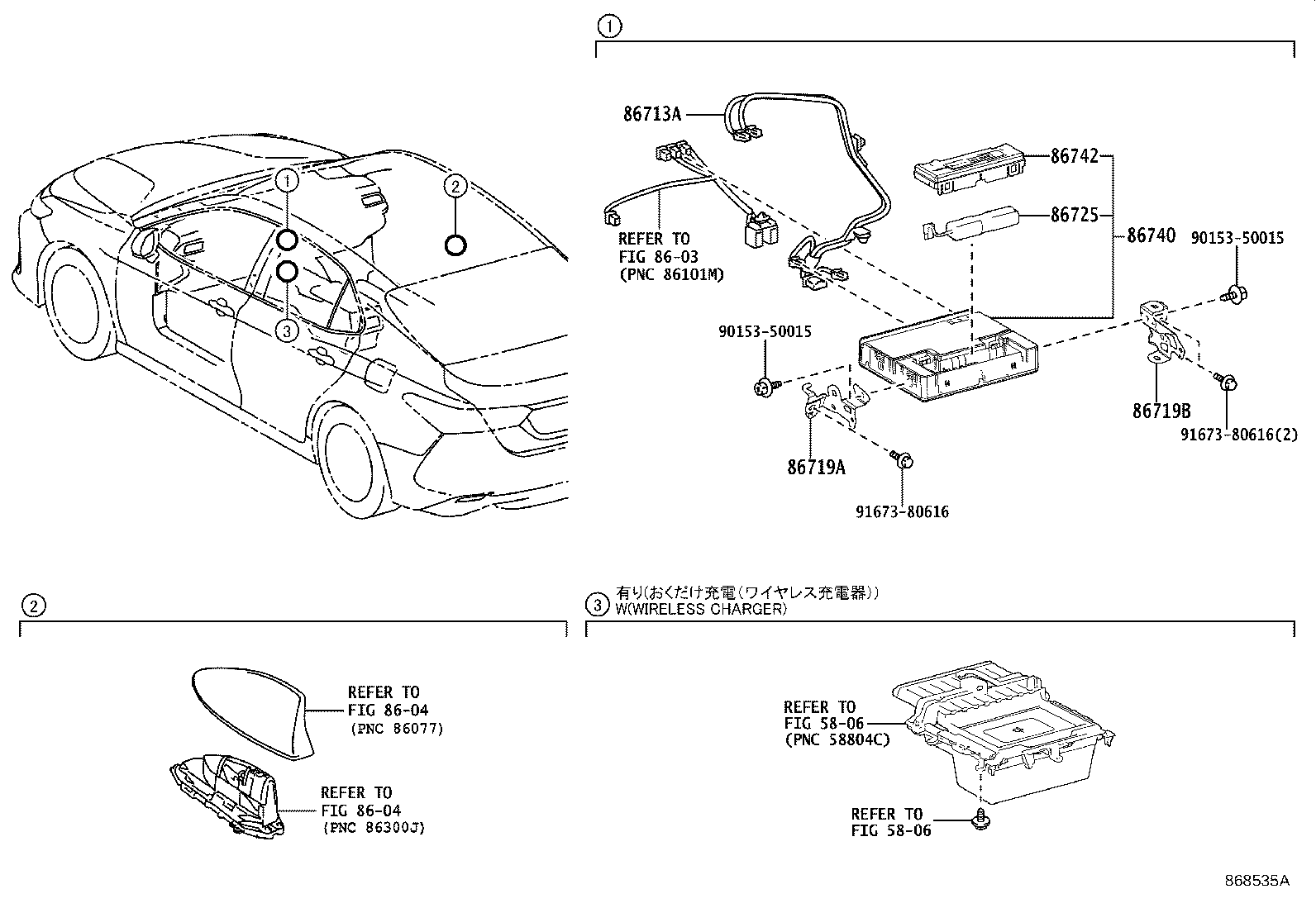

Figure 868208 868208 2017-09 → 2021-02 Figure 868535A 868535A 2021-02 → —

Part groups

PNCDescription
86713A Wire, Telephone Computer, (TO TRANSCEIVER)
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86742 Cover, Transceiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
