Toyota Camry/Hybrid

2017-09 → present · chassis ASV70,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2843A0 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 6 illustrations

Illustrations

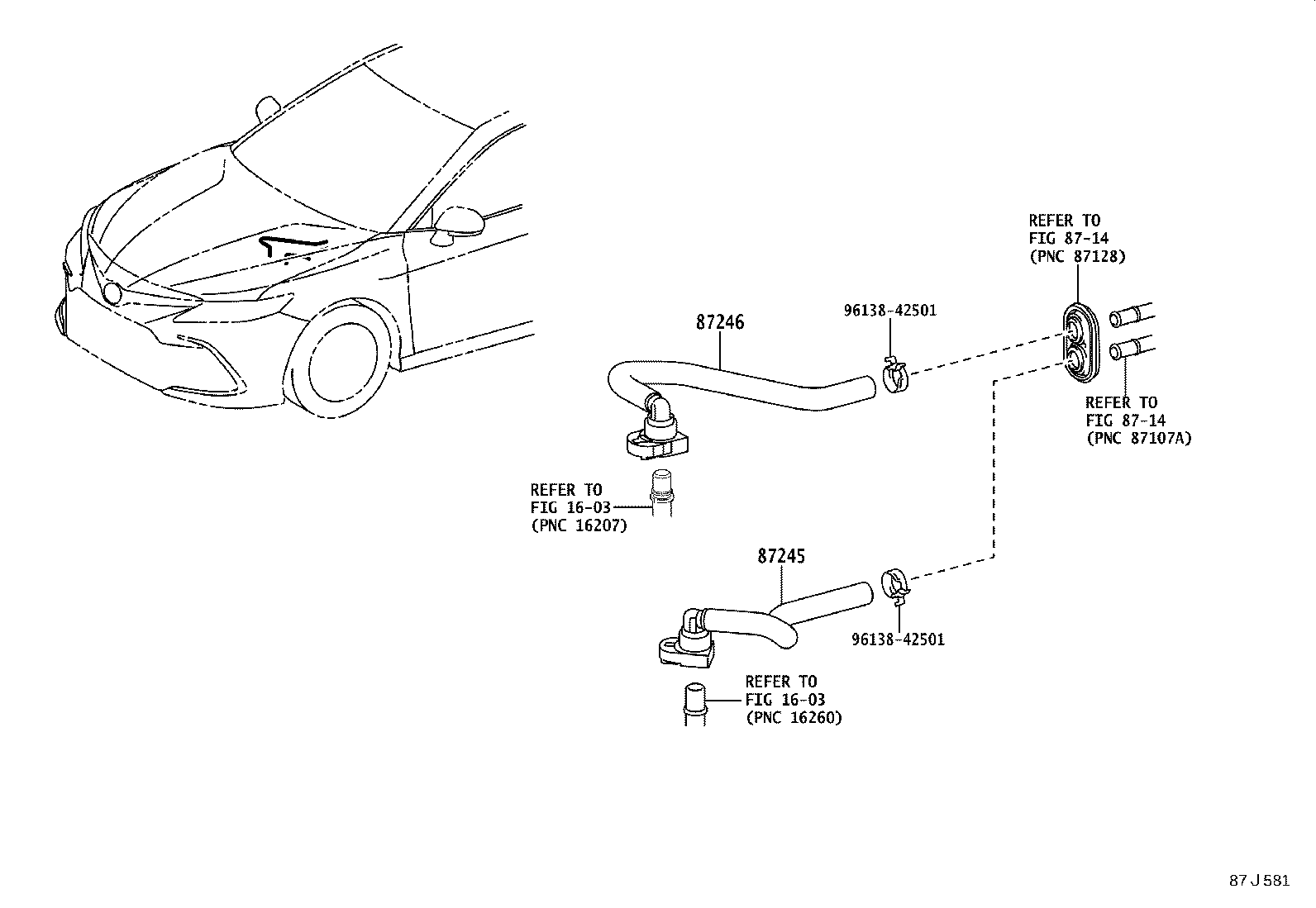

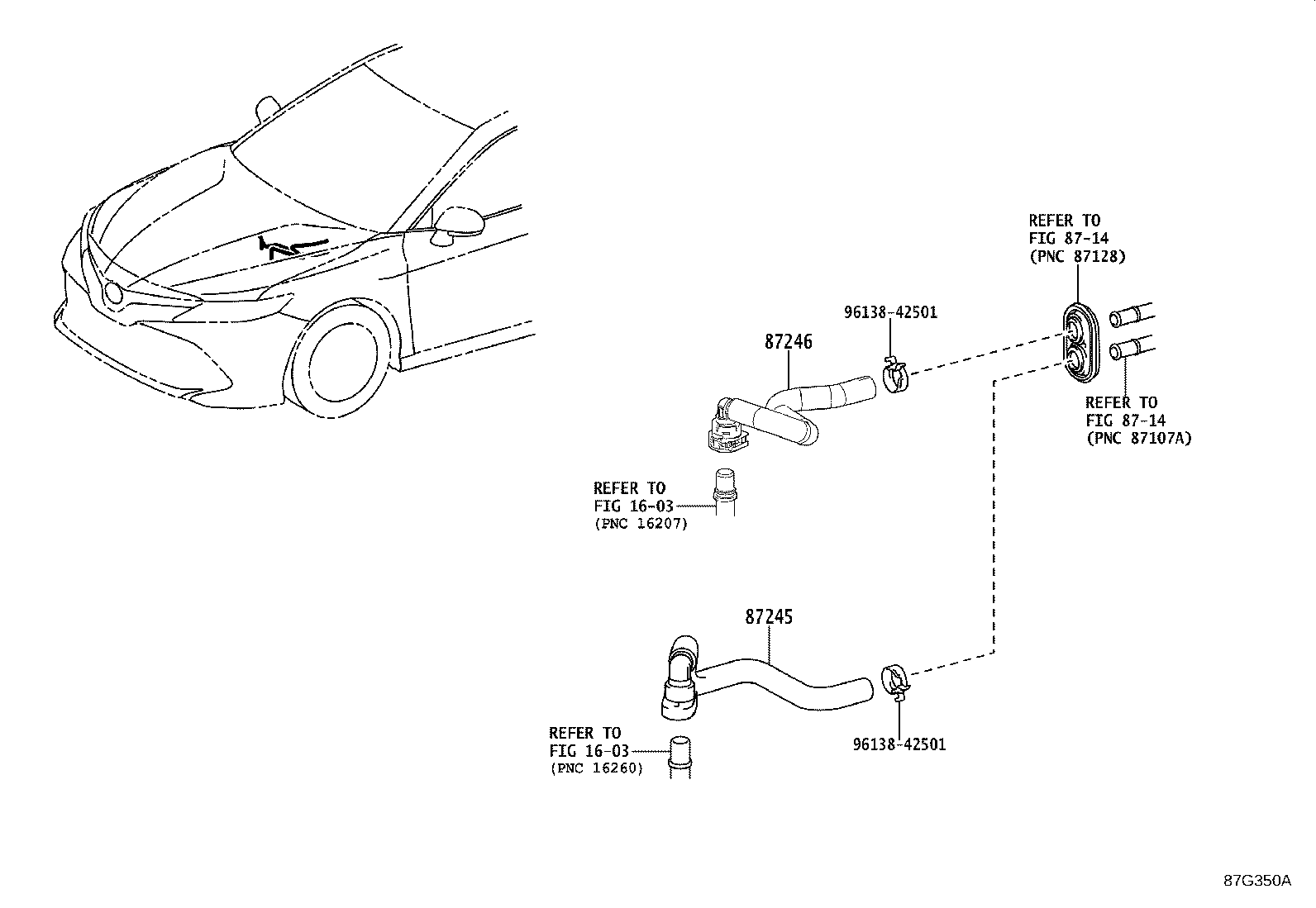

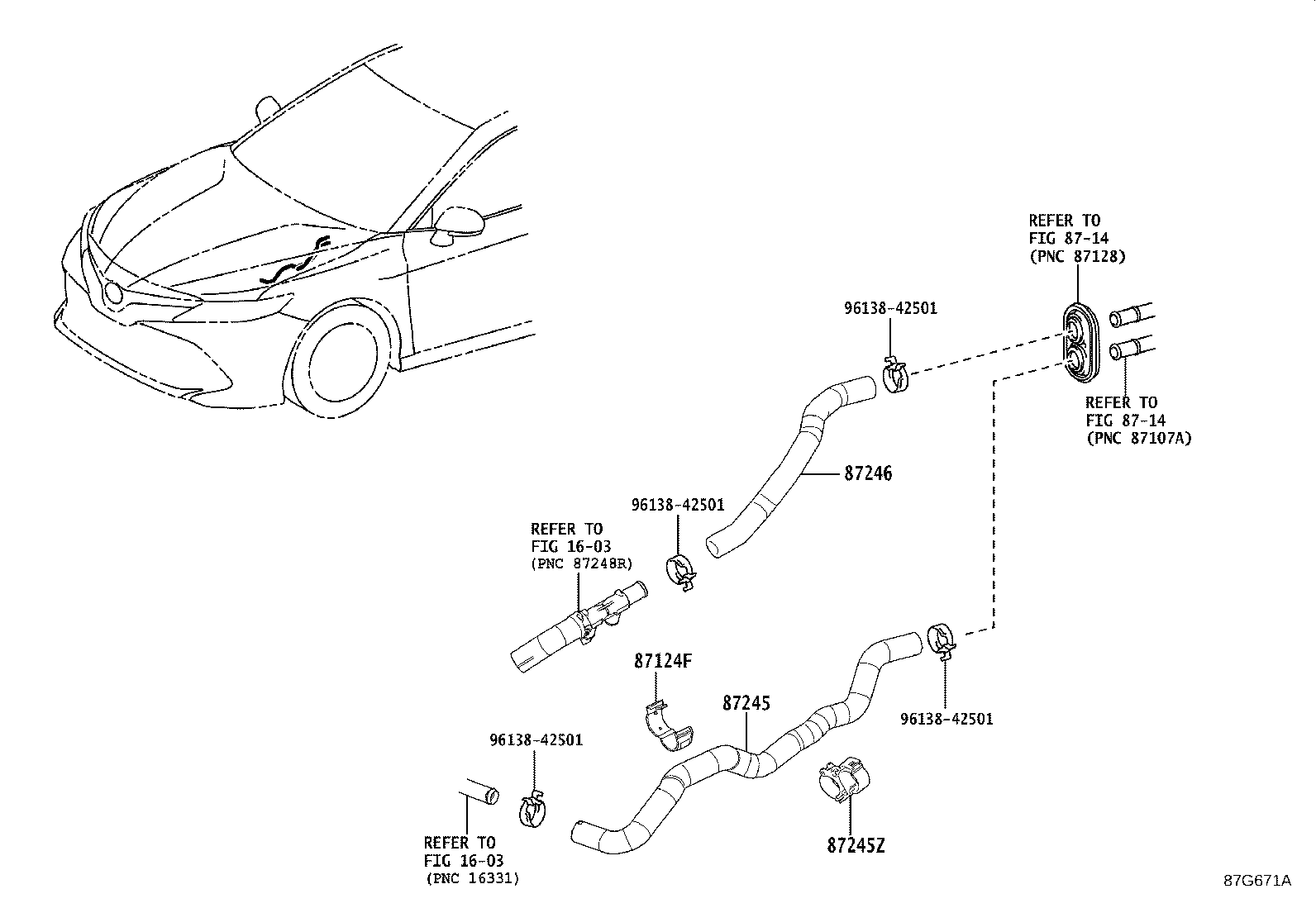

Figure 87G545A 87G545A 2017-09 → 2021-02 Figure 87G671A 87G671A 2017-12 → 2021-02 Figure 87G671A 87G671A 2021-02 → — Figure 87G350A 87G350A 2017-12 → 2021-02 Figure 87G350A 87G350A 2021-02 → — Figure 87J581 87J581 2021-02 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87245 Hose, Heater Water, Inlet
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
