Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 2 illustrations

Illustrations

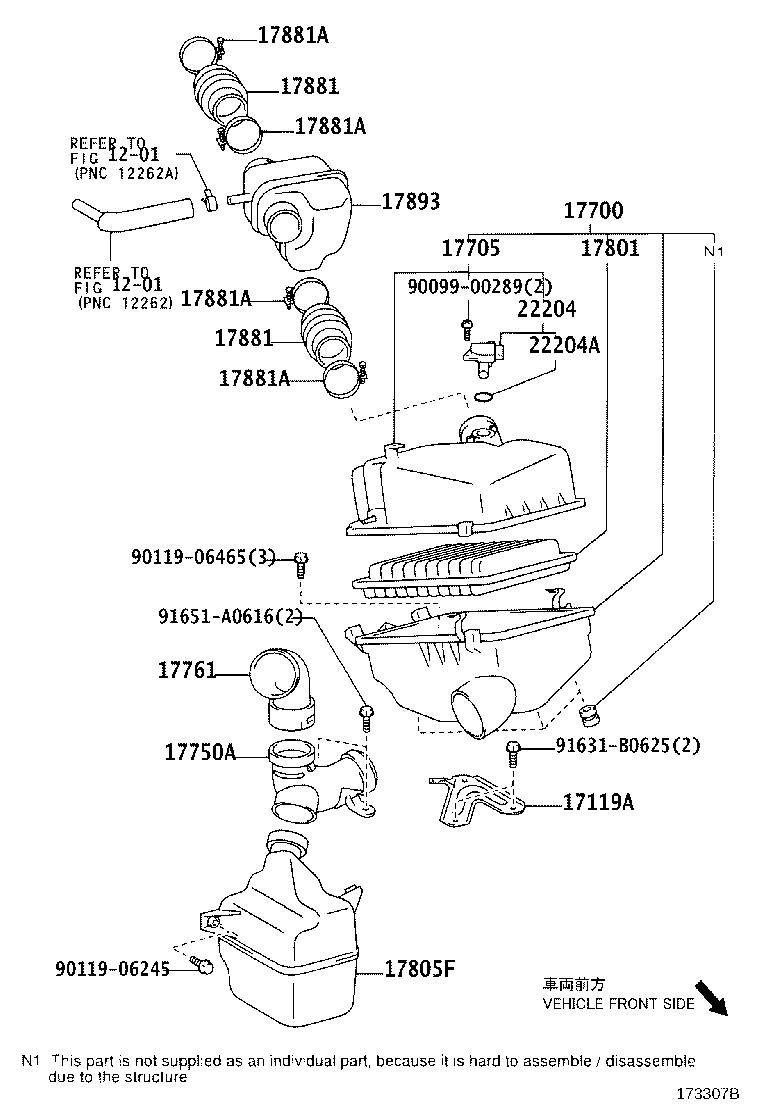

Figure 173313B 173313B 2002-08 → — Figure 173307B 173307B 2002-08 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17761 Cap, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
