Toyota Camry (AUSTRALIA)
2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General
Discontinued model
Data version 2006-10
Alternator
11 part groups · 4 illustrations
Part groups

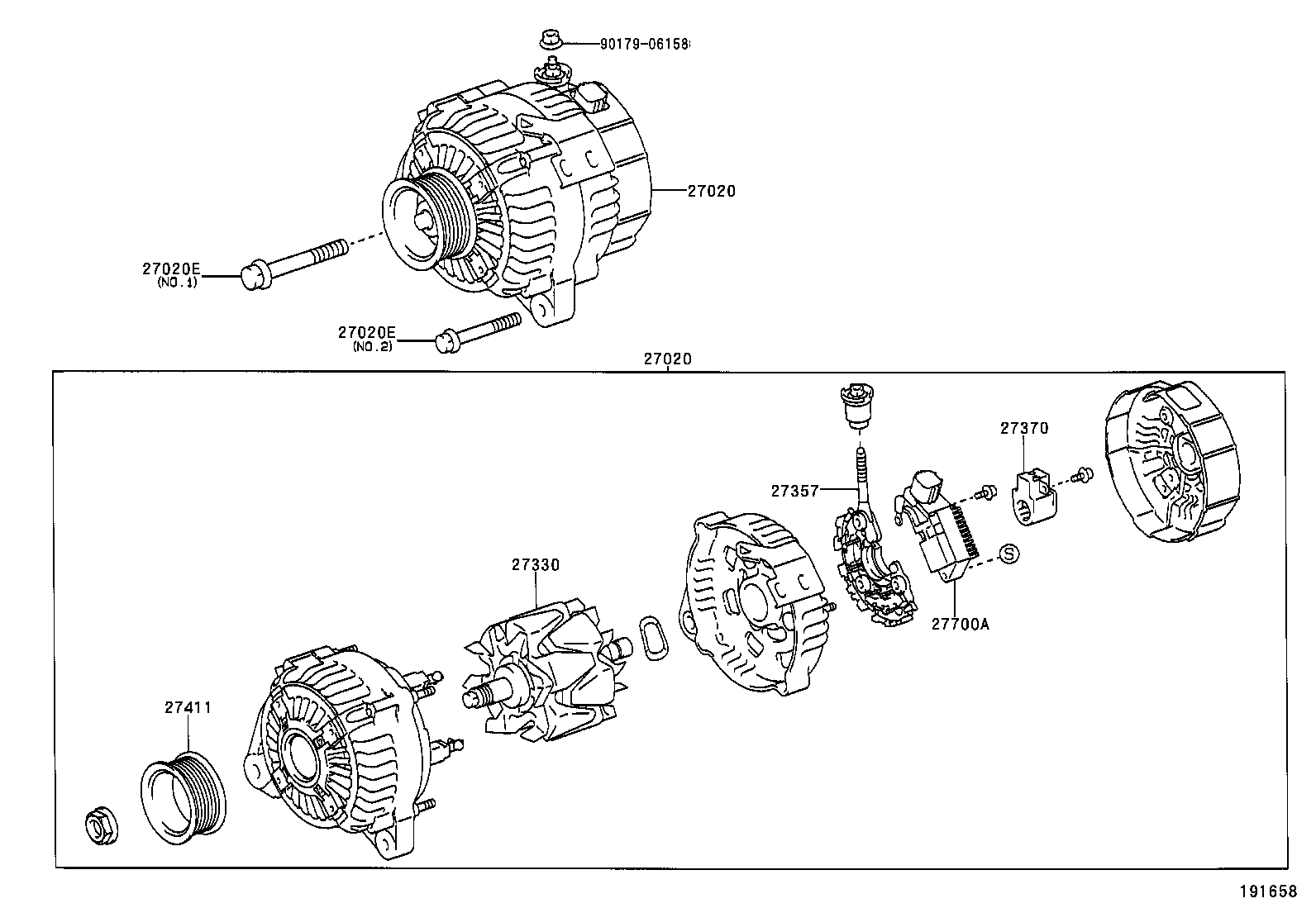

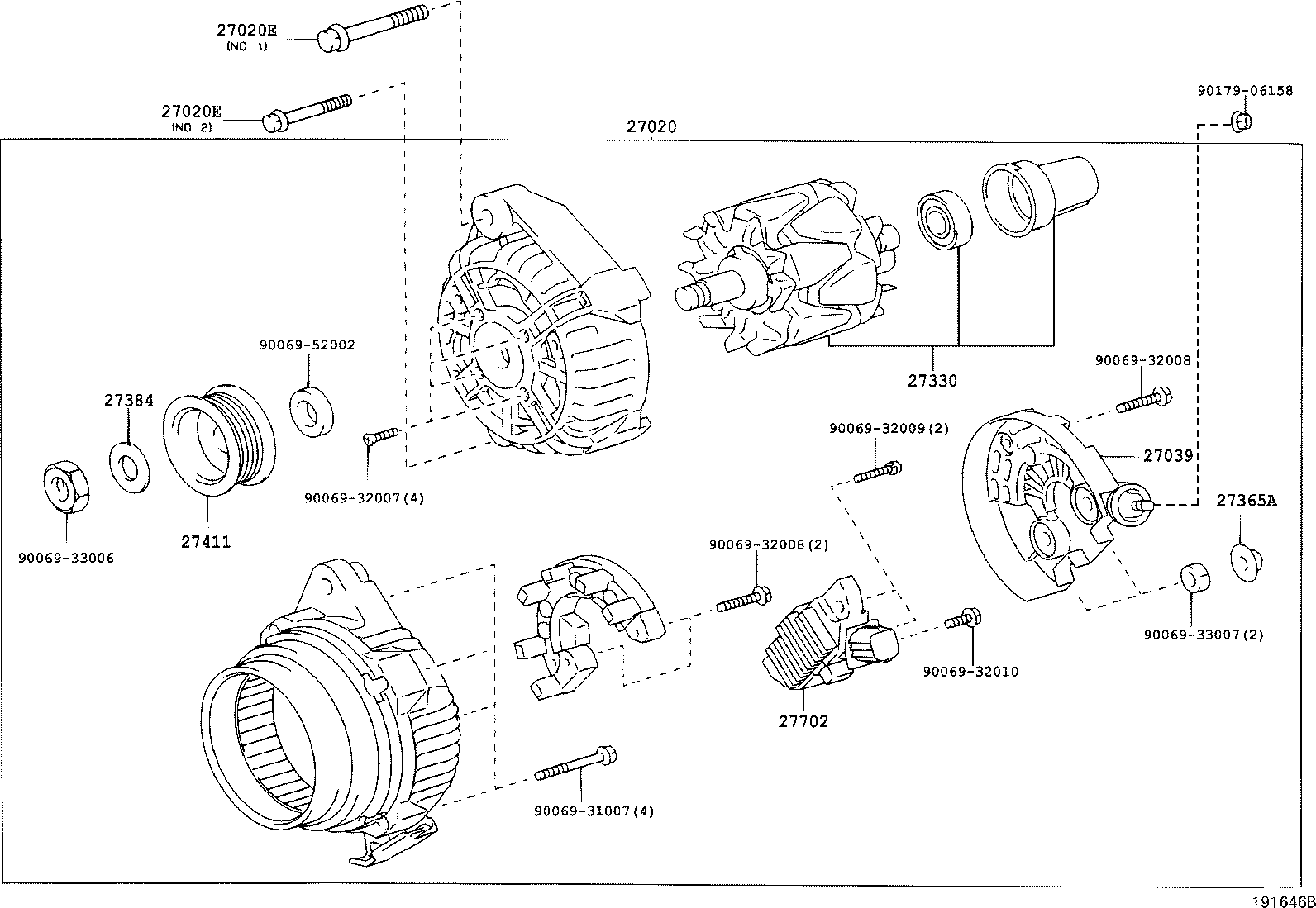

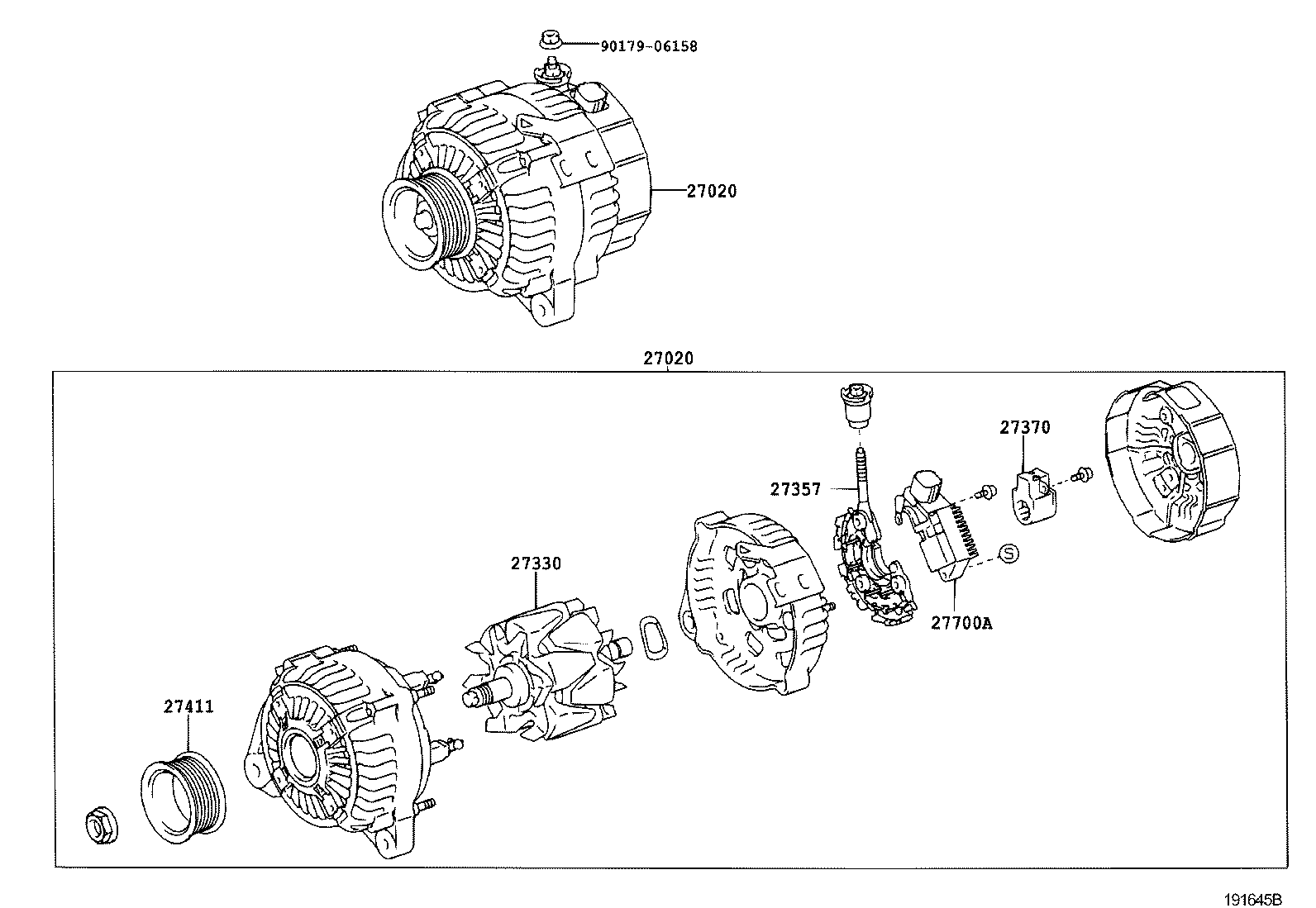

| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27330 | Rotor Assy, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27365A | Plate, Rectifier |
| 27370 | Holder Assy, Alternator Brush |
| 27384 | Washer |
| 27411 | Pulley, Alternator |
| 27700A | Regulator Assy, Generator |
| 27702 | Regulator Sub-assy Generator W/Brush |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
