Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

12 part groups · 2 illustrations

Illustrations

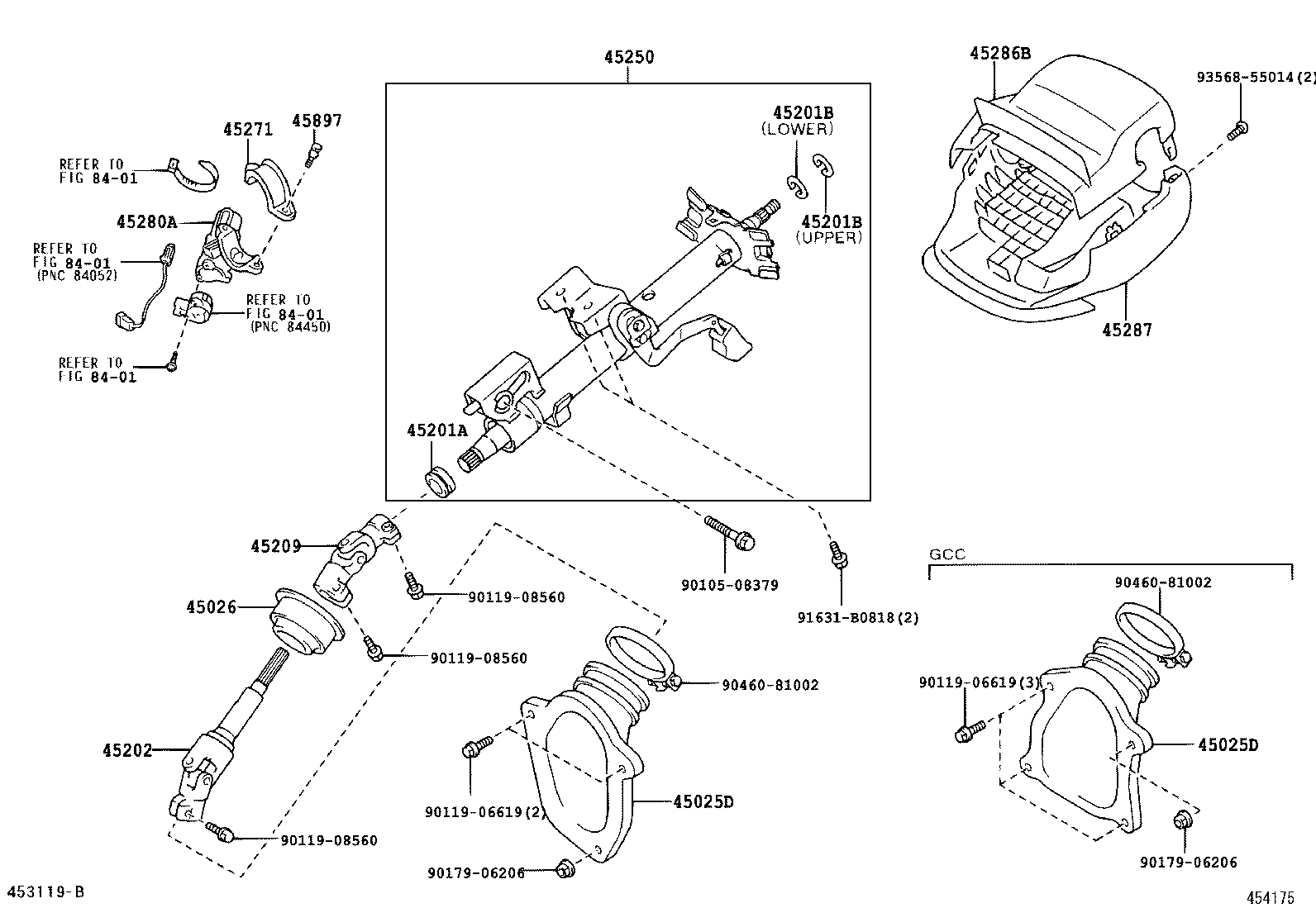

Figure 453119B 453119B 2002-08 → 2005-01 Figure 454175 454175 2005-01 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45209 Yoke Sub-assy, Steering Sliding
45250 Column Assy, Steering
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
