Toyota Camry (AUSTRALIA)
2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General
Discontinued model
Data version 2006-10

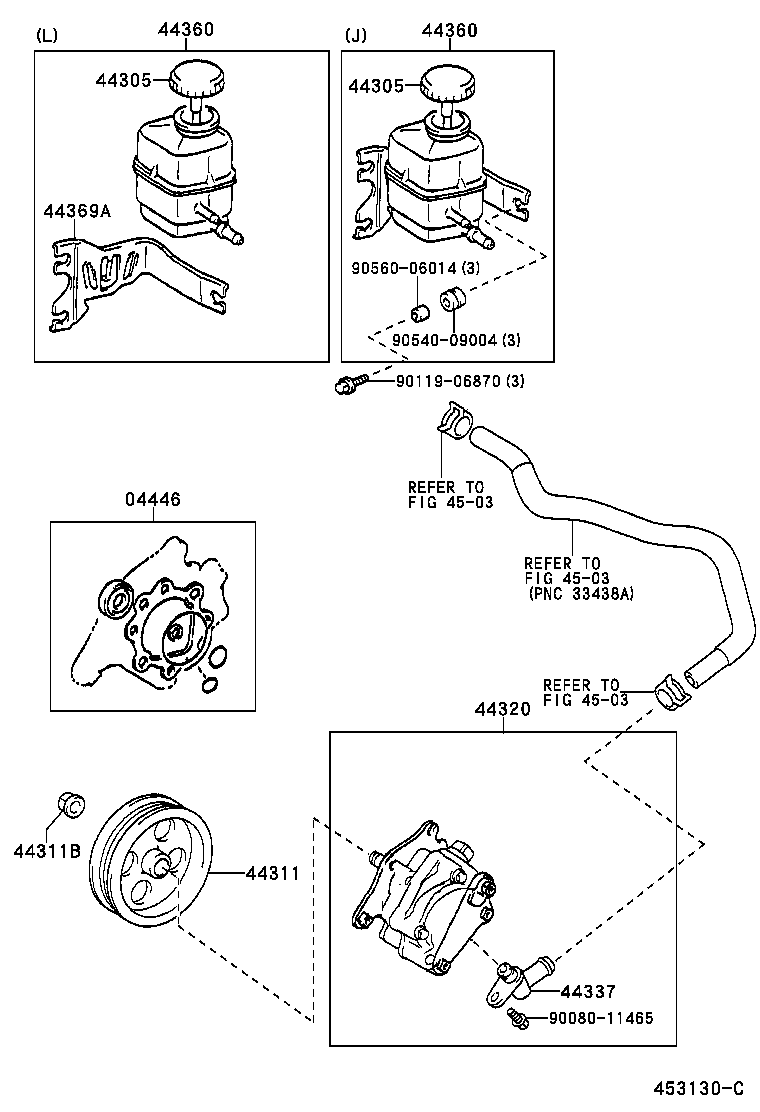

Vane Pump & Reservoir (POWER STEERING)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44311 | Pulley, Vane Pump |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44320 | Pump Assy, Vane |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44337 | Union, Power Steering Suction Port |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44369A | Bracket, Oil Reservoir, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
