Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 4 illustrations

Illustrations

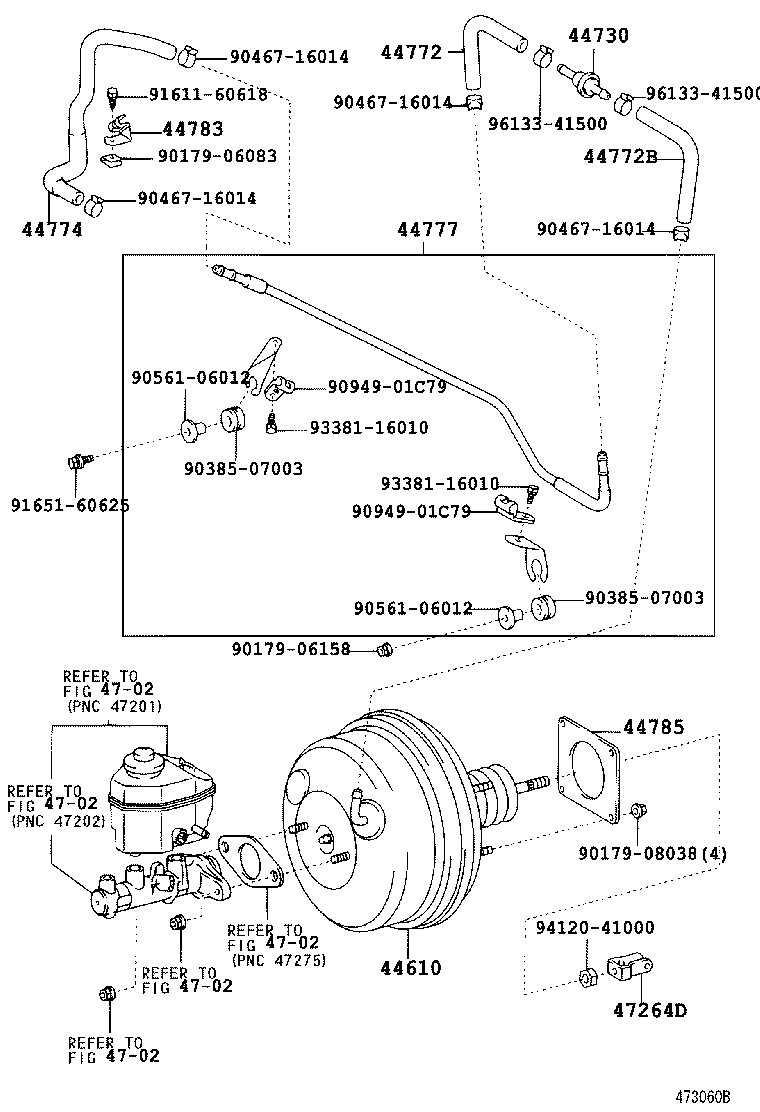

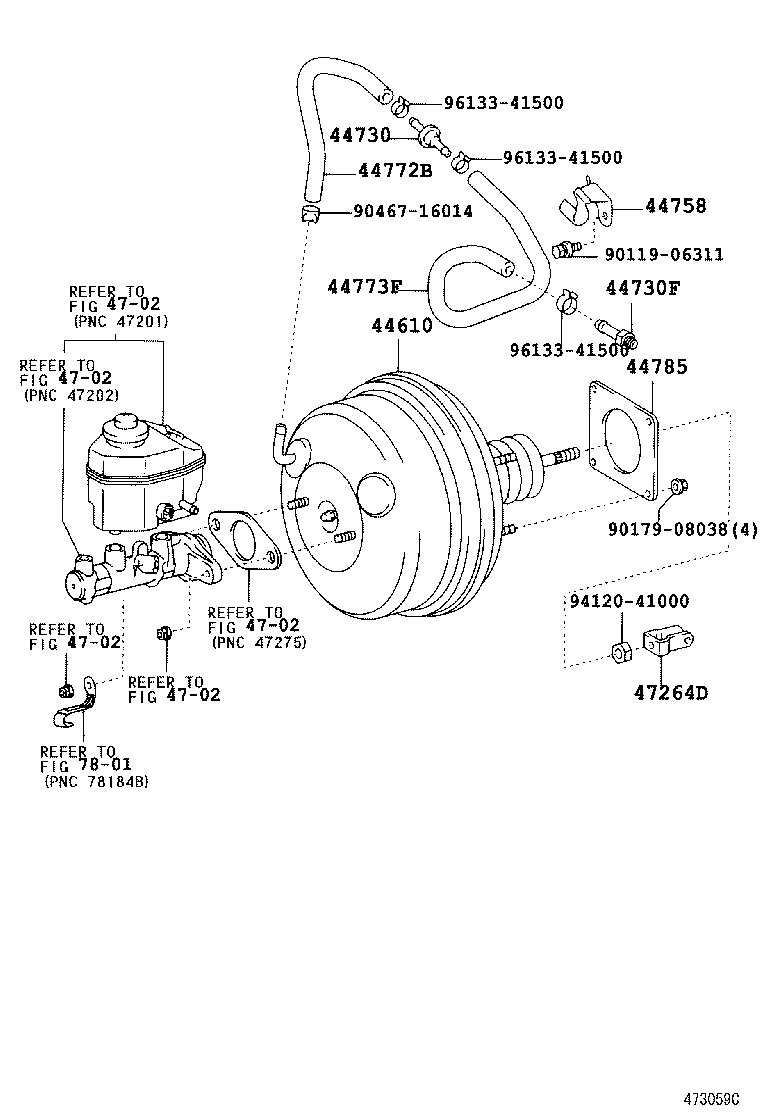

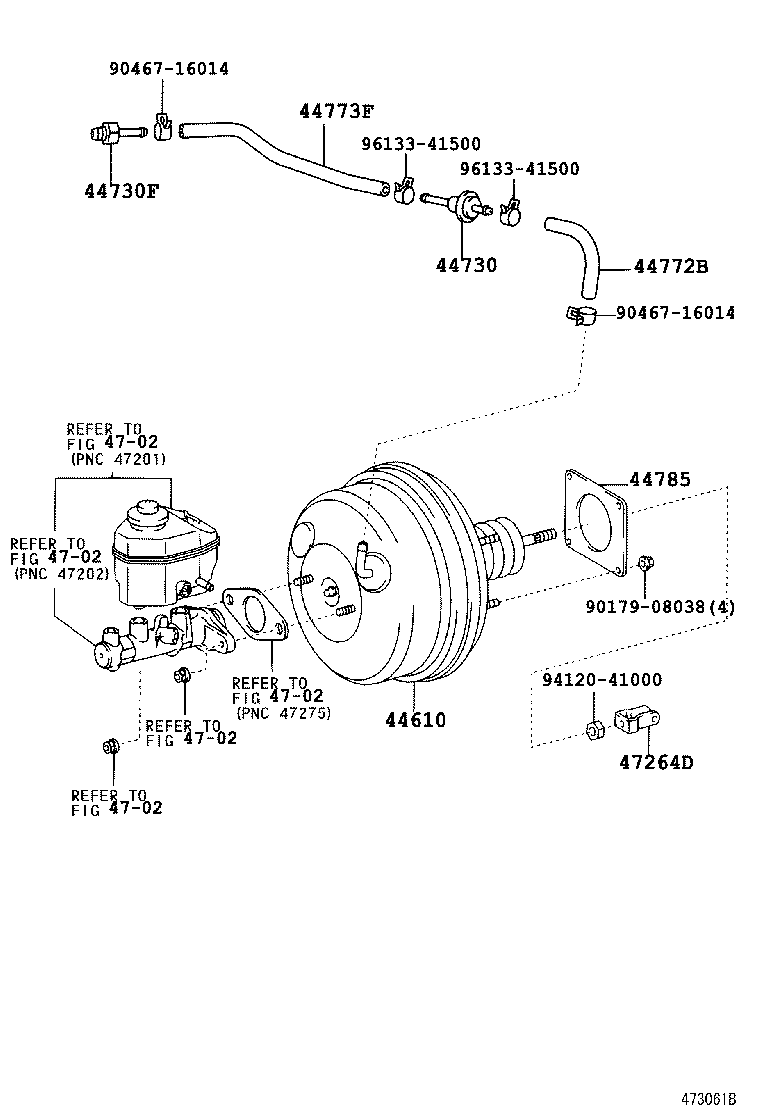

Figure 473058D 473058D 2002-08 → — Figure 473059C 473059C 2002-08 → — Figure 473060B 473060B 2002-08 → — Figure 473061B 473061B 2002-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44777 Connector, Vacuum Hose, NO.1
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
