Toyota Camry (AUSTRALIA)
2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General
Discontinued model
Data version 2006-10

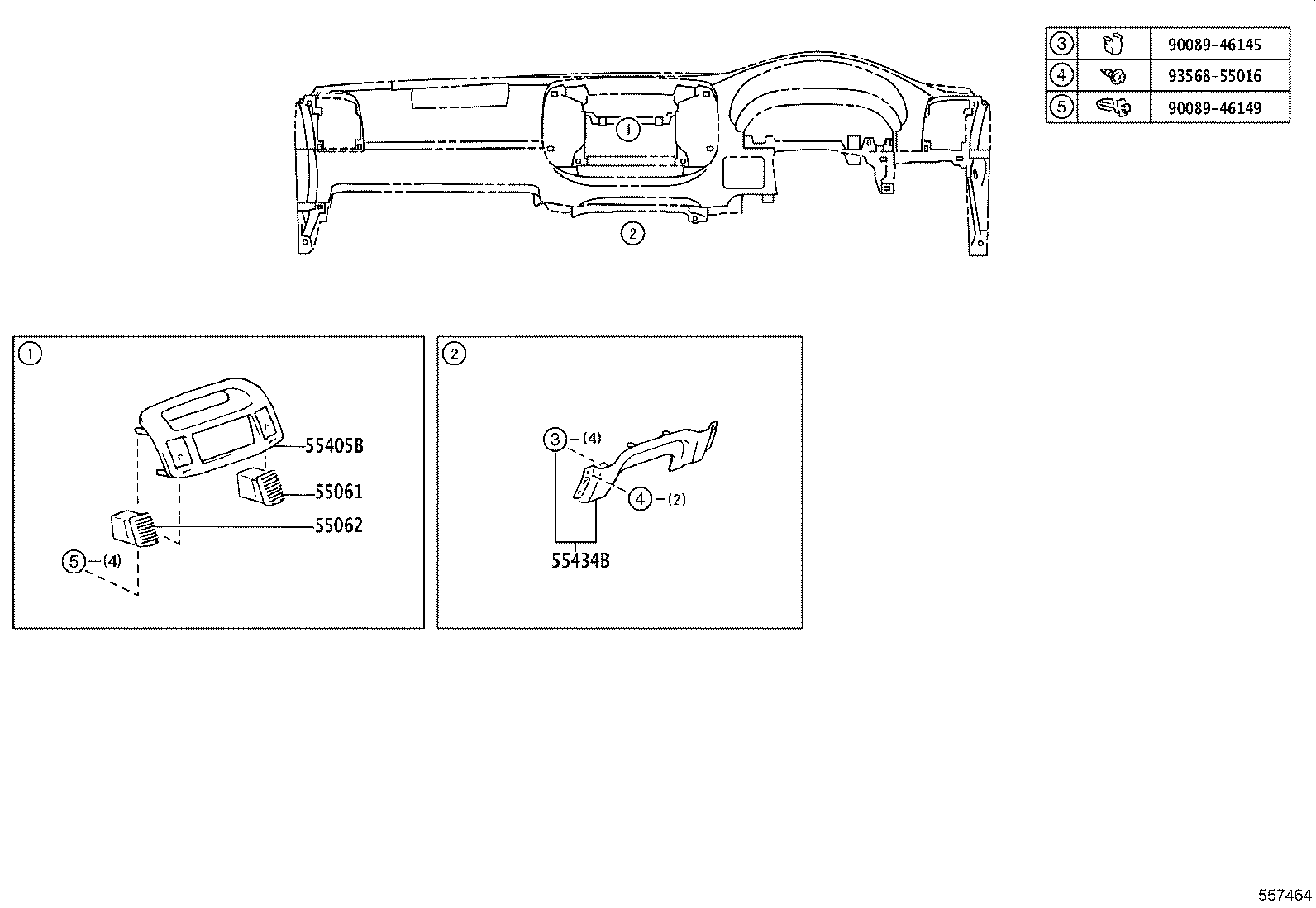

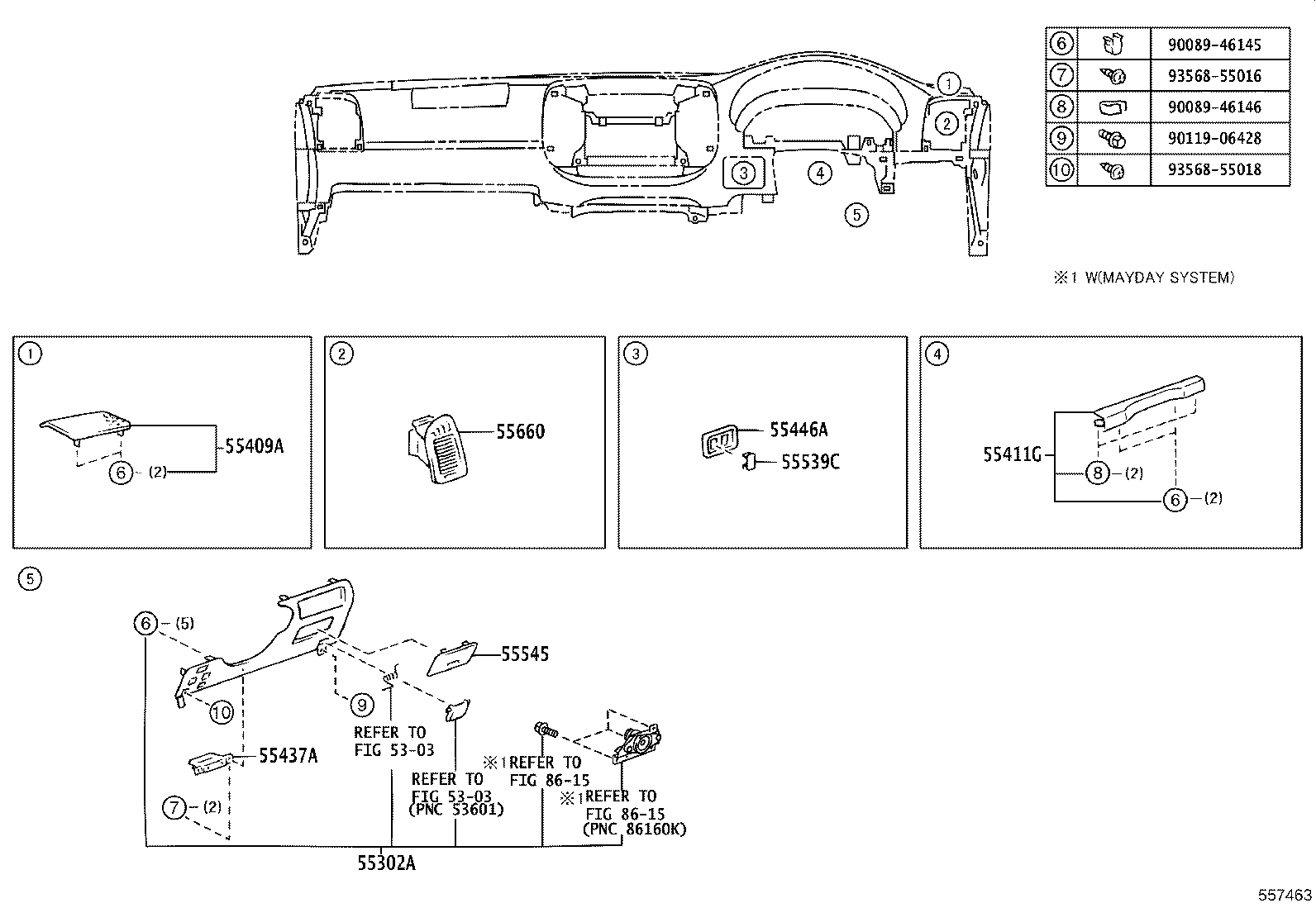

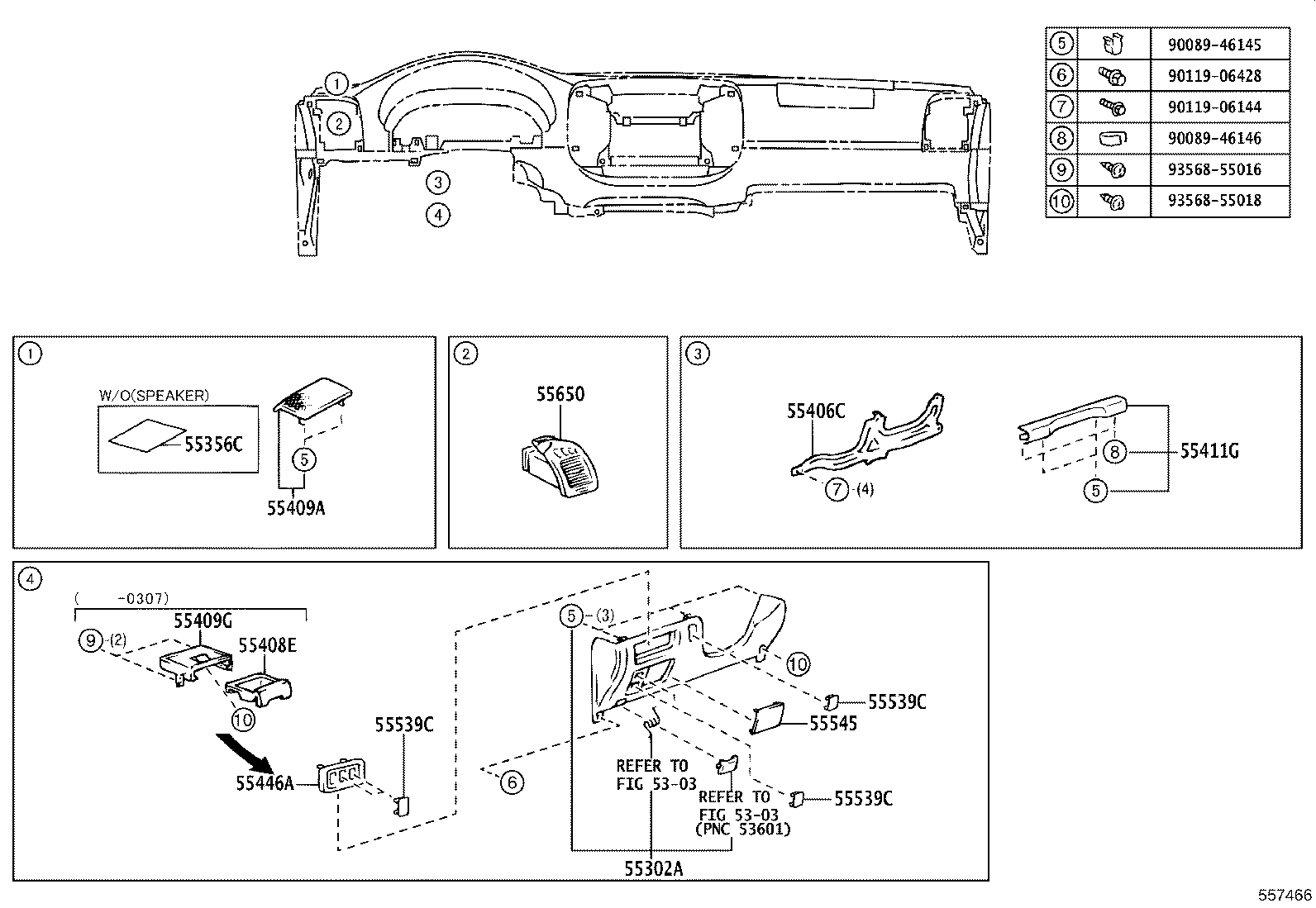

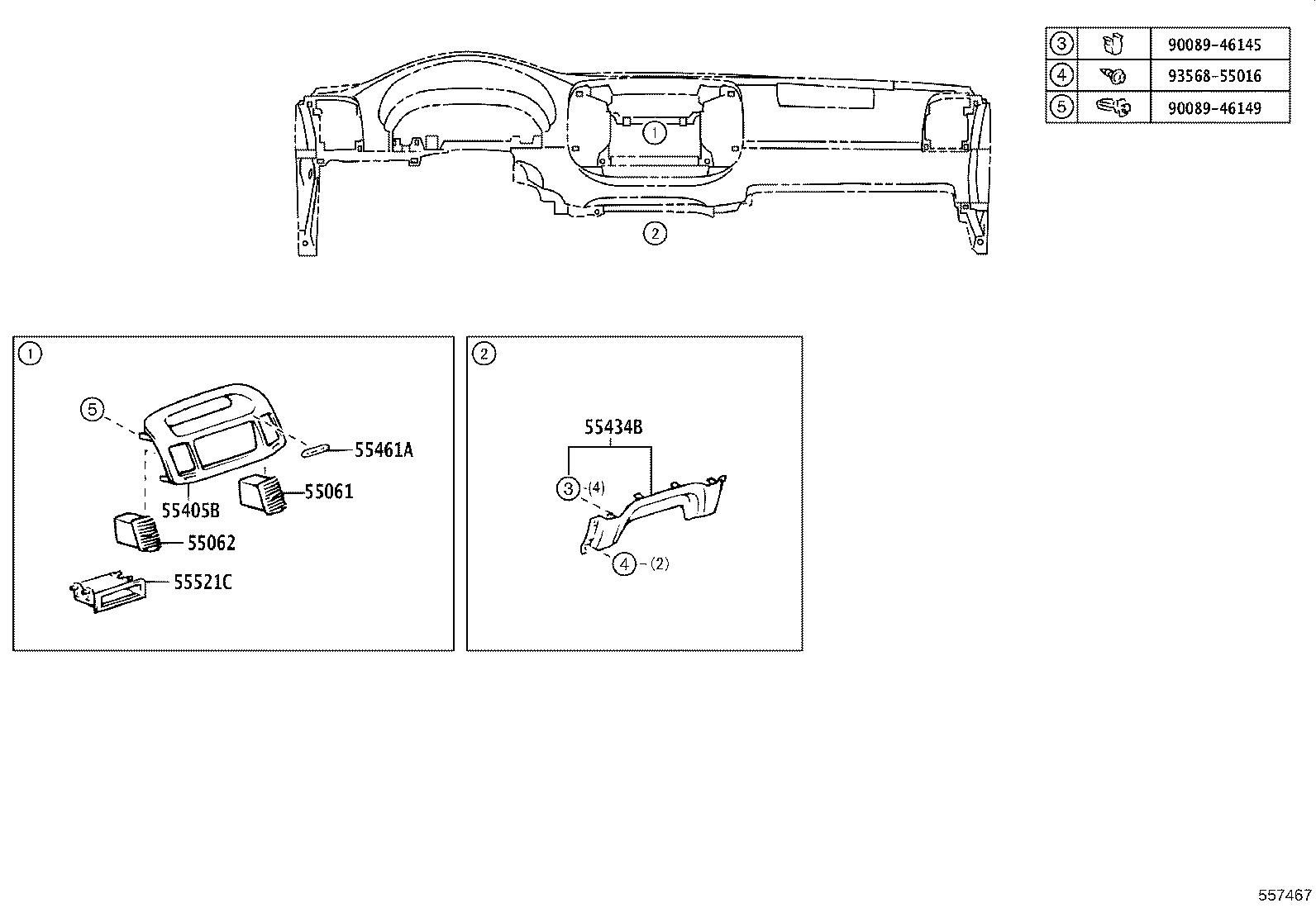

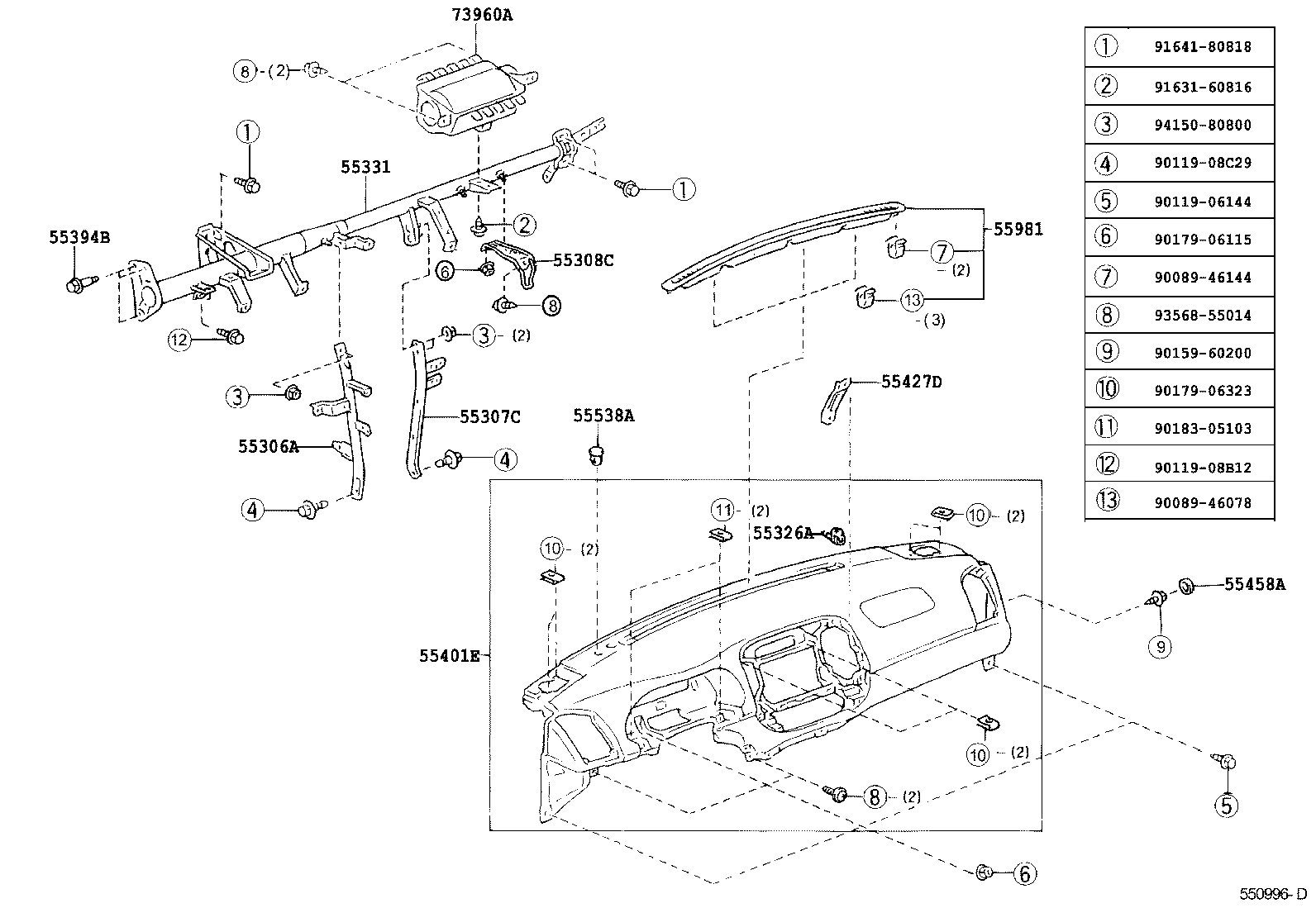

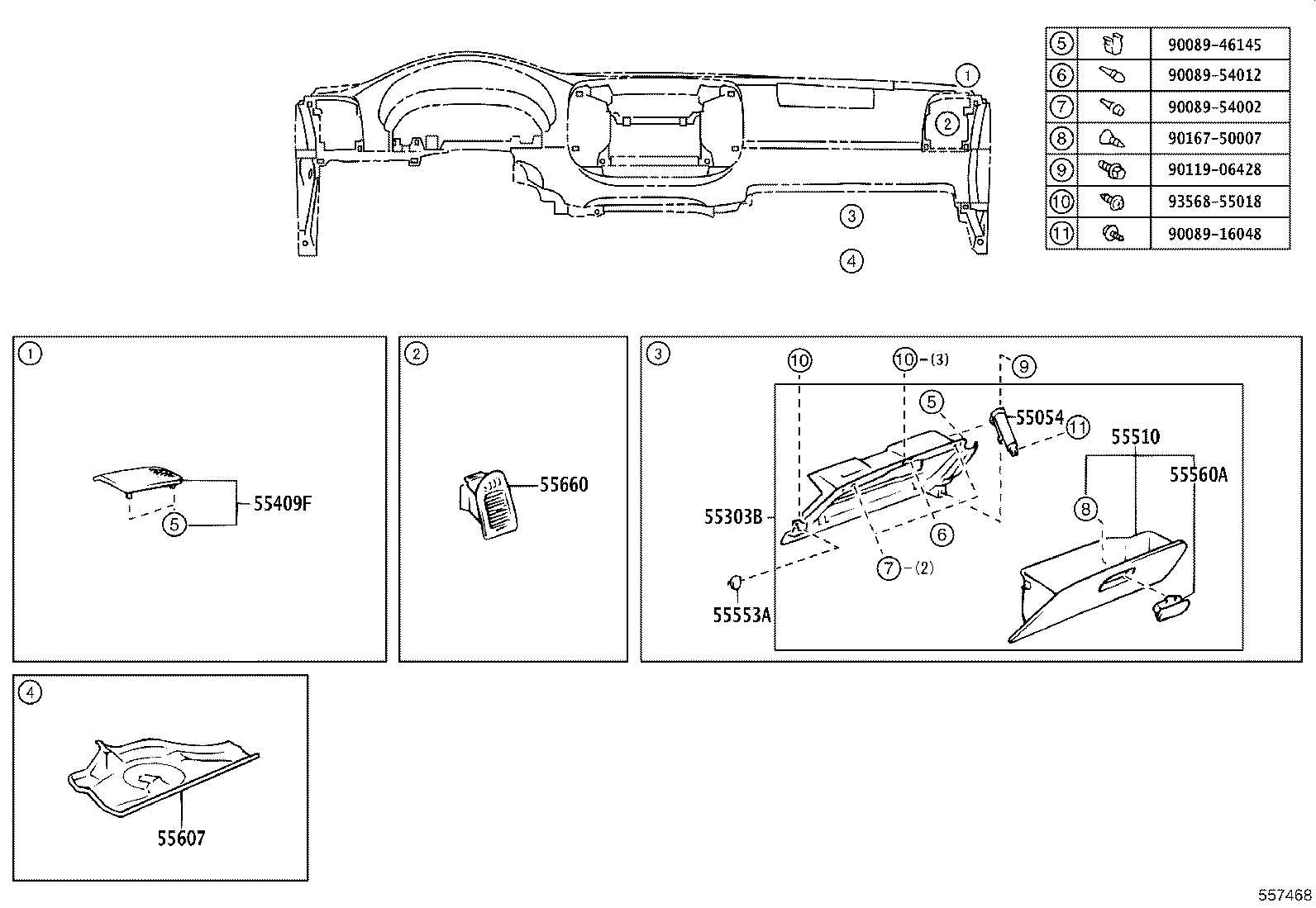

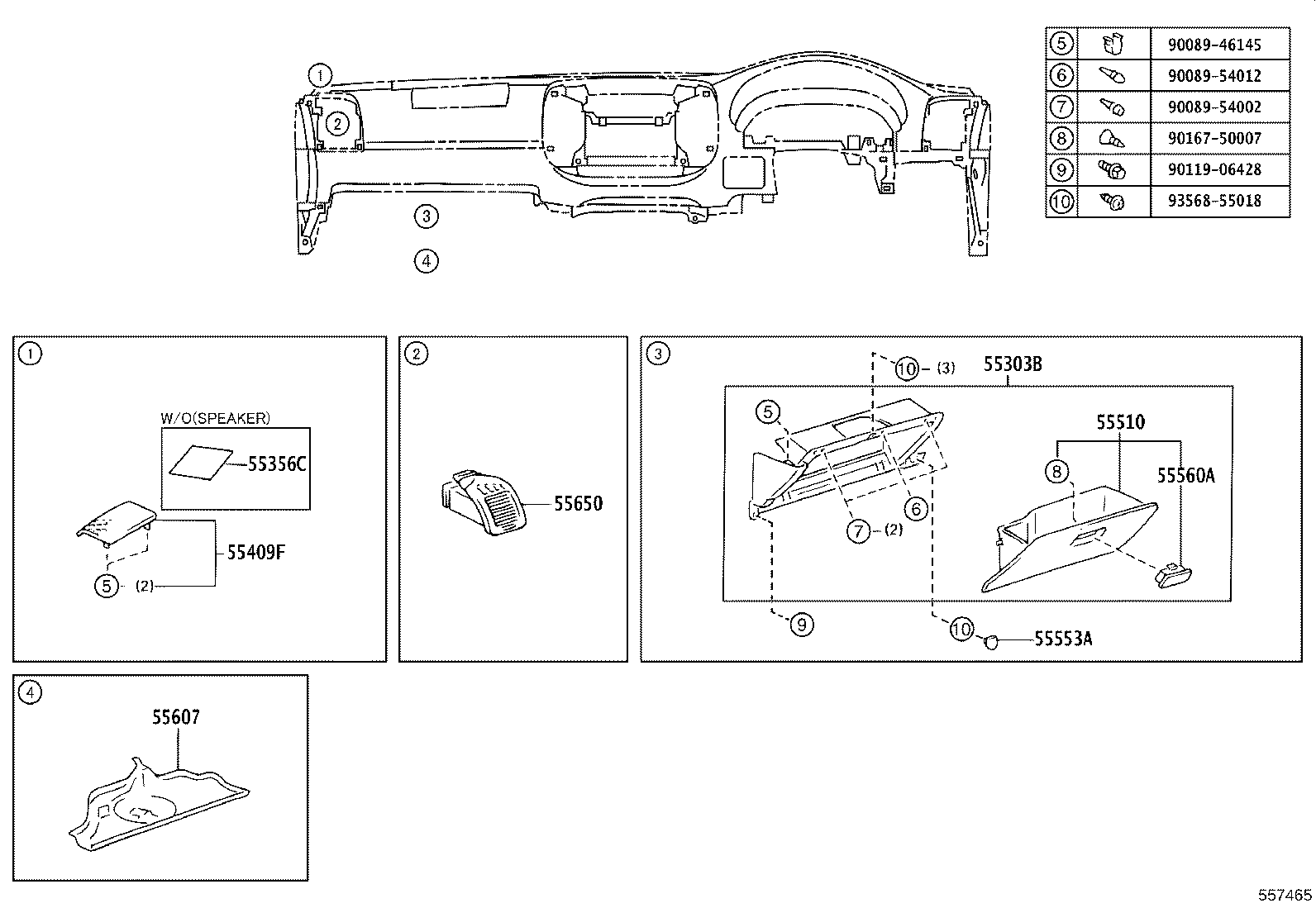

Instrument Panel & Glove Compartment
38 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406C | Insert Sub-assy, Instrument Panel, Lower LH |
| 55408E | Box Sub-assy, Instrument Panel Coin |
| 55409A | Panel Sub-assy, Instrument Panel Speaker |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55409G | Retainer Sub-assy, Coin Box |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55427D | Retainer, Instrument Finish Panel, Lower, NO.1 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55446A | Base, Switch Hole, NO.1 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55461A | Ornament, Instrument Panel |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55538A | Cover, Cooler Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55553A | Pad, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
