Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

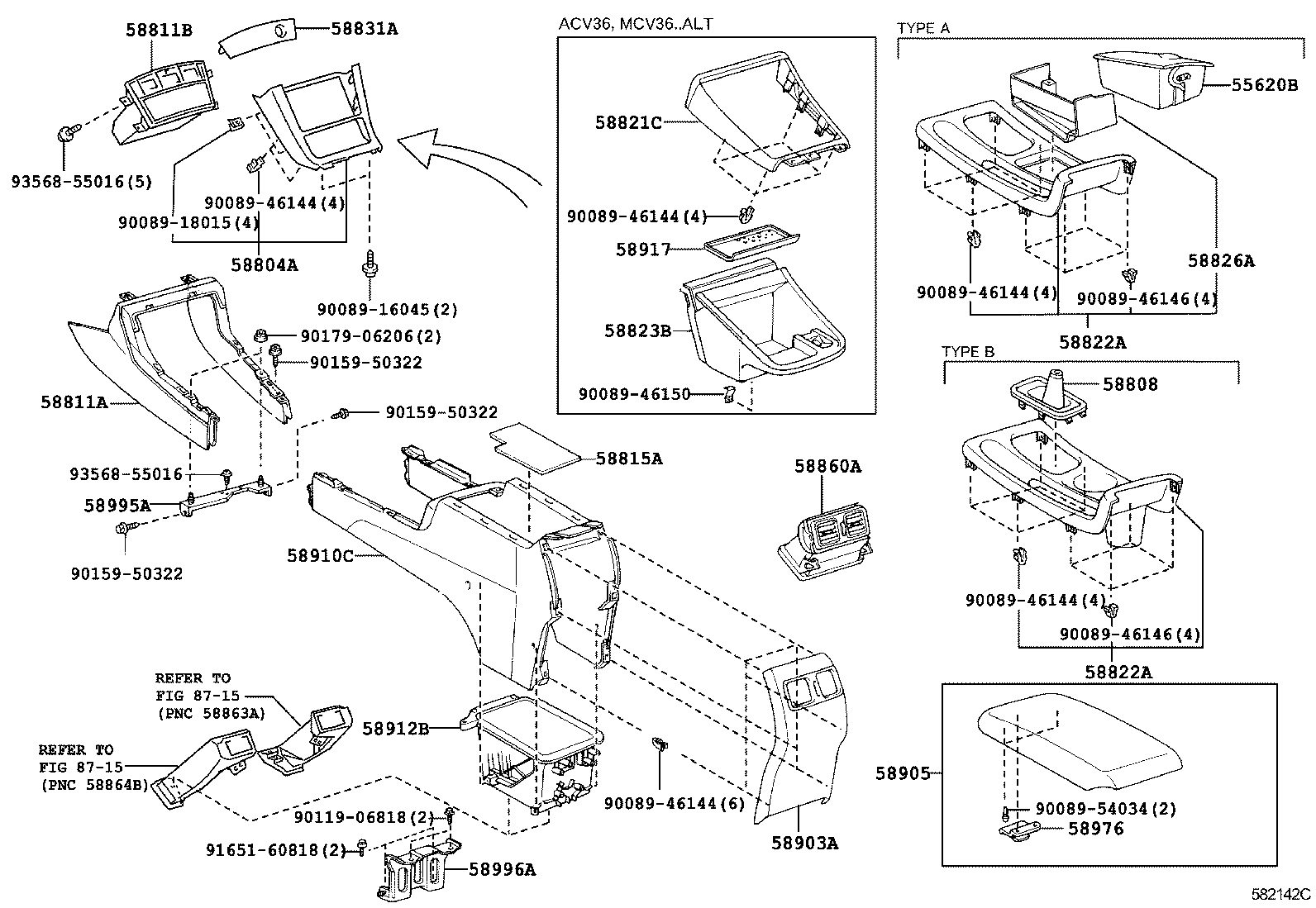

Figure 581585B 581585B 2002-08 → 2004-08 Figure 582142C 582142C 2004-08 → —

Part groups

PNCDescription
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58811B Box, Console
58815A Carpet, Console Box
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58823B Box, Console Compartment
58826A Pocket, Console Box, Lower
58831A Garnish, Console Upper Panel, Front
58860A Register Assy, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58912B Box, Rear Console, Lower
58917 Mat, Box Bottom, NO.2
58976 Striker, Console Compartment Door Lock
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
