Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

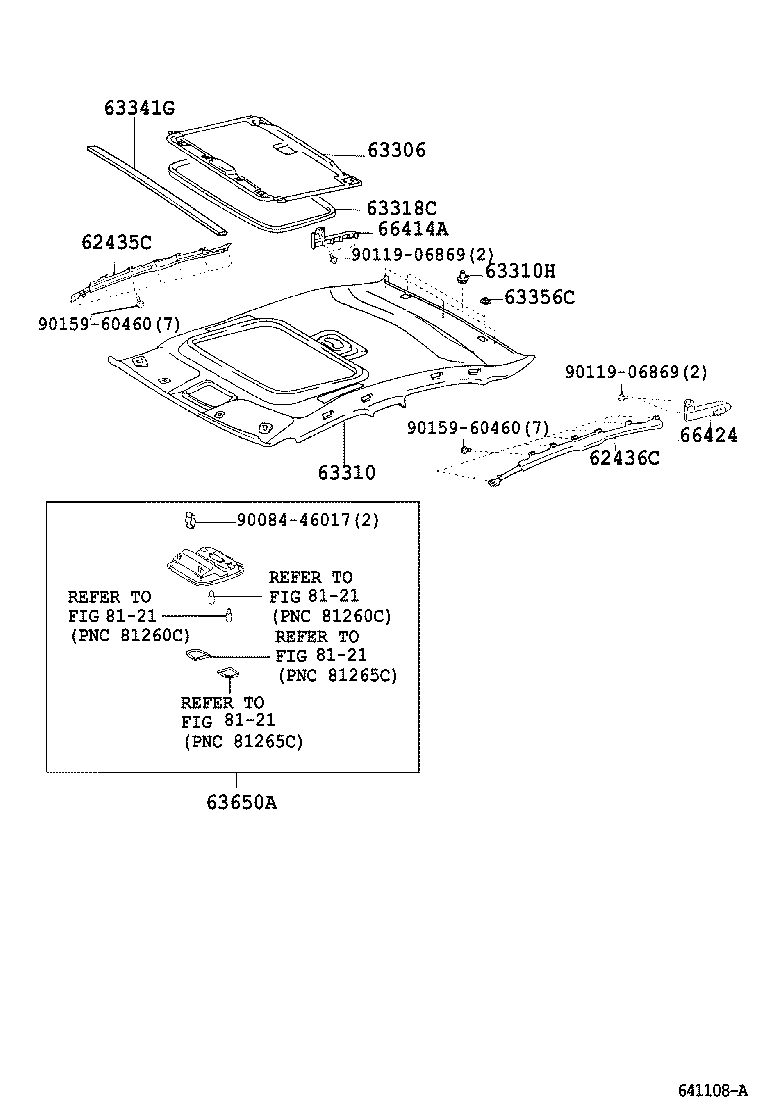

Figure 641062B 641062B 2002-08 → — Figure 641108A 641108A 2002-08 → —

Part groups

PNCDescription
62435C Pad, Roof Side Rail Garnish, RH
62436C Pad, Roof Side Rail Garnish, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341G Pad, Roof Silencer
63343 Pad, Roof Silencer, NO.3
63356C Holder, Sunshade Trim
63650A Box Assy, Roof Console
66414A Spacer, Side Rail, Rear RH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
