Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 2 illustrations

Illustrations

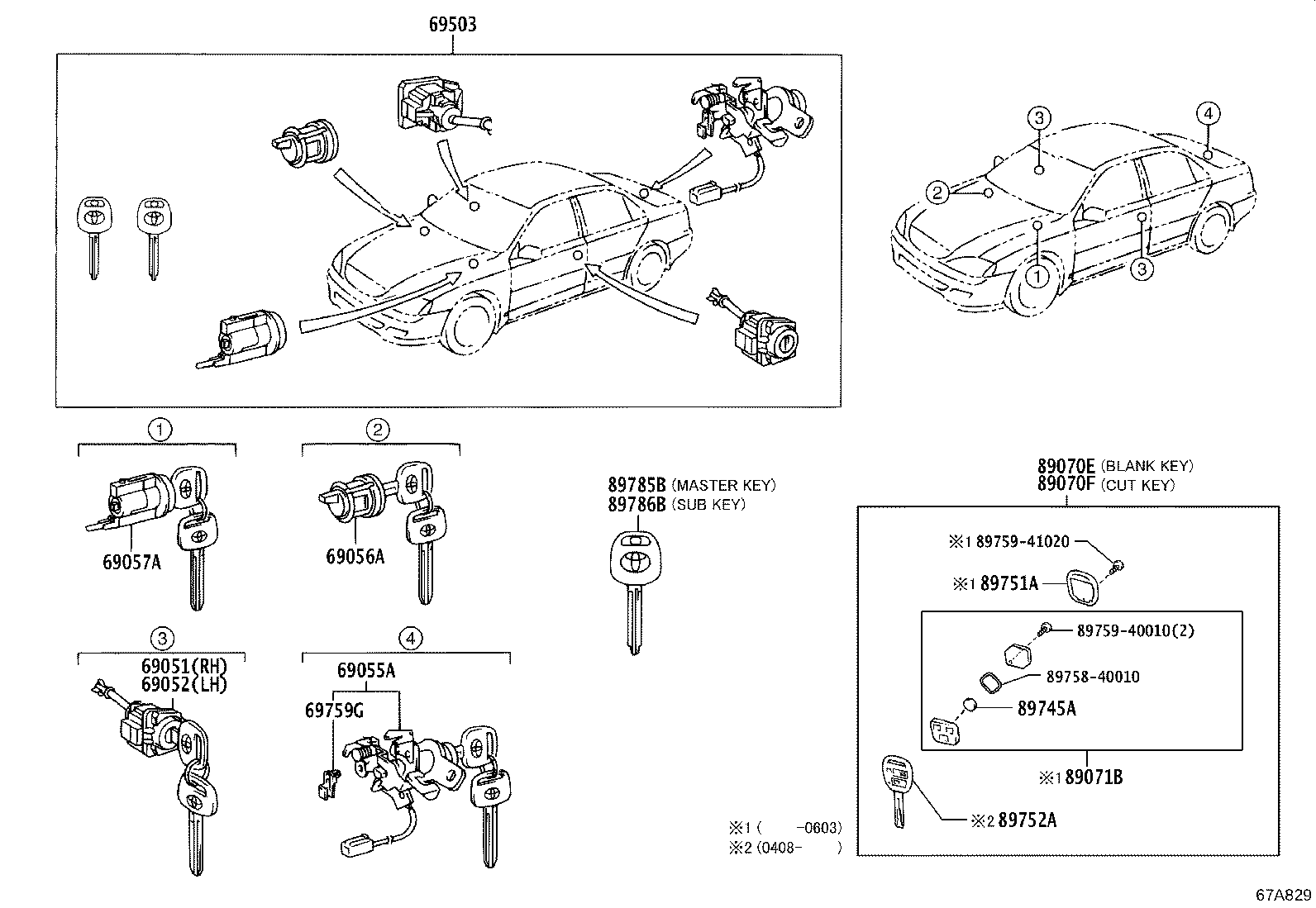

Figure 67A828 67A828 2002-08 → — Figure 67A829 67A829 2002-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89742A Transmitter, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
