Toyota Camry (AUSTRALIA)
2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General
Discontinued model
Data version 2006-10

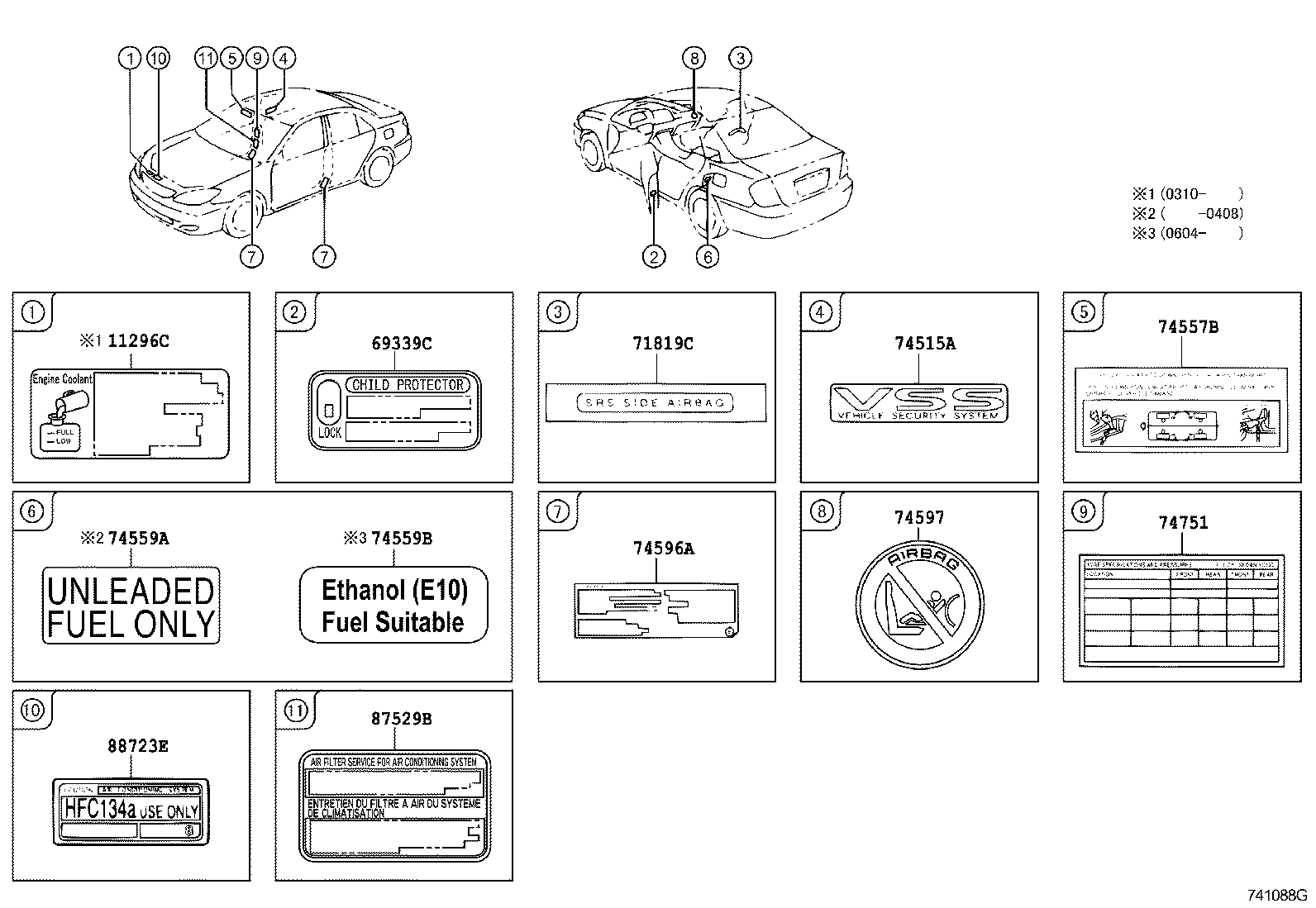

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11296C | Label, Engine Service Information |
| 13564 | Label, Timing Belt Replacement Information |
| 69339C | Label, Child Protector Information |
| 71819C | Label, Side Airbag Name |
| 74515A | Plate, Theft Warning |
| 74557B | Label, Transport Hook Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
